B1667-REVERSE LAMP CONTROL CIRCUIT LOW

8L - 66

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

WK

B1667-REVERSE LAMP CONTROL CIRCUIT LOW (CONTINUED)

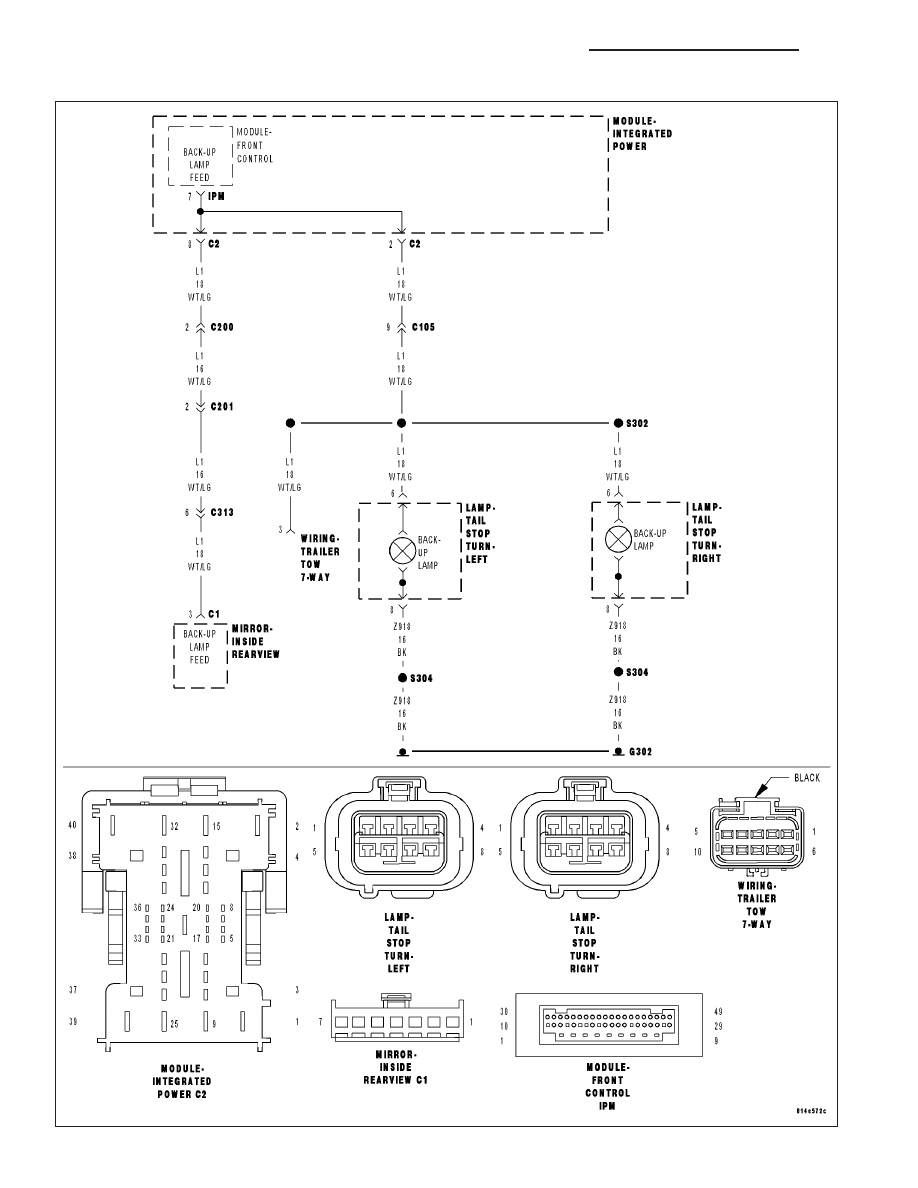

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The FCM Detects a Short to ground condition.

Possible Causes

(L1) BACK-UP LAMP FEED CIRCUIT SHORT TO GROUND

FRONT CONTROL MODULE

Diagnostic Test

1.

INTERMITTENT CONDITION

Turn the ignition on.

With the Scan Tool, clear all FCM DTC’s.

Shift the transmission into reverse.

With the Scan Tool read the DTC information.

Does the Scan Tool read: B1667-REVERSE LAMP CONTROL CIRCUIT LOW?

Yes

>> Go To 2

No

>> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible

intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

2.

(L1) BACK-UP LAMP FEED CIRCUIT

Turn the ignition off.

Disconnect the IPM C2 connector.

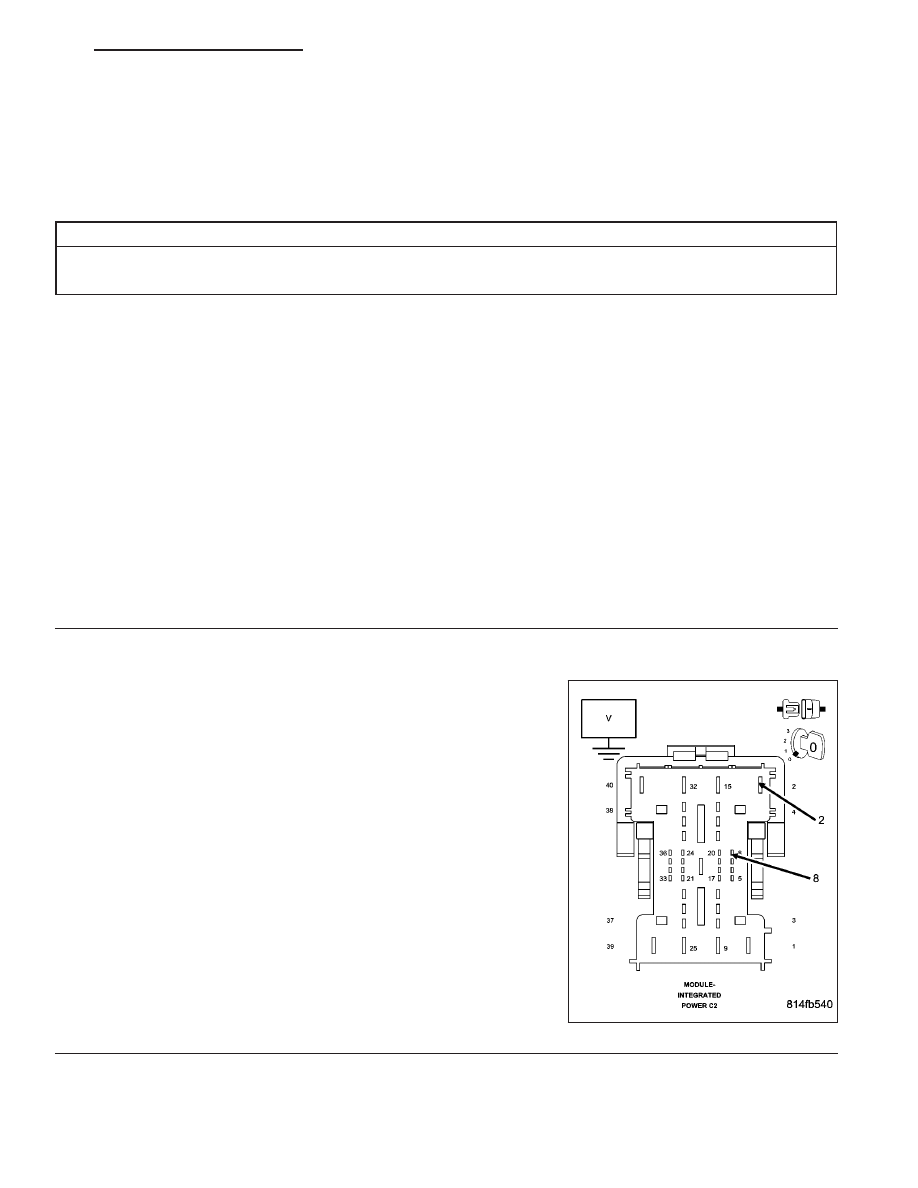

Measure the resistance between ground and the (L1) Back-up Lamp
circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (L1) Back-up Lamp circuit for a short to ground.

Perform the BODY VERIFICATION TEST - VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES
- STANDARD PROCEDURE)

No

>> Replace the Front Control Module in accordance with the

service information.

Perform the BODY VERIFICATION TEST - VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES
- STANDARD PROCEDURE)

WK

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 67

B1668-REVERSE LAMP CONTROL CIRCUIT HIGH

8L - 68

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

WK

B1668-REVERSE LAMP CONTROL CIRCUIT HIGH (CONTINUED)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The FCM detects an open condition.

Possible Causes

(L1) BACK-UP LAMP FEED CIRCUIT SHORT TO VOLTAGE

IPM

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

Clear all FCM DTC’s

Shift the transmission into reverse.

With the scan tool, read DTC’s.

Does the scan tool read: B1668-REVERSE LAMP CONTROL CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES - STANDARD PROCEDURE)

2.

(L1) BACK-UP LAMP FEED CIRCUIT SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the IPM C2 harness connector.

Turn the ignition on.

Measure the voltage on the (L1) Back-up Lamp Feed circuit.

Is the voltage greater than 10.0 volts?

Yes

>> Repair the (L1) Back-up Lamp Feed circuit for a short to

voltage.

Perform the BODY VERIFICATION TEST - VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES
- STANDARD PROCEDURE)

No

>> Replace the IPM in accordance with the service informa-

tion.

Perform the BODY VERIFICATION TEST - VER 1. (Refer
to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES
- STANDARD PROCEDURE)

WK

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 69
