Jeep Grand Cherokee WK. Manual - part 338





*NO RESPONSE FROM LRSM (RAIN SENSOR)

8E - 198

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

WK

*NO RESPONSE FROM LRSM (RAIN SENSOR) (CONTINUED)

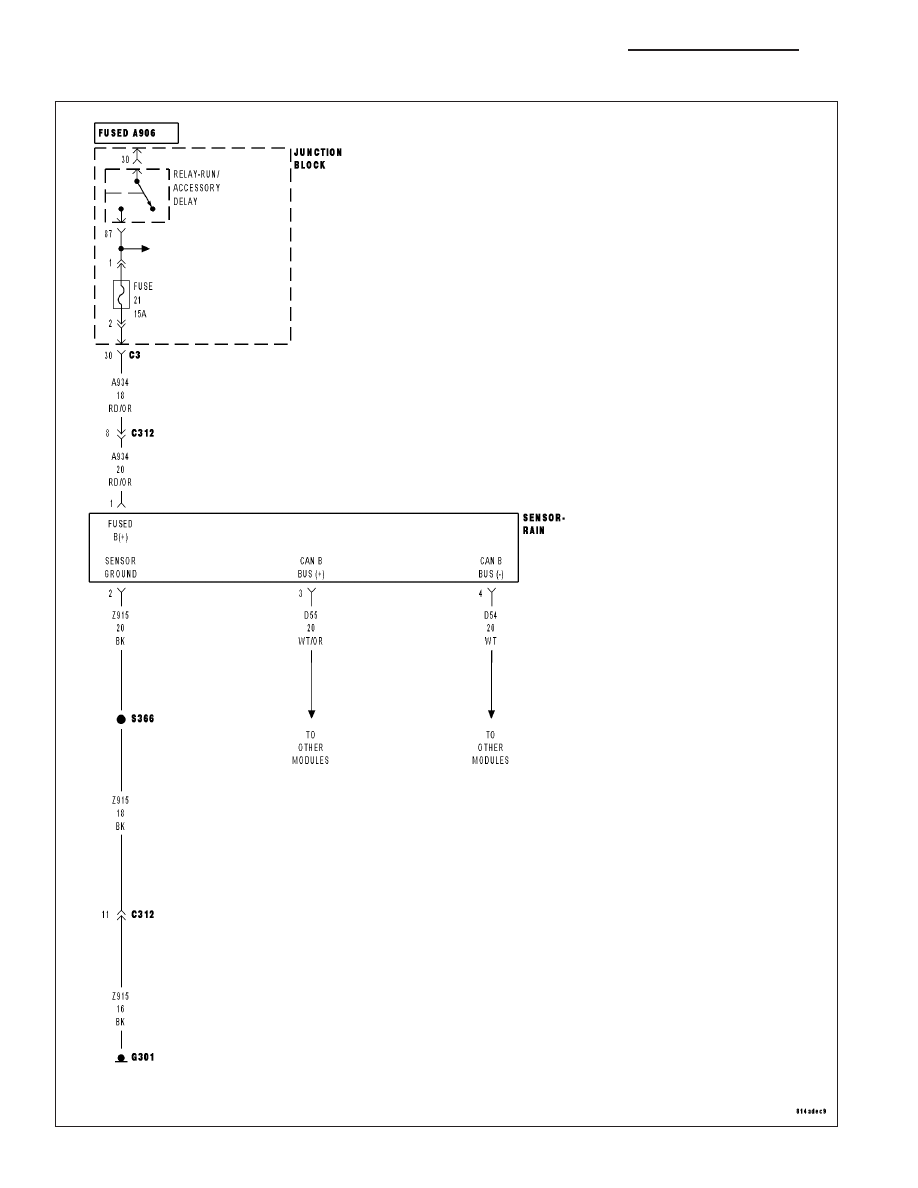

For a complete wiring diagram Refer to Section 8W.

Possible Causes

(A934) FUSED RUN/ACCESSORY RELAY OUTPUT CIRCUIT OPEN OR SHORTED

(Z915) GROUND CIRCUIT OPEN

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

RAIN SENSOR

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
With the scan tool, select ECU view.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active
on the Bus network. A green check indicates that the module is active on the Bus network.

Does the scan tool display a red X next to the module?

Yes

>> Go To 2

No

>> The no response condition is not present at this time. Using the wiring diagram/schematic as a guide,

inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness con-
nectors for broken, bent , pushed out, and corroded terminals.

2.

(A934) FUSED RUN/ACCESSORY RELAY OUTPUT CIRCUIT OPEN OR SHORTED

NOTE: Check the FCM for any ignition related DTCs before pro-
ceeding. If set (Refer to 8 - ELECTRICAL/IGNITION CONTROL -
DIAGNOSIS AND TESTING).
Turn the ignition off.

Disconnect the Rain Sensor harness connector.

Turn the ignition on.

Using a 12-volt test light connected to ground, check the (A934) Fused
Run/Accessory Relay Output circuit.

Does the test light illuminate brightly?

Yes

>> Go To 3

No

>> Repair the (A934) Fused Run/Accessory Relay Output cir-

cuit for an open or short.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

WK

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 199

*NO RESPONSE FROM LRSM (RAIN SENSOR) (CONTINUED)

3.

(Z915) GROUND CIRCUIT OPEN

Turn the ignition off.

Using a 12-volt test light connected to 12-volts, check the (Z915)
ground circuit.

Does the test light illuminate brightly?

Yes

>> Go To 4

No

>> Repair the (Z915) ground circuit for an open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

4.

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

NOTE: One open circuit will not cause this condition.
Measure the voltage between the (D54) CAN B Bus (-) circuit and
ground.

Measure the voltage between the (D55) CAN B Bus (+) circuit and
ground.

Is there any voltage present on either circuit?

Yes

>> Replace the Rain Sensor in accordance with the service

information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Repair the (D55) and (D54) CAN B Bus circuits for an

open. Inspect the connector for damage.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

8E - 200

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

WK

*NO RESPONSE FROM MSMD (MEMORY SEAT MODULE)

WK

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 201
