*NO RESPONSE FROM FDCM (FINAL DRIVE CONTROL MODULE) (CONTINUED)

For a complete wiring diagram Refer to Section 8W.

Possible Causes

(A926) (A909) (A927) FUSED B(+) CIRCUIT OPEN OR SHORTED

(Z901) (Z902) (Z913) GROUND CIRCUIT OPEN

(F921) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR SHORTED

(D65) CAN C BUS (+) CIRCUIT OPEN

(D64) CAN C BUS (-) CIRCUIT OPEN

FINAL DRIVE CONTROL MODULE

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
With the scan tool, select ECU view.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active
on the Bus network. A green check indicates that the module is active on the Bus network.

NOTE: Check the FCM for any active CAN C hardware DTCs, perform DTC before proceeding.

Does the scan tool display a red X next to the module?

Yes

>> Go To 2

No

>> The no response condition is not present at this time. Using the wiring diagram/schematic as a guide,

inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness con-
nectors for broken, bent , pushed out, and corroded terminals.

2.

FUSED B(+) CIRCUIT OPEN OR SHORTED

Turn the ignition off.

Disconnect the Final Drive Control Module harness connectors.

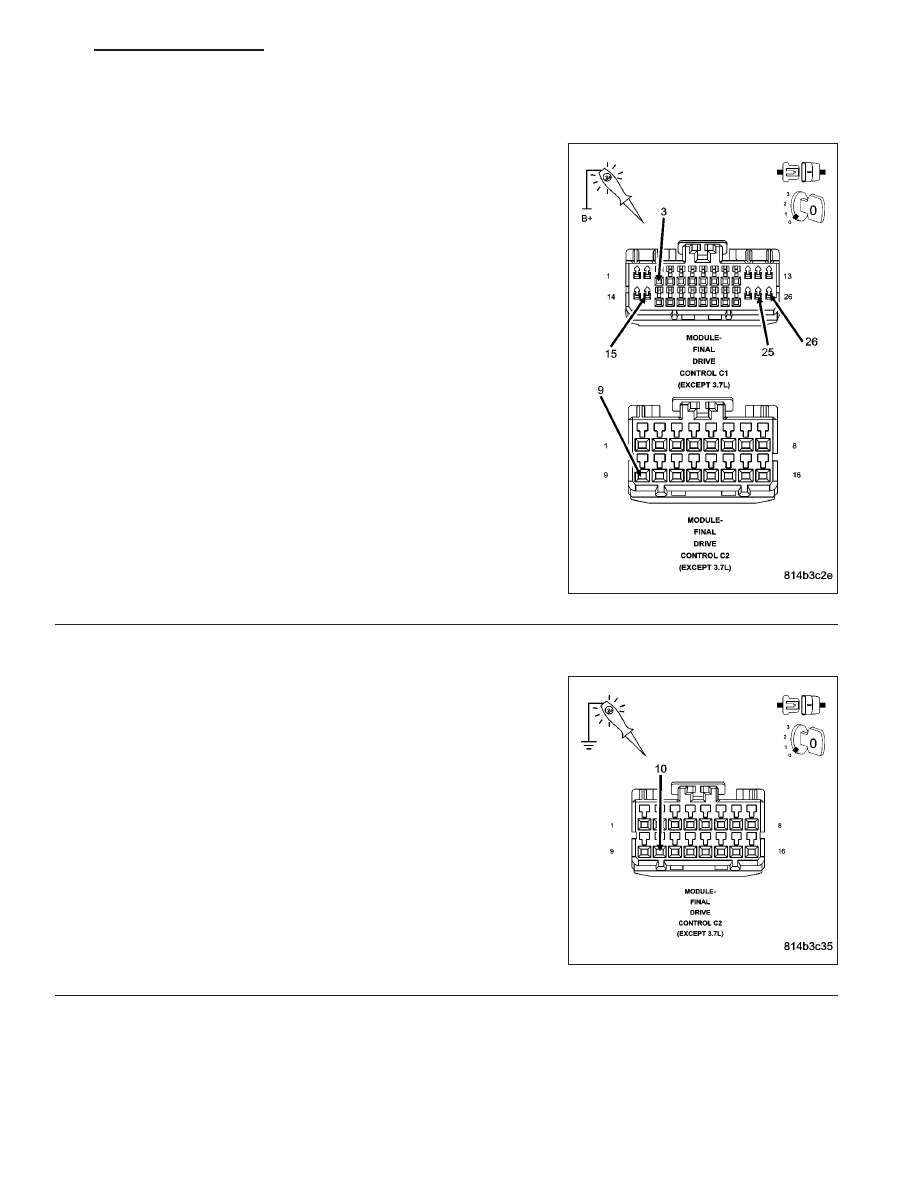

Using a 12-volt test light connected to ground, check each Fused B(+)
circuit.

Does the test light illuminate brightly for each circuit?

Yes

>> Go To 3

No

>> Repair the Fused B(+) circuit for an open or short.

Perform the FDCM VERIFICATION TEST.

8E - 182

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

WK

*NO RESPONSE FROM FDCM (FINAL DRIVE CONTROL MODULE) (CONTINUED)

3.

GROUND CIRCUIT OPEN

Using a 12-volt test light connected to 12-volts, check each Ground
circuit.

Does the test light illuminate brightly for each circuit?

Yes

>> Go To 4

No

>> Repair the ground circuit for an open.

Perform the FDCM VERIFICATION TEST.

4.

(F921) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR SHORTED

Turn the ignition on.

Using a 12-volt test light connected to ground, check the (F921) Fused
Run Relay Output circuit.

Does the test light illuminate brightly?

Yes

>> Go To 5

No

>> Repair the (F921) Fused Run Relay Output circuit for an

open or short.

Perform the FDCM VERIFICATION TEST.

WK

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 183

*NO RESPONSE FROM FDCM (FINAL DRIVE CONTROL MODULE) (CONTINUED)

5.

(D65) CAN C BUS (+) CIRCUIT OPEN

Turn the ignition off.

Disconnect the FCM C1 harness connector.

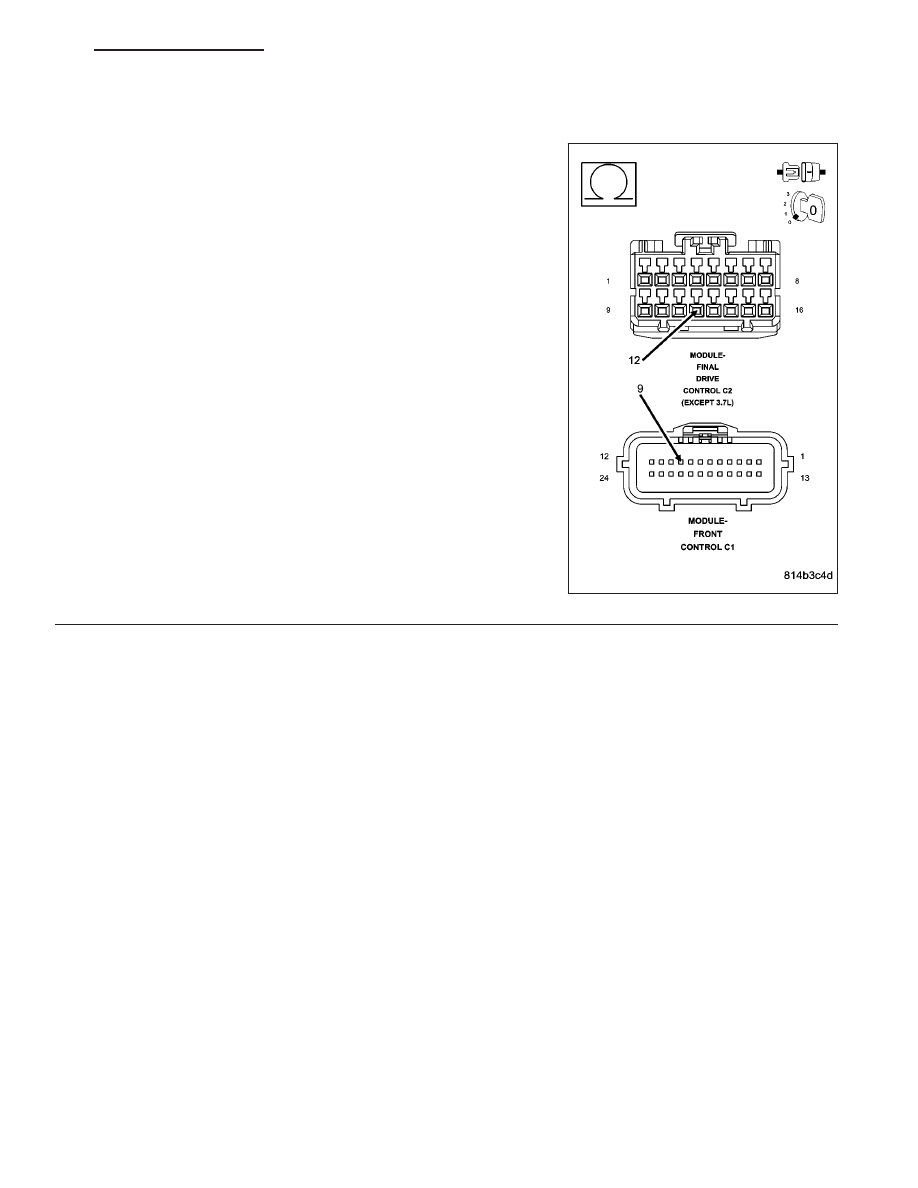

Measure the resistance of the (D65) CAN C Bus (+) circuit between
the FCM connector and the FDCM connector.

Is resistance below 5.0 ohms?

Yes

>> Go To 6

No

>> Repair the (D65) CAN C Bus (+) circuit for an open.

Perform the FDCM VERIFICATION TEST.

8E - 184

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

WK

*NO RESPONSE FROM FDCM (FINAL DRIVE CONTROL MODULE) (CONTINUED)

6.

(D64) CAN C BUS (-) CIRCUIT OPEN

Measure the resistance of the (D64) CAN C Bus (-) circuit between
the FCM connector and the FDCM connector.

Is resistance below 5.0 ohms?

Yes

>> Replace the Final Drive Control Module in accordance with

the service information.

Perform the FDCM VERIFICATION TEST.

No

>> Repair the (D64) CAN C Bus (-) circuit for an open.

Perform the FDCM VERIFICATION TEST.
