Jeep Grand Cherokee WK. Manual - part 282





U1002-PTS DISPLAY COMMUNICATION CIRCUIT LOW (CONTINUED)

6.

CHECK THE (D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT FOR A SHORT TO GROUND

Measure the resistance between ground and the (D777) Park Assist
Display Signal circuit.

Is the resistance below 10K ohms?

Yes

>> Repair the (D777) Park Assist Display Signal circuit for a

short to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

No

>> Replace the Park Assist Display in accordance with the

service information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

8B - 54

CHIME/BUZZER - ELECTRICAL DIAGNOSTICS

WK

U1101-LOST COMMUNICATION WITH PTS DISPLAY

WK

CHIME/BUZZER - ELECTRICAL DIAGNOSTICS

8B - 55

U1101-LOST COMMUNICATION WITH PTS DISPLAY (CONTINUED)

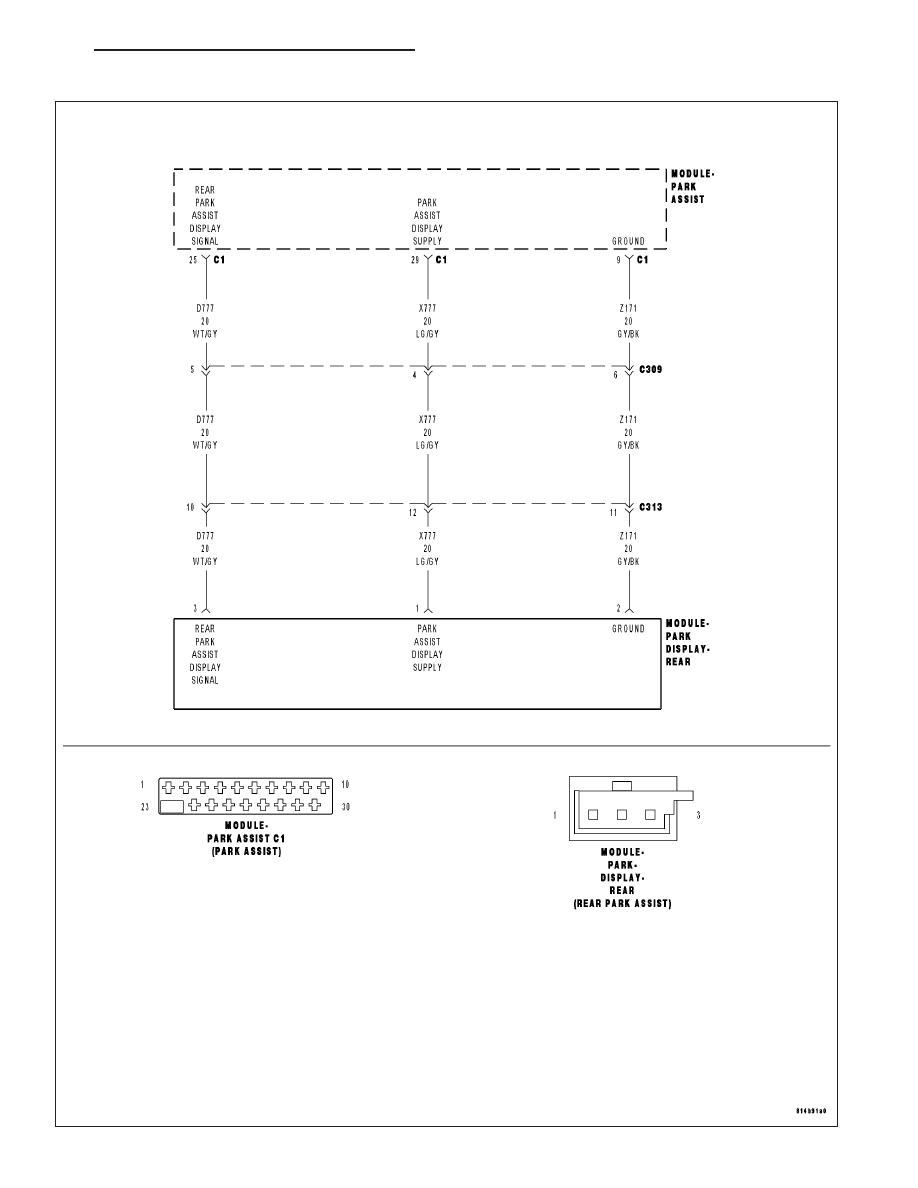

For the Park Assist circuit diagram (Refer to 8 - ELECTRICAL/CHIME/BUZZER - SCHEMATIC - ELECTRICAL).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
While the vehicle is in reverse for speeds less than 16km/h.

Set Condition:
Data display line open.

Possible Causes

(D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT OPEN

(X777) PARK ASSIST DISPLAY SUPPLY CIRCUIT OPEN

(Z171) PARK ASSIST DISPLAY GROUND CIRCUIT OPEN

PARK ASSIST DISPLAY

PARK ASSIST MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC: U1101-LOST COMMUNICATION WITH PTS DISPLAY

Turn the ignition on.

Apply the vehicle park brake.

Shift the transmission into Reverse.

With the scan tool, record and erase Park Assist Module DTCs.

Wait 30 seconds.

With the scan tool, read Park Assist Module DTCs.

Is DTC: U1101-LOST COMMUNICATION WITH PTS DISPLAY active?

Yes

>> Go To 2

No

>> The condition that caused this code to set is not present at this time. Check for an intermittent condition

by inspecting the related wiring harness for chaffed, pierced, pinched, and partially broken wires. Also
inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated termi-
nals.

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

8B - 56

CHIME/BUZZER - ELECTRICAL DIAGNOSTICS

WK

U1101-LOST COMMUNICATION WITH PTS DISPLAY (CONTINUED)

2.

CHECK THE (D777) PARK ASSIST DISPLAY SIGNAL CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Park Assist Module harness connector.

Disconnect the Park Assist Display Module harness connector.

Measure the resistance of the (D777) Park Assist Display Signal circuit
between the Park Assist Module harness connector and the Park
Assist Display harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 3

No

>> Repair the (D777) Park Assist Display Signal circuit for an

open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

3.

CHECK THE (X777) PARK ASSIST DISPLAY SUPPLY CIRCUIT FOR AN OPEN

Measure the resistance of the (X777) Park Assist Display Supply cir-
cuit between the Park Assist Module harness connector and the Park
Assist Display harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the (X777) Park Assist Display Supply circuit for an

open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

WK

CHIME/BUZZER - ELECTRICAL DIAGNOSTICS

8B - 57
