INSTALLATION

1. Connect

electrical

harness

connector

to

DVD

player.

2. Position player to console and press into place.

3. Connect battery negative cable.

RADIO

DESCRIPTION

Available radios include:

AM/FM/CD (REF sales code)

AM/FM/6 disc CD/MP3 (RAQ sales code)

AM/FM/cassette/CD/RDS/MP3

(RAK

sales code)

AM/FM/6CD/RDS/MP3/Navigation with
integrated display (REC sales code)

AM/FM/CD/RDS/MP3 (RAR sales
code) - export only

AM/FM/CD (REG sales code) -
export only

AM/FM/6CD/RDS/MP3/Navi-
gation

with

inte-

grated display (REJ
sales code) - export
only

8A - 188

AUDIO/VIDEO - SERVICE INFORMATION

WK

REMOVAL

WARNING:

DISABLE

THE

AIRBAG

SYSTEM

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING COLUMN, SEAT BELT TENSIONER,
SIDE AIRBAG, OR INSTRUMENT PANEL COMPO-
NENT DIAGNOSIS OR SERVICE. DISCONNECT
AND

ISOLATE

THE

BATTERY

NEGATIVE

(GROUND) CABLE, THEN WAIT TWO MINUTES
FOR THE AIRBAG SYSTEM CAPACITOR TO DIS-
CHARGE BEFORE PERFORMING FURTHER DIAG-
NOSIS OR SERVICE. THIS IS THE ONLY SURE
WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

1. Disconnect and isolate the battery negative cable.

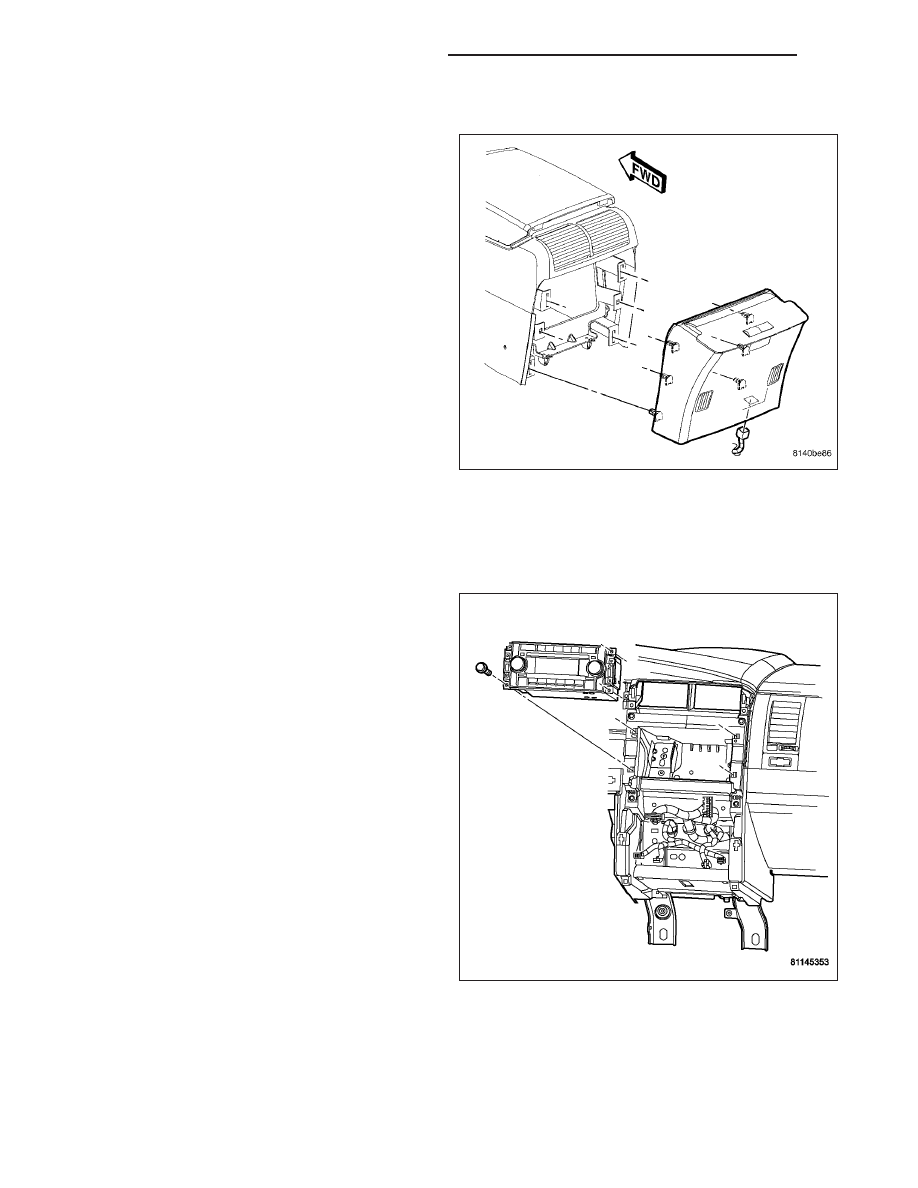

2. Remove the instrument panel center bezel (Refer

to

23

-

BODY/INSTRUMENT PANEL/INSTRU-

MENT PANEL CENTER BEZEL - REMOVAL).

3. Remove the radio mounting fasteners.

CAUTION: Pulling the antenna cable straight out
of the radio without pulling on the locking antenna
connector could damage the cable or radio.

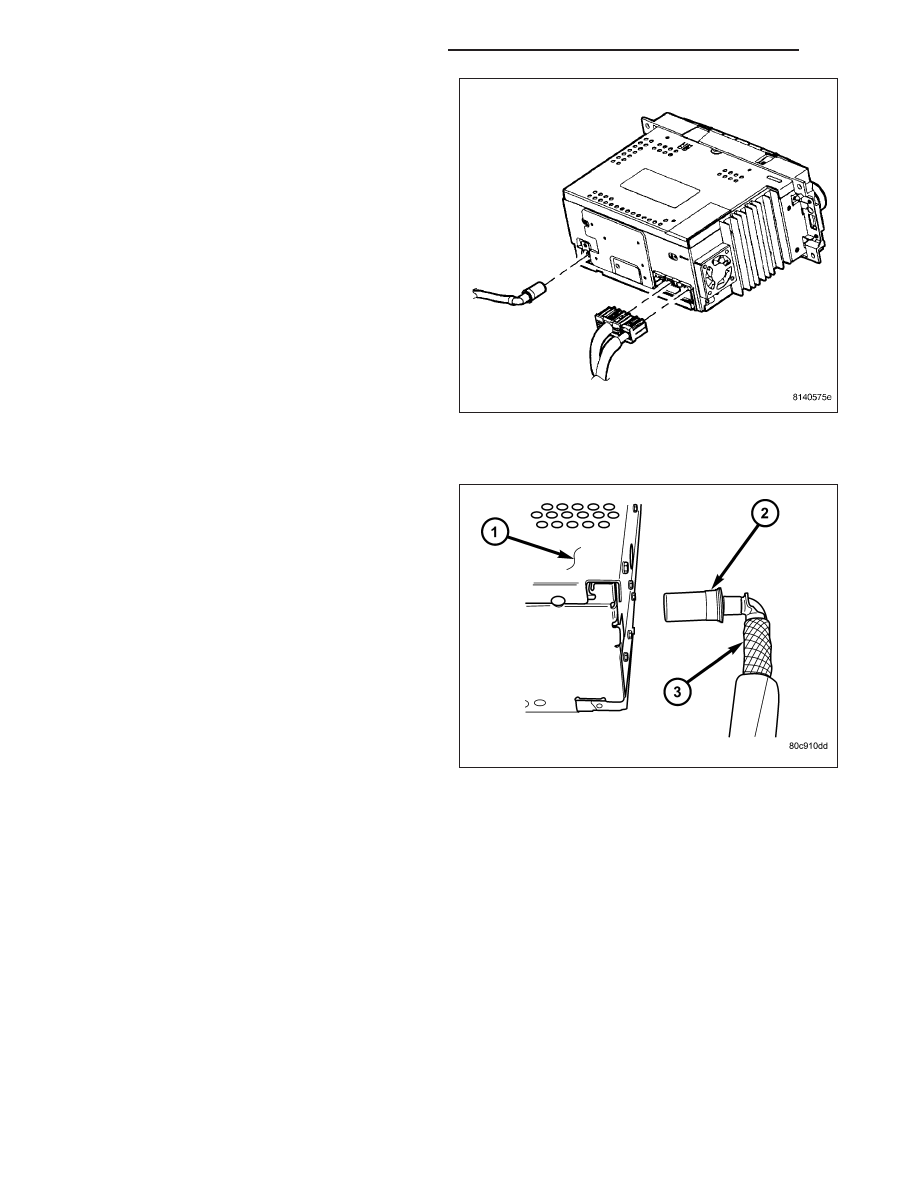

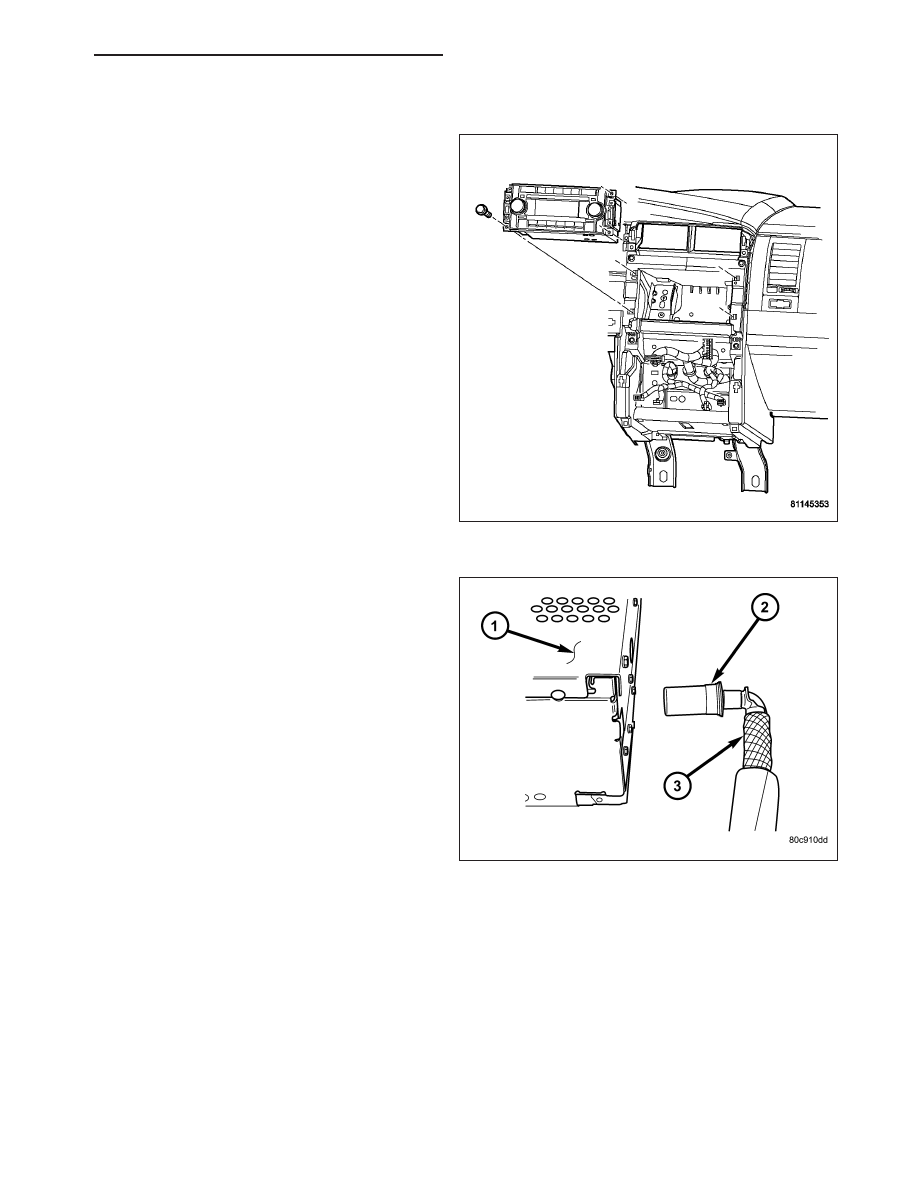

4. Disconnect the antenna cable (3) by pulling the

locking antenna connector (2) away from the radio
(1).

WK

AUDIO/VIDEO - SERVICE INFORMATION

8A - 189

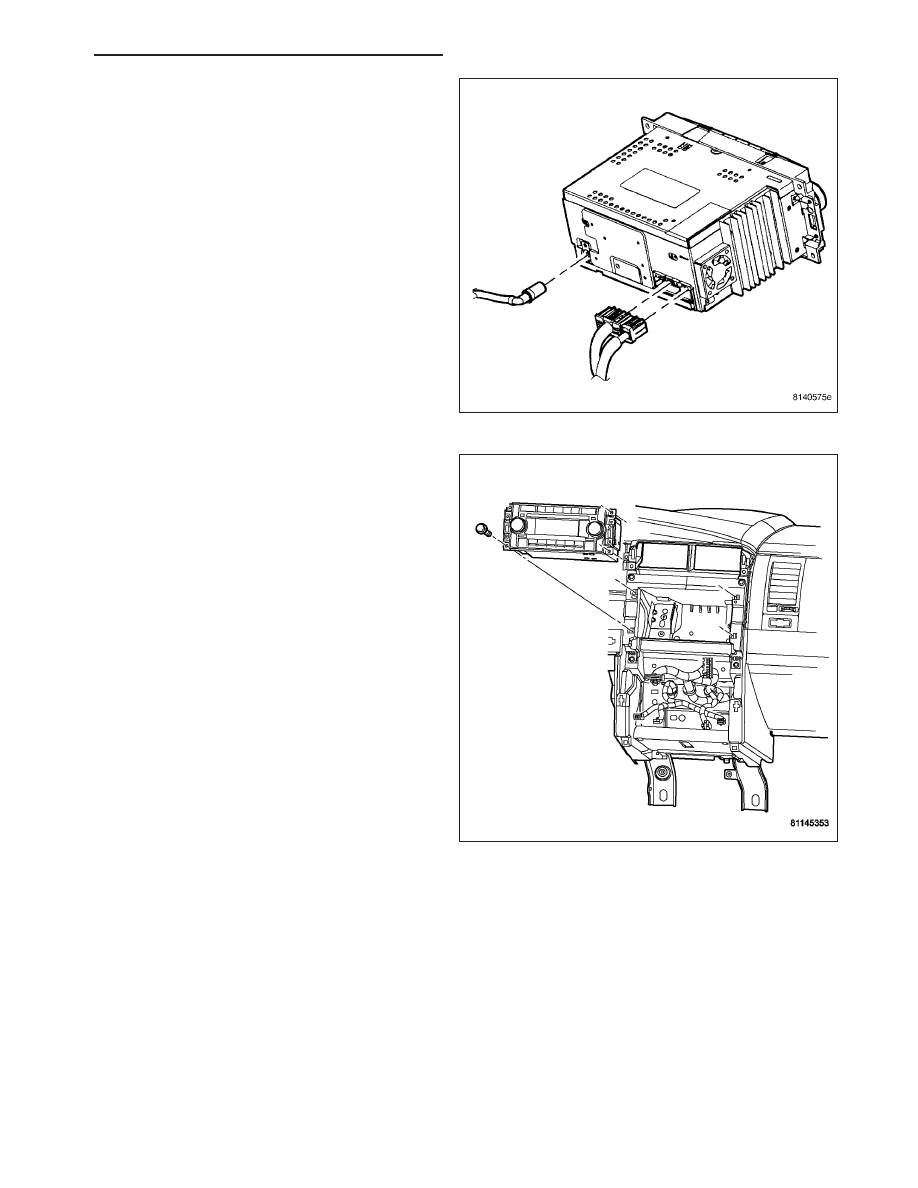

5. Disconnect the electrical harness connector and

remove radio.

INSTALLATION

1. Connect antenna cable (3) to radio (1).

8A - 190

AUDIO/VIDEO - SERVICE INFORMATION

WK

2. Connect the electrical harness connector to radio.

3. Position radio to instrument panel. Install and

tighten mounting fasteners.

4. Install instrument panel center bezel (Refer to 23 -

BODY/INSTRUMENT

PANEL/INSTRUMENT

PANEL CENTER BEZEL - INSTALLATION).

RADIO NOISE SUPPRESSION COMPONENTS

DESCRIPTION

Radio noise suppression devices are installed on this vehicle. Radio Frequency Interference (RFI) and ElectroMag-
netic Interference (EMI) can be produced by any on-board or external source of electromagnetic energy. These elec-
tromagnetic energy sources can radiate electromagnetic signals through the air, or conduct them through the vehicle
electrical system.

When the audio system converts RFI or EMI to an audible acoustic wave form, it is referred to as radio noise. This
undesirable radio noise is generally manifested in the form of “buzzing,” “hissing,” “popping,” “clicking,” “crackling,”
and/or “whirring” sounds. In most cases, RFI and EMI radio noise can be suppressed using a combination of vehicle
and component grounding, filtering and shielding techniques. This vehicle is equipped with radio noise suppression
devices that were designed to minimize exposure to typical sources of RFI and EMI; thereby, minimizing radio noise
complaints.
