Jeep Grand Cherokee WK. Manual - part 238





B1469-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER (CONTINUED)

For the Amplifier circuit diagram (Refer to 8 - ELECTRICAL/AUDIO - SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on. Radio volume at 25 or higher.

Set Condition:
The amplifier detects that the output circuits are shorted together.

Possible Causes

(X208) AMPLIFIED RIGHT I/P SPEAKER (+) CIRCUIT SHORTED TO THE (X298) AMPLIFIED RIGHT I/P
SPEAKER (-) CIRCUIT

AMPLIFIED RIGHT I/P SPEAKER

AMPLIFIER

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, erase Amplifier DTCs.

Turn the radio on.

Turn the volume level to 25.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1469-CHANNEL 2 AUDIO
SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

2.

CHECK THE OPERATION OF THE AMPLIFIED RIGHT I/P SPEAKER

Disconnect the Amplified Right I/P Speaker.

Measure the resistance of the speaker between the two terminals.

Is the resistance of the speaker less than 1 ohm?

Yes

>> Replace the Amplified Right I/P Speaker in accordance with the service information.

Perform BODY VERIFICATION TEST VER-1.

No

>> Go To 3

8A - 88

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

WK

B1469-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER (CONTINUED)

3.

CHECK THE (X208) AMPLIFIED RIGHT I/P SPEAKER (+) CIRCUIT, AND THE (X298) AMPLIFIED RIGHT I/P
SPEAKER (-) CIRCUITS FOR A SHORT TOGETHER

Turn the ignition off.

Disconnect the Amplifier C2 harness connector.

Measure the resistance between the (X208) Amplified Right I/P
Speaker (+) circuit, and the (X298) Amplified Right I/P Speaker (-) cir-
cuit.

Is the resistance below 10K ohms?

Yes

>> Repair the (X208) Amplified Right I/P Speaker (+) circuit,

and the (X298) Amplified Right I/P Speaker (-) circuit for a
short together.

Perform BODY VERIFICATION TEST VER-1.

No

>> Replace the Amplifier in accordance with the service infor-

mation.

Perform BODY VERIFICATION TEST VER-1.

WK

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

8A - 89

B146A-CHANNEL 3 AUDIO SPEAKER OUTPUT CIRCUIT PERFORMANCE

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
This DTC will set if a DC offset occurs on the output channel, the amplifier shall set a DTC after a matu-
rity rate of 5 ±1 sec.

Possible Causes

AMPLIFIER

Diagnostic Test

1.

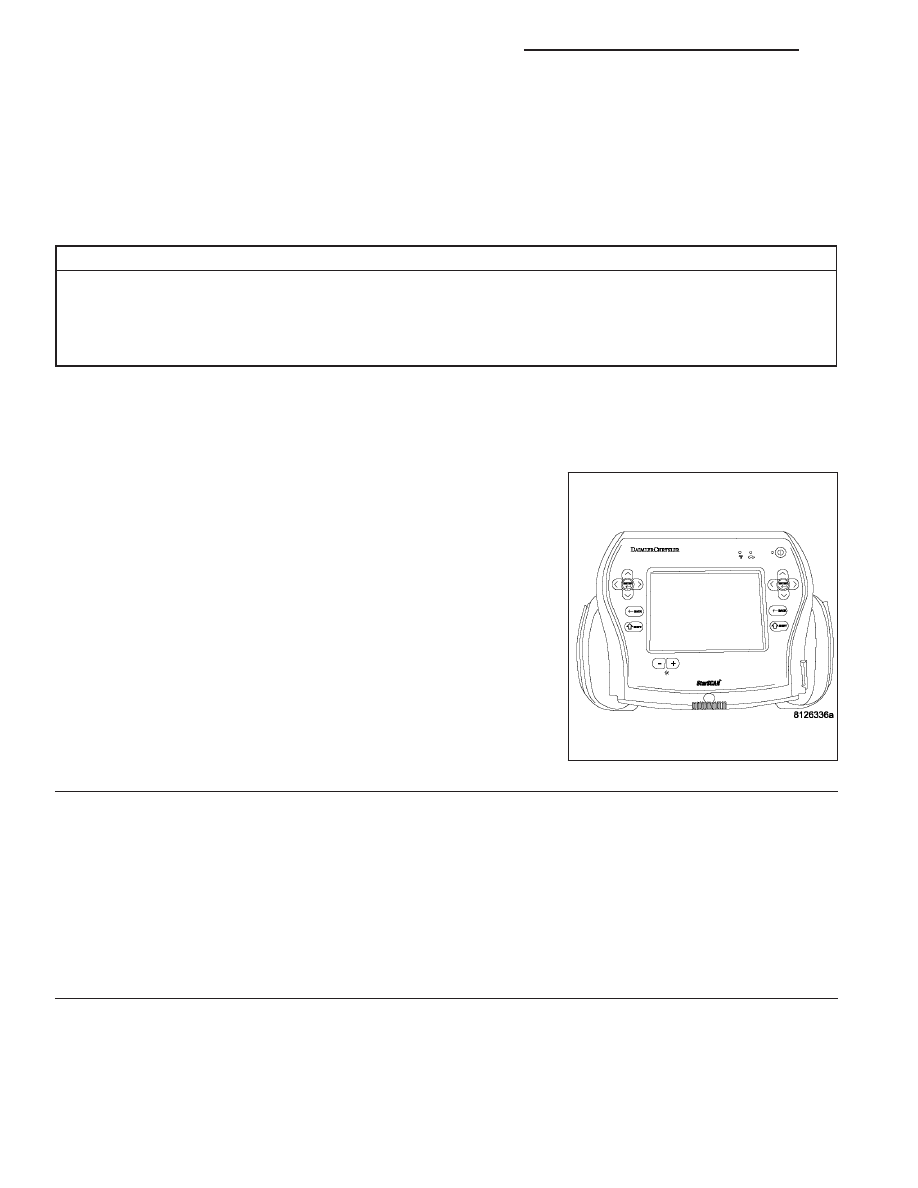

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B146A-CHANNEL 3 AUDIO
SPEAKER OUTPUT CIRCUIT PERFORMANCE?

Yes

>> Replace the Amplifier in accordance with the service infor-

mation.

Perform BODY VERIFICATION TEST VER-1.

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

8A - 90

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

WK

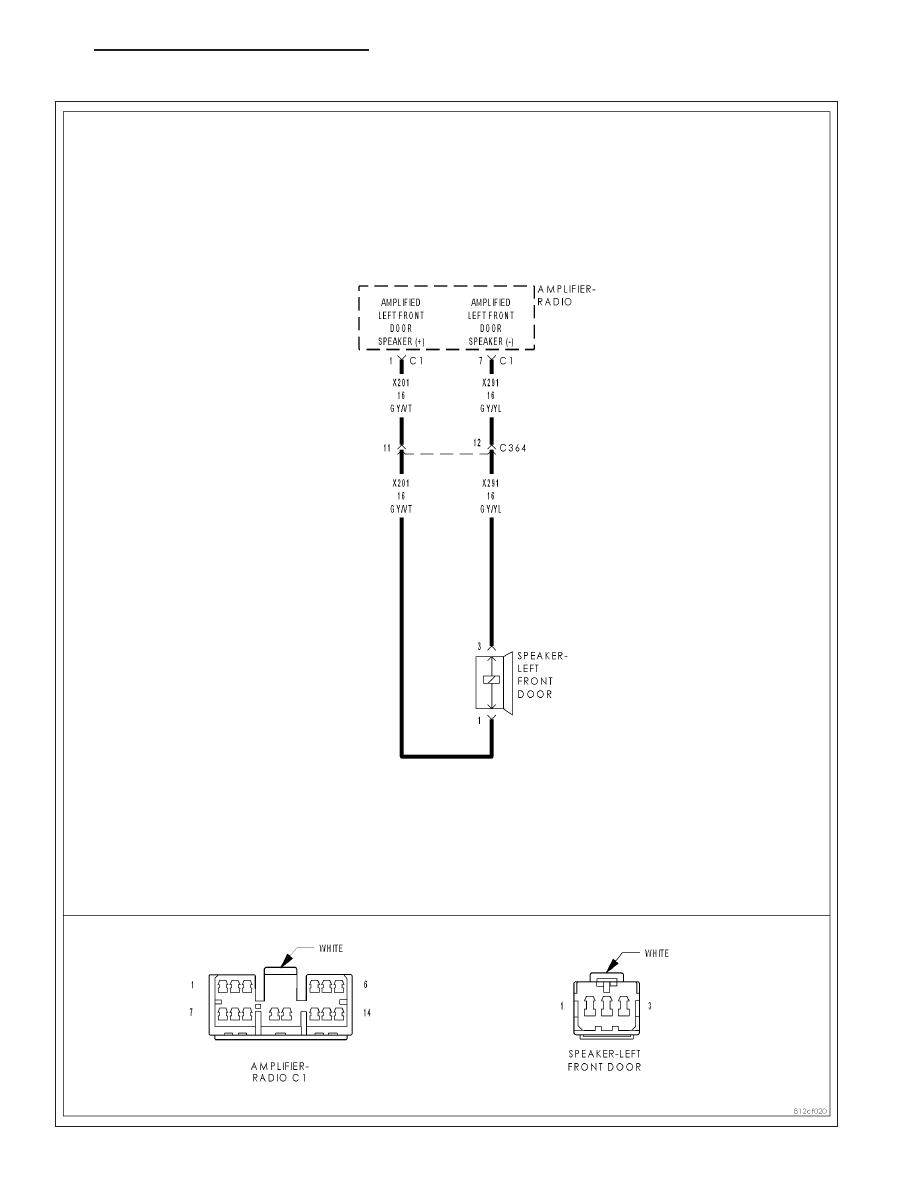

B146B-CHANNEL 3 AUDIO SPEAKER OUTPUT CIRCUIT LOW

WK

AUDIO/VIDEO SYSTEMS - ELECTRICAL DIAGNOSIS

8A - 91
