Jeep Grand Cherokee WK. Manual - part 208





CAUTION: If fan blade assembly is replaced because of mechanical damage, water pump and viscous fan
drive should also be inspected. These components could have been damaged due to excessive vibration.

1. Remove fan blade assembly from viscous fan drive unit (four bolts).

2. Lay fan on a flat surface with leading edge facing down. With tip of blade touching flat surface, replace fan if

clearance between opposite blade and surface is greater than 2.0 mm (.090 inch). Rocking motion of opposite
blades should not exceed 2.0 mm (.090 inch). Test all blades in this manner.

3. Inspect fan assembly for cracks, bends, loose rivets or broken welds. Replace fan if any damage is found.

INSTALLATION

5.7L/3.0L DIESEL

CAUTION: There is an external ground wire con-
nected to the hydraulic fan drive located at the
electrical connector on the fan assembly. This
ground MUST remain connected at all times. Fail-
ure to ensure ground wire is connected when
engine is operating can cause severe damage to
the JTEC module.

1. Position fan drive and shroud in vehicle.

2. Install fan shroud upper mounting bolts. Do not

tighten at this time.

3. Install radiator upper hose onto radiator.

4. Connect power steering cooler hoses.

5. Raise vehicle on hoist.

6. Install fan shroud lower mounting bolts. Tighten to

6 N·m (50 in. lbs.).

NOTE: When ever the high pressure line fittings
are removed from the hydraulic fan drive the o-rings located on the fittings must be replaced.

7. Lubricate the o-rings on the fittings with power steering fluid then connect inlet and outlet high pressure lines to

fan drive. Tighten inlet line to 49 N·m (36 ft. lbs.) tighten outlet line to 29 N·m (21.5 ft. lbs.).

8. Connect low pressure return hose to fan drive.

9. Lower vehicle.

10. Install radiator upper hose.

11. Connect electrical connector for hydraulic fan control solenoid.

12. Tighten fan shroud upper mounting bolts to 6 N·m (50 in. lbs.).

13. Refill cooling system (Refer to 7 - COOLING - STANDARD PROCEDURE).

CAUTION: Do not run engine with power steering fluid below the full mark in the reservoir. Sever damage to
the hydraulic cooling fan or the engine can occur.

14. Refill power steering fluid reservoir and bleed air from steering system (Refer to 19 - STEERING/PUMP -

STANDARD PROCEDURE).

15. Run engine and check for leaks.

INSTALLATION - ELECTRIC FAN

1. Position fan assembly on shroud.

2. Install fan to fan shroud mounting nuts. Tighten to 5.5 N·m (50 in. lbs.).

3. Position fan and shroud assembly in vehicle.

4. Install shroud mounting bolts. Tighten to 5.5 N·m (50 in. lbs.)

7 - 38

ENGINE

WK

5. Connect electric fan elictrical connector.

6. Start engine and check fan operation.

SOLENOID-RADIATOR FAN

REMOVAL

NOTE: If the solenoid removal and replacement
steps are performed quickly, then only a small
amount of steering fluid will drip from the radiator
fan solenoid opening. The small amount of leak-
age should not require prior fluid removal from the
power steering reservoir.

1. Disconnect the battery negative cable.

2. Raise and support the vehicle.

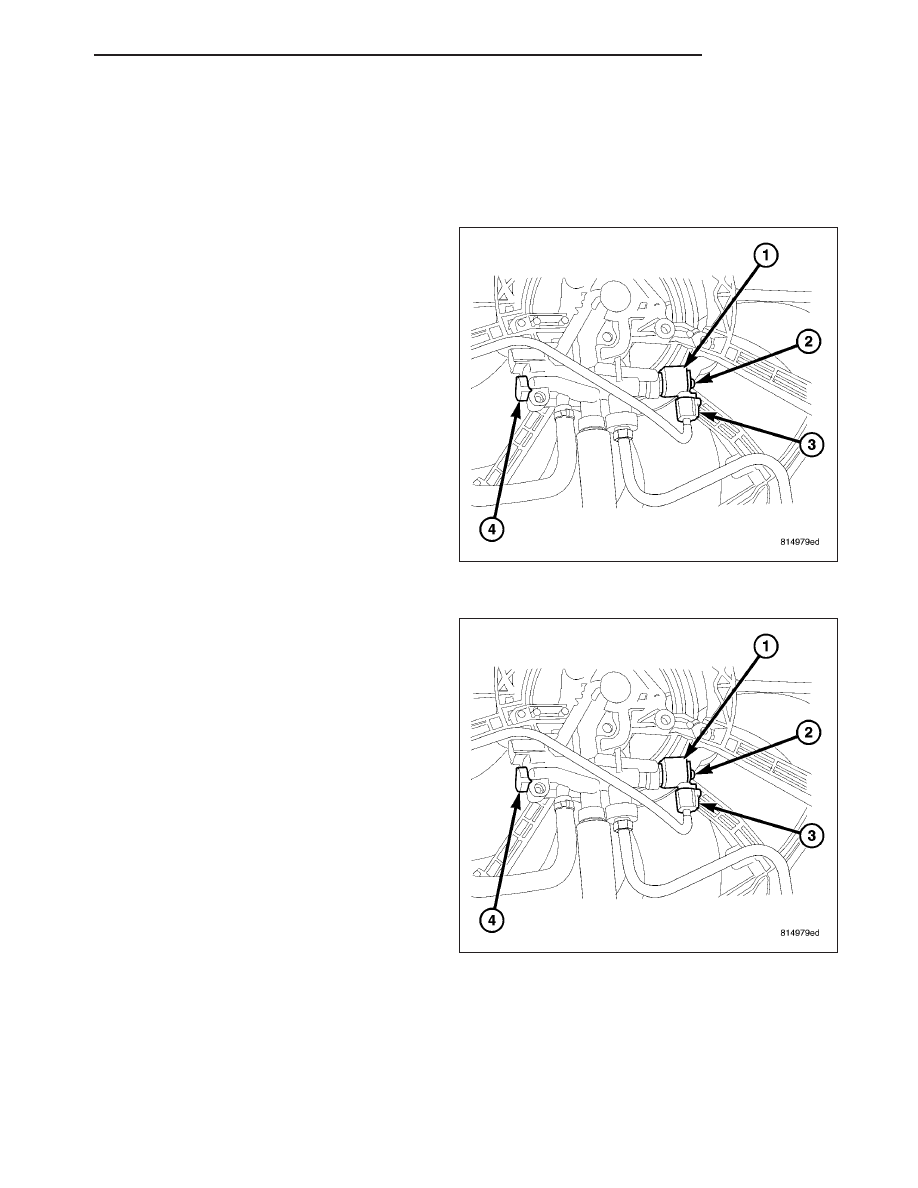

3. Disconnect the radiator fan solenoid connector (3).

4. Clean the area around the radiator fan solenoid (1)

of any debris.

5. While holding the solenoid body, use Torx

T

T40 to

remove the radiator fan solenoid.

INSTALLATION

CAUTION: If for any reason the hydraulic fan mod-
ule ground wire is removed from the hydraulic fan
module, reconnect the ground wire and tighten-
mounting nut to 10 N·m (89 in. lbs.). Failure to
ensure the ground wire is properly connected
could result in an electrostatic discahrge that
could damage the PCM.

1. Make sure that the two o-rings are in place. Notice

that the armature of the solenoid can rotate within
the body of the solenoid.

2. Install the radiator fan solenoid (1) into the hydrau-

lic fan module (4).

3. While holding the solenoid body, using a Torx

T

T40

tighten the radiator fan solenoid screw (2) to 16.2
N·m (143 in. lbs.).

4. Connect the radiator fan solenoid connector (3).

5. Lower the vehicle

6. Connect the negative battery cable.

7. Check the power steering fluid level, fill as necessary.

WK

ENGINE

7 - 39

HEATER-ENGINE BLOCK

DESCRIPTION

WARNING: DO NOT OPERATE ENGINE UNLESS
BLOCK

HEATER

CORD

HAS

BEEN

DISCON-

NECTED FROM POWER SOURCE AND SECURED
IN

PLACE.

THE

POWER

CORD

MUST

BE

SECURED IN ITS RETAINING CLIPS AND ROUTED
AWAY FROM EXHAUST MANIFOLDS AND MOVING
PARTS.

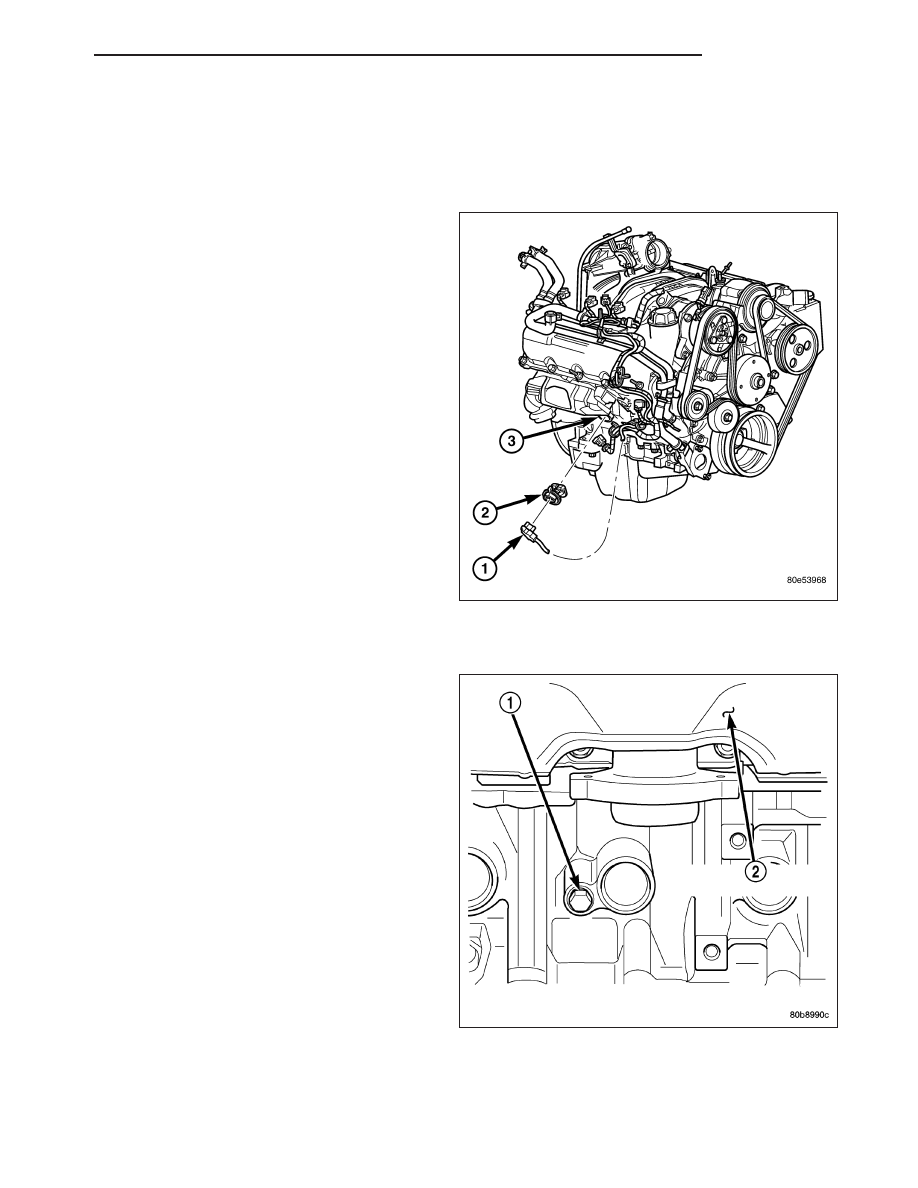

An optional engine block heater is available with all
models. The heater is equipped with a power cord.
The cord is attached to an engine compartment com-
ponent with tie-straps. The heater warms the engine
providing easier engine starting and faster warm-up in
low temperatures. The heater is mounted in a core
hole of the engine cylinder block in place of a freeze
plug with the heating element immersed in engine
coolant.

OPERATION

Connecting the power cord to a grounded 110-120 volt AC electrical outlet with a grounded, three wire extension
cord activates the heating element warming the engine coolant.

DIAGNOSIS AND TESTING - ENGINE BLOCK HEATER

If the unit does not operate, possible causes can be
either the power cord or the heater element. Test the
power cord for continuity with a 110-volt voltmeter or
110-volt test light. Test heater element continuity with
an ohmmeter or a 12-volt test light.

7 - 40

ENGINE

WK

CAUTION: To prevent damage, the power cord must be secured in it’s retainer clips and away from any
components that may cause abrasion or damage, such as linkages, exhaust components, etc.

REMOVAL

3.7L ENGINE

1. Drain cooling system (Refer to 7 - COOLING -

STANDARD PROCEDURE).

2. Raise vehicle on hoist.

3. Detach power cord plug from heater.

4. Loosen screw in center of heater. Remove heater

assembly.

4.7L ENGINE

1. Disconnect negative battery cable from battery.

2. Drain coolant from radiator (Refer to 7 - COOLING

- STANDARD PROCEDURE).

3. Raise vehicle.

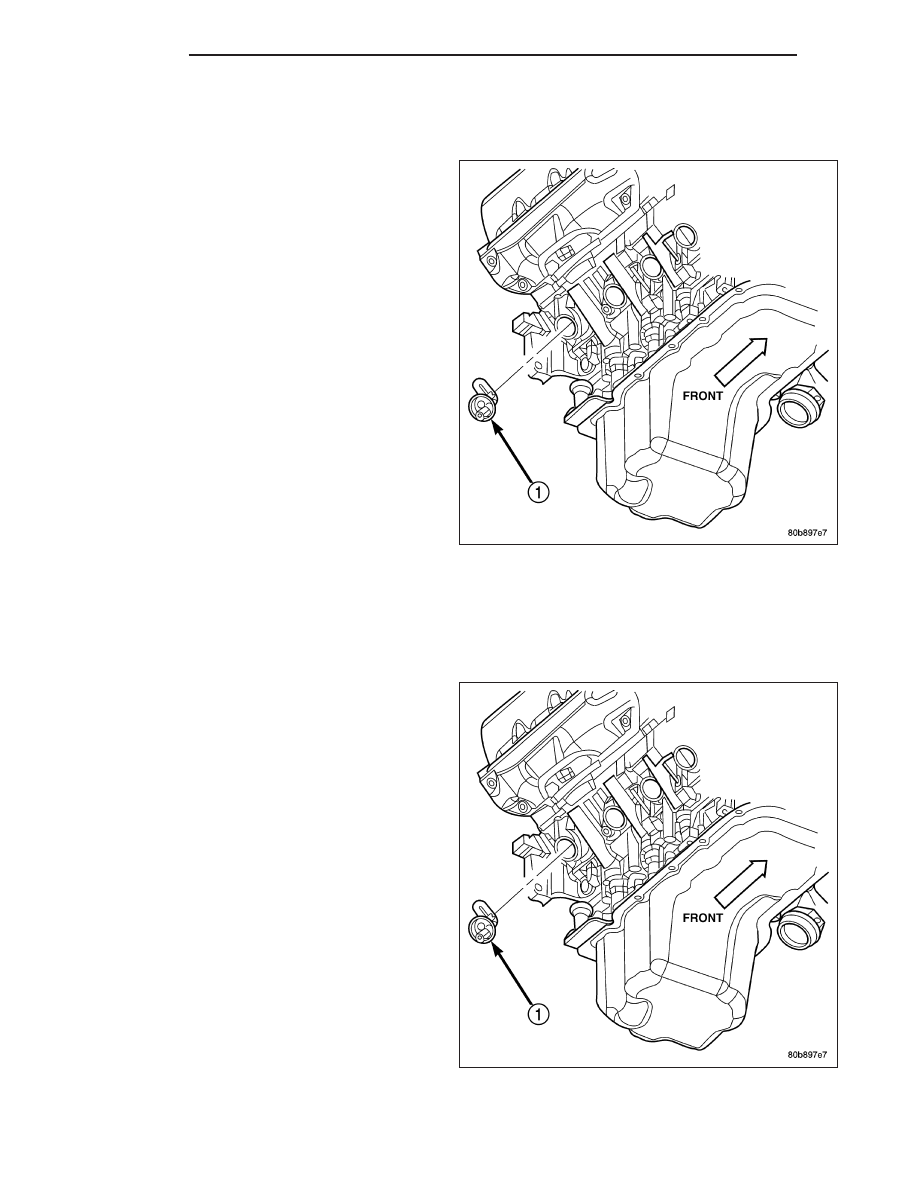

4. Remove engine cylinder block drain plug(s) located

on the sides of cylinder block above the oil pan rail.

WK

ENGINE

7 - 41
