*A/C HEATER CONTROL WILL NOT ENTER DIAGNOSTIC MODE (MTC) (CONTINUED)

10.

CHECK THE A/C HEATER CONTROL BY ATTEMPTING TO ENTER DIAGNOSTIC MODE

If illuminated, turn off the A/C status indicator and the EBL status indicator.

Actuate the display DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait 5 seconds and then release the A/C mode
switch.

When entry mode is recognized, the A/C status indicator and the EBL status indicator will illuminate for 5 seconds
and then, if present, will begin displaying DTCs. The A/C status indicator displays active DTCs when the EBL status
indictor is not illuminated and stored DTCs when the EBL status indicator is illuminated. However, if no DTCs are
present, both status indicators will turn off and the system will exit diagnostic mode.

Did the A/C Heater Control enter diagnostic mode?

Yes

>> Go To 11

No

>> Replace the A/C Heater Control in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

11.

CHECK THE A/C HEATER CONTROL BY ATTEMPTING TO RUN THE ACTUATOR CIRCUIT TEST/ DOOR
CALIBRATION FUNCTION

Turn the ignition off, wait 10 seconds, then turn the ignition on.

If illuminated, turn off the A/C status indicator and the EBL status indicator.

Actuate the Actuator Circuit Test / Door Calibration Function by performing the following:

Turn the blower control off.

Press and hold the EBL mode switch down and then turn the blower control on. Continue to hold the EBL
mode switch down until the EBL status indicator begins flashing. Then, release the EBL mode switch.

While the test / function is running, the EBL status indicator will flash once per second. If the test / function passes,
the EBL status indicator will stop flashing. If the test / function fails, the A/C and EBL status indicators will flash
alternately.

Did the A/C Heater Control run the test / function?

Yes

>> Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL

MODULES - STANDARD PROCEDURE).

No

>> Replace the A/C Heater Control in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE).

24 - 360

HVAC - ELECTRICAL DIAGNOSTICS

WK

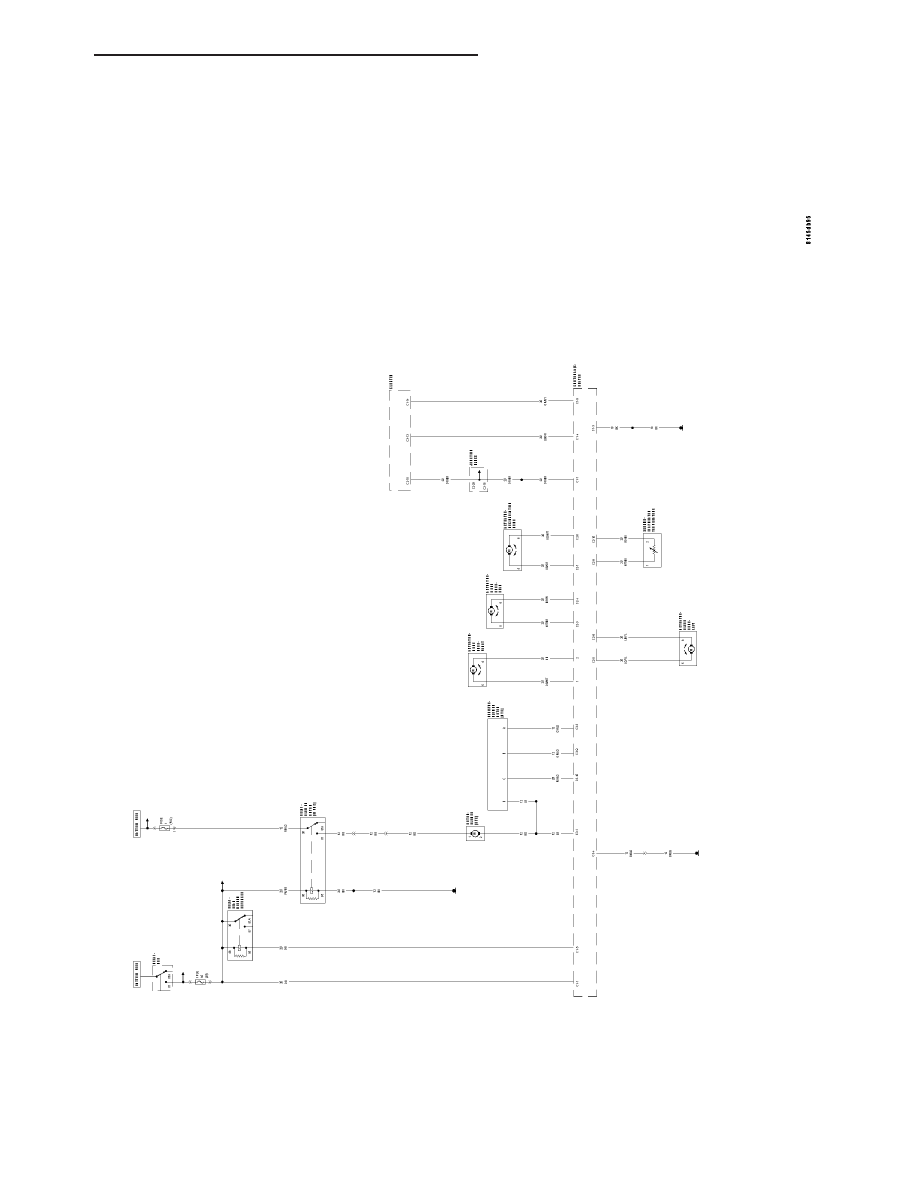

SCHEMATICS AND DIAGRAMS

MANUAL

TEMPERA

TURE

CONTROL

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 361

AUT

O

TEMPERA

TURE

CONTROL

24 - 362

HVAC - ELECTRICAL DIAGNOSTICS

WK

HVAC - SERVICE INFORMATION

TABLE OF CONTENTS

page

page

HVAC - SERVICE INFORMATION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 363

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 364

DIAGNOSIS AND TESTING

HEATING AND A/C SYSTEMS

. . . . . . . . . . . 365

A/C PERFORMANCE

. . . . . . . . . . . . . . . . . . 371

HEATER PERFORMANCE

. . . . . . . . . . . . . . 374

SPECIFICATIONS

A/C SYSTEM

. . . . . . . . . . . . . . . . . . . . . . . . 376

SPECIAL TOOLS

HEATING-A/C SYSTEM

. . . . . . . . . . . . . . . . 377

CONTROLS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 378

DISTRIBUTION

. . . . . . . . . . . . . . . . . . . . . . . . . 417

PLUMBING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 456

HVAC - SERVICE INFORMATION

DESCRIPTION

A manual temperature control (MTC) single zone type heating-A/C system or a fully adjustable automatic temper-
ature control (ATC) dual zone type heating-A/C system is available on this vehicle.

To maintain the performance level of the heating, ventilation and air conditioning (HVAC) system, the engine cooling
system must be properly maintained. The use of a bug screen is not recommended. Any obstructions in front of the
radiator or A/C condenser will reduce the performance of the A/C and engine cooling systems.

The engine cooling system includes the radiator, thermostat, radiator hoses and the engine coolant pump. Refer to
7 - Cooling for more information before opening or attempting any service to the engine cooling system.

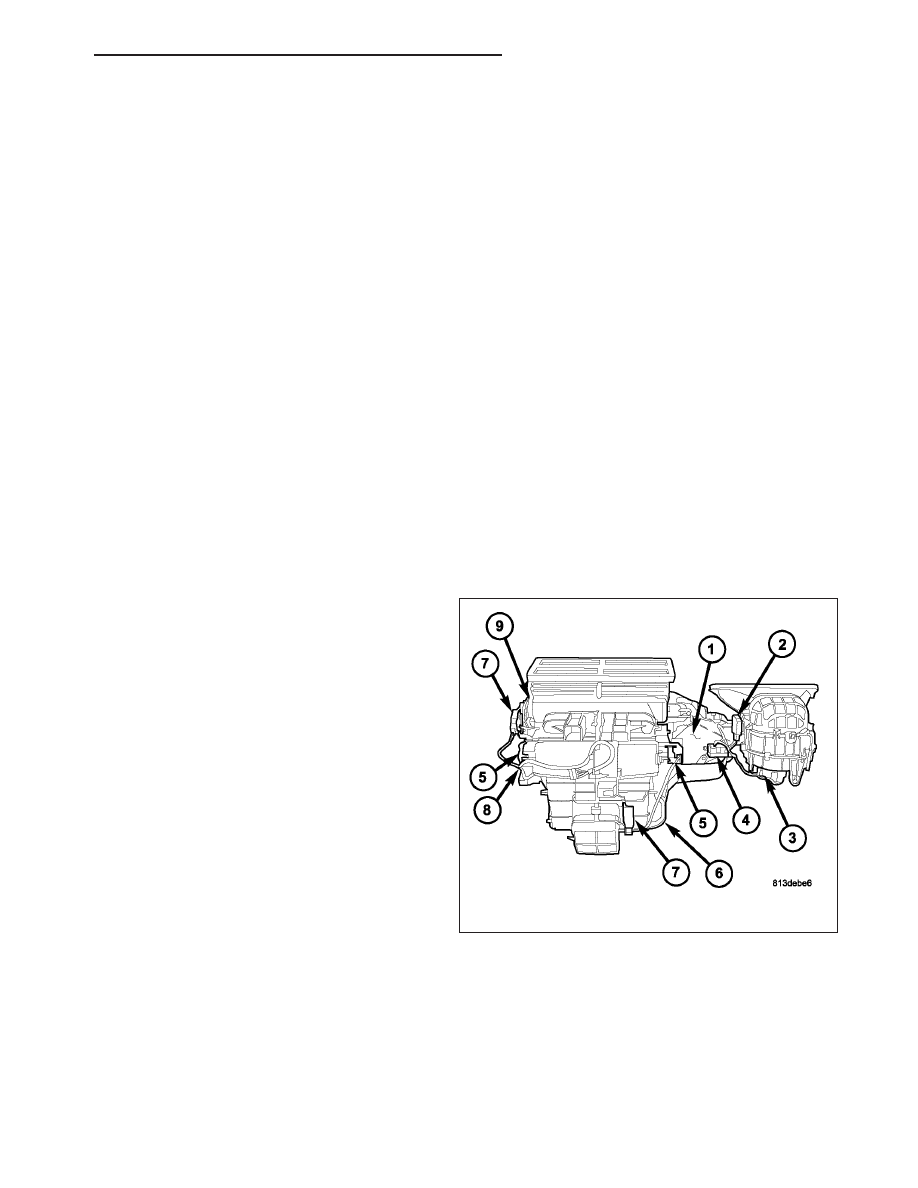

All vehicles are equipped with a common heater, ven-
tilation and air conditioning (HVAC) housing (1). The
heating-A/C system combines A/C, heating, and venti-
lating capabilities in a single HVAC housing mounted
within the passenger compartment beneath the instru-
ment panel. The HVAC housing includes:

Recirculation-air door and actuator (2)

Blower motor (3)

Blower motor resistor (MTC) or blower motor
power module (ATC) (4)

Blend-air door(s) and actuator(s) (5)

Heater core (6)

Mode-air doors and actuator (7)

Evaporator temperature sensor (8)

A/C evaporator (9)

Based upon the system and selected mode, conditioned air can exit the HVAC housing through one or a combi-
nation of the three main housing outlets: defrost, panel or floor. The defrost and panel outlets are located on the top
of the HVAC housing and the floor outlets are located at the rear of the HVAC housing. Once the conditioned air
exits the HVAC housing, it is further directed through molded plastic ducts to the outlets within the vehicle interior.
These outlets and their locations are as follows:

Defroster Outlets - Two large defroster outlets are located near the center of the instrument panel top cover,
near the base of the windshield.

Side Window Demister Outlets - There are two side window demister outlets, one is located at each out-
board end of the instrument panel top cover, near the belt line at the A-pillars.
