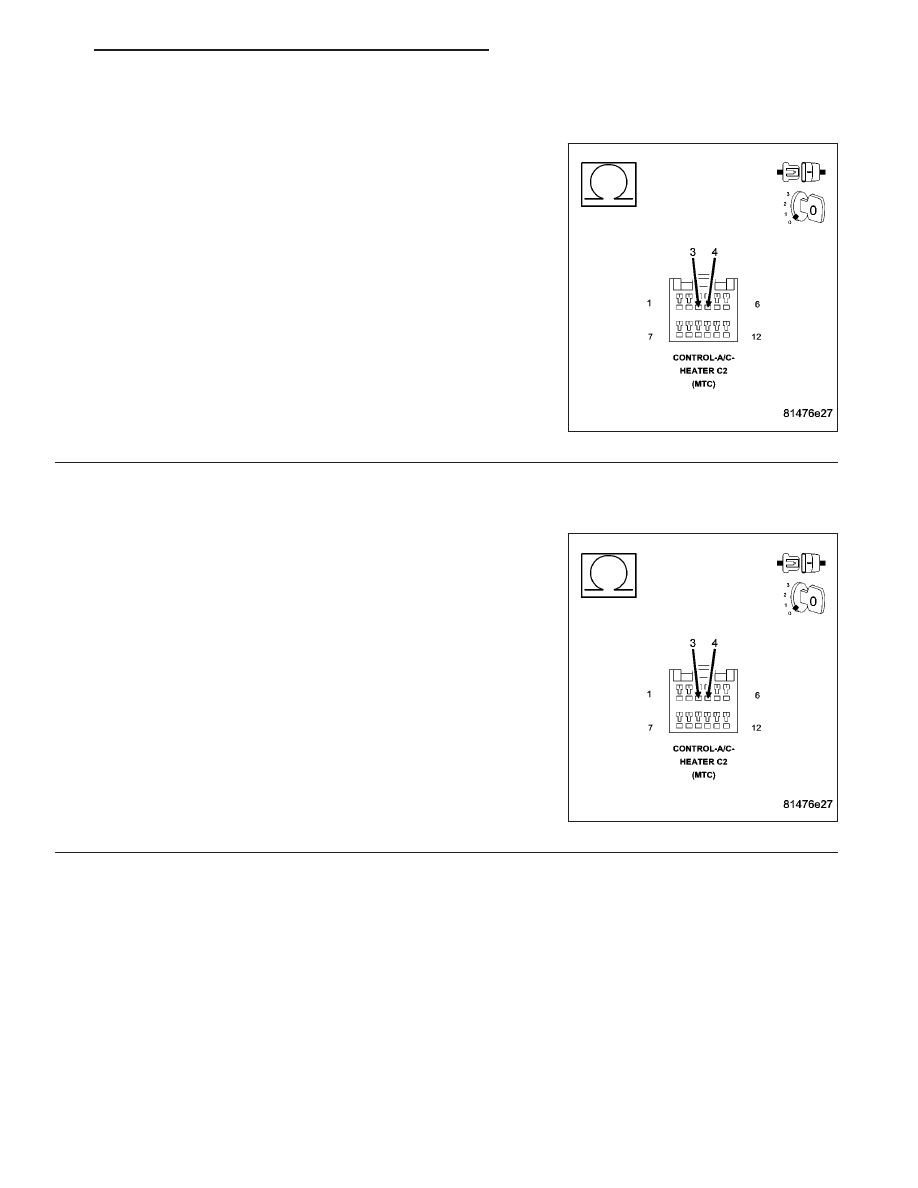

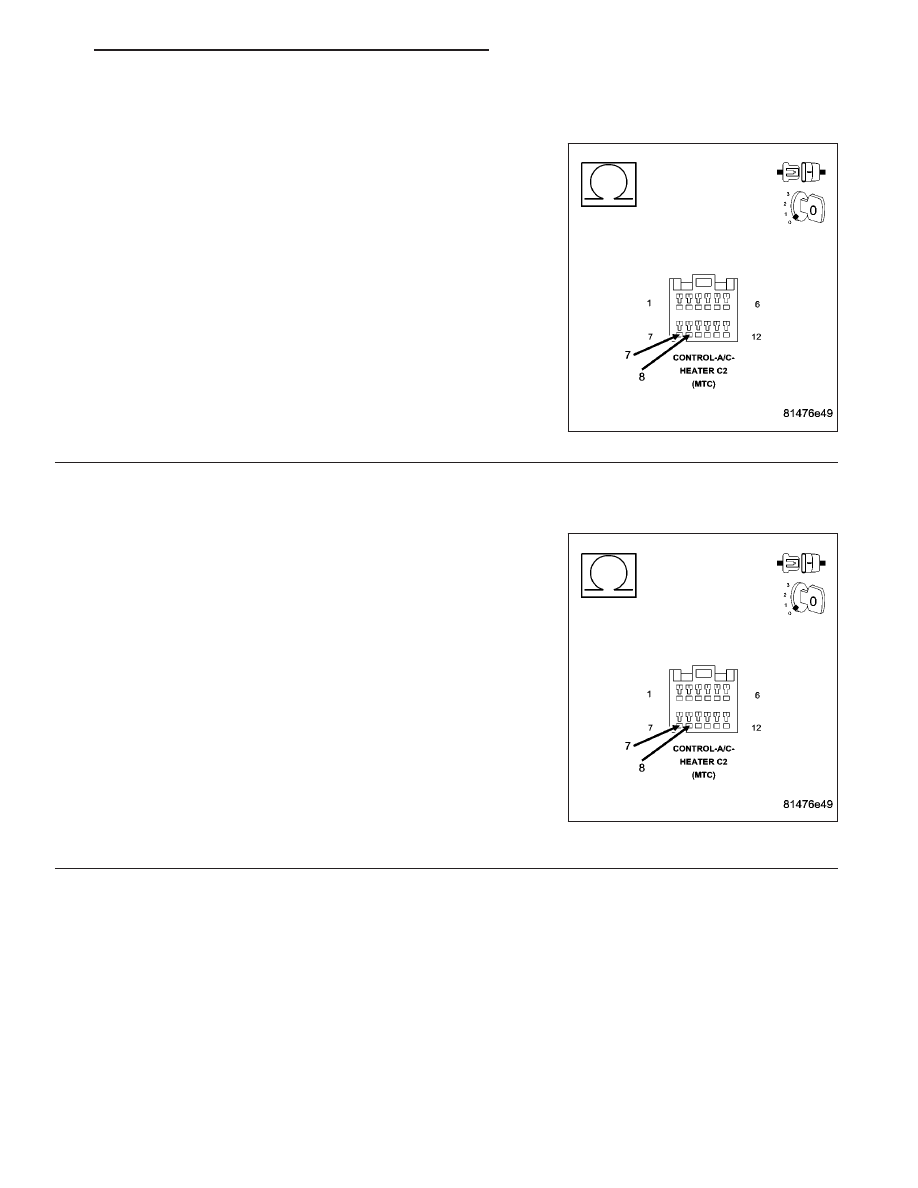

42–REAR MODE OVERCURRENT (MTC) (CONTINUED) 8. CHECK THE FRONT MODE DOOR ACTUATOR CIRCUIT RESISTANCE Measure the resistance between the (C66) Front Mode Door Common Is the resistance below 30.0 ohms? Yes >> Go To 9 No >> Go To 10 9. CHECK THE (C66) FRONT MODE DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C266) Disconnect the Front Mode Door Actuator harness connector. Measure the resistance between the (C66) Front Mode Door Common Is the resistance below 10k ohms? Yes >> Repair the (C66) Front Mode Door Common Driver Circuit for a short to the (C266) Front Mode Door Driver circuit. Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 No >> Replace the Front Mode Door Actuator in accordance with the Service Information. Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 24 - 60 HVAC - ELECTRICAL DIAGNOSTICS WK |
