6. On vehicles with clearcoat, apply clear top coat to touch-up paint with the same technique as described in Step

4. Allow clear top coat to dry hard. If desired, the clearcoat can be lightly finesse sanded (1500 grit) and polished
with rubbing compound.

FINESSE SANDING/BUFFING & POLISHING

DESCRIPTION

CAUTION: Do not remove more than 0.5 mils of clearcoat finish when sanding, hand buffing or polishing.
Basecoat paint must retain clearcoat for durability.

CAUTION: If the finish has been finesse sanded in the past, it cannot be repeated. Failure to follow this
caution can result in damage to vehicle finish.

NOTE: Finesse sanding should only be performed by a trained automotive paint technician.

Minor acid etching, orange peel, or smudging in a clearcoat or single-stage finish can be reduced with light finesse
sanding, hand buffing and polishing. Use a Paint Thickness Gauge #PR-ETG-2X or equivalent to determine
clearcoat or single-stage paint thickness before and after the repair.

23 - 146

PAINT

WK

SEATS

TABLE OF CONTENTS

page

page

SEATS

WARNING

RESTRAINT SYSTEM

. . . . . . . . . . . . . . . . . 147

ADJUSTERS-FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 151

CUSHION/COVER-SEAT BACK - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 154

CUSHION/COVER-CUSHION - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 156

CUSHION-REAR SEAT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 157

RISER-FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 160

RISER-REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 161

SEAT BACK-REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 163

SEAT-FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 164

SUPPORT-LUMBAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 167

SEATS

WARNING

RESTRAINT SYSTEM

During and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles,
mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage.
Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners.
Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt that has a bent or
damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is
integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component.
Always replace damaged or faulty seat belt and child restraint components with the correct, new and
unused replacement parts listed in the DaimlerChrysler Mopar parts catalog. Failure to follow these instruc-
tions may result in personal injury or death.

On vehicles equipped with airbags, disable the supplemental restraint system before attempting any steer-
ing wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or
instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground)
cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or
service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper
precautions could result in accidental airbag deployment. Failure to follow these instructions may result in
personal injury or death.

On vehicles equipped with airbags, before performing any welding operations disconnect and isolate the
battery negative (ground) cable and disconnect all wire harness connectors from the Airbag Control Module
(ACM). Failure to take the proper precautions could result in accidental airbag deployment and other pos-
sible damage to the supplemental restraint system circuits and components. Failure to follow these instruc-
tions may result in personal injury or death.

Replace all restraint system components only with parts specified in the DaimlerChrysler Mopar parts cat-
alog. Substitute parts may appear interchangeable, but internal differences may result in inferior occupant
protection. Failure to follow these instructions may result in personal injury or death.

The fasteners, screws, and bolts originally used for the restraint system components must never be
replaced with any substitutes. These fasteners have special coatings and are specifically designed for the
restraint system. Any time a new fastener is needed, replace it with the correct fasteners provided in the

WK

SEATS

23 - 147

service package or specified in the DaimlerChrysler Mopar parts catalog. Failure to follow these instructions
may result in personal injury or death.

On vehicles equipped with the Occupant Classification System (OCS), do not hang any after market devices
from the front passengers seat back. Do not install a front drivers seat back cover with map pocket onto the
passenger seat. Failure to follow these instructions may result in personal injury or death.

The Seat Weight Sensor is a sensitive, calibrated unit and must be handled carefully. Do not drop or handle
roughly. If dropped or damaged, replace with another sensor. Failure to follow these instructions may result
in personal injury or death.

The front passenger seat must be handled carefully as well. When removing the seat, be careful when set-
ting on floor not to drop. If dropped, the sensor may be inoperative. Failure to follow these instructions may
result in personal injury or death.

When the seat is on the floor, no one should sit in the front passenger seat. This uneven force may damage
the sensing ability of the seat weight sensors. If sat on and damaged, the sensor may be inoperative. Fail-
ure to follow these instructions may result in personal injury or death.

ADJUSTERS-FRONT

REMOVAL

1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/

SEATS - WARNING)

2. Remove the seat cushion as necessary. (Refer to 23 - BODY/SEATS/SEAT CUSHION / COVER - FRONT -

REMOVAL)

Power

1. Remove the seat risers. (Refer to 23 - BODY/

SEATS/SEAT RISER - FRONT - REMOVAL)

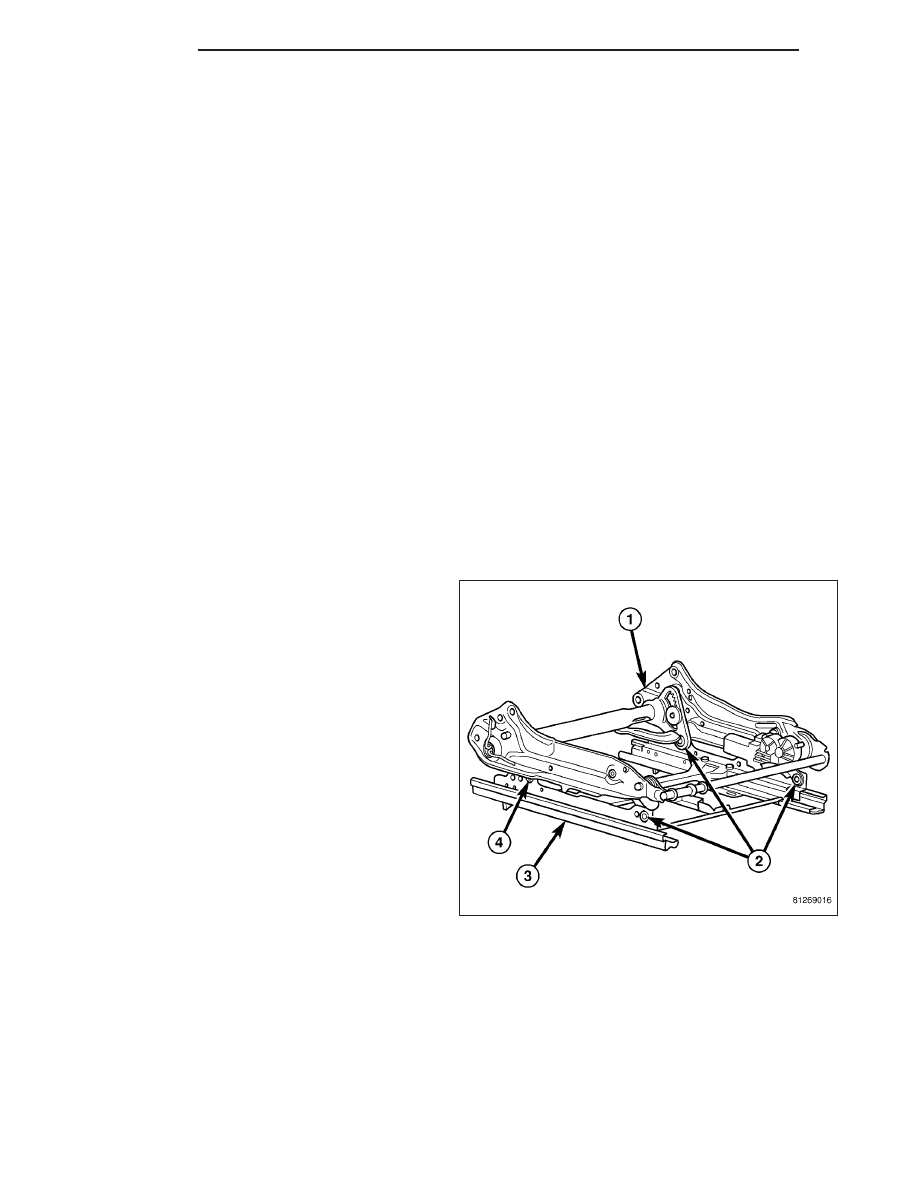

2. Remove the bolts and nuts (2 & 4) and separate

the height adjuster assembly from the length
adjuster assembly (3).

NOTE: Bolt (4) is a different size from the other
three bolts (2). Note the location for proper
installation.

23 - 148

SEATS

WK

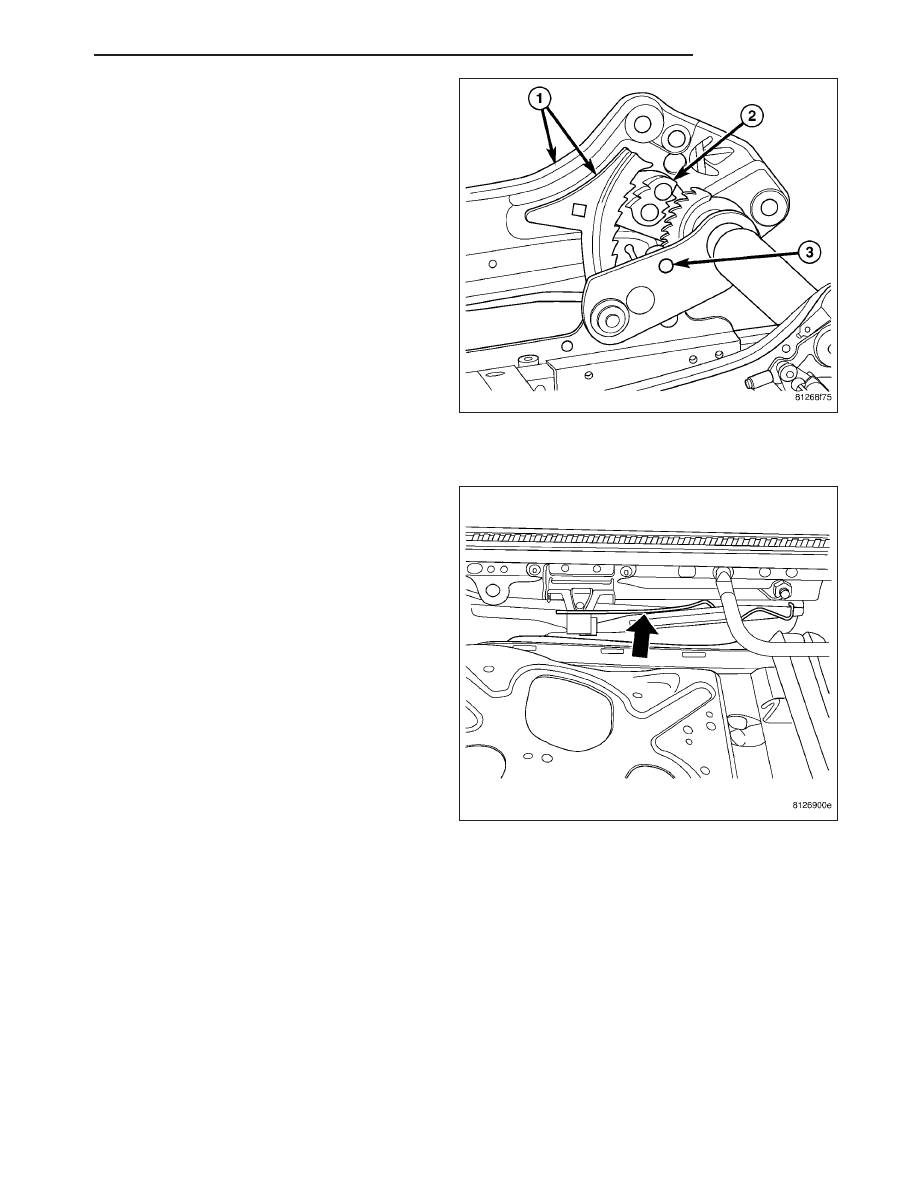

WARNING: A SEAT STRUCTURE THAT HAS SEEN
SIGNIFICANT LOAD MAY HAVE THE LOCKING
MECHANISM ACTIVATED AND MAY EXHIBIT THE
FOLLOWING SYMPTOMS:

LOCKING PAWL (2) LOOSE

LOCKING PAWL (2) ENGAGED INTO THE SEAT
FRAME SIDEMEMBER (1)

HEIGHT ADJUSTER ONLY WORKS ON OUT-
BOARD SIDE

BROKEN OR MISSING SHEAR PIN (3)

IF ANY ONE OR MORE OF THESE SYMPTOMS
EXIST REPLACE THE HEIGHT ADJUSTER ASSEM-
BLY. DO NOT ATTEMPT ANY REPAIRS. FAILURE
TO FOLLOW THESE INSTRUCTIONS MAY RESULT
IN PERSONAL INJURY OR DEATH.

Manual

1. Remove the spring clip.

WK
