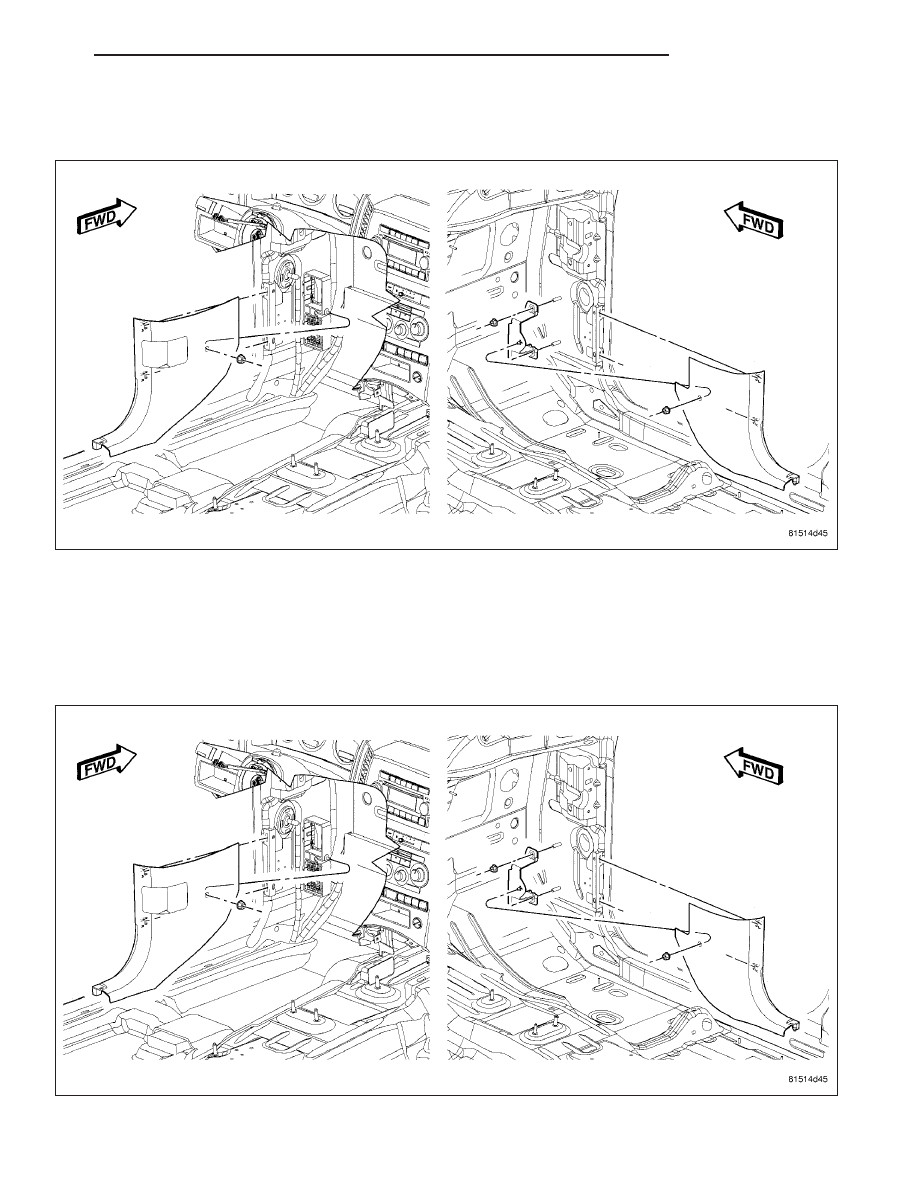

CARPETS AND FLOOR MATS REMOVAL 1. Remove the front seats, (Refer to 23 - BODY/SEATS/SEAT - REMOVAL). 2. Remove the rear passenger seat cushion, (Refer to 23 - BODY/SEATS/SEAT CUSHION - REMOVAL). 3. Remove the floor console, (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - REMOVAL). 4. Remove the park assist module, the final drive control module, and the park assist / final drive control module mounting bracket, (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/FINAL DRIVE CONTROL 5. Remove the front door sill scuff plates, (Refer to 23 - BODY/INTERIOR/DOOR SILL SCUFF PLATE - REMOVAL). 6. Remove the cowl trim panels, (Refer to 23 - BODY/INTERIOR/COWL TRIM - REMOVAL). 7. Remove the rear passenger door sill scuff plates, (Refer to 23 - BODY/INTERIOR/DOOR SILL SCUFF PLATE - REMOVAL). 8. Remove the lower B-pillar trim panels, (Refer to 23 - BODY/INTERIOR/B-PILLAR LOWER TRIM - REMOVAL) 9. Remove the carpet from the vehicle. INSTALLATION 1. Install the carpet in the vehicle. 2. Install the floor console, (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - INSTALLATION). 3. Install the lower B-pillar trim panels, (Refer to 23 - BODY/INTERIOR/B-PILLAR LOWER TRIM - INSTALLATION). 4. Install the rear passenger door sill scuff plates, (Refer to 23 - BODY/INTERIOR/DOOR SILL SCUFF PLATE - INSTALLATION). 5. Install the cowl trim panels, (Refer to 23 - BODY/INTERIOR/COWL TRIM - INSTALLATION). 6. Install the front door sill scuff plates, (Refer to 23 - BODY/INTERIOR/DOOR SILL SCUFF PLATE - INSTALLA- TION). 7. Install the park assist / final drive control module mounting bracket, the park assist module, and the final drive control module, (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/FINAL DRIVE CONTROL 8. Install the rear passenger seat cushion, (Refer to 23 - BODY/SEATS/SEAT CUSHION - INSTALLATION). 9. Install the front seats, (Refer to 23 - BODY/SEATS/SEAT - INSTALLATION). 23 - 114 INTERIOR WK |
