SPECIAL TOOLS

BODY

Trim Stick C-4755

TORX BIT SET C-4794-B

REMOVER, MOLDINGS C-4829-A

Outer Belt Molding Remover - 9093

23 - 14

BODY

WK

DOOR - FRONT

TABLE OF CONTENTS

page

page

CHANNEL-GLASS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 16

CYLINDER-LOCK

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 16

DOOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 18

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . . 18

GLASS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 22

HANDLE-EXTERIOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 24

HINGE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 26

LATCH

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 28

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . . 29

PANEL-TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 30

REGULATOR-WINDOW

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 32

STRIKER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 33

ADJUSTMENTS

. . . . . . . . . . . . . . . . . . . . . . . . 33

WATERSHIELD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 34

CHANNEL-GLASS

REMOVAL

1. Remove the outside rearview mirror (Refer to 23 -

BODY/EXTERIOR/OUTSIDE REARVIEW MIRROR
- REMOVAL).

2. Remove the front door glass (Refer to 23 - BODY/

DOOR - FRONT/DOOR GLASS - REMOVAL).

3. Remove the weatherstrip from the front glass run

channel.

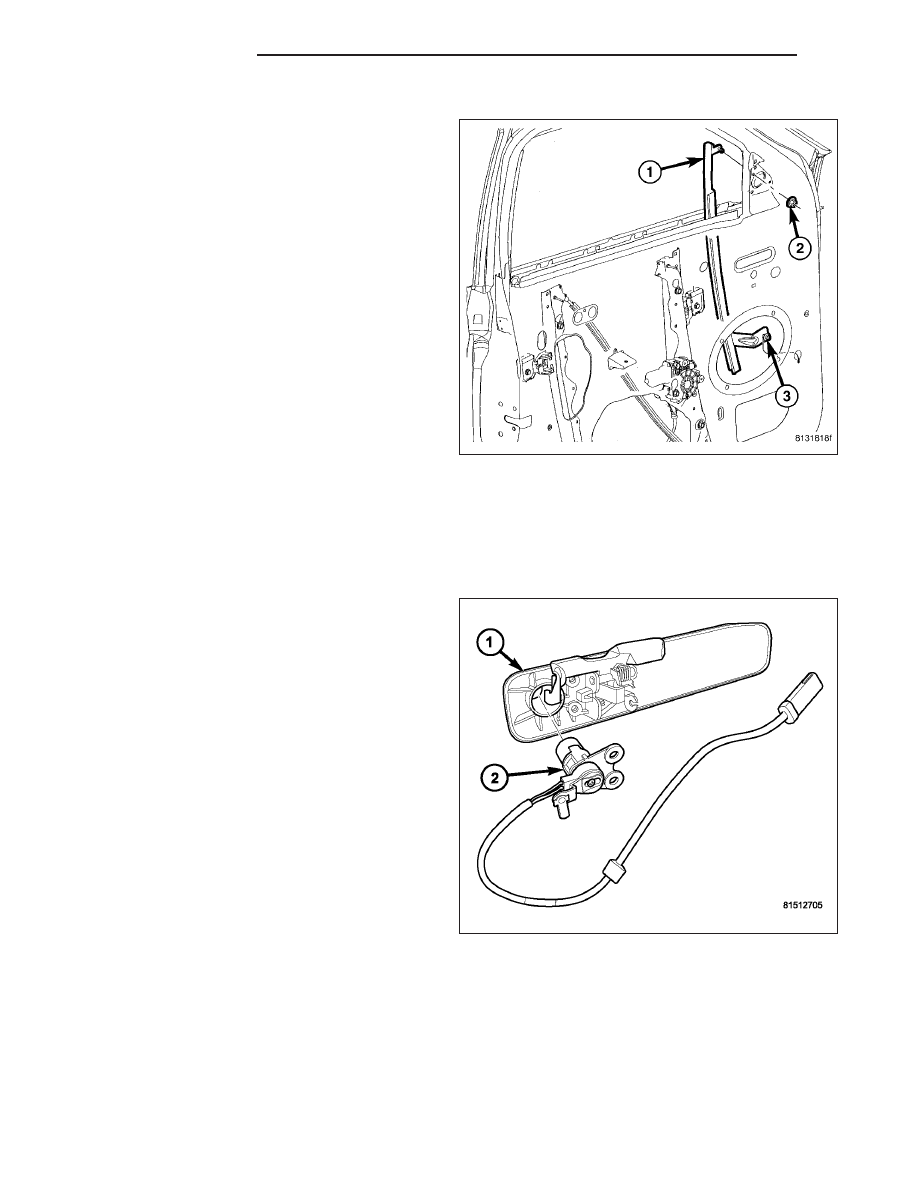

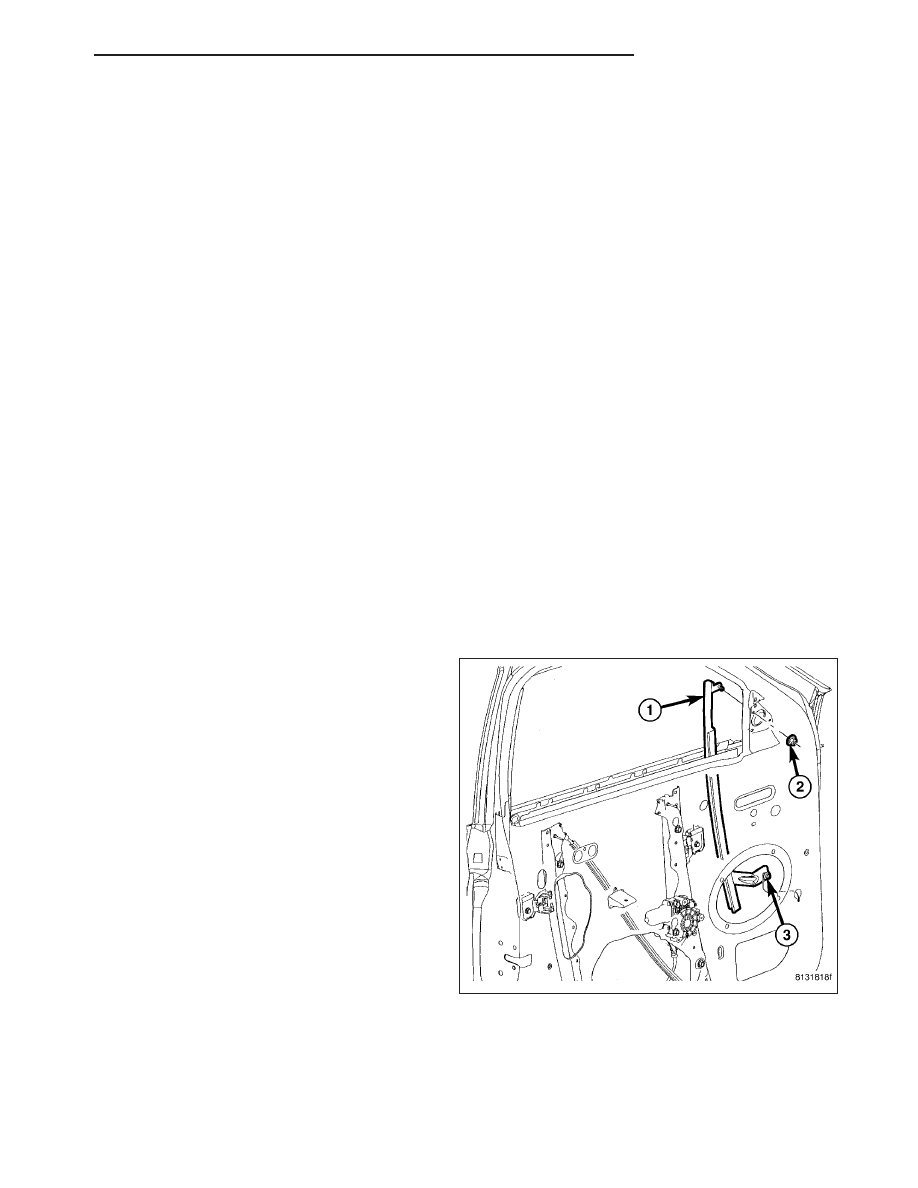

4. Remove the nut (2) that secures the top of the

front glass run channel (1) to the inside door panel.

5. Loosen the nut (3) that secures the bottom of the

run channel to the keyed hole on the inside door
panel.

6. Lift the front glass run channel upward within the

door far enough to disengage the nut that secures
the bottom of the run channel to the keyed hole on
the inside door panel.

7. Remove the front glass run channel from the door.

WK

DOOR - FRONT

23 - 15

INSTALLATION

1. Position the front glass run channel (1) onto the

door.

2. Engage the nut (3) into the keyed hole on the

inside door panel.

3. Install the nut (2) that secures the top of the front

glass run channel to the inside door panel. Tighten
the nut to 10 N·m (89 in. lbs.).

4. Tighten the nut that secures the bottom of the front

glass run channel to the inside door panel to 10
N·m (89 in. lbs.).

5. Install the weatherstrip onto the front glass run

channel.

6. Install the front door glass (Refer to 23 - BODY/

DOOR - FRONT/DOOR GLASS - INSTALLATION).

7. Install the outside rearview mirror (Refer to 23 -

BODY/EXTERIOR/OUTSIDE REARVIEW MIRROR
- INSTALLATION).

CYLINDER-LOCK

REMOVAL

NOTE: A door lock cylinder is used only on the driver side front door exterior handle.

1. Remove the exterior door handle (1) from the out-

side of the driver side front door (Refer to 23 -
BODY/DOOR - FRONT/EXTERIOR HANDLE -
REMOVAL).

2. Using hand pressure, push on the face of the lock

cylinder (2) until it pops out of the cavity in the
back of the door handle.

INSTALLATION

NOTE: A door lock cylinder is used only on the driver side front door exterior handle.

23 - 16

DOOR - FRONT

WK

1. Insert the lock cylinder (2) into the cavity on the

back of the driver side exterior door handle (1).

2. Align the lock cylinder in the handle by aligning the

two screw holes on the lock cylinder housing with
the mounting holes of the door handle.

3. Install the exterior door handle onto the outside of

the driver side front door (Refer to 23 - BODY/
DOOR

-

FRONT/EXTERIOR

HANDLE

-

INSTALLATION).

DOOR

REMOVAL

1. Disconnect and isolate the negative battery cable.

2. Disconnect the front door wire harness connector

from the body wire harness.

3. Using a grease pencil or equivalent, mark the loca-

tion of the front door hinges (1 and 2) on the A-pil-
lar.

4. Support the front door with a suitable lifting device

and remove the four bolts (3) that secure the front
door hinges to the A-pillar.

5. Carefully remove the door from the body.

6. If required, remove the front door hinges from the

door (Refer to 23 - BODY/DOOR - FRONT/HINGE
- REMOVAL).

WK

DOOR - FRONT

23 - 17
