Jeep Grand Cherokee WK. Manual - part 1572





C1502–TIRE PRESSURE SENSOR 2 INTERNAL (CONTINUED)

For a complete wiring diagram Refer to Section 8W

Theory of Operation

The tire pressure sensor actively monitors the air pressure and air temperature inside the tire, the sensor internal
battery status, and the radial acceleration of the wheel. Each sensor has a unique ID code. The sensor transmits
the data at regular intervals via an encoded signal to a receiver circuit located in the Wireless Control Module
(SKREEM).

When Monitored:
With vehicle speed greater than 15 m.p.h. (24 km/h).

Set Condition:
The WCM (SKREEM) will monitor the signals from the four active road tire sensors. A loss of signal error is
detected when eight consecutive blocks of data are not received or cannot be accurately decoded. An internal
sensor hardware error condition will be set when an error in the accelerometer, pressure sensor, or tempera-
ture sensor is detected.

Possible Causes

INTERMITTENT TIRE PRESSURE SENSOR INTERNAL DTC

TIRE PRESSURE SENSOR

WIRELESS CONTROL MODULE (SKREEM)

Diagnostic Test

1.

DTC STATUS IS ACTIVE

Turn the ignition on.

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Is the DTC status Active at this time?

Yes

>> Go to 2

No

>> Go to 4

2.

TIRE PRESSURE SENSOR

Turn the ignition off.

Replace the Tire Pressure Sensor in accordance with the Service Information.

With the scan tool, clear DTCs in the Wireless Control Module (SKREEM).

Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 m.p.h.

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Does the DTC reset or is the status Active for this DTC?

Yes

>> Go to 3

No

>> Test Complete.

3.

WIRELESS CONTROL MODULE (SKREEM)

View repair.

Repair

Replace the Wireless Control Module (SKREEM) in accordance with the Service Information.

22 - 36

TIRES/WHEELS

WK

C1502–TIRE PRESSURE SENSOR 2 INTERNAL (CONTINUED)

4.

INTERMITTENT TIRE PRESSURE SENSOR DTC

The conditions necessary to set this DTC are not present at this time.

Refer to any Technical Service Bulletins that may apply to this condition.

With the scan tool, clear DTCs in the Wireless Control Module (SKREEM).

Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 m.p.h.

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Does the DTC reset or is the status Active for this DTC?

Yes

>> Return to the beginning of this test and perform the diagnostic procedure as necessary.

No

>> Test complete.

WK

TIRES/WHEELS

22 - 37

C1503–TIRE PRESSURE SENSOR 3 INTERNAL

22 - 38

TIRES/WHEELS

WK

C1503–TIRE PRESSURE SENSOR 3 INTERNAL (CONTINUED)

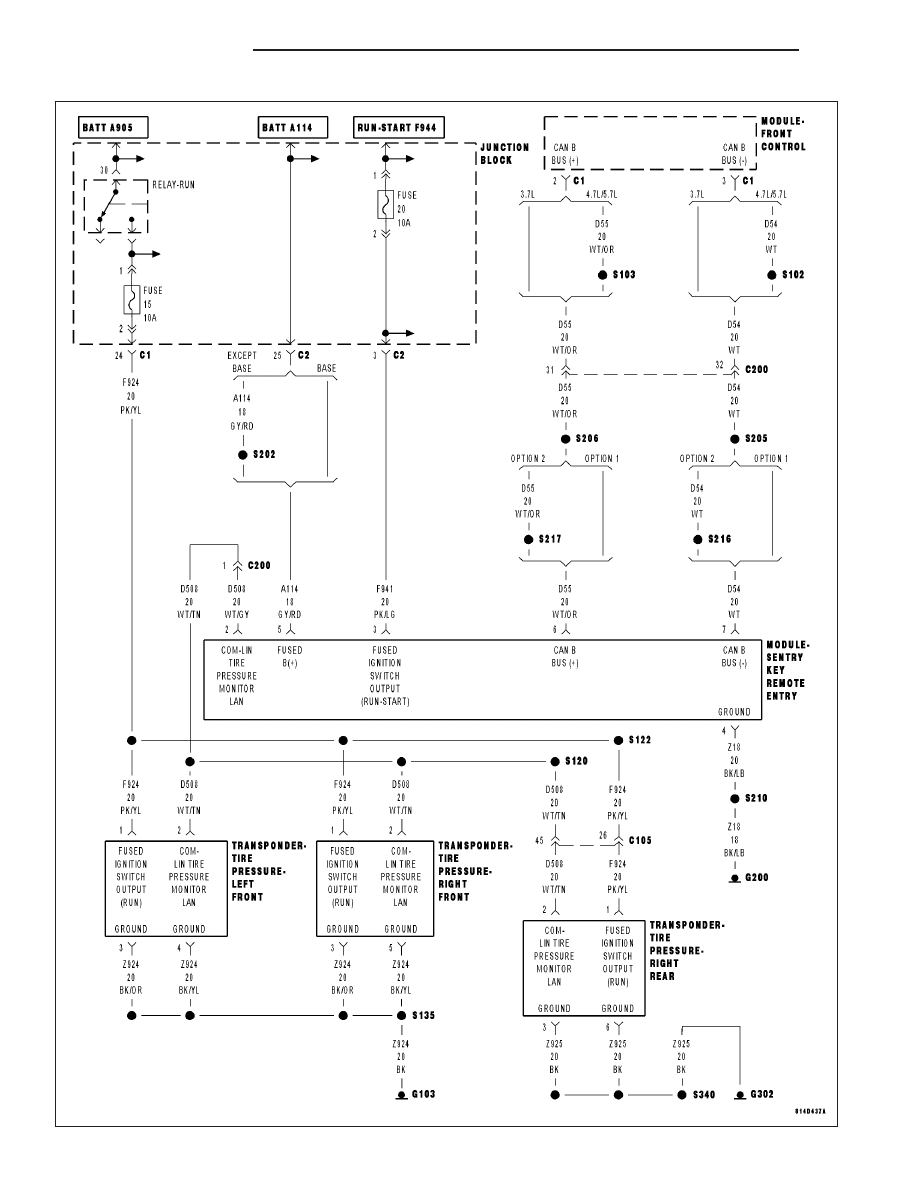

For a complete wiring diagram Refer to Section 8W

Theory of Operation

The tire pressure sensor actively monitors the air pressure and air temperature inside the tire, the sensor internal
battery status, and the radial acceleration of the wheel. Each sensor has a unique ID code. The sensor transmits
the data at regular intervals via an encoded signal to a receiver circuit located in the Wireless Control Module
(SKREEM).

When Monitored:
With vehicle speed greater than 15 m.p.h. (24 km/h).

Set Condition:
The WCM (SKREEM) will monitor the signals from the four active road tire sensors. A loss of signal error is
detected when eight consecutive blocks of data are not received or cannot be accurately decoded. An internal
sensor hardware error condition will be set when an error in the accelerometer, pressure sensor, or tempera-
ture sensor is detected.

Possible Causes

INTERMITTENT TIRE PRESSURE SENSOR INTERNAL DTC

TIRE PRESSURE SENSOR

WIRELESS CONTROL MODULE (SKREEM)

Diagnostic Test

1.

DTC STATUS IS ACTIVE

Turn the ignition on.

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Is the DTC status Active at this time?

Yes

>> Go to 2

No

>> Go to 4

2.

TIRE PRESSURE SENSOR

Turn the ignition off.

Replace the Tire Pressure Sensor in accordance with the Service Information.

With the scan tool, clear DTCs in the Wireless Control Module (SKREEM).

Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 m.p.h.

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Does the DTC reset or is the status Active for this DTC?

Yes

>> Go to 3

No

>> Test Complete.

3.

WIRELESS CONTROL MODULE (SKREEM)

View repair.

Repair

Replace the Wireless Control Module (SKREEM) in accordance with the Service Information.

WK

TIRES/WHEELS

22 - 39
