P0753-1-2/4-5 SOLENOID CIRCUIT (CONTINUED)

For the Transmission circuit diagram (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - SCHE-
MATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W

Theory of Operation

The 1-2/4-5 Solenoid is activated when the Transmission Control Module (TCM) determines that the transmission
must shift into or out of second or fifth gear. The solenoid is only activated during the actual shift of the transmis-
sion. When the solenoid is activated, hydraulic pressure is applied to the proper shift elements in the transmission
to allow the desired shift. Once the shift is completed the solenoid is turned off.

When Monitored:
When both the 1-2/4-5 Solenoid and the Solenoid Supply voltage is active.

Set Condition:When 1-2/4-5 Solenoid is turned on and the TCM detects any of the following in the 1-2/4-5
Solenoid or circuit: open, short to ground, short to voltage, or the solenoid driver in the TCM.

Possible Causes

(T76) 1-2/4-5 SOLENOID CONTROL CIRCUIT OPEN

(T76) 1-2/4-5 SOLENOID CONTROL CIRCUIT SHORT TO GROUND

(T76) 1-2/4-5 SOLENOID CONTROL CIRCUIT SHORT TO ANOTHER CIRCUIT

1-2/4-5 SOLENOID

TRANSMISSSION CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)

Diagnostic Test

1.

CHECK IF THE DTC IS CURRENT

NOTE: When the Transmission Control Module (TCM) detects and stores a DTC, the TCM also stores the
vehicles operating conditions under which the DTC originally set. This information is located in the scan
tool under Environmental Data. Before erasing any stored DTCs, record any available data to assist in dupli-
cating the conditions in which the DTC originally set.
Turn the ignition off to the lock position.

With the scan tool, erase Transmission DTC’s.

Using the Environmental Data recorded earlier, try to duplicate the conditions in which the DTC originally set. It may
be necessary to test drive the vehicle.

With the scan tool, read Transmission DTC’s.

Did the DTC P0753 reset?

Yes

>> Go To 2

No

>> Go To 6

21 - 534

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

WK

P0753-1-2/4-5 SOLENOID CIRCUIT (CONTINUED)

2.

CHECK THE (T76) 1-2/4-5 SOLENOID CONTROL CIRCUIT FOR AN OPEN

Turn the ignition off to the lock position.

Disconnect the TCM C2 harness connector.

Disconnect the Transmission Electrohydraulic Control Unit Assembly
harness connector.

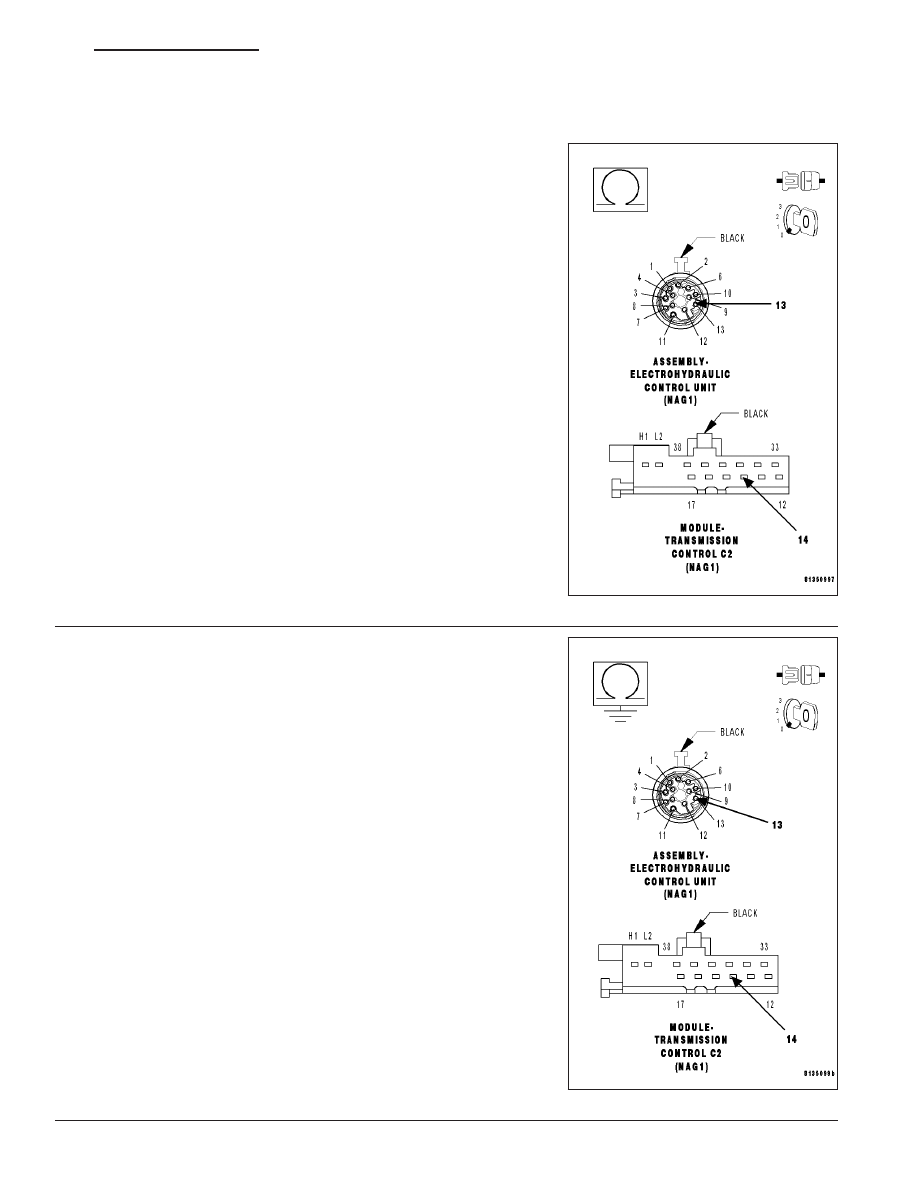

Measure the resistance of the (T76) 1-2/4-5 Solenoid Control circuit
between the TCM C2 harness connector and the Transmission Elec-
trohydraulic Control Unit Assembly harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 3

No

>> Repair the (T76) 1-2/4-5 Solenoid Control circuit for an

open.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

3.

CHECK THE (T76) 1-2/4-5 SOLENOID CONTROL CIRCUIT FOR
A SHORT TO GROUND

Measure the resistance between ground and the (T76) 1-2/4-5 Sole-
noid Control circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T76) 1-2/4-5 Solenoid Control circuit for a

short to ground.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

No

>> Go To 4

WK

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

21 - 535

P0753-1-2/4-5 SOLENOID CIRCUIT (CONTINUED)

4.

CHECK THE (T76) 1-2/4-5 SOLENOID CONTROL CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT

Measure the resistance between the (T76) 1-2/4-5 Solenoid Control
circuit and every other circuit in the Transmission Electrohydraulic
Control Unit Assembly harness connector.

Is the resistance below 5.0 ohms between the (T76) 1-2/4-5
Solenoid Control circuit and any other circuit(s) in the Trans-
mission Electrohydraulic Control Unit Assembly harness con-
nector?

Yes

>> Repair the (T76) 1-2/4-5 Solenoid Control circuit for

another circuit.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

No

>> Go To 5

5.

CHECK THE 1-2/4-5 SOLENOID

Reconnect the Transmission Electrohydraulic Control Unit Assembly
harness connector.

Measure the resistance of the 1-2/4-5 Solenoid between the (T76) 1-2/
4-5 Solenoid Control circuit and the (T78) Solenoid Voltage Supply cir-
cuit in the TCM C2 harness connector.

Is the resistance between 2.5 and 6.5 ohms?

Yes

>> Using the schematics as a guide, check the Transmission

Control Module (TCM) pins, terminals, and connectors for
corrosion, damage, or terminal push out. Pay particular
attention to all power and ground circuits. If no problems
are found, replace the TCM per the Service Information.
Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES/TRANSMISSION CONTROL MODULE for the
appropriate service procedure.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

No

>> Replace the 1-2/4-5 Solenoid per the Service Information. Refer to 21- AUTOMATIC TRANSMISSION-

AUTOMATIC TRANSMISSION NAG1/SERVICE INFORMATION for the appropriate service procedure.

21 - 536

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

WK

P0753-1-2/4-5 SOLENOID CIRCUIT (CONTINUED)

6.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wiring and connectors while checking for any possible open or shorted circuits.

Check for any Service Information Tune-ups or Technical Service Bulletins that may apply.

Were there any problems found?

Yes

>> Repair as necessary.

Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Test Complete.
