NOTE: The overdrive friction discs and steel discs are thicker than the matching components in the under-
drive and reverse clutches.

9. Remove the number 2 thrust bearing (18) from the input clutch hub (1).

10. Remove the overdrive clutch wave snap-ring (3) from the input clutch retainer (13).

11. Remove the UD/OD reaction plate tapered snap-ring (14) from the input clutch retainer (13).

12. Remove the UD/OD reaction plate (15) from the input clutch retainer (13).

13. Remove the UD/OD reaction plate flat snap-ring (16) from the input clutch retainer (13).

14. Remove the underdrive clutch pack (11) from the input clutch retainer (13).

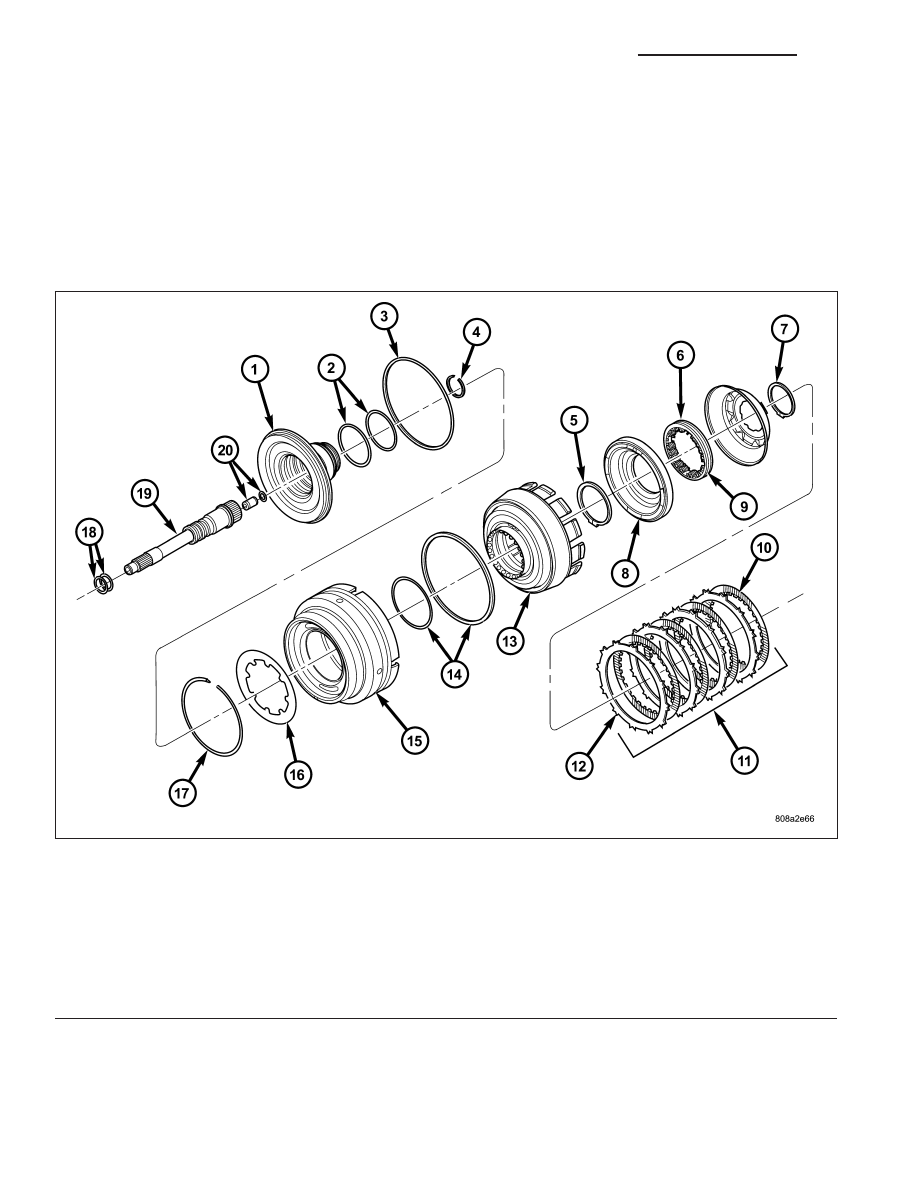

Input Clutch Assembly - Part 1

1 - INPUT CLUTCH HUB

11 - UD CLUTCH

2 - O-RING SEALS

12 - PLATE

3 - SEAL

13 - CLUTCH RETAINER

4 - SNAP-RING

14 - SEAL

5 - SNAP-RING

15 - OD/REV PISTON

6 - UD BALANCE PISTON

16 - BELLEVILLE SPRING

7 - SNAP-RING

17 - SNAP-RING

8 - UD PISTON

18 - SEAL RINGS

9 - SPRING

19 - INPUT SHAFT

10 - DISC

20 - LUBRICATION CHECK VALVE AND SNAP-RING

21 - 390

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

WK

15. Using Spring Compressor 8251 (2) , compress

the UD/OD balance piston (3) and remove the
snap-ring from the input clutch hub (1).

WK

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

21 - 391

16. Remove the UD/OD balance piston (6) and piston return spring (9) from the input clutch retainer (13).

17. Remove the underdrive piston (8) from the input clutch retainer (13).

NOTE: Both the UD/OD balance piston and the underdrive piston have seals molded onto them. If the seal
is damaged, do not attempt to install a new seal onto the piston. The piston/seal must be replaced as an
assembly.

18. Remove the input clutch retainer tapered snap-ring (5).

19. Separate input clutch retainer (13) from input clutch hub (1).

20. Separate OD/reverse piston (15) from input clutch hub retainer (13).

21. Remove all seals and o-rings from the input shaft and input hub. The o-rings on the input hub are color coded.

Be sure to make note of which o-ring belongs in which location.

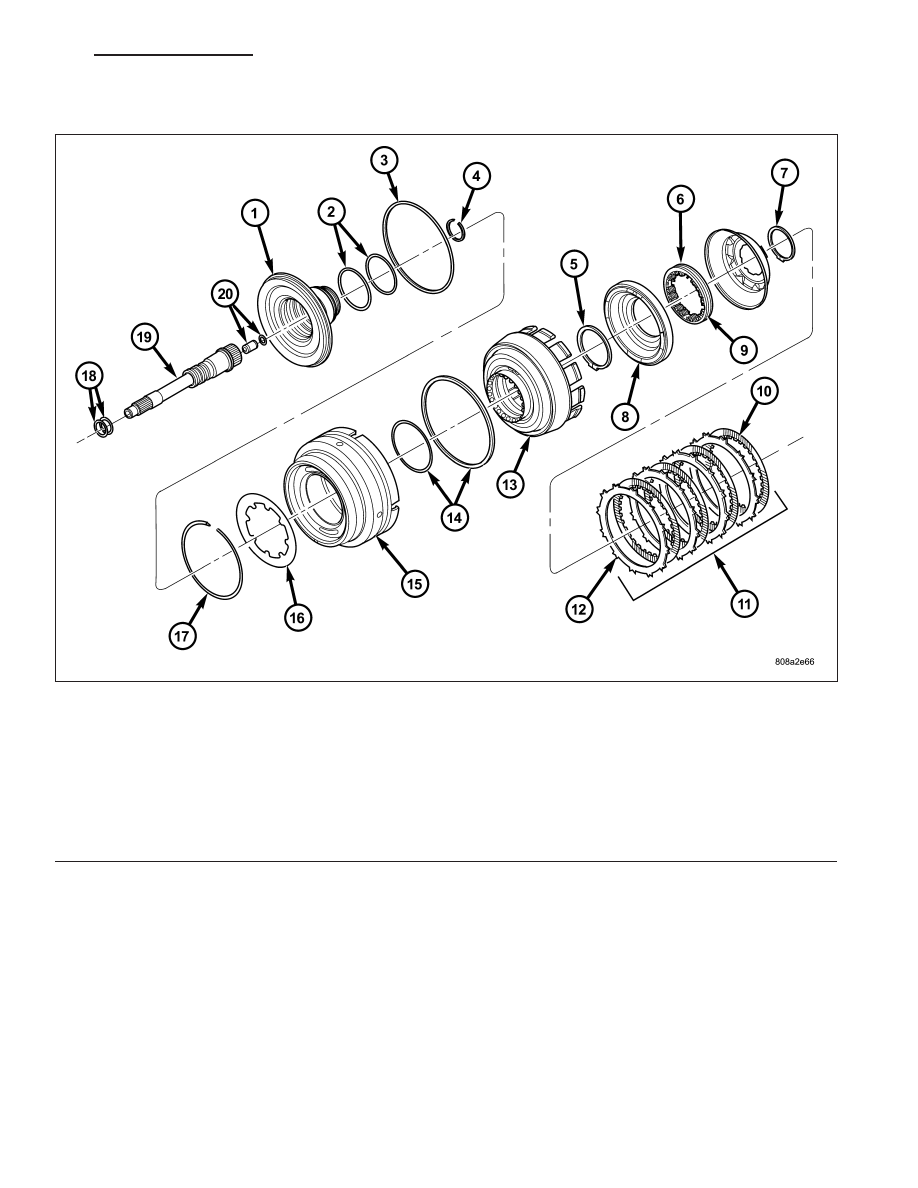

Input Clutch Assembly - Part 1

1 - INPUT CLUTCH HUB

11 - UD CLUTCH

2 - O-RING SEALS

12 - PLATE

3 - SEAL

13 - CLUTCH RETAINER

4 - SNAP-RING

14 - SEAL

5 - SNAP-RING

15 - OD/REV PISTON

6 - UD BALANCE PISTON

16 - BELLEVILLE SPRING

7 - SNAP-RING

17 - SNAP-RING

8 - UD PISTON

18 - SEAL RINGS

9 - SPRING

19 - INPUT SHAFT

10 - DISC

20 - LUBRICATION CHECK VALVE AND SNAP-RING

21 - 392

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

WK

ASSEMBLY

NOTE: Install all new seals and o-rings onto the input shaft and input hub. The o-rings on the input hub are
color coded. Be sure to install the correct o-ring in the correct location.

1. Check the transmission lubrication check valve (20) located in the input shaft using shop air. The valve should

only allow air flow in one direction. If the valve allows no air flow, or air flow in both directions, the valve will need
to be replaced.

2. Lubricate all seals with Mopar

T

ATF +4, Automatic Transmission Fluid, prior to installation.

3. Assemble the OD/reverse piston (15) onto the input clutch hub (1).

4. Assemble the input clutch retainer (13) onto the input clutch hub (1).

5. Install the input clutch retainer tapered snap-ring (5) with tapered side up onto the input clutch hub (1).

Input Clutch Assembly - Part 1

1 - INPUT CLUTCH HUB

11 - UD CLUTCH

2 - O-RING SEALS

12 - PLATE

3 - SEAL

13 - CLUTCH RETAINER

4 - SNAP-RING

14 - SEAL

5 - SNAP-RING

15 - OD/REV PISTON

6 - UD BALANCE PISTON

16 - BELLEVILLE SPRING

7 - SNAP-RING

17 - SNAP-RING

8 - UD PISTON

18 - SEAL RINGS

9 - SPRING

19 - INPUT SHAFT

10 - DISC

20 - LUBRICATION CHECK VALVE AND SNAP-RING

WK

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

21 - 393
