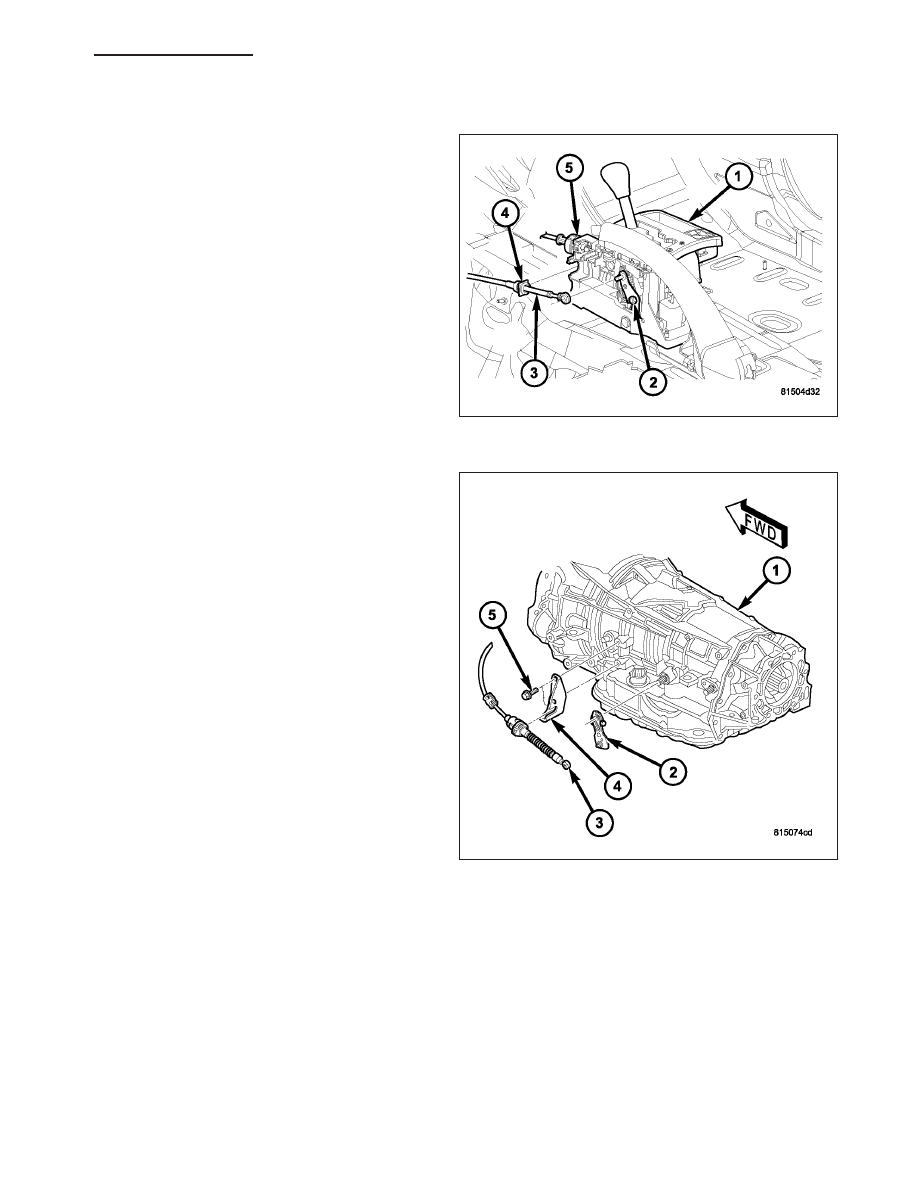

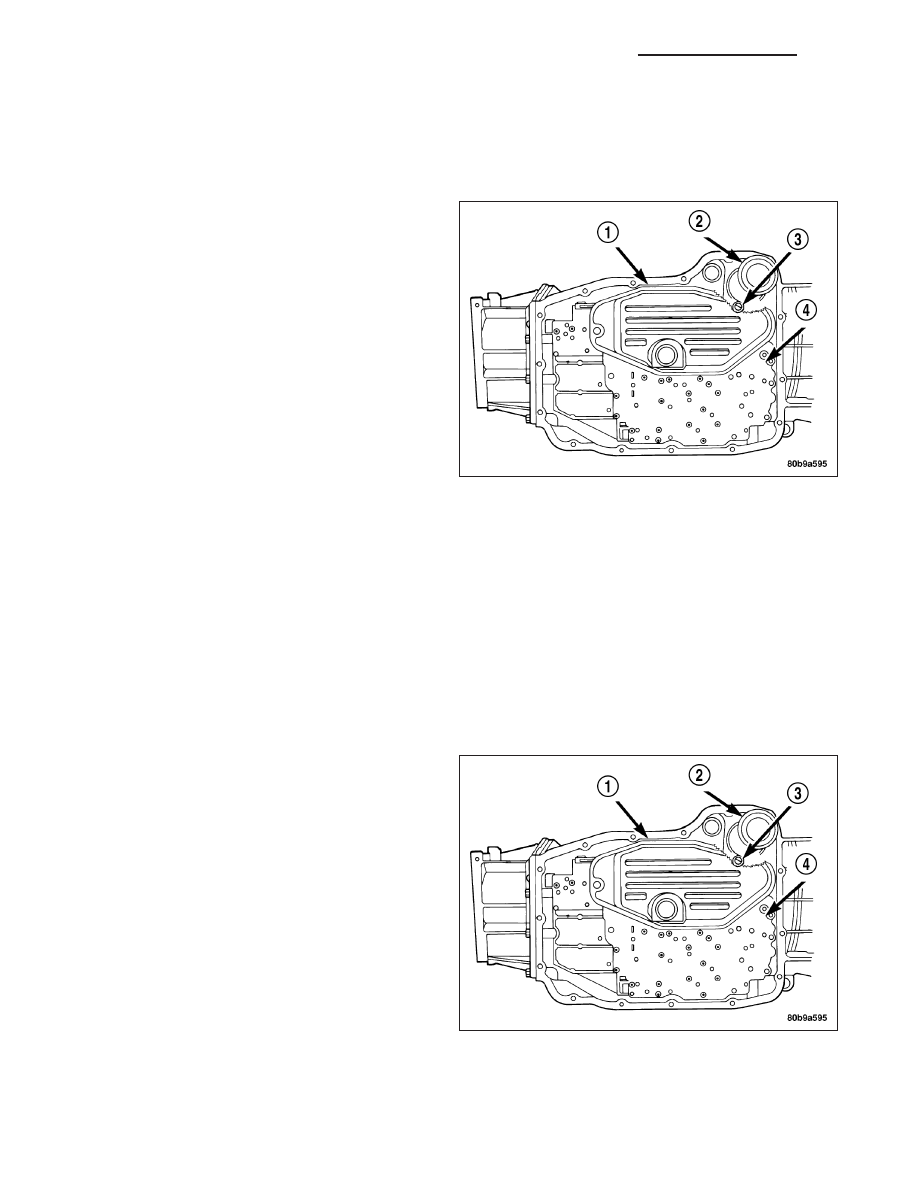

5. Slowly separate front of pan away from transmission allowing the fluid to drain into drain pan. 6. Hold up pan and remove remaining bolts holding pan to transmission. 7. While holding pan level, lower pan away from transmission. 8. Pour remaining fluid in pan into drain pan. 9. Remove the screw holding the primary oil filter (1) to valve body. 10. Separate filter from valve body and oil pump and pour fluid in filter into drain pan. 11. Inspect the oil filter seal in the bottom of the oil pump. If the seal is not installed completely in the 12. If replacing the cooler return filter (2), use Oil Fil- ter Wrench 8321 to remove the filter from the 13. Dispose of used trans fluid and filter(s) properly. INSPECTION Inspect bottom of pan and magnet for excessive amounts of metal. A light coating of clutch material on the bottom CLEANING 1. Using a suitable solvent, clean pan and magnet. 2. Using a suitable gasket scraper, clean original sealing material from surface of transmission case and the trans- mission pan. INSTALLATION CAUTION: The primary oil filter seal MUST be fully 1. If necessary, install a new primary oil filter seal in the oil pump inlet bore. Seat the seal in the bore 2. Place replacement filter in position on valve body and into the oil pump. 3. Install screw to hold the primary oil filter (1) to valve body. Tighten screw to 4.5 N·m (40 in. lbs.) 4. Install new cooler return filter (2) onto the transmission, if necessary. Torque the filter to 14.12 N·m (125 in.lbs.). 5. Place bead of Mopar T RTV sealant onto the transmission case sealing surface. 6. Place pan in position on transmission. 7. Install bolts to hold pan to transmission. Tighten bolts to 11.8 N·m (105 in. lbs.) torque. 21 - 378 AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION WK |
