STEERING WHEEL

REMOVAL

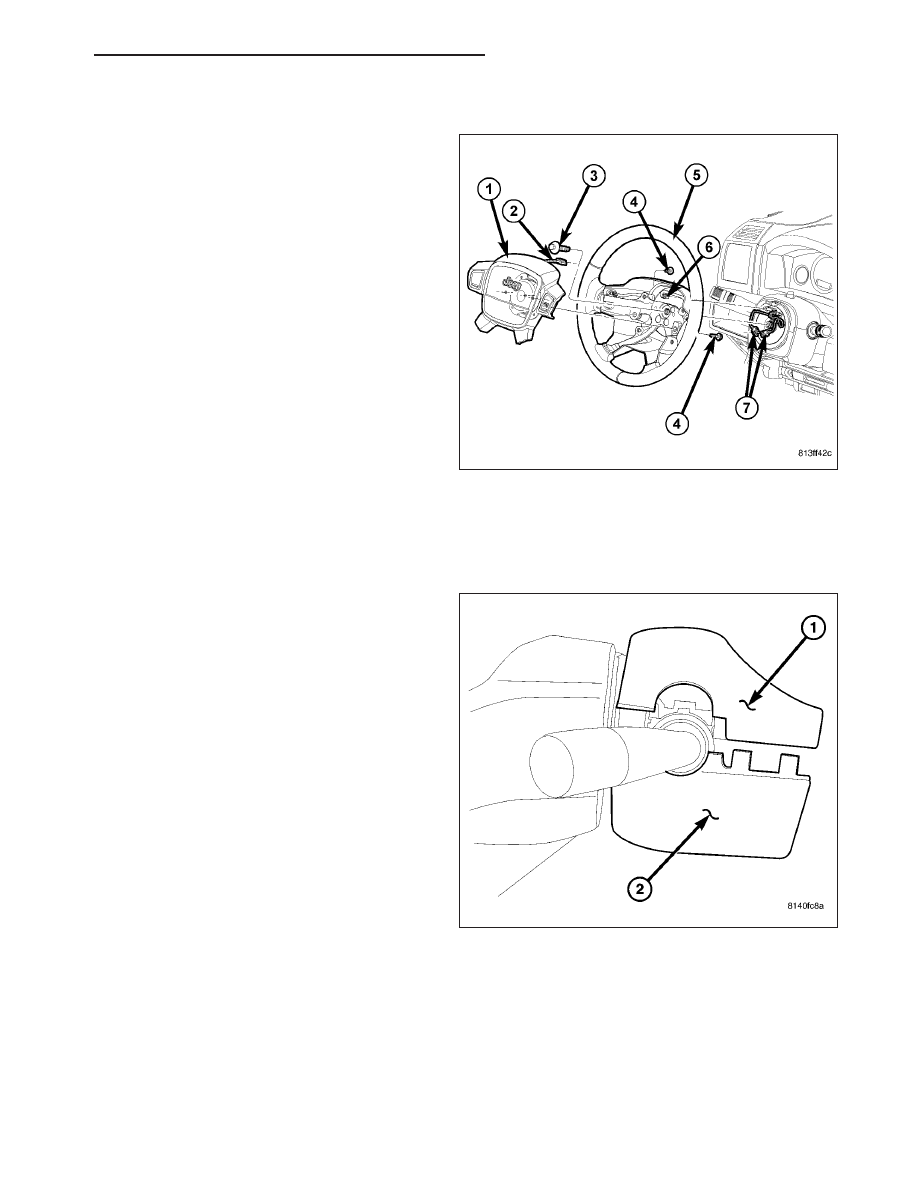

1. Disable and remove the drivers side airbag (1).

(Refer to 8 - ELECTRICAL/RESTRAINTS/DRIVER
AIRBAG - REMOVAL).

2. Disconnect all the electrical connectors (2,6&7).

3. Partially remove the steering wheel bolt and leave

the bolt in the column.

4. Install puller (2) or equivalent using the top of the

bolt to push on.

NOTE: Ensure the bolts are threaded firmly into
the steering wheel.

5. Remove the steering wheel.

19 - 38

COLUMN - SERVICE INFORMATION

WK

INSTALLATION

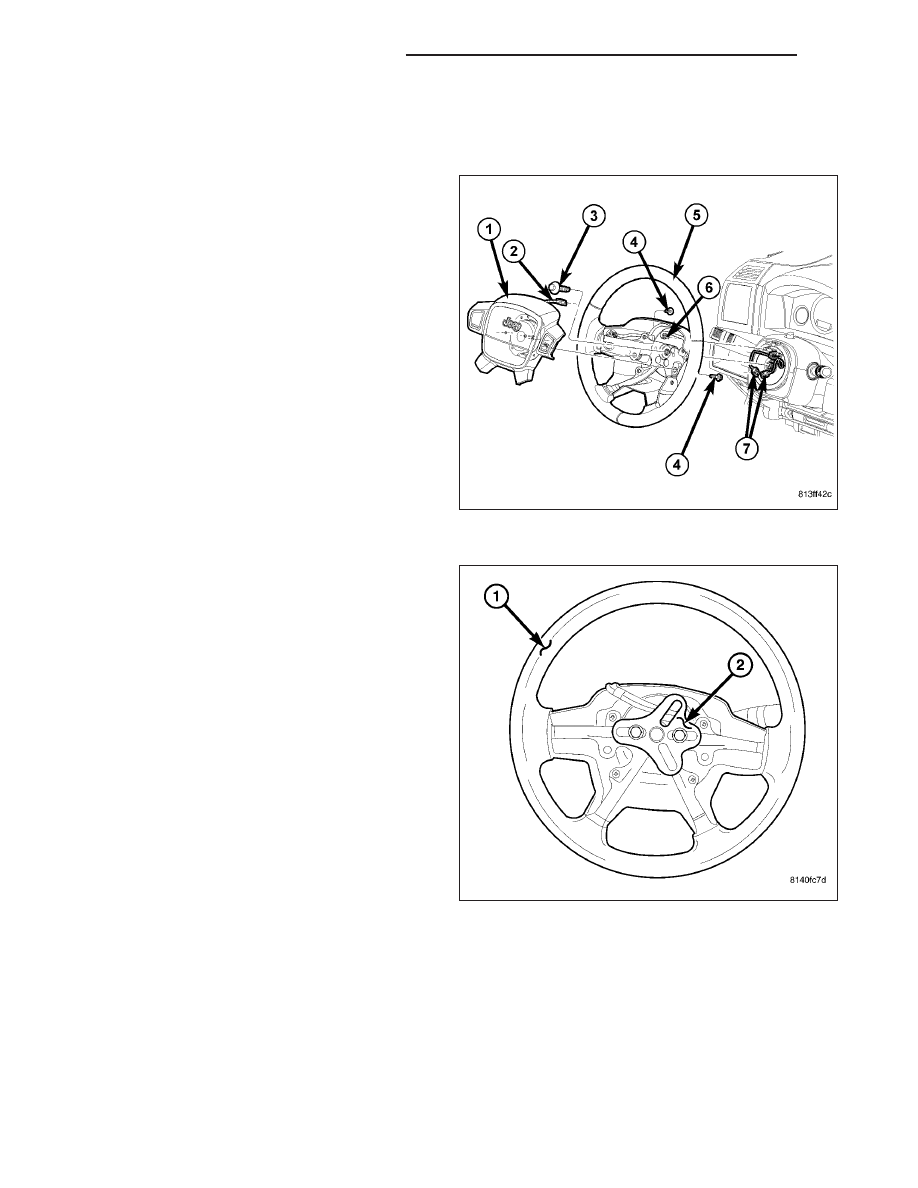

1. Install steering wheel (5) to the column

NOTE: Do not reuse the old steering wheel bolt (3)
(a new bolt must be used)

NOTE: Be certain that the steering wheel mounting
bolt is tightened to the proper torque specification
to ensure proper clockspring operation.

2. Install the new steering wheel bolt (3). Tighten the

bolt to 54 N·m (40 ft. lbs.).

3. Reconnect all the electrical connectors (2,6&7).

4. Install the drivers side air bag (1). (Refer to 8 -

ELECTRICAL/RESTRAINTS/DRIVER

AIRBAG

-

INSTALLATION).

SHROUD

REMOVAL

1. Remove the three bolts in the lower shroud (2).

NOTE: Use care not to break off the tangs on the
shrouds.

2. Then unsnap the lower shroud (2) from the upper

shroud (1).

WK

COLUMN - SERVICE INFORMATION

19 - 39

INSTALLATION

1. Install the upper shroud (1) on the column.

2. Install the lower shroud (2) to the column.

3. Snap the two halves back into place.

4. Install the three mounting bolts to secure the

shroud in place.

INTERMEDIATE SHAFT

REMOVAL

1. Remove the lower coupling (1) pinch bolt using a

long extension (3) with a swivel socket (2).

19 - 40

COLUMN - SERVICE INFORMATION

WK

2. Raise and support the vehicle.

3. Remove the left inner fender well (2) to gain

access to the intermediate shaft.

4. Remove the intermediate shaft bearing nuts (2)

from the bracket (1).

5. Remove the intermediate shaft bearing bracket (1)

from the frame.

WK

COLUMN - SERVICE INFORMATION

19 - 41
