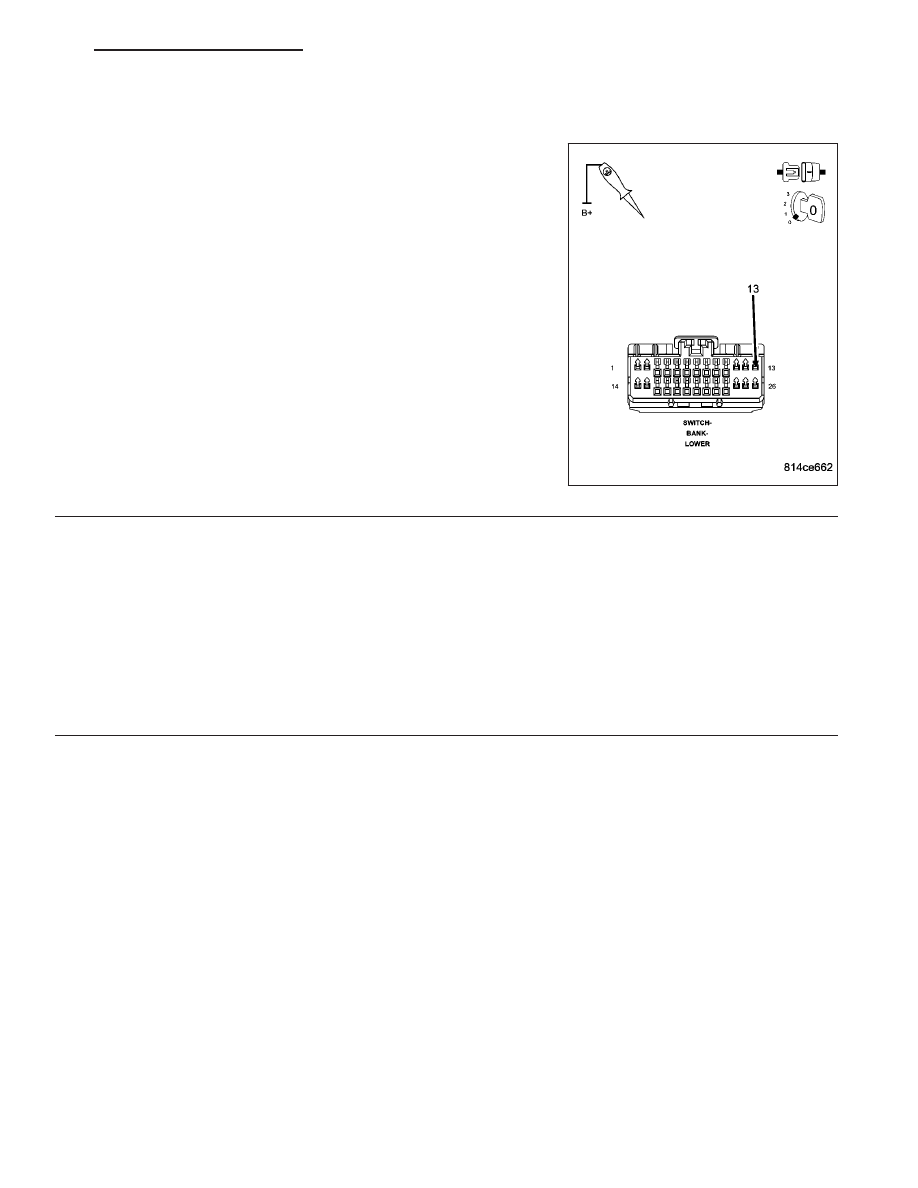

B1D5C–ADJUSTABLE PEDAL SWITCH CIRCUIT STUCK FORWARD (CONTINUED) 3. CHECK ADJUSTABLE PEDALS SWITCH FORWARD CIRCUIT FOR A SHORT TO GROUND Turn the ignition off. Disconnect the Memory Seat Module harness connector. Disconnect the Lower Switch Bank harness connector. Using a 12-volt test light connected to 12-volts, probe the Adjustable Pedals Switch Forward circuit. Does the test light illuminate brightly? Yes >> Repair the Adjustable Pedals Switch Forward circuit for a short to ground. Perform APS VERIFICATION TEST - VER 1. No >> Go To 4 4. CHECK LOWER SWITCH BANK SHORTED Measure the resistance between the Adjustable Pedals Switch Rearward and Adjustable Pedals Switch Forward Is the resistance below 5.0 ohms? Yes >> Replace and reprogram the Memory Seat Module in accordance with the Service Information. Perform APS VERIFICATION TEST - VER 1. No >> Replace the Lower Switch Bank in accordance with the Service Information. Perform APS VERIFICATION TEST - VER 1. 5 - 126 BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS WK |
