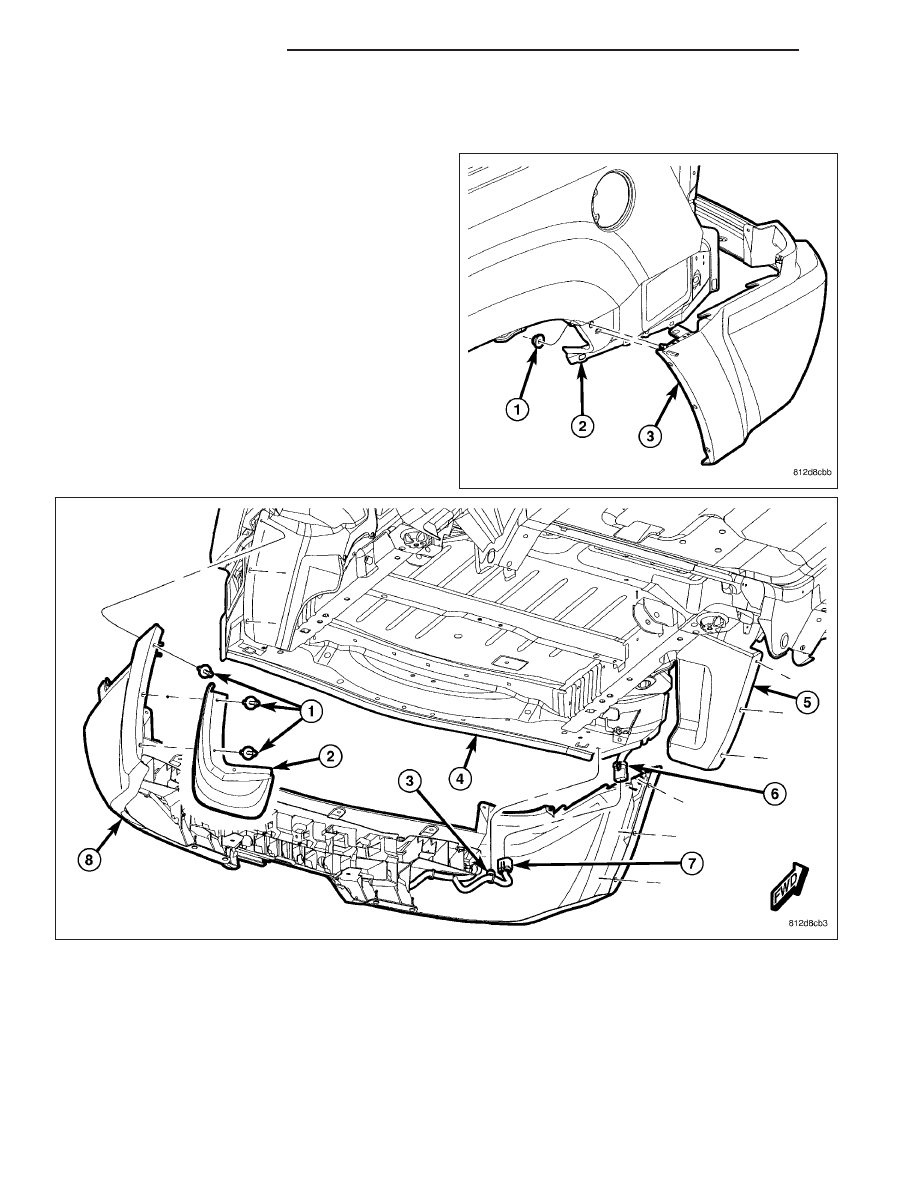

3. Remove the plastic rivets at the wheel wells (1).

4. Remove the two push pin fasteners and remove the rear wheel splash shields.

5. Remove the nuts (1) at the back sides of the quar-

ter panels (2).

6. Remove the fascia (8) and disconnect the electrical connector (6 & 7).

7. Remove the four push pin fasteners and the energy absorber.

8. Disconnect the park assist electrical sensors.

9. Remove the park assist sensors.

13 - 8

FRAME & BUMPERS

WK

INSTALLATION

1. Install the park assist sensors, if equipped.

2. Install the energy absorber and install the four push pin fasteners.

3. Position the fascia onto the vehicle and connect the electrical connector.

WK

FRAME & BUMPERS

13 - 9

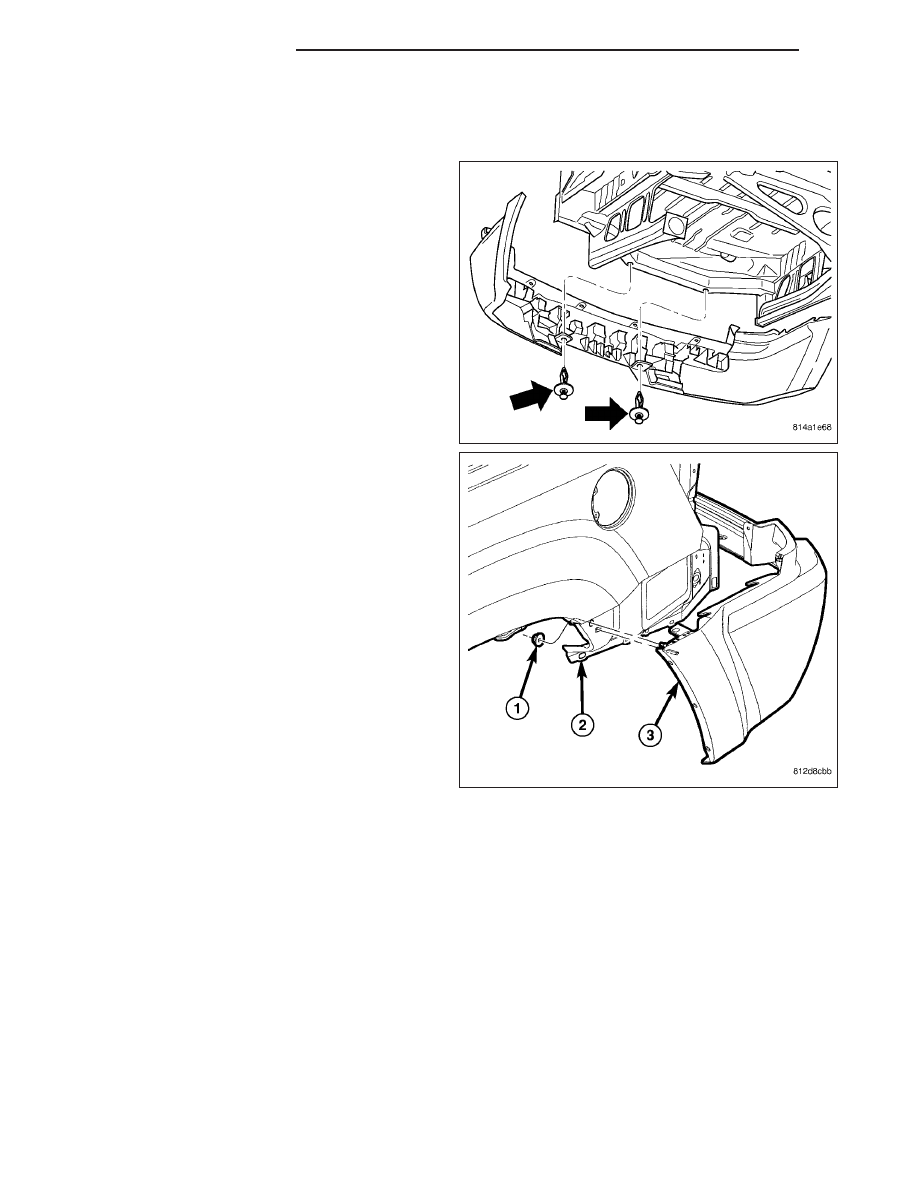

4. Slightly spread the sides of the fascia to clear the painted surfaces.

5. Direct the slots in the upper sides of the fascia onto the two t-pushpins (1) on either side.

6. Install the two screws (2) and four push pin fasteners (3).

7. Install the two lower push pin fasteners.

8. Install the nuts (1) and tighten to 9 N·m (80 in.

lbs.).

13 - 10

FRAME & BUMPERS

WK

9. Install new rivets (1) attaching the wheelhouse splash shields (4) to the fascia.

FRAME

SPECIFICATIONS

FRAME DIMENSIONS

Frame dimensions are listed in metric scale. All dimensions are from center to center of Principal Locating Point
(PLP), or from center to center of PLP and fastener location.

VEHICLE PREPARATION

Position the vehicle on a frame alignment rack, refer to instructions provided with equipment being used. Adjust the
vehicle PLP heights to the specified dimension above the work surface (datum line). Vertical dimensions can be
taken from the datum line to the locations indicated were applicable.

DESCRIPTION

FIGURE

FRAME DIMENSIONS - TOP VIEW

1

FRAME DIMENSIONS - SIDE VIEW

2

WK

FRAME & BUMPERS

13 - 11
