Jeep Grand Cherokee WK. Manual - part 1235

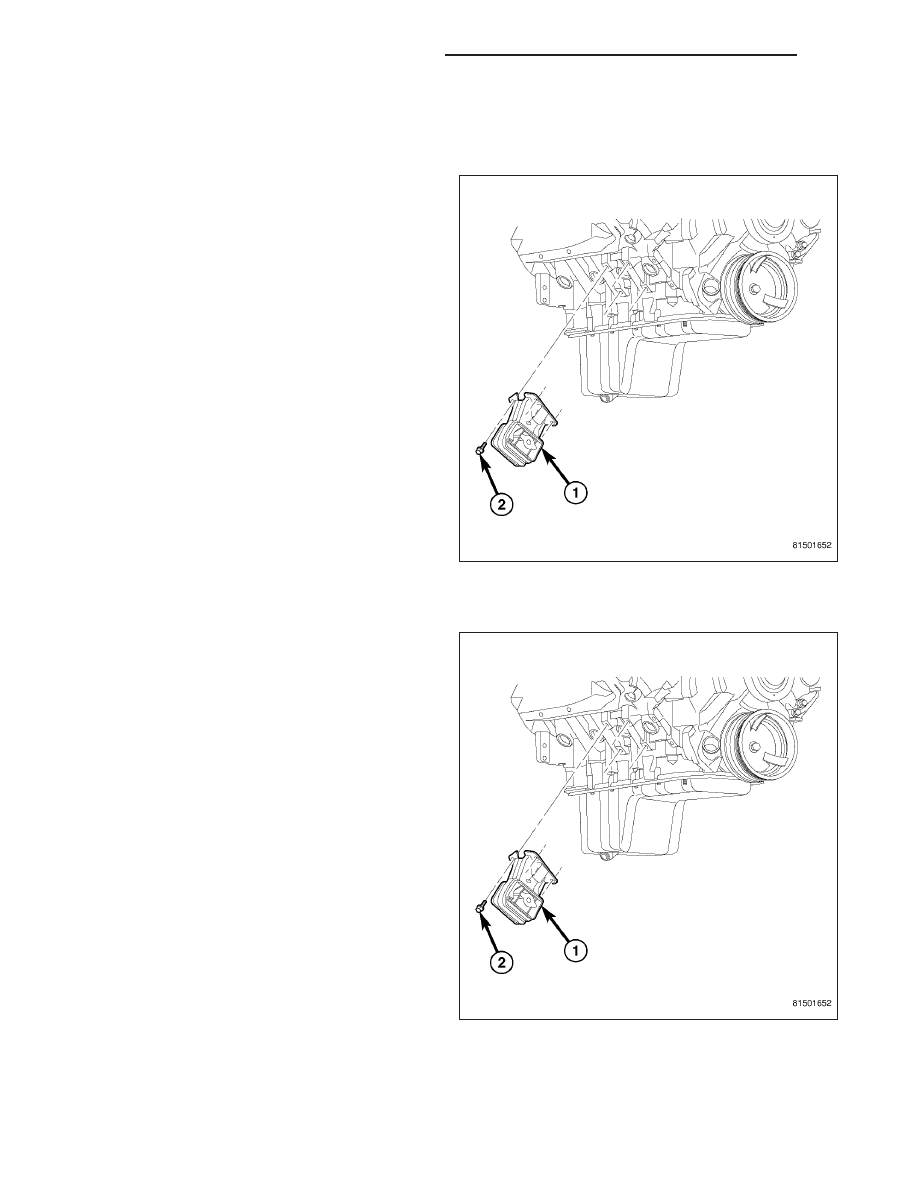

MOUNT - FRONT

REMOVAL

1. Disconnect negative battery cable.

2. Raise vehicle.

3. Remove engine mount thru bolts.

4. Raise engine using suitable jack.

5. Remove engine mount bolts (2).

6. Remove mount (1) from engine.

INSTALLATION

1. Install the engine mount (1).

2. Lower the engine.

3. Install the thru bolts and nuts

4. Lower vehicle.

5. Connect negative battery cable.

9 - 1536

ENGINE - 5.7L SERVICE INFORMATION

WK

MOUNT - REAR

REMOVAL

4X2

1. Raise the vehicle on a hoist.

2. Using a suitable jack, support transmission.

3. Remove the crossmember.

4. Remove the fasteners (1) from the transmission

mount to transmission.

5. Remove the mount (3).

6. Remove the transmission mount bracket (2), if

required.

4X4

1. Raise the vehicle on a hoist.

2. Using a suitable jack, support transmission.

3. Remove the crossmember.

4. Remove the fasteners (2) from the transmission

mount (1) to transmission.

5. Remove the mount.

WK

ENGINE - 5.7L SERVICE INFORMATION

9 - 1537

INSTALLATION

4X2

1. Install the transmission mount bracket (2), if

removed.

2. Position the transmission mount (3) on the trans-

mission mount bracket (2). Install the fasteners
(1)that

attach

the

transmission

mount

to

the

bracket.

3. Torque the bolts to N·m ( ft.lbs.) torque.

4. Install the crossmember.

4X4

1. Position the transmission mount (1) on the trans-

mission. Install the bolts (2) that attach the trans-
mission mount to the transmission.

2. Torque the bolts to N·m ( ft.lbs.) torque.

3. Install the crossmember.

9 - 1538

ENGINE - 5.7L SERVICE INFORMATION

WK

LUBRICATION

DESCRIPTION

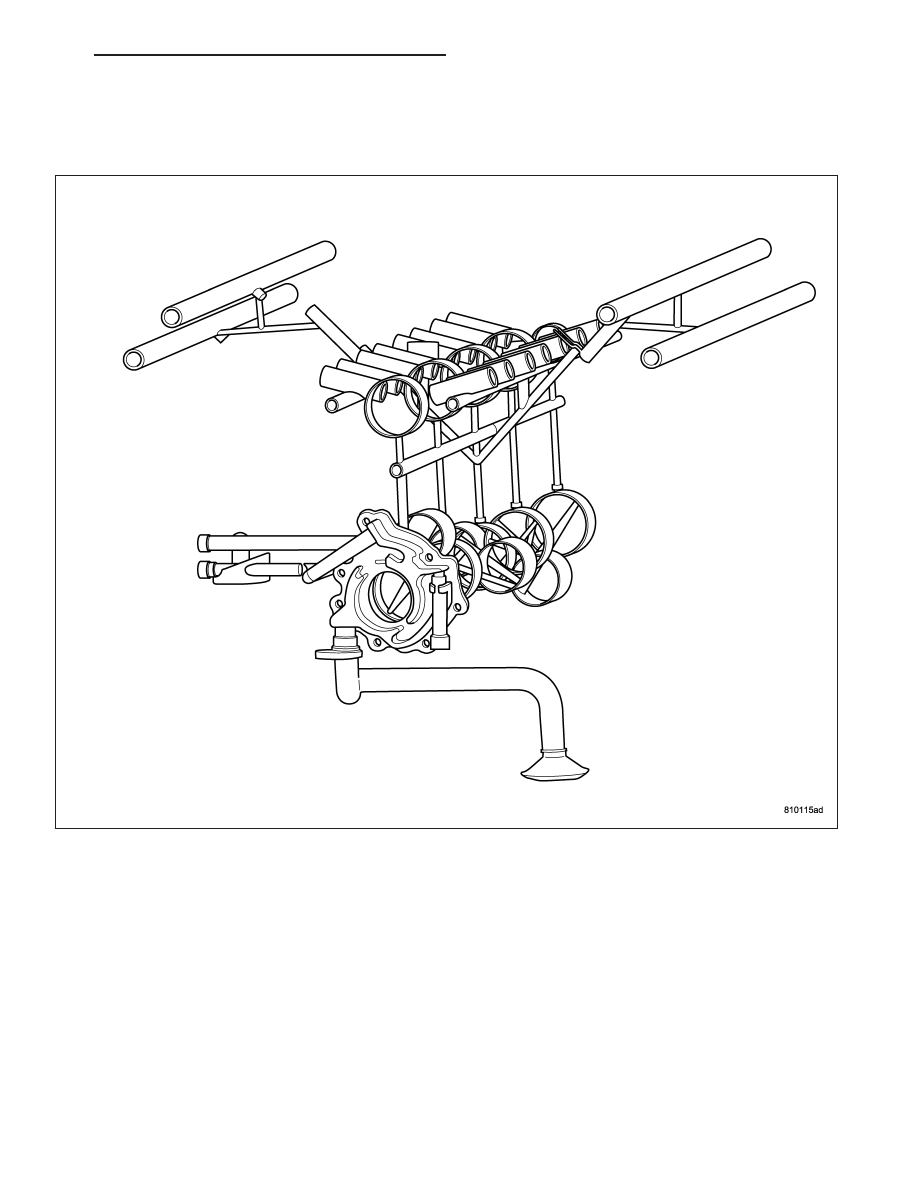

The lubrication system is a full flow filtration pressure feed type.

DIAGNOSIS AND TESTING

DIAGNOSIS AND TESTING - CHECKING ENGINE OIL PRESSURE

1. Remove oil pressure sending unit and install gauge assembly C-3292.

2. Run engine until thermostat opens.

3. Oil Pressure:

Curb Idle–25 kPa (4 psi) minimum

3000 rpm–170 - 758 kPa (25 - 110 psi)

4. If oil pressure is 0 at idle, shut off engine. Check for a clogged oil pick-up screen or a pressure relief valve stuck

open.

WK

ENGINE - 5.7L SERVICE INFORMATION

9 - 1539
