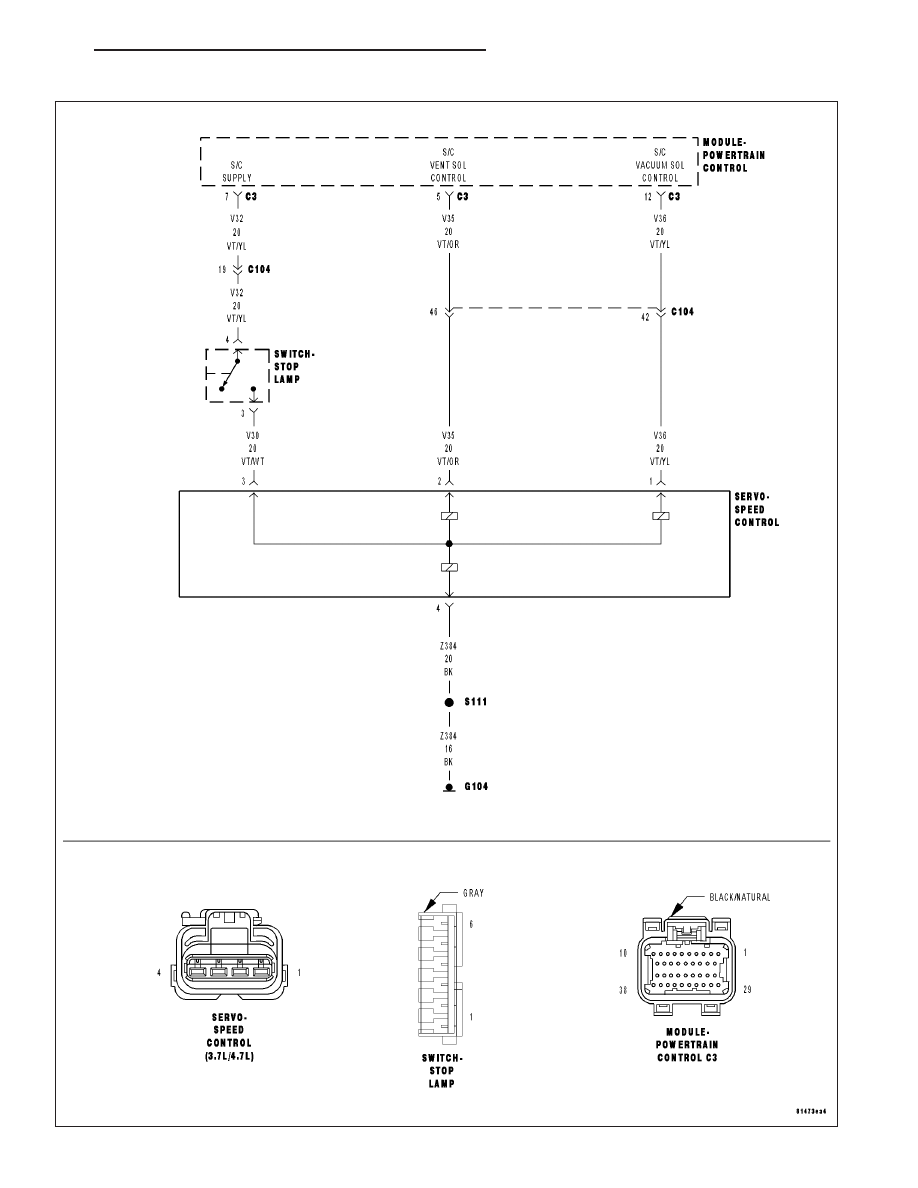

P0581-SPEED CONTROL SWITCH 1 CIRCUIT HIGH (CONTINUED)

5.

(V371) S/C SWITCH NO.1 SIGNAL CIRCUIT OPEN

NOTE: The measurement must be taken from both Speed Control
Switch harness connectors.
Turn the ignition off.

Disconnect the C3 SCCM harness connector.

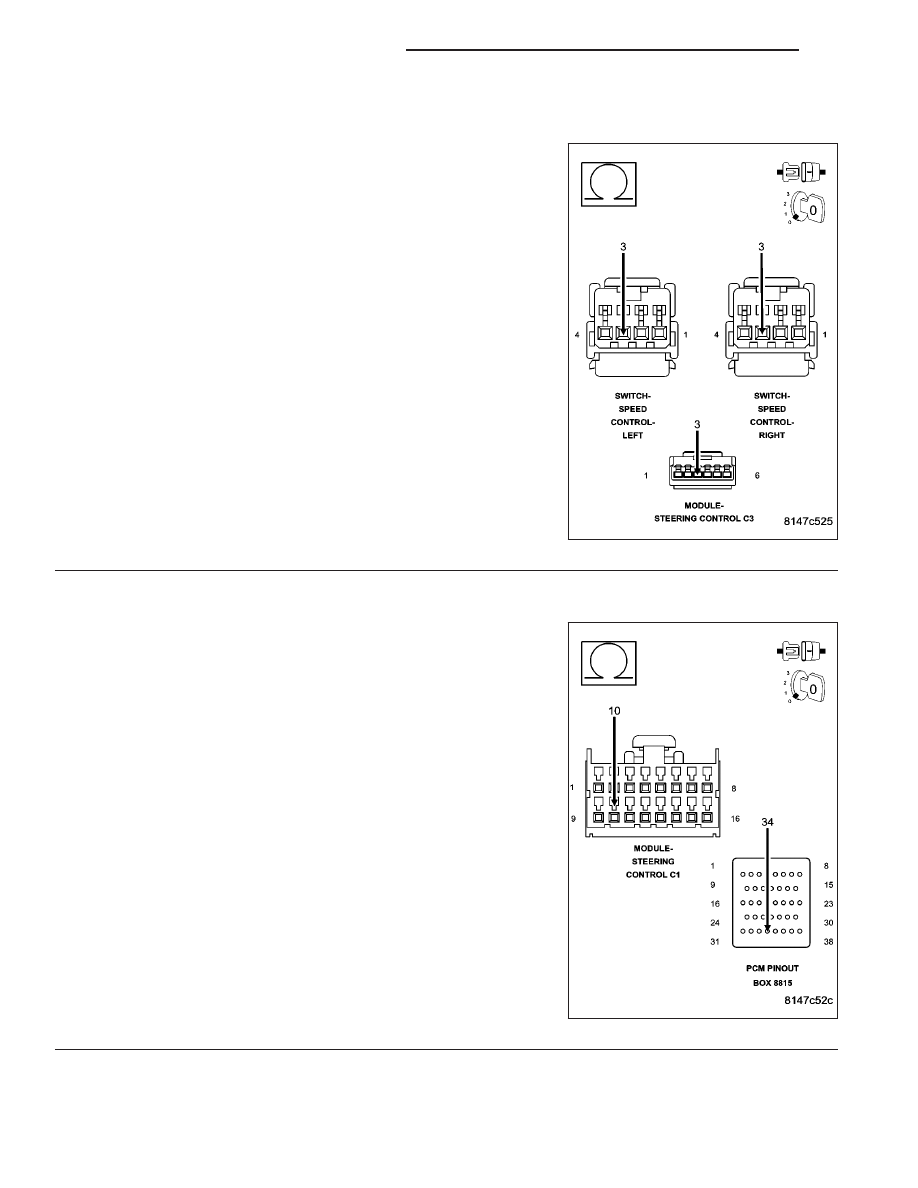

Measure the resistance of the (V371) S/C Switch No.1 Signal circuit
from the S/C Switch harness connectors to the C3 SCCM harness
connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 6

No

>> Repair the open in the (V371) S/C Switch No.1 Signal cir-

cuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

6.

(V71) S/C SWITCH NO.1 SIGNAL CIRCUIT OPEN

Disconnect the C1 SCCM harness connector

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller Special
Tool #8815 to perform diagnosis.
Measure the resistance of the (V71) S/C Switch No.1 Signal circuit
from the C1 SCCM harness connector to the appropriate terminal of
special tool #8815.

Is the resistance below 5.0 ohms for both measurements?

Yes

>> Go To 7

No

>> Repair the open in the (V71) S/C Switch No.1 Signal cir-

cuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

9 - 644

ENGINE ELECTRICAL DIAGNOSTICS

WK

P0581-SPEED CONTROL SWITCH 1 CIRCUIT HIGH (CONTINUED)

7.

(V397) SWITCH RETURN CIRCUIT OPEN

NOTE: The measurement must be taken from both Speed Control
Switch harness connectors.
Measure the resistance of the (V397) Switch Return circuit from the
S/C Switch harness connector to the C3 SCCM harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 8

No

>> Repair the open in the (V397) Switch Return circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

8.

(V937) SWITCH RETURN CIRCUIT OPEN

Measure the resistance of the (V937) Switch Return circuit from the
C1 SCCM harness connector to the appropriate terminal of special
tool #8815.

Is the resistance below 5.0 ohms for both measurements?

Yes

>> Go To 9

No

>> Repair the open in the (V937) Switch Return circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

WK

ENGINE ELECTRICAL DIAGNOSTICS

9 - 645

P0581-SPEED CONTROL SWITCH 1 CIRCUIT HIGH (CONTINUED)

9.

SPEED CONTROL SWITCH VOLTAGE VALUES

Allow the engine to idle.

With a scan tool, monitor the S/C Switch voltage readings.

SWITCH POSITION

SWITCH No.1 VOLTAGE VALUE

SWITCH No.2 VOLATGE VALUE

NO SWITCHES PRESSED

4.31 to 4.78 volts

4.31 to 4.78 volts

ON/OFF PRESSED

0.59 to 1.13 volts

3.53 to 3.92 volts

RES/ACCEL PRESSED

3.88 to 4.17 volts

2.04 to 2.47 volts

SET PRESSED

3.16 to 3.56 volts

1.17 to 1.56 volts

COAST PRESSED

2.57 to 2.94 volts

0.77 to 1.09 volts

CANCEL PRESSED

1.59 to 1.99 volts

2.84 to 3.25 volts

Take these same voltage measurements with a voltmeter by back probing the (V371) S/C Switch No.1 Signal circuit
at the switches.

Compare the voltage readings on the voltmeter to what the scan tool displayed.

Are the voltage readings out of the listed specification and is there less than a 0.2 of a volt difference
between the voltmeter switch values and the scan tool switch value?

Yes

>> Replace the Speed Control Switch.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 10

10.

PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.

Were there any problems found?

Yes

>> Repair as necessary.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Replace and program the Powertrain Control Module per Service Information.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
