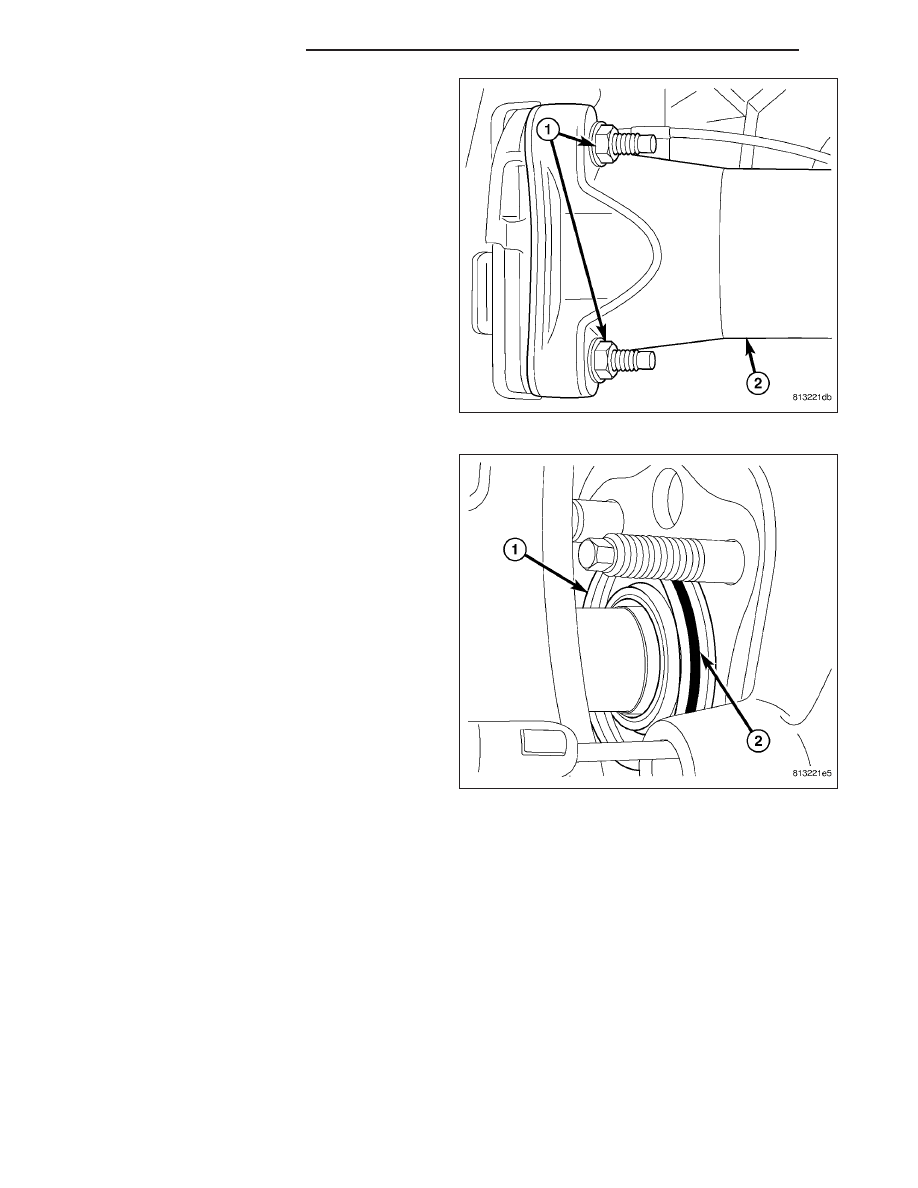

5. Remove axle flange nuts (1) from axle (2).

6. Pull axle shaft and backing plate out of axle tube

until axle bearing (1) is exposed.

7. Remove O-ring (2) from the axle bearing.

3 - 222

REAR AXLE - C213RE

WK

8. Remove axle shaft (1) from axle tube and backing

plate.

9. Remove ELSD connector (1) if equipped.

WK

REAR AXLE - C213RE

3 - 223

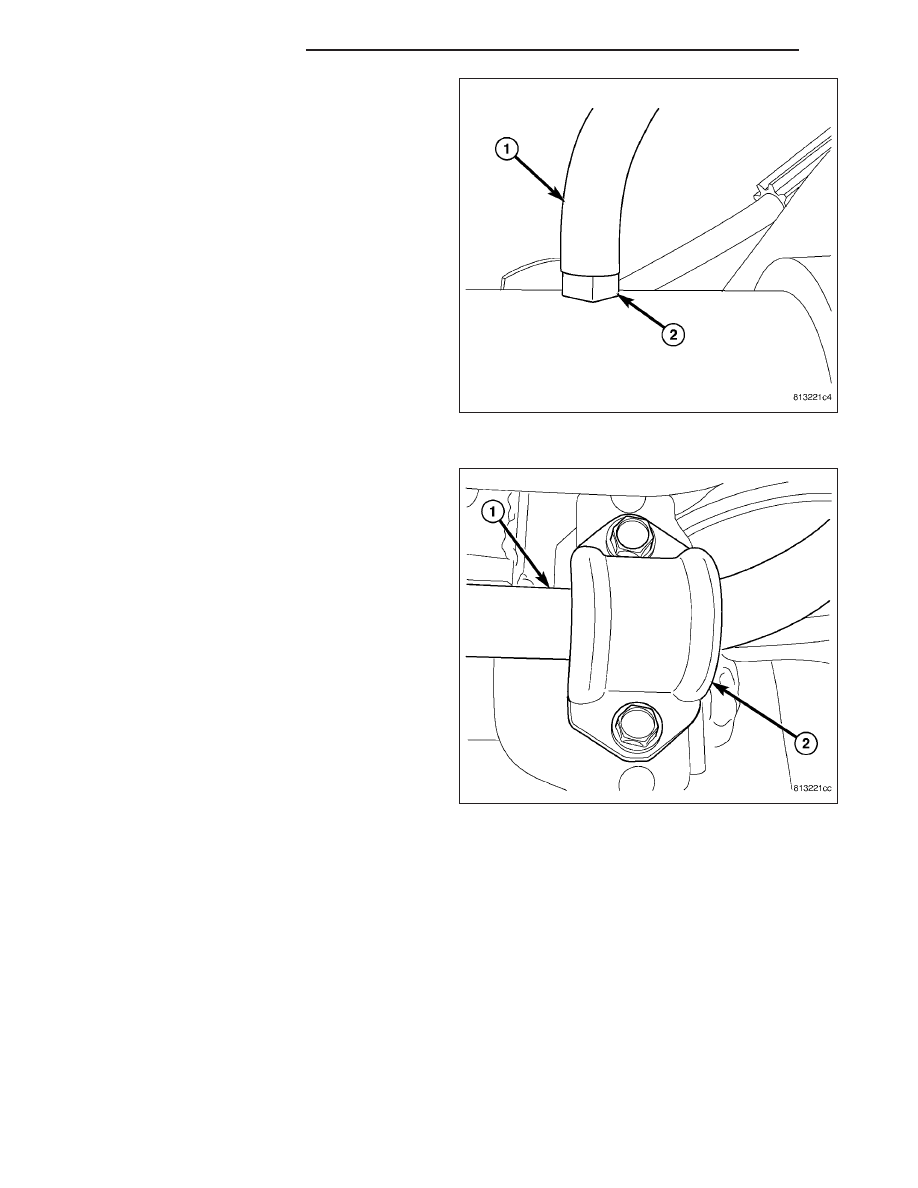

10. Remove axle vent hose (1) from axle vent (2) and

cover bracket.

11. Remove propeller shaft.

12. Remove stabilizer bar (1) clamp (2) from axle.

3 - 224

REAR AXLE - C213RE

WK

13. Support axle with jack.

14. Remove track bar from axle.

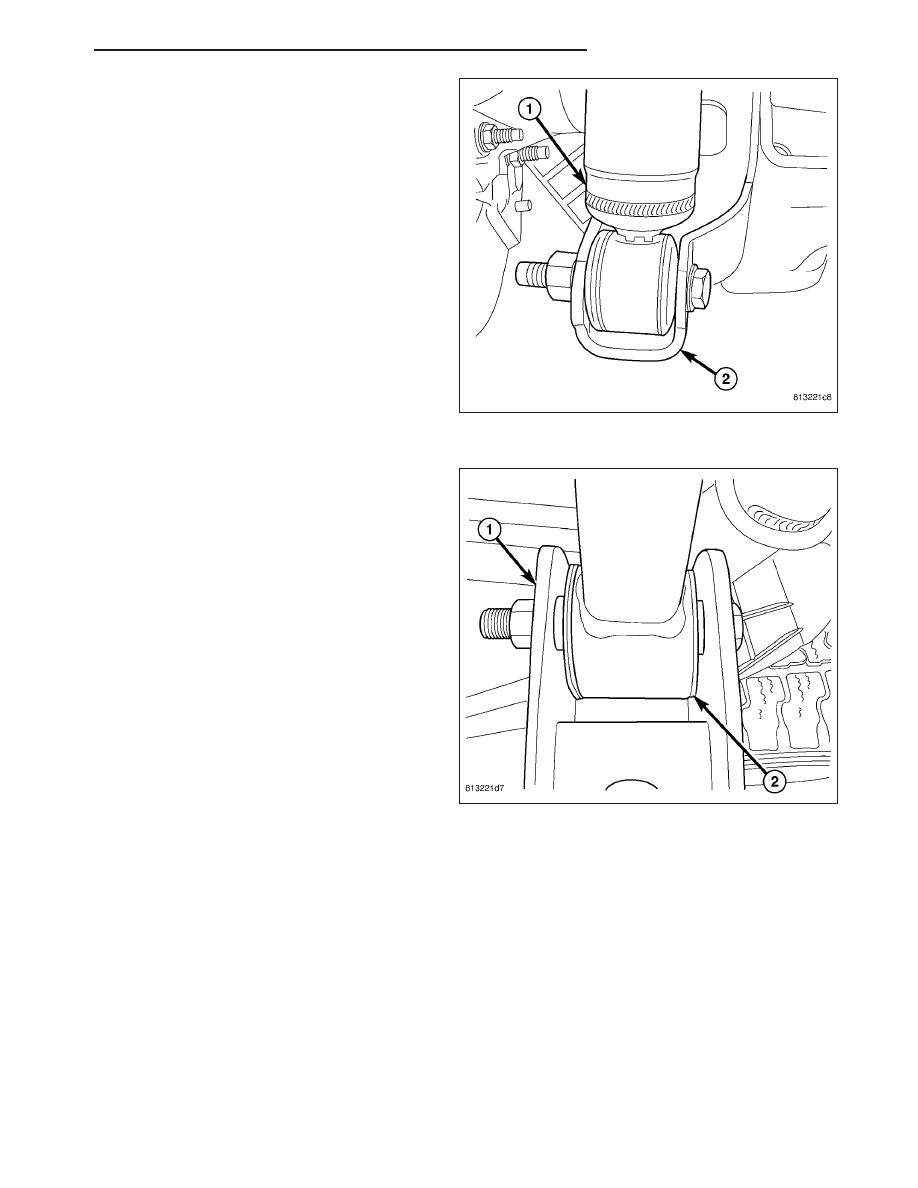

15. Remove shock absobers (1) from axle brackets

(2).

16. Remove upper control arms (2) from axle brack-

ets (1).

WK

REAR AXLE - C213RE

3 - 225
