3. Position Puller (1) Jaws 9641(2) around the case

bearing and puller flange.

4. Position Puller (1) Collar 6444-8 (2) around the

puller jaws.

5. Tighten the puller nut and remove differential case

bearing.

3 - 150

FRONT AXLE - C200FE

WK

INSTALLATION

CAUTION: Do not disturb the ELSD pump after
bearing has been removed. Failure to follow these
instructions will damage the pump seals.

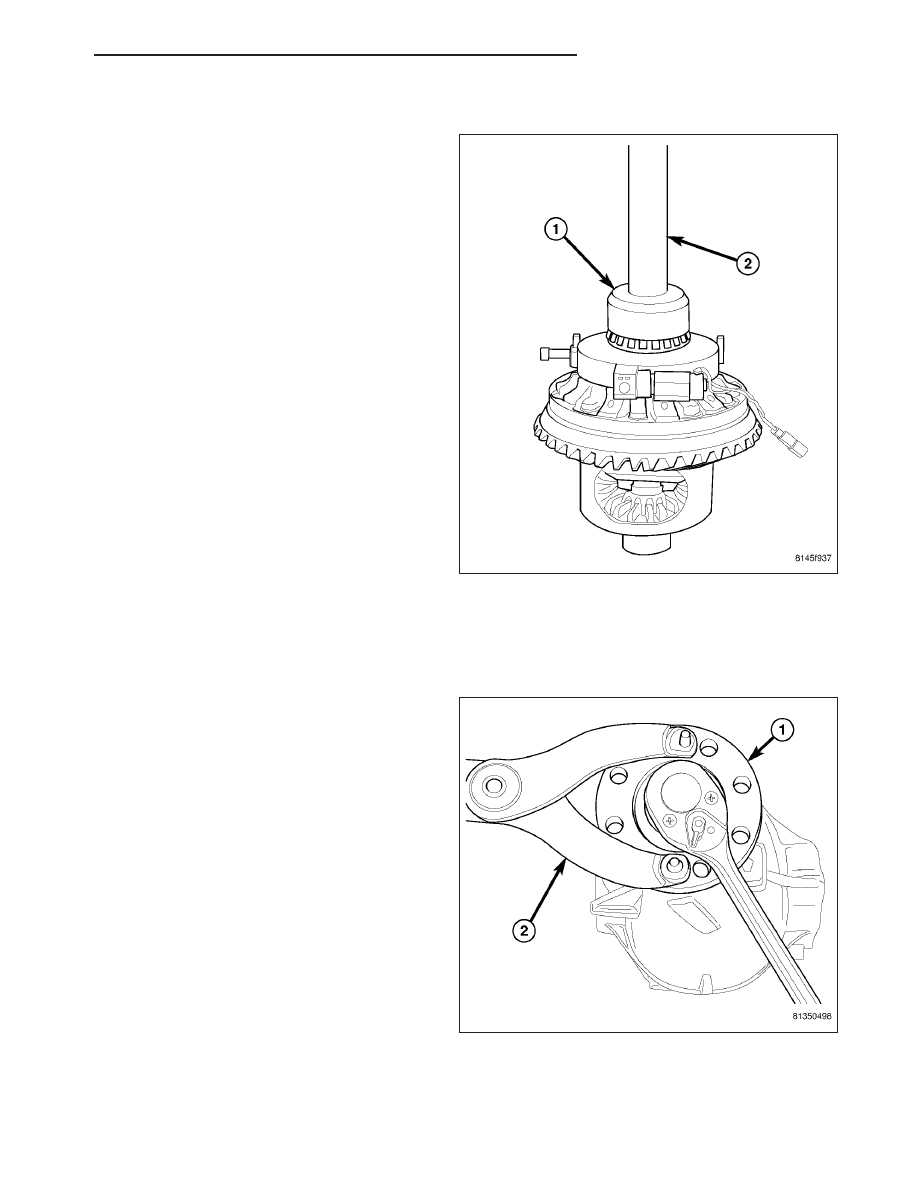

1. Install differential case bearing with Installer 9535

(1) and Handle C-4171 (2).

GEAR-PINION/RING

REMOVAL

1. Remove differetial from housing.

2. Bend pinion nut lock tab back.

3. Remove pinion flange (1) nut with flange Holder

C-328 (2).

WK

FRONT AXLE - C200FE

3 - 151

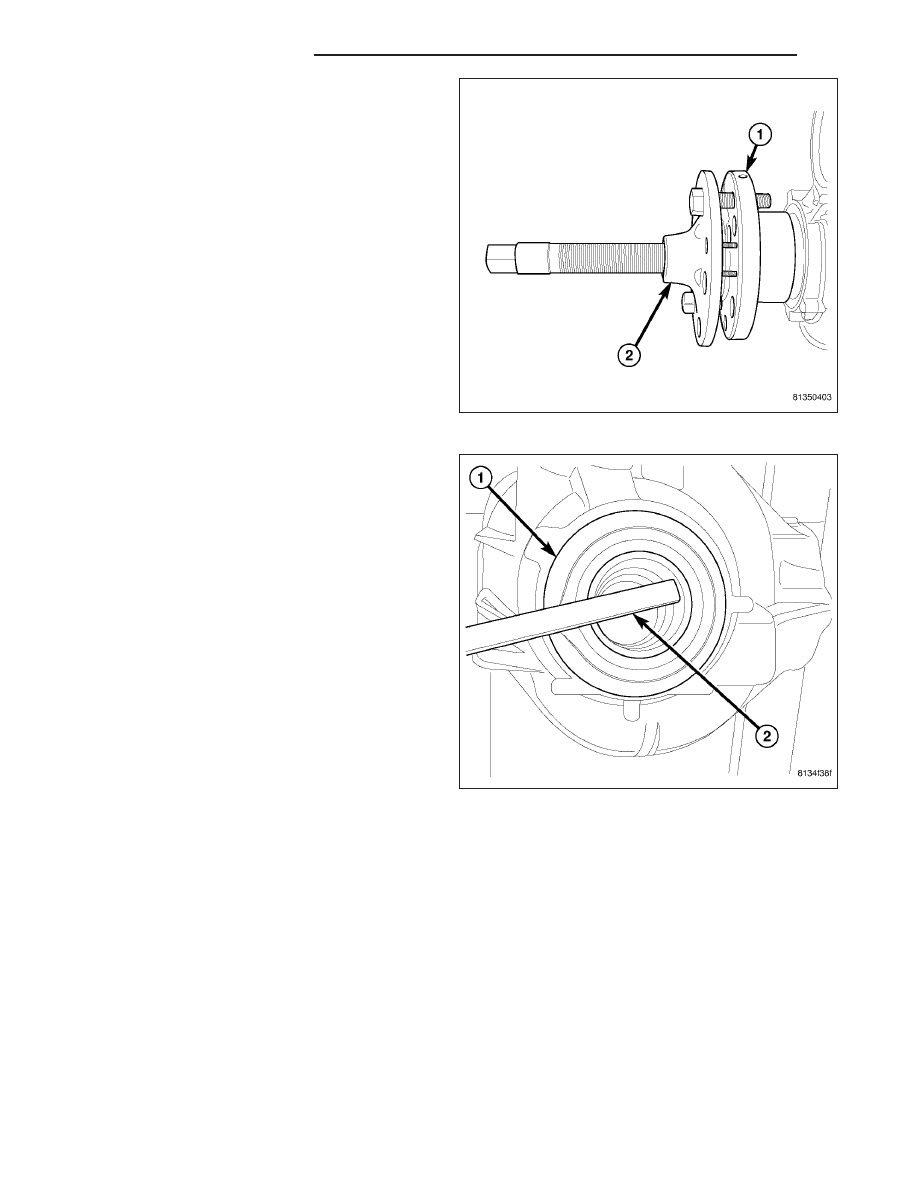

4. Remove pinion flange (1) with Puller C-452 (2).

5. Drive pinion gear out of the housing with a soft

hammer.

6. Remove pinion seal (1) with a pry bar (2).

3 - 152

FRONT AXLE - C200FE

WK

7. Remove collapsible spacer (1) from pinion shaft

(2).

8. Remove spacer (1) from pinion shaft (2).

WK

FRONT AXLE - C200FE

3 - 153
