SPEED CONTROL VERIFICATION - VER-4

APPLICABILITY

1. Inspect the vehicle to ensure that all engine components are properly installed and
connected. Reassemble and reconnect components as necessary.
2. If the PCM has been replaced, perform step 3. Otherwise, continue with step 4.
3. If the vehicle is equipped with a factory theft alarm, start the engine at least 20 times in
order to be able to activate the alarm system when desired.
4. With the DRB, erase all diagnostic trouble codes (DTCs).
5. Road test the vehicle at a speed above 58 km/h (35 MPH).
6. Turn the speed control ON/OFF switch on.
7. Depress and release the SET switch. If the speed control does not engage, the repair is not
complete, continue with step 15.
8. Quickly depress and release the RESUME/ACCEL switch. If the vehicle speed does not
increase by 3 km/h (2 MPH), the repair is not complete, continue with step 15.
9. Using caution, depress and release the brake pedal. If the speed control does not disengage,
the repair is not complete, continue with step 15.
10. With the vehicle speed at least 56 km/h (35 MPH), depress the RESUME/ACCEL switch.
If the speed control does not resume at the previously set speed, the repair is not complete,
continue with step 15.
11. Hold down the COAST switch. If the vehicle does not decelerate, the repair is not complete,
continue with step 15.
12. While still holding down the COAST switch, ensure the vehicle speed is at least 56 km/h (35
MPH) and release the COAST switch. If the vehicle does not adjust and set a new vehicle speed,
the repair is not complete, continue with step 15.
13. With the speed control engaged, depress the ON/OFF switch. If the speed control does not
disengage, the repair is not complete, continue with step 15.
14. If the vehicle did not successfully perform all of the previous steps, check for Technical
Service Bulletins (TSBs) that pertain to this speed control problem and then, if necessary,
return to the Symptom List.
15. If the vehicle successfully performed all of the previous steps, the speed control system is
now functioning as designed. The repair is now complete.
Are any DTCs or symptoms remaining?

All

Yes

Repair is not complete, refer to appropriate symptom.

No

Repair is complete.

TRANSMISSION VERIFICATION TEST VER - 1

APPLICABILITY

1. Inspect the vehicle to ensure that all engine and transmission components are properly
installed and connected. Reassemble and reconnect components as necessary.
2. If any existing diagnostic trouble codes have not been repaired, go to Symptom List and
follow path specified.
3. Connect a DRBIII

t to the data link connector.

4. Ensure the fuel tank has at least a quarter tank of fuel. Turn off all accessories.
5. Start and run the engine until the transmission temperature is above 43°C (110°F).
6. Check the transmission fluid level per the Service Information. Adjust if necessary.
7. Road test the vehicle. Make 15 to 20 1-2, 2-3 and 3-4 up shifts. Perform these shifts from a
standing start to 72 km/h (45 MPH) with a constant throttle opening of 20-25%.
8. Below 40 km/h (25 MPH), make 5 to 8 wide open throttle kick downs to 1st gear. Allow at
least 5 seconds each in 2nd and 3rd between each kick down.
9. For a specific DTC, drive the vehicle in accordance with the Symptom’s When Monitored and
Set Conditions to verify the DTC repair.
10. If a DTC sets during the road test, return to the Symptom List and follow the path. If no
DTC sets, the repair is complete.
Are any DTCs or symptoms remaining?

without 45RFE

AUTO TRANS

Yes

Repair is not complete, refer to appropriate symptom.

No

Repair is complete.

308

VERIFICATION TESTS

Verification Tests —

Continued

8.0

SYSTEM COMPONENT LOCATIONS

8.1.1

ENGINE CONTROL MODULE (BOSCH)

8.1.2

POWER CONTROL MODULE (JTEC)

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

309

COMPONENT LOCATIONS

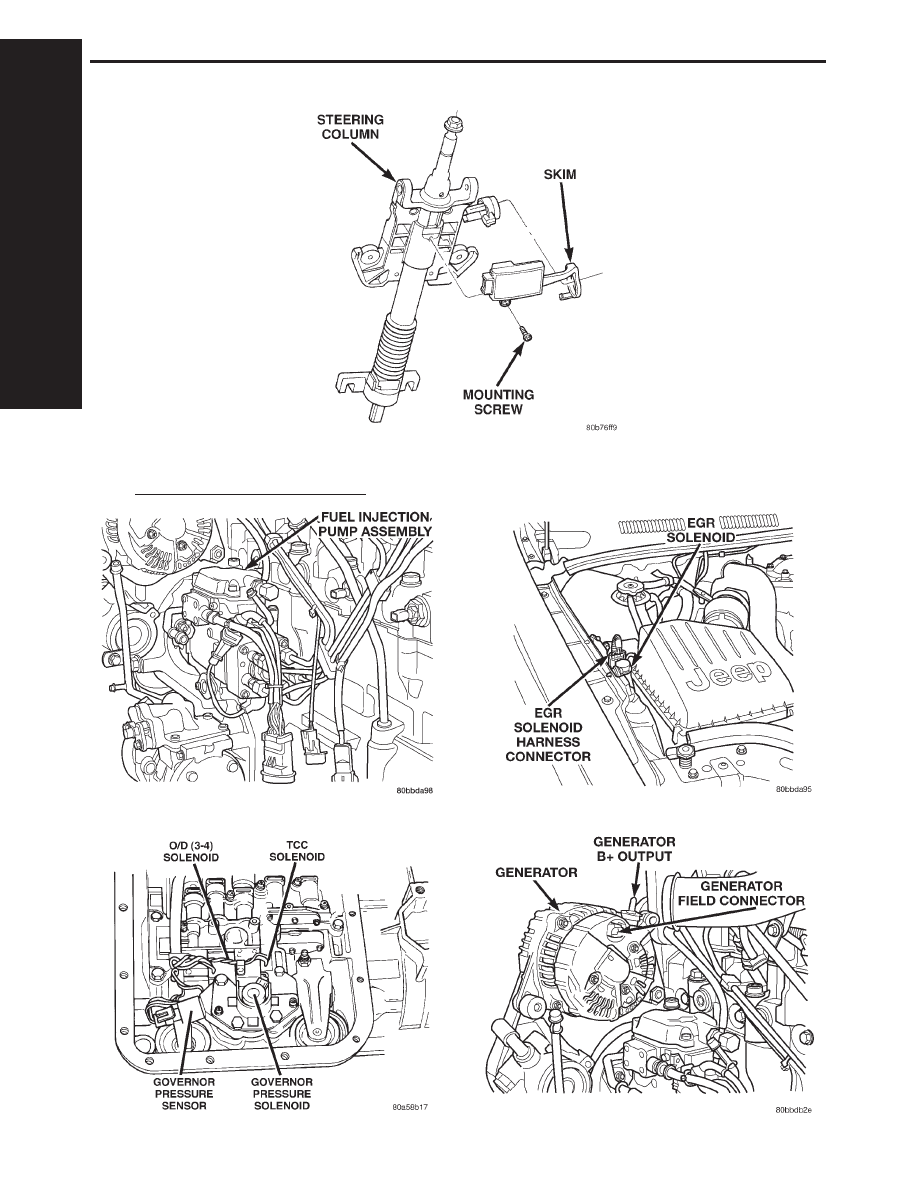

8.1.3

SENTRY KEY IMMOBILIZER MODULE

8.2

CONTROLS AND SOLENOIDS

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

310

COMPONENT LOCATIONS

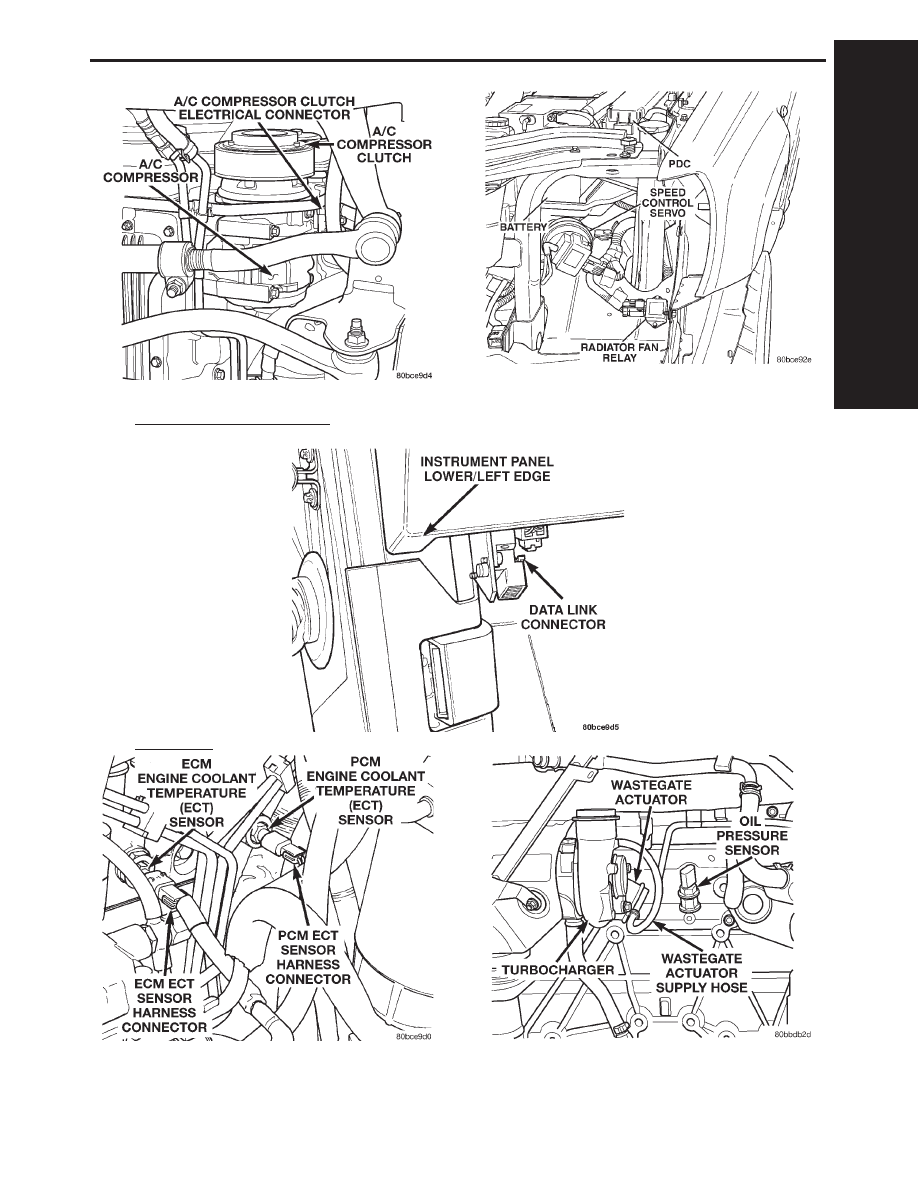

8.3

DATA LINK CONNECTOR

8.4

SENSORS

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

311

COMPONENT LOCATIONS
