(14) Secure detent ball and spring with Retainer

Tool 6583 (Fig. 71).

(15) Remove park rod E-clip and separate rod from

manual lever (Fig. 72).

(16) Remove E-clip and washer that retains throt-

tle lever shaft in manual lever (Fig. 73).

(17) Remove manual lever and throttle lever (Fig.

74). Rotate and lift manual lever off valve body and
throttle lever shaft. Then slide throttle lever out of
valve body.

(18) Position pencil magnet next to detent housing

to catch detent ball and spring. Then carefully
remove Retainer Tool 6583 and remove detent ball
and spring (Fig. 75).

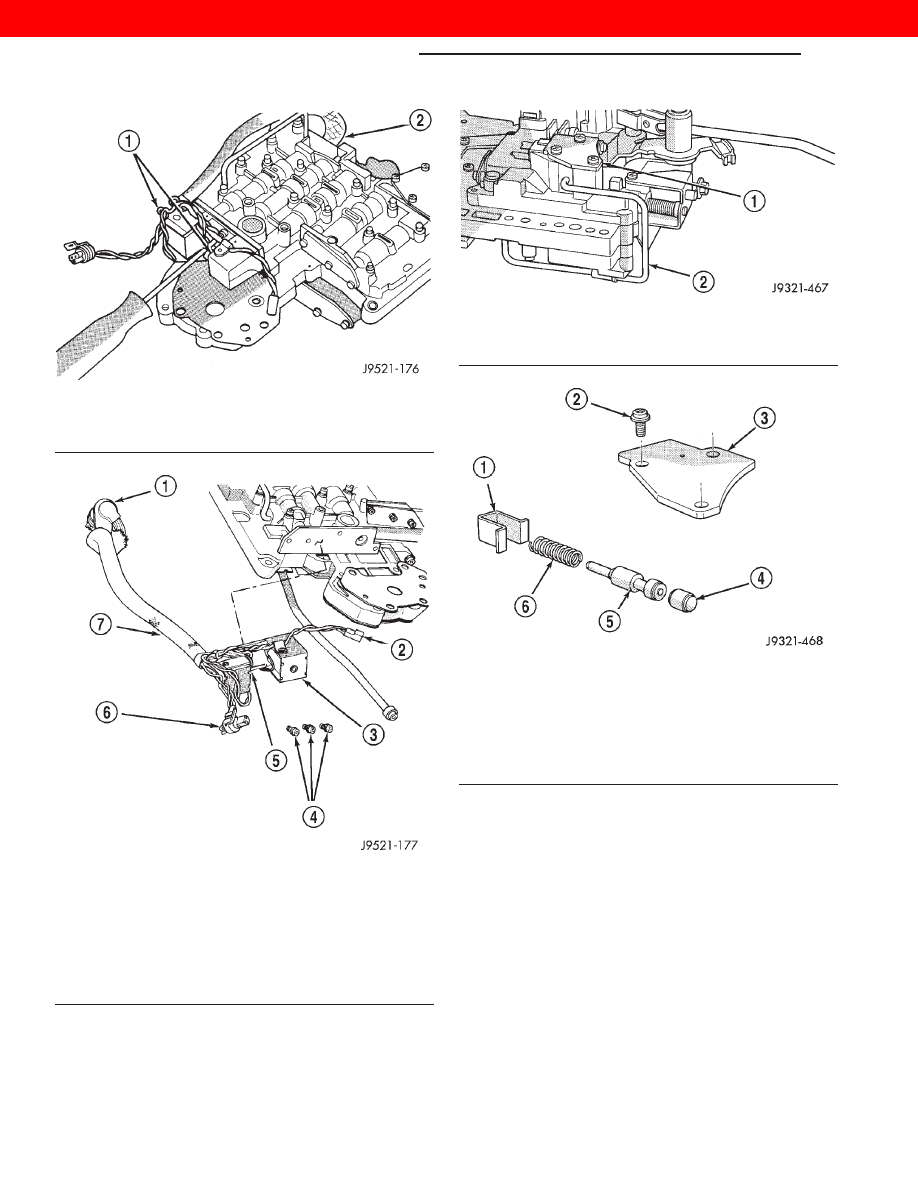

Fig. 67 Solenoid Assembly Screws

1 – OVERDRIVE/CONVERTER CLUTCH SOLENOID ASSEMBLY
2 – HARNESS

Fig. 68 Solenoid Assembly

1 – CASE CONNECTOR
2 – GOVERNOR SOLENOID WIRES
3 – CONVERTER CLUTCH SOLENOID
4 – SOLENOID SCREWS
5 – OVERDRIVE SOLENOID
6 – GOVERNOR SENSOR WIRES
7 – HARNESS

Fig. 69 Boost Valve Cover Location

1 – BOOST VALVE HOUSING AND COVER
2 – BOOST VALVE TUBE

Fig. 70 Boost Valve Components

1 – SPRING AND VALVE RETAINER
2 – COVER SCREWS
3 – BOOST VALVE COVER
4 – BOOST VALVE PLUG
5 – BOOST VALVE
6 – BOOST VALVE SPRING

21 - 50

TRANSMISSION AND TRANSFER CASE

WJ

DISASSEMBLY AND ASSEMBLY (Continued)

2000 JEEP GRAND CHEROKEE

(19) Remove screws attaching pressure adjusting

screw bracket to valve body and transfer plate (Fig.
76). Hold bracket firmly against spring tension while
removing last screw.

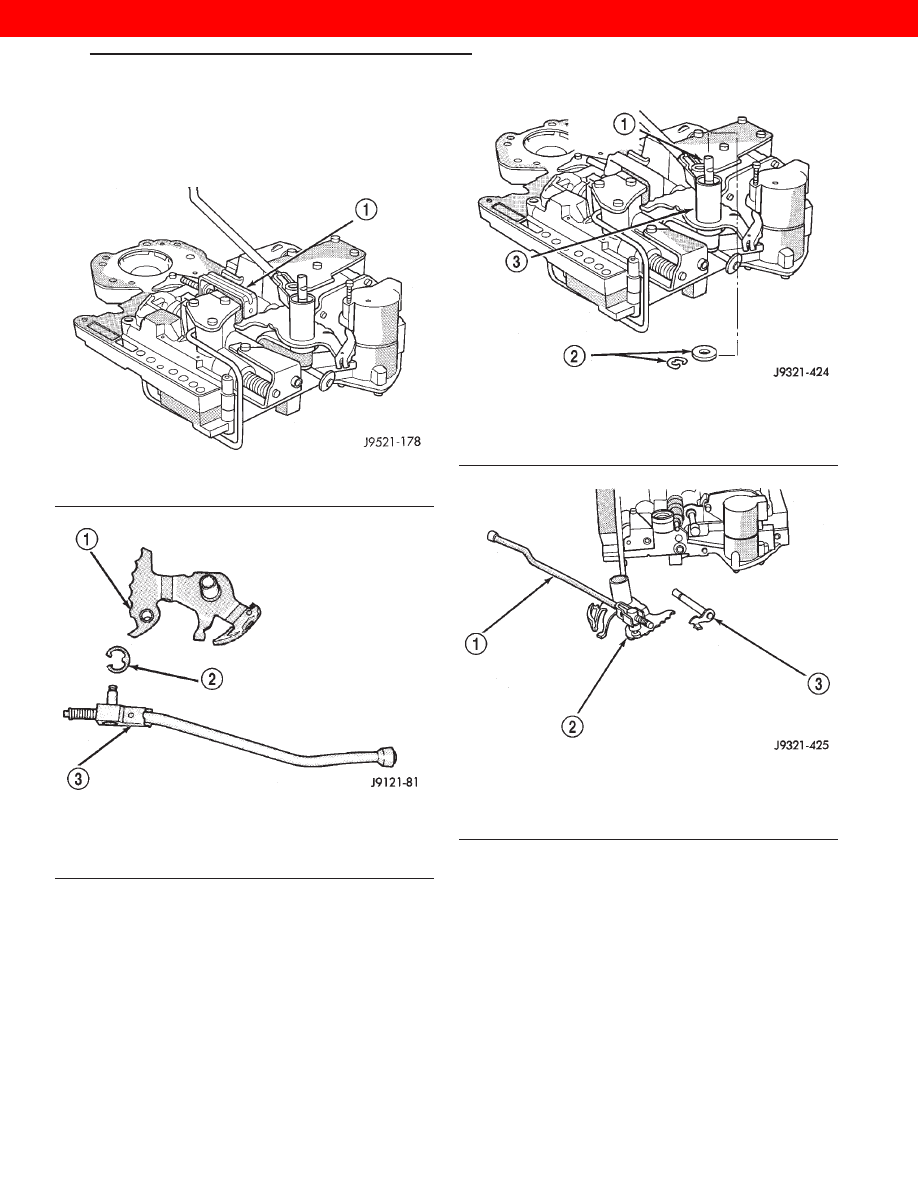

Fig. 71 Detent Ball And Spring

1 – SPECIAL TOOL 6583 POSITIONED ON DETENT HOUSING

Fig. 72 Park Rod

1 – MANUAL LEVER
2 – E-CLIP
3 – PARK ROD

Fig. 73 Throttle Lever E-Clip And Washer

1 – THROTTLE LEVER SHAFT
2 – E-CLIP AND WASHER
3 – MANUAL SHAFT

Fig. 74 Manual And Throttle Lever

1 – PARK ROD
2 – MANUAL LEVER ASSEMBLY
3 – THROTTLE LEVER

WJ

TRANSMISSION AND TRANSFER CASE

21 - 51

DISASSEMBLY AND ASSEMBLY (Continued)

2000 JEEP GRAND CHEROKEE

(20) Remove adjusting screw bracket, line pressure

adjusting screw, pressure regulator valve spring and
switch valve spring (Fig. 77). Do not remove throt-
tle pressure adjusting screw from bracket and
do not disturb setting of either adjusting screw
during removal.

(21) Turn upper housing over and remove switch

valve, regulator valve and spring, and manual valve
(Fig. 78).

(22) Remove kickdown detent, kickdown valve, and

throttle valve and spring (Fig. 78).

(23) Loosen

left-side

3-4

accumulator

housing

attaching screw about 2-3 threads. Then remove cen-
ter and right-side housing attaching screws (Fig. 79).

(24) Carefully

rotate

3-4

accumulator

housing

upward and remove 3-4 shift valve spring and con-
verter clutch valve plug and spring (Fig. 80).

(25) Remove left-side screw and remove 3-4 accu-

mulator housing from valve body (Fig. 81).

(26) Bend back tabs on boost valve tube brace (Fig.

82).

Fig. 75 Detent Ball And Spring

1 – DETENT HOUSING
2 – DETENT SPRING
3 – DETENT BALL
4 – PENCIL MAGNET

Fig. 76 Adjusting Screw Bracket Fastener

1 – T25 TORX BIT
2 – REMOVE THESE SCREWS FIRST
3 – BRACKET
4 – BRACKET
5 – REMOVE THIS SCREW LAST

Fig. 77 Adjusting Screw Bracket And Spring

1 – SWITCH VALVE SPRING
2 – LINE PRESSURE SCREW
3 – THROTTLE PRESSURE ADJUSTING SCREW
4 – ADJUSTING SCREW BRACKET
5 – PRESSURE REGULATOR VALVE SPRING

21 - 52

TRANSMISSION AND TRANSFER CASE

WJ

DISASSEMBLY AND ASSEMBLY (Continued)

2000 JEEP GRAND CHEROKEE

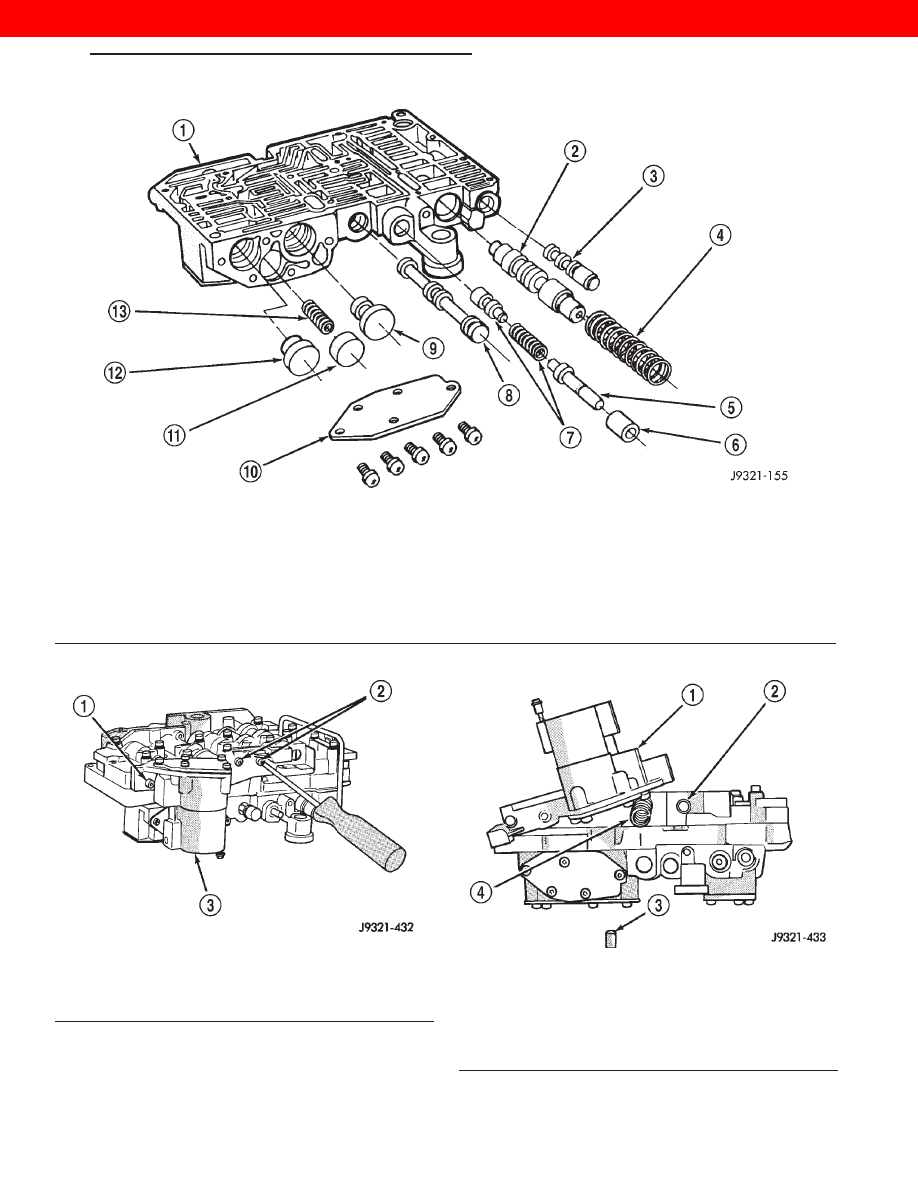

Fig. 78 Upper Housing Control Valve Locations

1 – UPPER HOUSING
2 – REGULATOR VALVE
3 – SWITCH VALVE
4 – REGULATOR VALVE SPRING
5 – KICKDOWN VALVE
6 – KICKDOWN DETENT
7 – THROTTLE VALVE AND SPRING

8 – MANUAL VALVE
9 – 1–2 GOVERNOR PLUG
10 – GOVERNOR PLUG COVER
11 – THROTTLE PLUG
12 – 2–3 GOVERNOR PLUG
13 – SHUTTLE VALVE PRIMARY SPRING

Fig. 79 Accumulator Housing Screw Locations

1 – LOOSEN THIS SCREW
2 – REMOVE THESE SCREWS
3 – 3–4 ACCUMULATOR HOUSING

Fig. 80 3-4 Shift And Converter Clutch Valve

Springs And Plug

1 – ACCUMULATOR HOUSING
2 – CONVERTER CLUTCH VALVE SPRING
3 – CLUTCH VALVE PLUG
4 – 3–4 SHIFT VALVE SPRING

WJ

TRANSMISSION AND TRANSFER CASE

21 - 53

DISASSEMBLY AND ASSEMBLY (Continued)

2000 JEEP GRAND CHEROKEE
