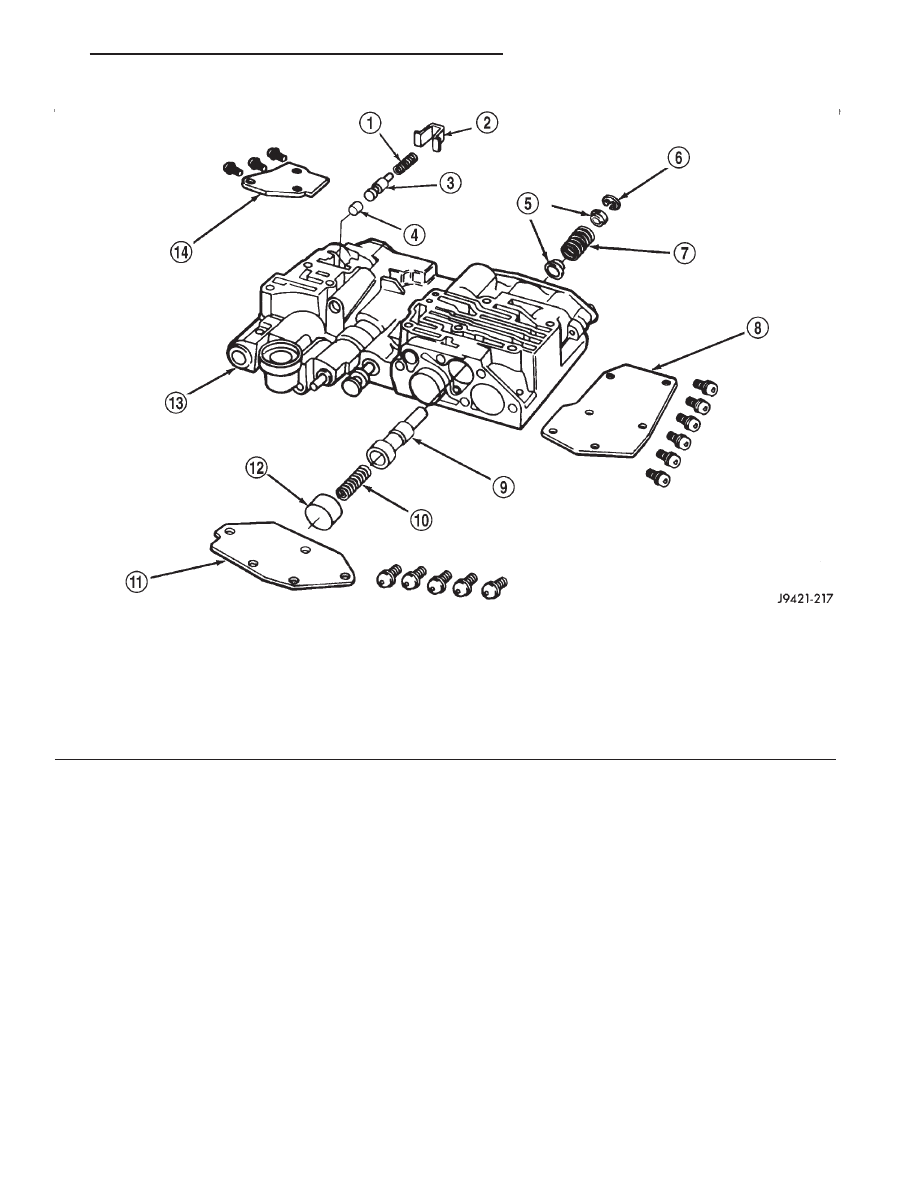

(26) Remove boost valve connecting tube (Fig. 127). Disengage tube from upper housing port first. CAUTION: Do not use tools to loosen or pry the (27) Turn valve body over so lower housing is fac- ing upward (Fig. 128). In this position, the two check (28) Remove screws attaching valve body lower housing to upper housing and transfer plate (Fig. (29) Remove lower housing and overdrive separa- tor plate from transfer plate (Fig. 128). (30) Remove the ECE check ball from the transfer plate (Fig. 129). The ECE check ball is approximately (31) Remove transfer plate from upper housing (Fig. 130). Fig. 124 3-4 Shift And Converter Clutch Valve Springs And Plug 1 – ACCUMULATOR HOUSING Fig. 125 Accumulator Housing, Valve Springs And Plug 1 – 3–4 SHIFT VALVE SPRING Fig. 126 Boost Valve Tube Brace 1 – BOOST VALVE TUBE 21 - 94 42RE AUTOMATIC TRANSMISSION WJ DISASSEMBLY AND ASSEMBLY (Continued) |
