POWER LUMBAR SWITCH

For complete circuit diagrams, refer to Power

Seat in the Contents of Group 8W - Wiring Dia-
grams.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the power lumbar switch from the out-

board seat cushion side shield. Refer to Power Lum-
bar Switch
in the Removal and Installation section
of this group for the procedures.

(3) Use an ohmmeter to test the continuity of the

power lumbar switch in each switch position. See the
Power Lumbar Switch Continuity chart (Fig. 6). If
OK, refer to Power Lumbar Adjuster in the Diag-
nosis and Testing section of this group. If not OK,
replace the faulty power lumbar switch.

POWER SEAT RECLINER

Following are tests that will help to diagnose the

hard wired components and circuits of the power seat
system. However, if the vehicle is also equipped with
the optional memory system, these tests may not
prove conclusive in the diagnosis of the driver side
power seat. In order to obtain conclusive testing of
the driver side power seat with the memory system

option, the Programmable Communications Interface
(PCI) data bus network and all of the electronic mod-
ules that provide inputs to, or receive outputs from
the memory system components must be checked.

The most reliable, efficient, and accurate means to

diagnose the driver side power seat with the memory
system option requires the use of a DRB scan tool
and the proper Diagnostic Procedures manual. The
DRB scan tool can provide confirmation that the PCI
data bus is functional, that all of the electronic mod-
ules are sending and receiving the proper messages
on the PCI data bus, and that the memory system is
receiving the proper hard wired inputs and relaying
the proper hard wired outputs to perform its driver
side power seat functions.

Actuate the power seat recliner switch to move the

power seat recliner adjuster in each direction. The
power seat recliner adjuster should move in both
directions. If the power seat recliner adjuster fails to
operate in only one direction, move the adjuster a
short distance in the opposite direction and test
again to be certain that the adjuster is not at its
travel limit. If the power seat recliner adjuster still
fails to operate in only one direction, refer to Power
Seat Switch
in the Diagnosis and Testing section of
this group. If the power recliner adjuster fails to
operate in either direction, perform the following
tests. For complete circuit diagrams, refer to Power
Seat
in the Contents of Group 8W - Wiring Dia-
grams.

(1) Check the power seat circuit breaker in the

junction block. If OK, go to Step 2. If not OK, replace
the faulty power seat circuit breaker.

(2) Check for battery voltage at the power seat cir-

cuit breaker in the junction block. If OK, go to Step
3. If not OK, repair the open fused B(+) circuit to the
fuse in the Power Distribution Center as required.

(3) Remove the outboard seat cushion side shield

from the seat. Disconnect the seat wire harness con-
nector from the power seat switch connector recepta-
cle. Check for battery voltage at the fused B(+)
circuit cavity of the power seat wire harness connec-
tor for the power seat switch. If OK, go to Step 4. If
not OK, repair the open fused B(+) circuit to the
power seat circuit breaker in the junction block as
required.

(4) Check for continuity between the ground cir-

cuit cavity of the power seat wire harness connector
for the power seat switch and a good ground. There
should be continuity. If OK, go to Step 5. If not OK,
repair the open ground circuit to ground as required.

(5) Test the power seat switch. Refer to Power

Seat Switch in the Diagnosis and Testing section of
this group. If the switch tests OK, test the circuits of
the power seat wire harness between the power seat
recliner adjuster motor and the power seat switch for

Fig. 6 Power Lumbar Switch Continuity

POWER LUMBAR SWITCH

LEFT SWITCH

POSITION

RIGHT

SWITCH

POSITION

CONTINUITY

BETWEEN

Off

Off

2-4, 3-5

Forward

Rearward

3-5, 4-6

Rearward

Forward

2-4, 3-6

8R - 6

POWER SEAT SYSTEMS

WJ

DIAGNOSIS AND TESTING (Continued)

shorts or opens. If the circuits check OK, replace the
faulty power seat recliner unit. If the circuits are not
OK, repair the power seat wire harness as required.

POWER SEAT SWITCH

Following are tests that will help to diagnose the

hard wired components and circuits of the power seat
system. However, if the vehicle is also equipped with
the optional memory system, these tests may not
prove conclusive in the diagnosis of the driver side
power seat. In order to obtain conclusive testing of
the driver side power seat with the memory system
option, the Programmable Communications Interface
(PCI) data bus network and all of the electronic mod-
ules that provide inputs to, or receive outputs from
the memory system components must be checked.

The most reliable, efficient, and accurate means to

diagnose the driver side power seat with the memory
system option requires the use of a DRB scan tool
and the proper Diagnostic Procedures manual. The
DRB scan tool can provide confirmation that the PCI
data bus is functional, that all of the electronic mod-
ules are sending and receiving the proper messages
on the PCI data bus, and that the memory system is
receiving the proper hard wired inputs and relaying
the proper hard wired outputs to perform its driver
side power seat functions.

For complete circuit diagrams, refer to Power

Seat in the Contents of Group 8W - Wiring Dia-
grams.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the power seat switch from the out-

board seat cushion side shield. Refer to Power Seat
Switch
in the Removal and Installation section of
this group for the procedures.

(3) Use an ohmmeter to test the continuity of the

power seat switch in each switch position. See the
Power Seat Switch Continuity chart (Fig. 7) or (Fig.
8). If OK, refer to Power Seat Track or Power
Seat Recliner
in the Diagnosis and Testing section
of this group. If not OK, replace the faulty power
seat switch unit.

POWER SEAT TRACK

Following are tests that will help to diagnose the

hard wired components and circuits of the power seat
system. However, if the vehicle is also equipped with
the optional memory system, these tests may not
prove conclusive in the diagnosis of the driver side
power seat. In order to obtain conclusive testing of
the driver side power seat with the memory system
option, the Programmable Communications Interface
(PCI) data bus network and all of the electronic mod-
ules that provide inputs to, or receive outputs from
the memory system components must be checked.

The most reliable, efficient, and accurate means to

diagnose the driver side power seat with the memory
system option requires the use of a DRB scan tool
and the proper Diagnostic Procedures manual. The
DRB scan tool can provide confirmation that the PCI
data bus is functional, that all of the electronic mod-
ules are sending and receiving the proper messages
on the PCI data bus, and that the memory system is
receiving the proper hard wired inputs and relaying
the proper hard wired outputs to perform its driver
side power seat functions.

Actuate the power seat switch to move all three

power seat track adjusters in each direction. The
power seat track adjusters should move in each of
the selected directions. If a power seat track adjuster
fails to operate in only one direction, move the
adjuster a short distance in the opposite direction
and test again to be certain that the adjuster is not
at its travel limit. If the power seat track adjuster
still fails to operate in only one direction, refer to
Power Seat Switch in the Diagnosis and Testing
section of this group. If the power seat track adjuster
fails to operate in more than one direction, perform
the following tests. For complete circuit diagrams,

POWER SEAT SWITCH

LEFT SWITCH

POSITION

RIGHT

SWITCH

POSITION

CONTINUITY

BETWEEN

OFF

OFF

B-N, B-J, B-M,

B-E, B-L, B-K

VERTICAL UP

VERTICAL

DOWN

A-J, A-N, B-M,

B-E

VERTICAL

DOWN

VERTICAL UP

A-E, A-M, B-N,

B-J

HORIZONTAL

FORWARD

HORIZONTAL

REARWARD

A-K, B-L

FRONT TILT

UP

FRONT TILT

DOWN

A-J, B-E

FRONT TILT

DOWN

FRONT TILT

UP

A-E, B-J

REAR TILT UP

REAR TILT

DOWN

A-N, B-M

REAR TILT

DOWN

REAR TILT UP

A-M, B-N

Fig. 7 Six-Way Power Seat Switch Continuity

WJ

POWER SEAT SYSTEMS

8R - 7

DIAGNOSIS AND TESTING (Continued)

refer to Power Seat in the Contents of Group 8W -
Wiring Diagrams.

(1) Check the power seat circuit breaker in the

junction block. If OK, go to Step 2. If not OK, replace
the faulty power seat circuit breaker.

(2) Check for battery voltage at the power seat cir-

cuit breaker in the junction block. If OK, go to Step
3. If not OK, repair the open fused B(+) circuit to the
fuse in the Power Distribution Center as required.

(3) Remove the outboard seat cushion side shield

from the seat. Disconnect the seat wire harness con-
nector from the power seat switch connector recepta-
cle. Check for battery voltage at the fused B(+)
circuit cavity of the power seat wire harness connec-
tor for the power seat switch. If OK, go to Step 4. If
not OK, repair the open fused B(+) circuit to the
power seat circuit breaker in the junction block as
required.

(4) Check for continuity between the ground cir-

cuit cavity of the power seat wire harness connector
for the power seat switch and a good ground. There
should be continuity. If OK, go to Step 5. If not OK,
repair the open ground circuit to ground as required.

(5) Test the power seat switch. Refer to Power

Seat Switch in the Diagnosis and Testing section of
this group. If the switch tests OK, test the circuits of
the power seat wire harness between the inoperative
power seat track adjuster motor and the power seat
switch for shorts or opens. If the circuits check OK,
replace the faulty power seat track unit. If the cir-
cuits are not OK, repair the power seat wire harness
as required.

REMOVAL AND INSTALLATION

POWER LUMBAR SWITCH

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the three screws that secure the out-

board seat cushion side shield to the seat cushion
frame.

(3) Pull the outboard seat cushion side shield away

from the seat cushion frame far enough to access the
power lumbar switch wire harness connector.

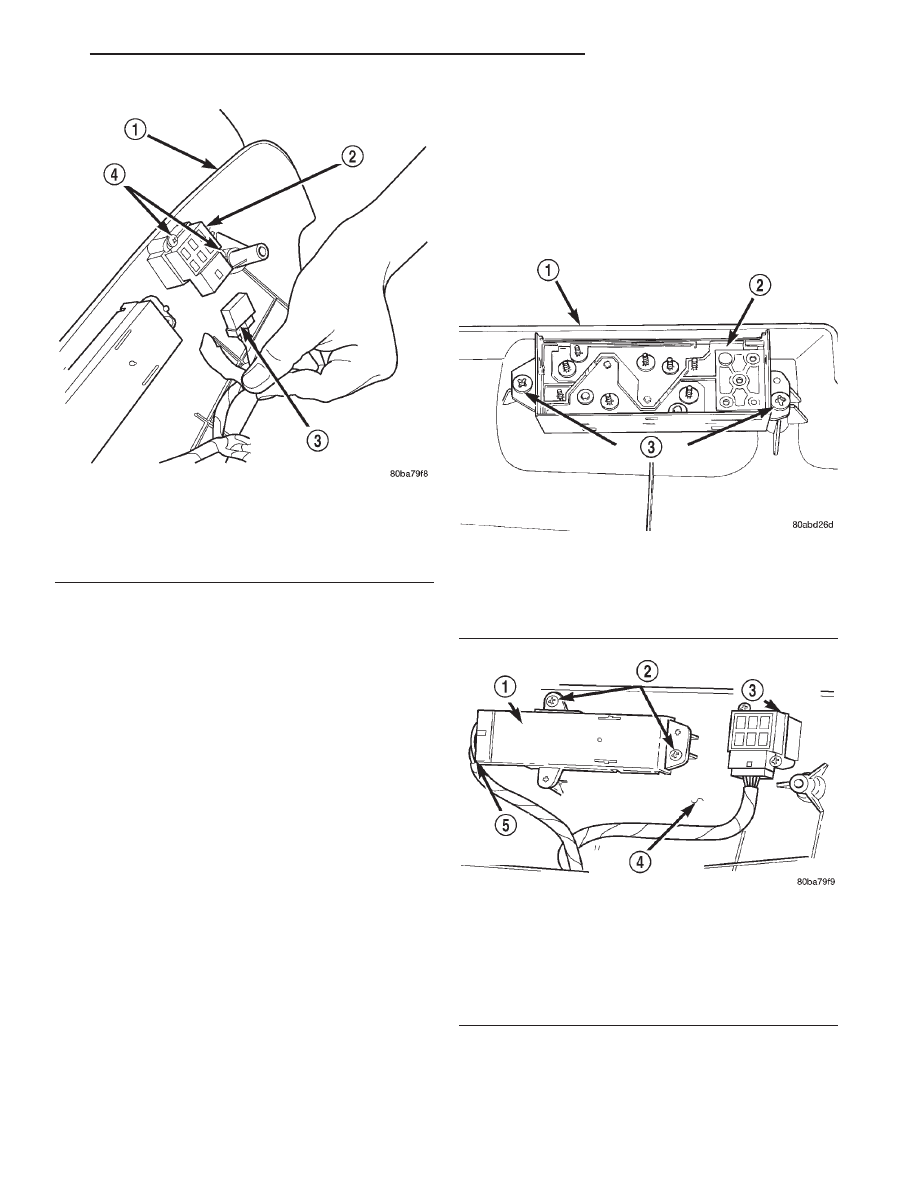

(4) Disconnect the power seat wire harness connec-

tor from the power lumbar switch connector recepta-
cle (Fig. 9).

(5) Remove the two screws that secure the power

lumbar switch to the inside of the outboard seat
cushion side shield.

(6) Remove the power lumbar switch from the out-

board seat cushion side shield.

SWITCH POSITION

CONTINUITY BETWEEN

PINS

LEFT SEAT

RIGHT SEAT

OFF

PIN 1 to 2

PIN 1 to 2

PIN 1 to 3

PIN 1 to 3

PIN 1 to 4

PIN 1 to 4

PIN 1 to 6

PIN 1 to 6

PIN 1 to 7

PIN 1 to 7

PIN 1 to 8

PIN 1 to 8

PIN 1 to 9

PIN 1 to 9

PIN 1 to 10

PIN 1 to 10

FRONT RISER UP

PIN 1 to 10

PIN 1 to 7

PIN 5 to 7

PIN 5 to 10

FRONT RISER DOWN

PIN 1 to 7

PIN 1 to 10

PIN 5 to 10

PIN 5 to 7

CENTER SWITCH

FORWARD

PIN 1 to 3

PIN 1 to 3

PIN 5 to 6

PIN 5 to 6

CENTER SWITCH

REARWARD

PIN 1 to 6

PIN 1 to 6

PIN 3 to 5

PIN 3 to 5

REAR RISER UP

PIN 1 to 9

PIN 1 to 8

PIN 5 to 8

PIN 5 to 9

REAR RISER DOWN

PIN 1 to 8

PIN 1 to 9

PIN 5 to 9

PIN 5 to 8

RECLINER UP

PIN 1 to 4

PIN 1 to 4

PIN 2 to 5

PIN 2 to 5

RECLINER DOWN

PIN 1 to 2

PIN 1 to 2

PIN 4 to 5

PIN 4 to 5

Fig. 8 Ten-Way Power Seat Switch Continuity

8R - 8

POWER SEAT SYSTEMS

WJ

DIAGNOSIS AND TESTING (Continued)

INSTALLATION

(1) Position the power lumbar switch onto the out-

board seat cushion side shield.

(2) Install and tighten the two screws that secure

the power lumbar switch to the inside of the out-
board seat cushion side shield. Tighten the screws to
1.5 N·m (14 in. lbs.).

(3) Reconnect the power seat wire harness connec-

tor to the power lumbar switch connector receptacle.

(4) Position the outboard seat cushion side shield

onto the seat cushion frame.

(5) Install and tighten the three screws that secure

the outboard seat cushion side shield to the seat
cushion frame. Tighten the screws to 1.5 N·m (14 in.
lbs.).

(6) Reconnect the battery negative cable.

POWER SEAT SWITCH

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) On models with the ten-way power seat system

only, using a trim stick or another suitable wide flat-
bladed tool, gently pry the power seat and power
recliner switch knobs off of the switch stems.

(3) Remove the three screws that secure the out-

board seat cushion side shield to the seat cushion
frame.

(4) Pull the outboard seat cushion side shield away

from the seat cushion frame far enough to access the
power seat switch wire harness connector.

(5) Disconnect the power seat wire harness connec-

tor from the power seat switch connector receptacle.

(6) Remove the two screws that secure the power

seat switch to the inside of the outboard seat cushion
side shield (Fig. 10) or (Fig. 11).

(7) Remove the power seat switch from the out-

board seat cushion side shield.

Fig. 9 Power Lumbar Switch Remove/Install

1 – OUTBOARD SEAT CUSHION SIDE SHIELD
2 – POWER LUMBAR SWITCH
3 – WIRE HARNESS CONNECTOR
4 – SCREWS (2)

Fig. 10 Six-Way Power Seat Switches Remove/

Install

1 – SEAT SIDE SHIELD
2 – POWER SEAT SWITCH
3 – SCREWS

Fig. 11 Ten-Way Power Seat Switches Remove/

Install

1 – POWER SEAT SWITCH
2 – SCREWS (2)
3 – POWER LUMBAR SWITCH
4 – SEAT CUSHION SIDE SHIELD
5 – WIRE HARNESS CONNECTOR

WJ

POWER SEAT SYSTEMS

8R - 9

REMOVAL AND INSTALLATION (Continued)















Content   ..  157  158  159  160   ..
