Jaguar X-Type Sedan and Estate (Wagon). Manual - part 615

Item

Part Number

Description

—

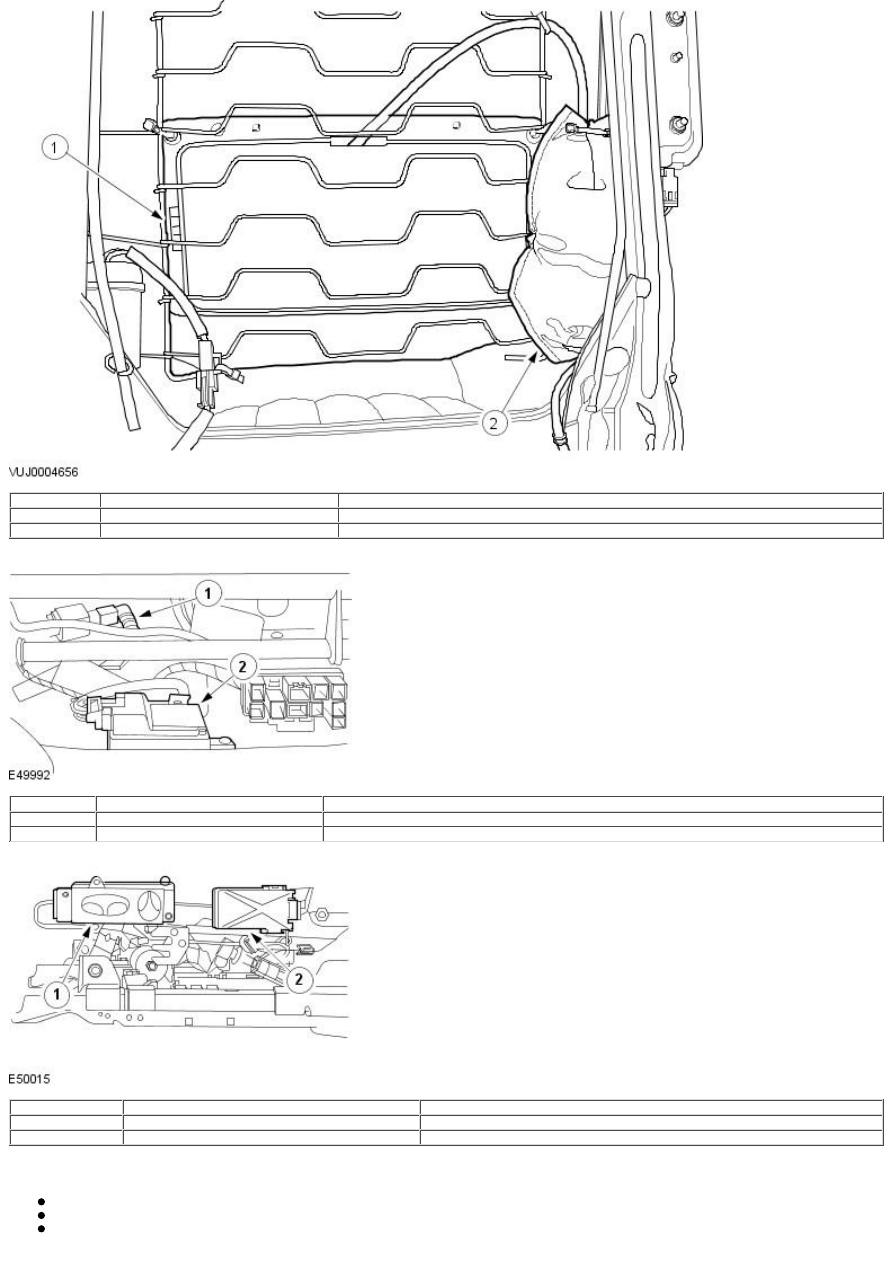

Front seat lumbar support bag

—

Front seat lumbar motor

Passenger Front Seat Weight Sensing system

Item

Part Number

Description

—

Front seat weight sensor

—

Front seat weight sensor module

Heated Seat Module - High Specification, Vehicles without Seat Position Memory

Item

Part Number

Description

—

Seat Control Switch

—

Heated Seat Module

Front Seats

All front seats are fitted with the following features as standard:

integral side air bags
head restraints
safety belt buckle/pretensioner

The driver and passenger seats, although almost identical, have some unique components fitted. The driver seat has a seat track position

sensor and the passenger seat has a weight sensing system. In both instances the components form an integral part of the occupant
restraint system.
For additional information, refer to:

Seat Position Sensor

(501-20B Supplemental Restraint System, Removal and Installation) /

Occupant Classification Sensor

(501-20B Supplemental Restraint System, Removal and Installation).

The high option front seat has the following features:

electrically adjustable seat positioning
electrically adjustable lumbar support (optional)
heated seat (optional)

The basic option front seat has the following standard features:

electrically adjustable seat height positioning (driver seat only)
heated seat (optional)

Seat Position Memory (Optional)

The seat position memory can be programmed for up to three different driver seat configurations and the seat memory switch, located in
the seat control switch pack, can be used to store and retrieve the programmed configurations.

The seat position memory front seat has the following features:

electrically adjustable seat positioning with three position memory
electrically adjustable lumbar support
heated seat (optional)

Heated Seats (Optional)

The heated seat system comprises:

heated seat module (incorporated in the seat control switch pack on vehicles with seat position memory)
heated seat switches
backrest heater element
cushion heater element and thermostat

The heated seat function permits the electrical heating of the seat back and cushion on the driver and front passenger seats. The heating
system of each seat is selected by separate switches located at the top of the center console.

Pressing the appropriate switch activates the first stage of a three stage operation of the heated seat function:

one press of the switch activates the high setting (providing a seat surface temperature of approximately 42°C).
a second press of the switch activates the low setting (providing a seat surface temperature of approximately 37°C).
a third press of the switch deactivates the heating function.

Once the heated seat function has been activated, it will persist until one of the following conditions have been satisfied:

A fixed period of time has expired (10 minutes).
The engine is not running.
The function is deactivated by pressing the switch for a third time.
A malfunction is detected by the heated seat module.

Confirmation that the heated seat function is active is indicated by the illumination of the relevant switch, a yellow light indicates the low
temperature setting and a red light indicates the high temperature setting.

Heated Seat Module

The heated seat module is located behind the outer side trim panel of the front seat on vehicles without seat position memory, and is
incorporated in to the seat control switch pack on vehicles with seat position memory. The module controls the seat heating function by
providing the appropriate response depending on the status of the heated seat switches.

Power Lumbar Support

The power lumbar is a self-contained unit controlled directly by the seat mounted power lumbar switch. On vehicles with seat position
memory, the power lumbar switch is incorporated in to the recliner switch in the seat control switch pack.

Rear Seats - 4-Door

Depending on the market specification the rear seats will be one of the following:

fixed bench style seat
folding 70/30 split seat

Folding Seatbacks (if equipped)

The rear seatbacks can be folded forward to provide additional luggage space if required. Release handles for each seat back are located in
the luggage compartment under the parcel shelf on 4-door vehicles, and on the top of the each seatback on wagon.

Rear Seats - Wagon

The rear seats on wagon are of the folding type with a 70/30 split, fitted with a folding armrest in the left-hand seat backrest. The
left-hand seat also incorporates the rear centre safety belt retractor, which has a release cable connected to the rear seat backrest latch to
prevent the safety belt from operating if the rear seat backrest is not in the fully latched position.

Head Restraints

The front seat head restraints are adjustable for height and forward and rearward tilt.

The rear seat head restraints can be set to one of two height positions. The optional centre rear seat head restraint (excluding Federal
specification vehicles) can also be set to one of two height positions.

Ski Hatch - 4-Door Vehicles only (if equipped)

Skis or similar objects can be stowed in the vehicle by utilizing the two door hatch fitted to the rear seat. The inner door is accessible after
folding down the armrest, the second door is accessible from inside the luggage compartment. A sack complete with strap is provided for
holding the stored items, the strap connects to the center rear seat belt buckle to secure the sack and contents.

*
*

1
2
3
4

Published: 11-May-2011

Seating - Seats

Diagnosis and Testing

1. Verify the customer concern by operating the system.

2. Visually inspect for obvious signs of mechanical or electrical damage.

Visual Inspection Chart

Mechanical

Electrical

Seat base
Seat backrest
Seat track(s)
Lumbar assembly bag

Fuse(s)
W iring harness
Electrical connector(s)
Motor(s)
Switch(es)
Heated seat module
Lumbar assembly pump

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next

step.

4. If the concern is not visually evident, verify the symptom and refer to the symptom chart.

Symptom Chart

Symptom

Possible Sources

Action

The power seat is inoperative - high
specification seat only

Seat control
switch.

CARRY OUT the Seat Control Switch Component Test. REFER to the W iring
Diagrams.

Circuit(s).
Motor(s).

GO to Pinpoint Test A.

The power seat is inoperative - low
specification seat only

Seat control
switch.

CARRY OUT the Seat Control Switch Component Test. REFER to the W iring
Diagrams.

Circuit(s).
Motor(s).

GO to Pinpoint Test B.

The power seat does not move
horizontally - high specification seat only

Seat control
switch.

CARRY OUT the Seat Control Switch Component Test. REFER to the W iring
Diagrams.

Circuit(s).
Motor(s).

GO to Pinpoint Test C.

The power seat does not move vertically -
high specification seat only

Seat control
switch.

CARRY OUT the Seat Control Switch Component Test. REFER to the W iring
Diagrams.

Circuit(s).
Motor(s).

GO to Pinpoint Test D.

The power seat does not recline - high
specification seat only

Seat control
switch.

CARRY OUT the Seat Control Switch Component Test. REFER to the W iring
Diagrams.

Circuit(s).
Motor(s).

GO to Pinpoint Test E.

The power lumbar is inoperative - high
specification seat only

Seat control
switch.

CARRY OUT the Seat Control Switch Component Test. REFER to the W iring
Diagrams.

Lumbar
assembly bag

INSPECT the seat lumbar assembly bag. INSTALL a new lumbar assembly as
necessary. For additional information, refer to

Lumbar Assembly

Circuit(s).
Motor(s).

GO to Pinpoint Test F.

Pinpoint Tests

• NOTE: Use a digital multimeter for all electrical measurements.

PINPOINT TEST A : THE POWER SEAT IS INOPERATIVE - HIGH SPECIFICATION SEAT

TEST CONDITIONS

DETAILS/RESULTS/ACTIONS

A1: CHECK THE FRONT SEAT OPERATION

Operate the LH seat control switch

Is the LH seat inoperative?
Yes

GO to A2

. .

GO to A4

. .

A2: CHECK THE VOLTAGE TO THE SEAT CONTROL SWITCH

Switch the ignition switch to the OFF position.
Disconnect the seat control switch electrical connector LS1.
Switch the ignition switch to the ON position.
Measure the voltage between the seat control switch electrical connector LS1 pin 6, (OG), and ground.

Is the voltage greater than 10 volts?
Yes

GO to A3

. .

REPAIR the circuit. TEST the system for normal operation.

A3: CHECK THE SEAT CONTROL SWITCH GROUND CIRCUIT

Measure the resistance between the seat control switch electrical connector LS1 pin 1, (B), and ground.

Is the resistance less than 5 ohms?
Yes

INSTALL a new seat control switch. For additional information, refer to

Seat Control Switch

REPAIR the circuit. TEST the system for normal operation.

A4: CHECK THE VOLTAGE TO THE SEAT CONTROL SWITCH

Switch the ignition switch to the OFF position.

2
3
4

1
2

1
2
3

1
2

Disconnect the seat control switch electrical connector RS1.
Switch the ignition switch to the ON position.
Measure the voltage between the seat control switch electrical connector RS1 pin 6, (OY), and ground.

Is the voltage greater than 10 volts?
Yes

GO to A5

. .

REPAIR the circuit. TEST the system for normal operation.

A5: CHECK THE SEAT CONTROL SWITCH GROUND CIRCUIT

Measure the resistance between the seat control switch electrical connector RS1 pin 1, (B), and ground.

Is the resistance less than 5 ohms?
Yes

INSTALL a new seat control switch. For additional information, refer to

Seat Control Switch

REPAIR the circuit. TEST the system for normal operation.

PINPOINT TEST B : THE POWER SEAT IS INOPERATIVE - LOW SPECIFICATION SEAT ONLY

TEST

CONDITIONS

DETAILS/RESULTS/ACTIONS

B1: CHECK THE LH FRONT SEAT HEIGHT ADJUSTMENT MOTOR OPERATION

Operate the LH seat control switch to the UP position.

Is the LH seat height adjustment inoperative?
Yes

GO to B2

. .

GO to B8

. .

B2: CHECK THE LH SEAT CONTROL SWITCH POWER SUPPLY

Disconnect the seat control switch electrical connector LS16.
Measure the voltage between the seat control switch electrical connector LS16 pin 2, (OG), and ground.

Is the voltage greater than 10 volts?
Yes

GO to B3

. .

REPAIR the circuit. TEST the system for normal operation.

B3: CHECK THE LH SEAT CONTROL SWITCH GROUND CIRCUIT

Measure the resistance between the seat control switch electrical connector LS16 pin 3, (B), and ground and
between LS16 pin 6, (B), and ground.

Are the resistances less than 5 ohms?
Yes

GO to B4

. .

REPAIR the circuit. TEST the system for normal operation.

B4: CHECK THE LH SEAT HEIGHT ADJUSTMENT MOTOR CIRCUITS

Disconnect the seat height motor electrical connector LS10.
Operate the seat control switch to the UP position.
Measure the voltage between the seat height motor electrical connector LS10 pin 1, (YG), and LS10 pin 2, (WG).

Is the voltage greater than 10 volts?
Yes

INSTALL a new front seat height motor. TEST the system for normal operation.

GO to B5

. .

B5: CHECK THE LH SEAT HEIGHT ADJUSTMENT MOTOR CIRCUIT

Operate the seat control switch to the UP position.
Measure the voltage between the seat height motor electrical connector LS10 pin 1, (YG), and ground.

Is the voltage greater than 10 volts?
Yes

GO to B6

. .

GO to B7

. .

B6: CHECK THE LH SEAT HEIGHT ADJUSTMENT MOTOR CIRCUIT FOR OPEN

Disconnect the seat control switch electrical connector LS16.
Measure the resistance between the seat height motor electrical connector LS10 pin 2, (WG), and the seat control
switch electrical connector LS16 pin 7, (W G).

Is the resistance less than 5 ohms?
Yes

INSTALL a new seat control switch. TEST the system for normal operation.

REPAIR the circuit. TEST the system for normal operation.

B7: CHECK THE LH SEAT HEIGHT ADJUSTMENT MOTOR CIRCUIT FOR OPEN

Measure the resistance between the seat height motor electrical connector LS10 pin 1, (YG), and the seat control
switch electrical connector LS16 pin 1, (YG).

Is the resistance less than 5 ohms?
Yes

INSTALL a new seat control switch. TEST the system for normal operation.

REPAIR the circuit. TEST the system for normal operation.

B8: CHECK THE RH SEAT CONTROL SWITCH POWER SUPPLY

Disconnect the seat control switch electrical connector RS16.
Measure the voltage between the seat control switch electrical connector RS16 pin 2, (OY), and ground.

Is the voltage greater than 10 volts?
Yes

GO to B9

. .

REPAIR the circuit. TEST the system for normal operation.

B9: CHECK THE RH SEAT CONTROL SWITCH GROUND CIRCUIT
