Jaguar X-Type Sedan and Estate (Wagon). Manual - part 265

2. NOTE: Install a new gasket.

Tighten to 10 Nm.

Vehicles with 2.0L engine

3. Tighten to 10 Nm.

4. Tighten to 6 Nm.

Published: 11-May-2011

Fuel Charging and Controls - 2.0L NA V6 - AJV6/2.5L NA V6 - AJV6/3.0L NA V6 - AJ27
- Fuel Injectors

Removal and Installation

Removal

Vehicles with 2.5L or 3.0L engine

1. Remove the fuel charging wiring harness.

For additional information, refer to

Fuel Charging W iring Harness

 in this

section.

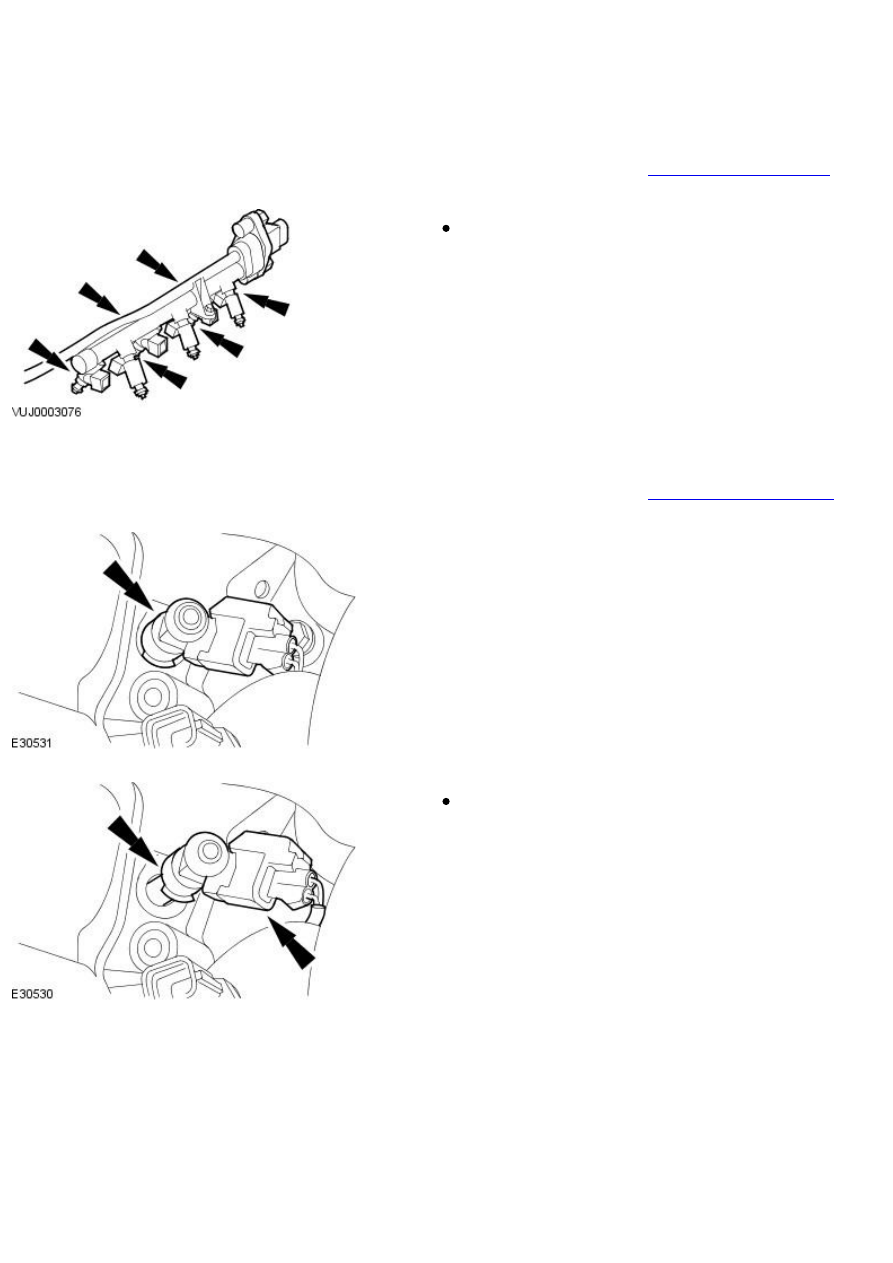

2. Remove the fuel injectors.

Remove the fuel injector retaining clips.

Vehicles with 2.0L engine

3. Remove the fuel injection supply manifold.

For additional information, refer to

Fuel Injection Supply Manifold

 in this

section.

4. Detach the injectors from the lower intake manifold.

5. Remove the injectors.

Disconnect the electrical connectors.

All vehicles

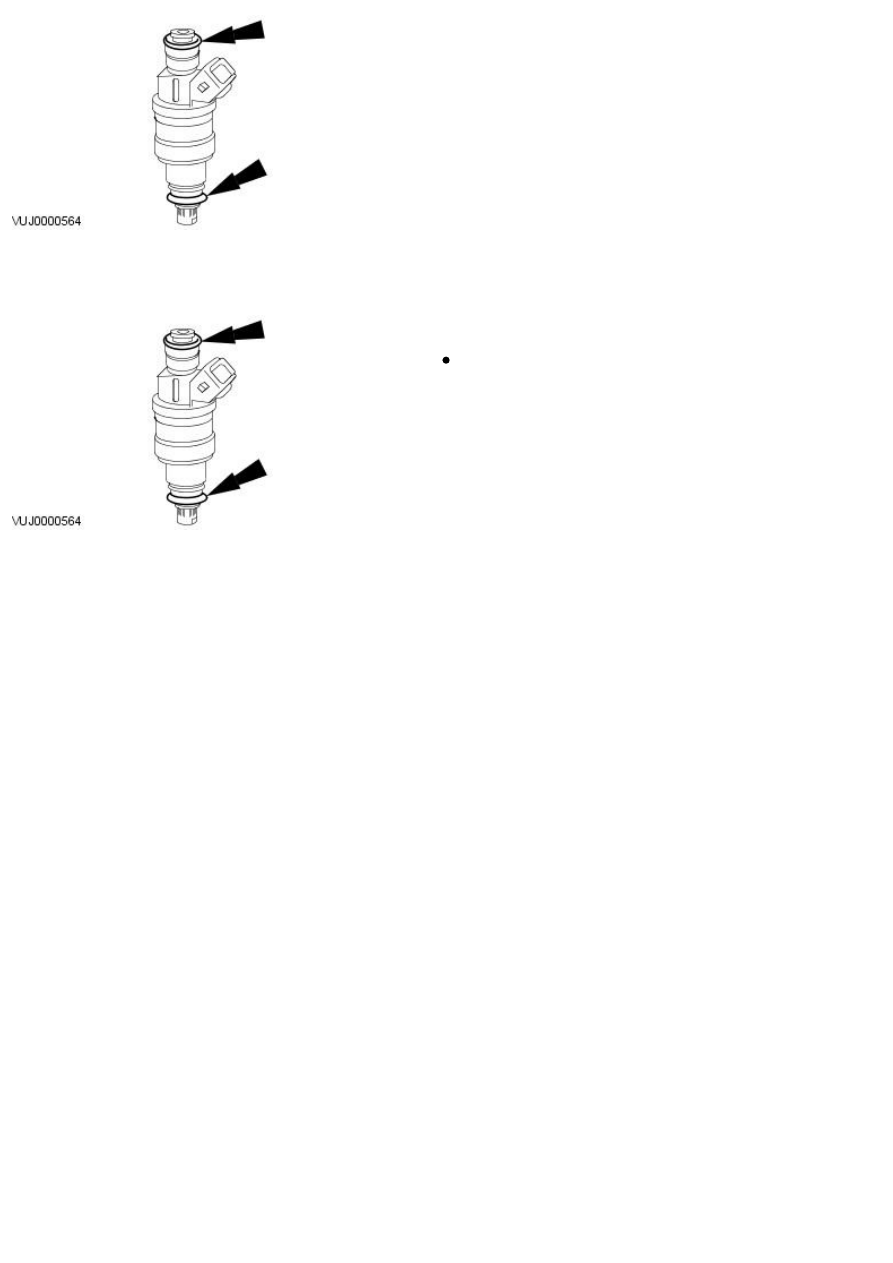

6. Remove and discard the O-ring seals.

7.

Installation

1. NOTE: Install new fuel injector O-ring seals.

To install, reverse the removal procedure.

Lubricate the fuel injector O-ring seals with clean engine oil.

Published: 11-May-2011

Fuel Charging and Controls - 2.0L NA V6 - AJV6/2.5L NA V6 - AJV6/3.0L NA V6 - AJ27
- Fuel Pulse Damper2.5L NA V6 - AJV6/3.0L NA V6 - AJ27

Removal and Installation

Removal

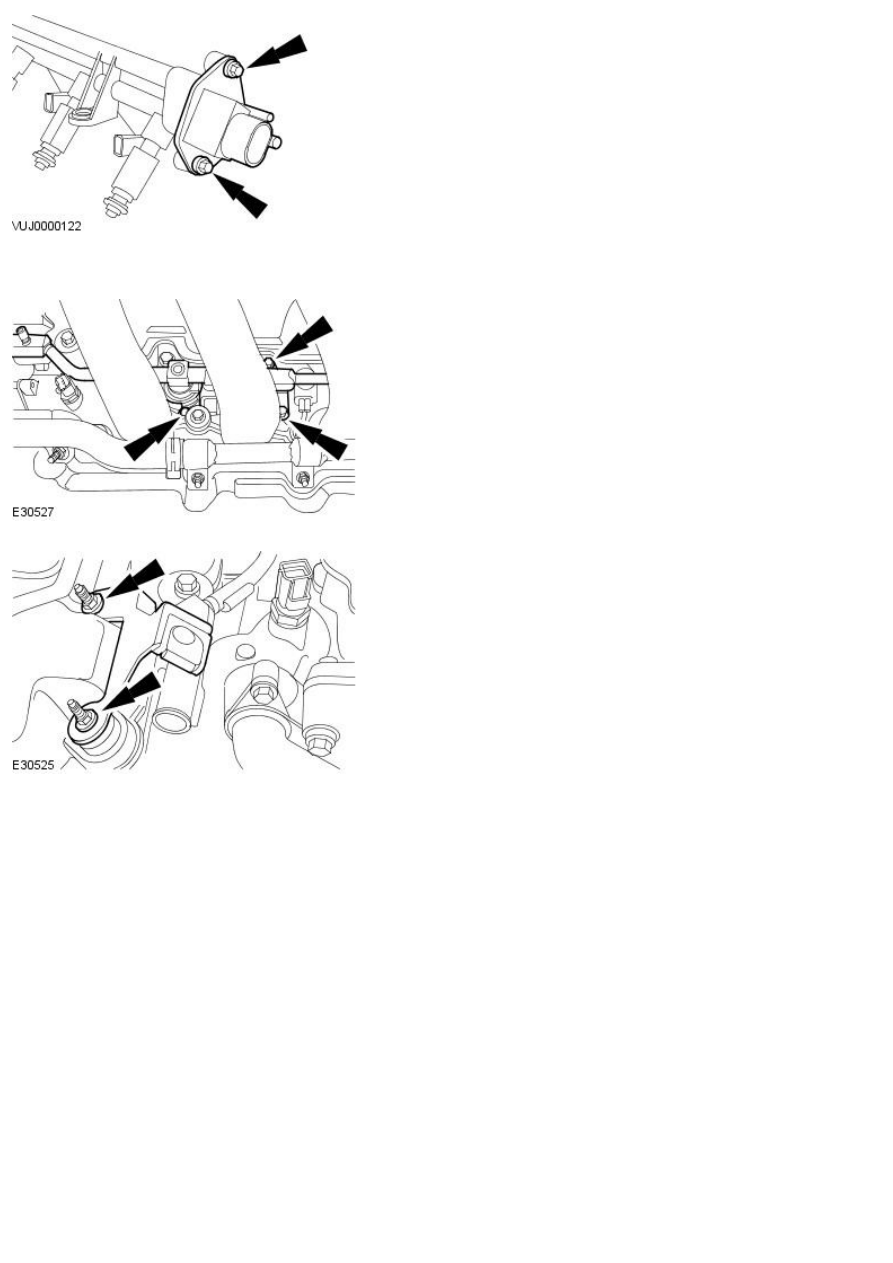

1. Remove the throttle body. For additional information, refer to

Throttle

Body

.

2. Disconnect the electrical connector.

3. Detach the fuel pressure sensor vacuum line.

4. Remove the fuel pressure sensor.

Remove and discard the gasket.

Installation

1. NOTE: Install a new gasket.

To install, reverse the removal procedure.

Tighten to 10 Nm.
