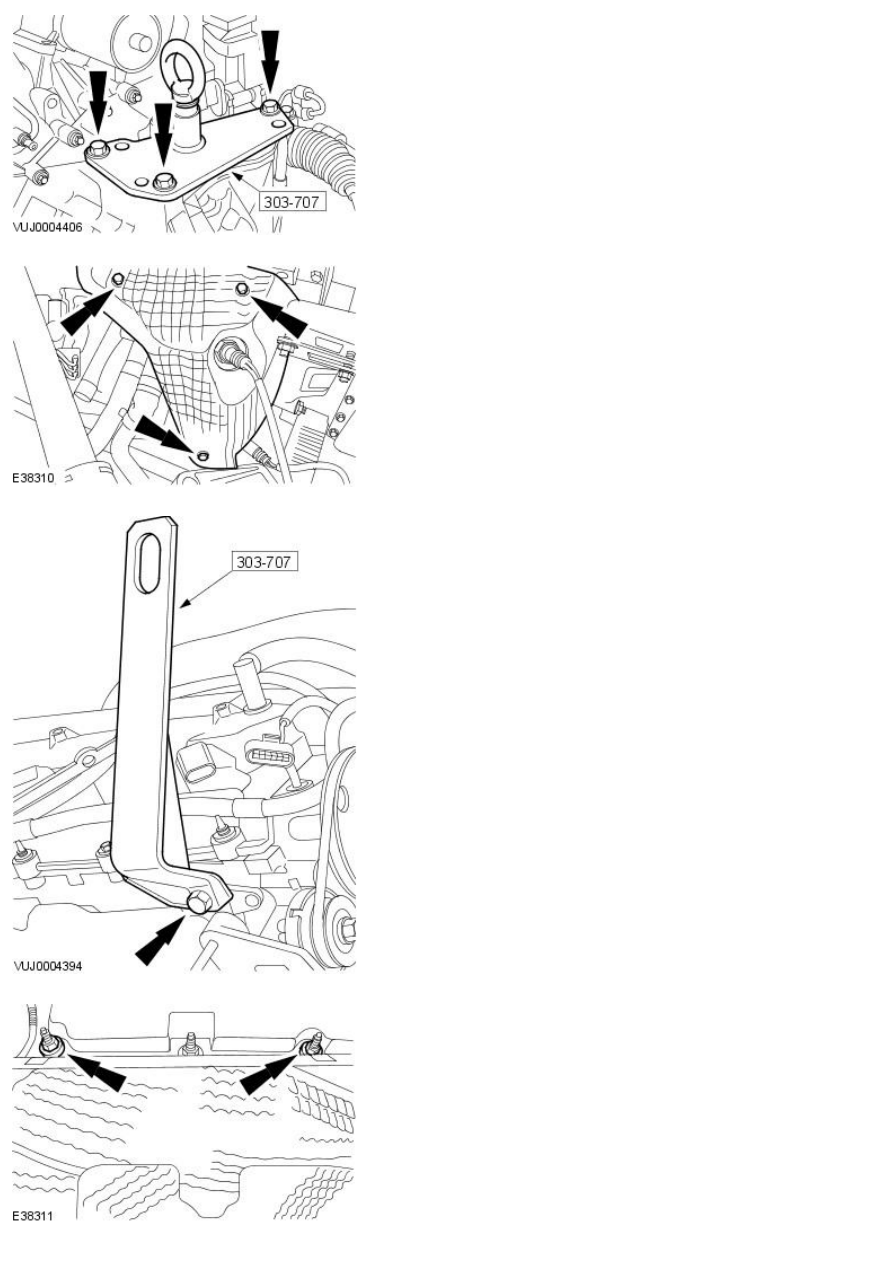

48. Position and adjust the special tool engine height adjusters. 49. Remove the engine support bracket. 50. Remove the transaxle mount bracket securing nut. 51. Remove the clutch master cylinder to clutch slave cylinder high-pressure pipe support bracket. 52. NOTE: Left-hand shown, right-hand similar. Remove the front subframe reinforcement plate retaining bolts. |
