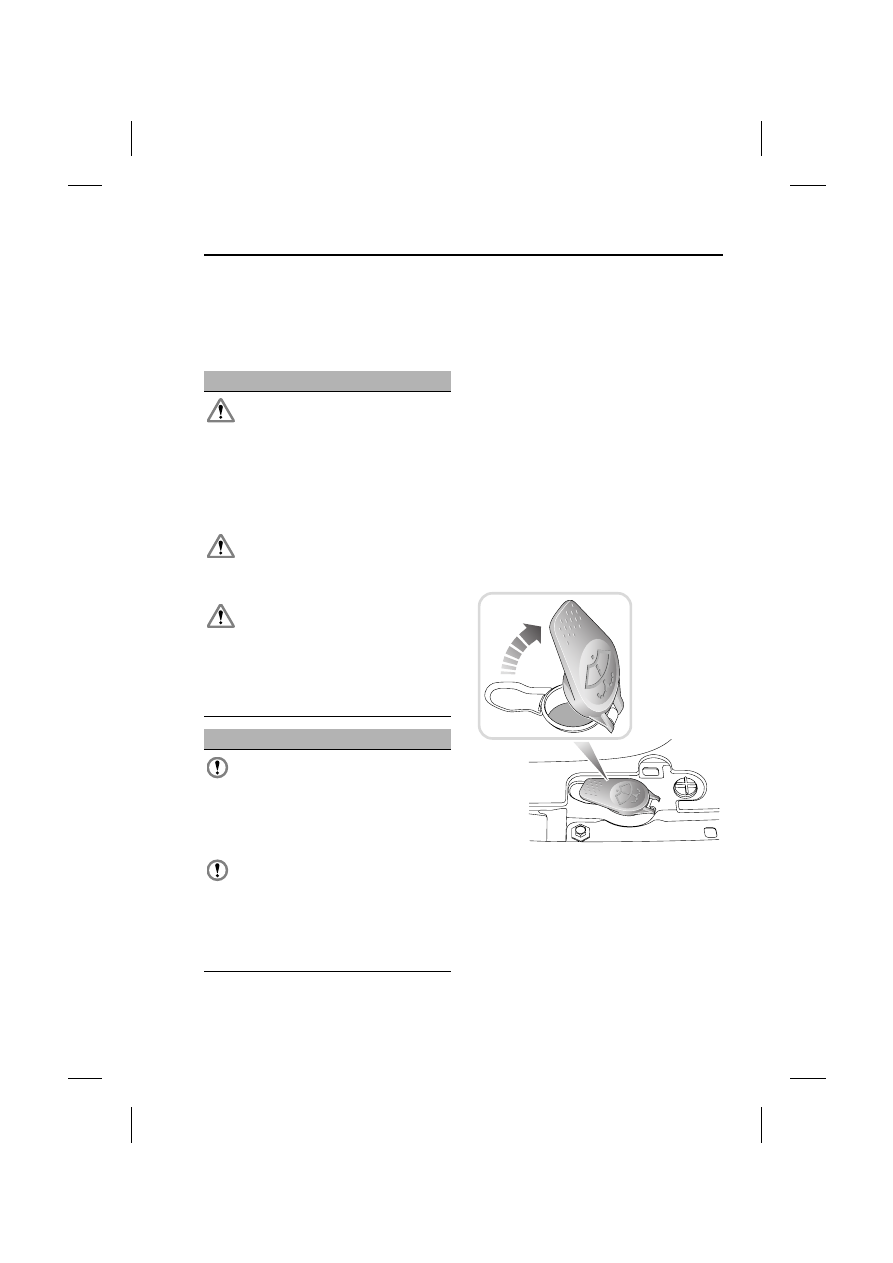

BRAKE FLUID CHECK

The fluid is visible through the translucent
casing of the reservoir and must be
maintained at the MAX mark.

Topping up:

1. Remove the reservoir top cover

2. Clean the reservoir and cap

thoroughly with a lint free cloth to
ensure that no foreign matter enters
the reservoir.

3. Unscrew the filler cap and top up to

the MAX level using brake fluid to
specification Shell DOT 4 ESL or low
viscosity DOT 4 brake fluid that meets
ISO 4925 class 6 specification. Only
fluid of this type and standard may be
used.

4. Refit the filler cap securely and refit

the cover.

Pedal free travel: The brake pedal free
travel is 12.0 mm (0.47 inches).

WARNING

The fluid level will drop as the
brake pads wear. If the level is
very low the brake warning

indicator will illuminate and a message
BRAKE FLUID LOW will be displayed.
Seek qualified assistance immediately.
Do not drive the vehicle until the cause is
rectified as driving under such conditions
could result in extended stopping
distances or complete brake failure.

E93872

CAUTION

While handling brake fluid, take

extreme care; brake fluid can damage
the vehicle paintwork.

Always use fresh, clean fluid from a new
container. Never introduce used brake
fluid into the system.

Maintenance

212

L

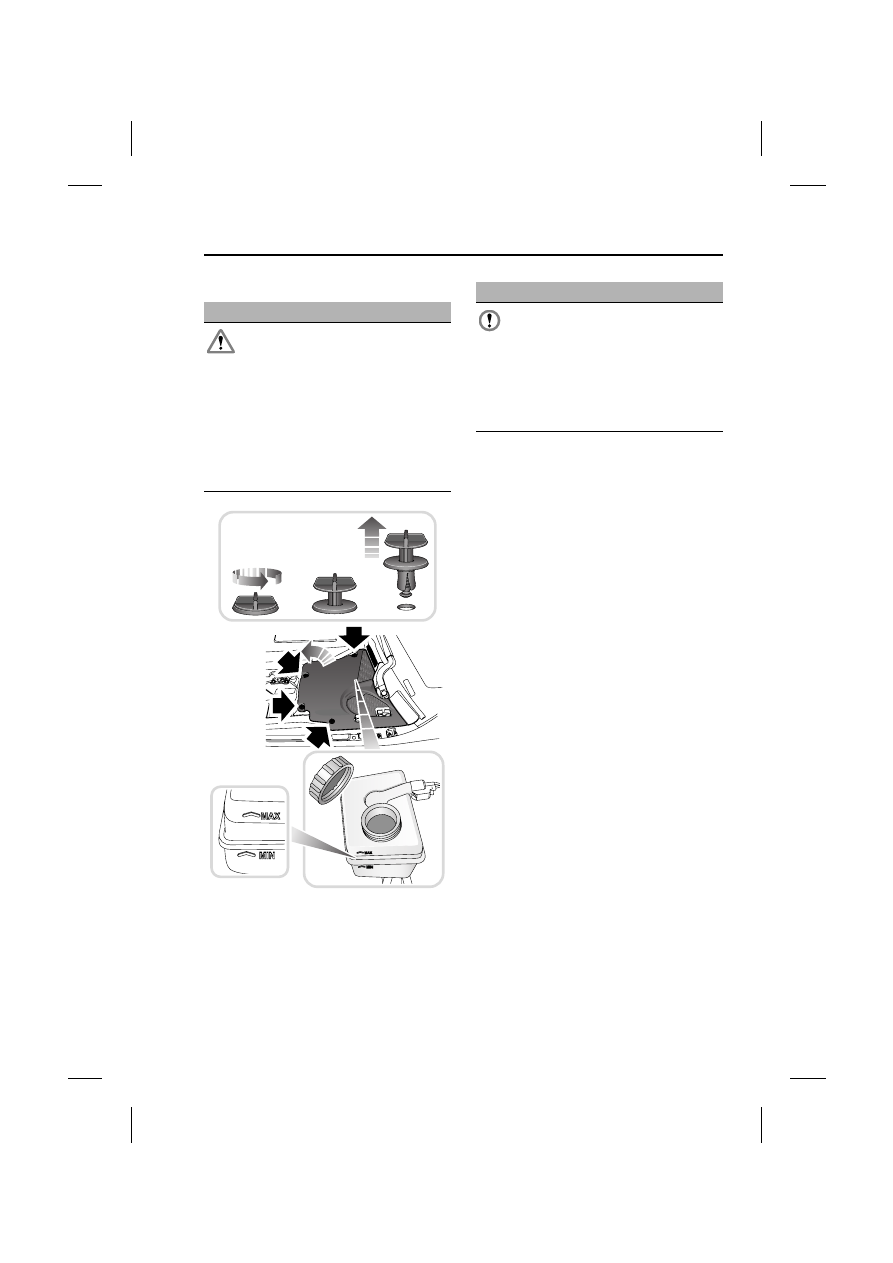

POWER STEERING FLUID
CHECK

Checking the fluid level

Check the fluid level when the engine is
cold and the vehicle is on a flat, level
surface.

The fluid level should be between the
MIN and the MAX marks.

Topping up the fluid

1. Wipe clean and remove the filler cap

from the reservoir; take great care to
prevent any foreign matter from
entering.

2. Check that the fluid level is between

the marks on the reservoir dipstick.

WARNINGS

Power steering fluid is highly
toxic. Keep containers sealed and
out of reach of children. If

accidental consumption of fluid is
suspected, seek medical attention
immediately.

If the fluid comes into contact with
the skin or eyes, rinse immediately
with plenty of water.

CAUTIONS

The engine must not be started if
the fluid level has dropped below
the MIN mark. Severe damage to

the steering pump could result.

Seek qualified assistance
immediately if there is a noticeable
drop in the fluid level. Severe

damage to the steering pump could
result.

If fluid loss is slow, the reservoir
may be topped-up to the upper
level mark to enable the vehicle to

be driven to a repair facility for
examination. However, it is
recommended that you seek qualified
assistance before driving the vehicle.

CAUTIONS

It is imperative that the power
steering system does not become
contaminated in any way. Always

use new fluid and clean the area around
the reservoir neck both before and after
topping up. Never return drained fluid to
the system.

Power steering fluid will damage
painted surfaces. Soak up any
spillage with an absorbent cloth

immediately and wash the area with a
mixture of car shampoo and water.

Do not fill the reservoir above the
MAX mark.

E91679

213

Maintenance

R

3. If necessary, top-up with DEXRON III

power steering fluid. Do not overfill.

4. Refit the filler cap.

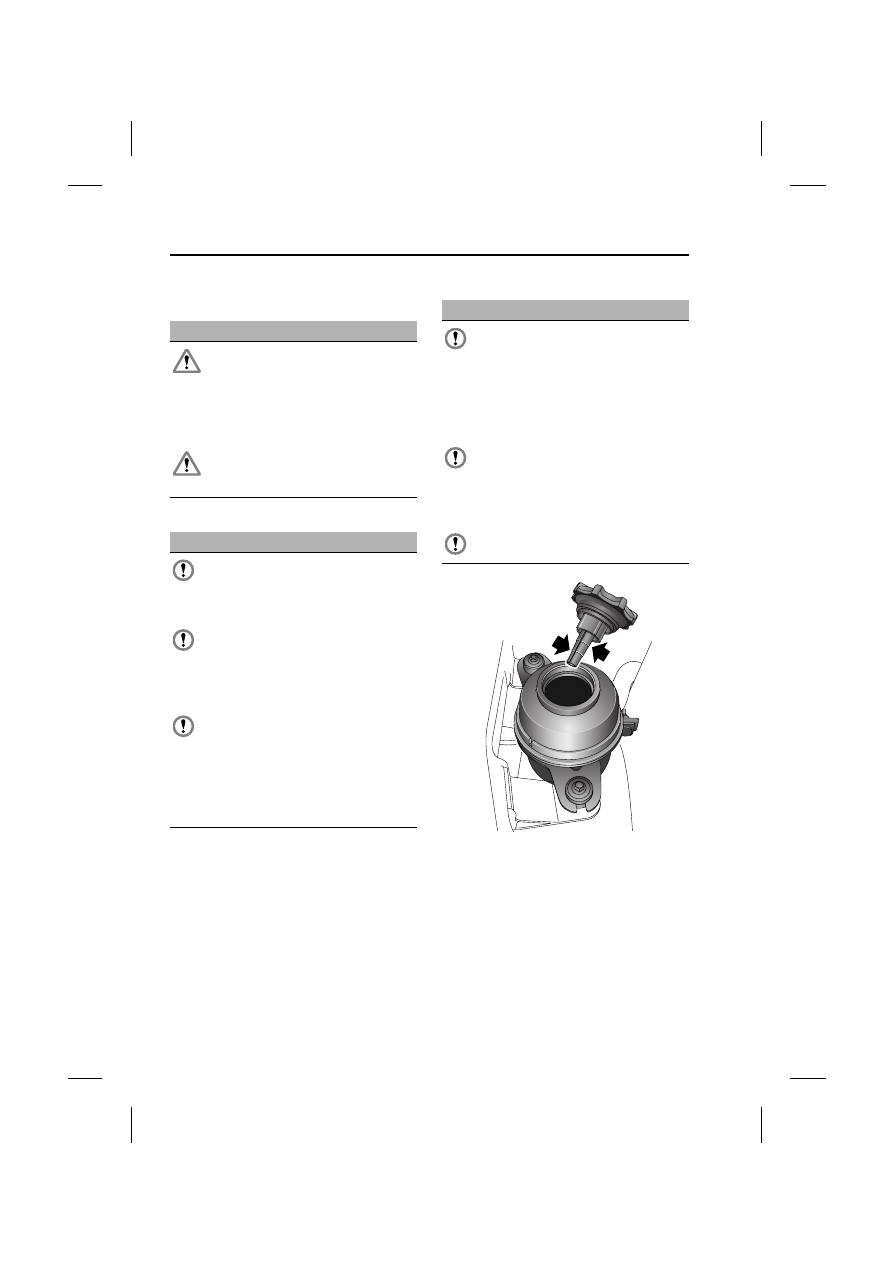

WASHER FLUID CHECK

The washer reservoir contains fluid for
the windshield washers and the
headlamp powerwash system. Fill with
Jaguar Windshield Washer Fluid diluted
with clean water as specified in the
instructions on the bottle. Do not overfill.

Using a non-approved fluid may
adversely affect the wiper blade rubber,
resulting in ineffectual and noisy wiping.

Check and top-up the reservoir level at
least every week. Always top-up with
windshield washer fluid to prevent
freezing.

Operate the washer switches periodically
to check that the nozzles are clear and
properly directed.

Topping up the fluid

1. Clean the filler cap before removing

to prevent dirt from entering the
reservoir.

2. Remove filler cap.

3. Top-up the reservoir until the fluid is

visible in the filler neck.

4. Replace filler cap.

WARNINGS

Some windshield washer
products are toxic and in
concentrated form is flammable,

particularly if high or undiluted
concentrations are exposed to sparking.
Do not allow windshield washer fluid to
come into contact with naked flames or
sources of ignition.

Under no circumstances must
cooling system antifreeze be
used, as this will damage the

paintwork.

If the vehicle is operated in
temperatures below 4°C (40°F),
use a washer fluid with frost

protection. In cold weather, failure to use
a washer fluid with frost protection,
could result in impaired vision and
increase the risk of a vehicle crash.

CAUTIONS

Do not use an antifreeze or
vinegar/water solution in the
washer reservoir - antifreeze will

damage painted surfaces, while vinegar
can damage the windshield washer
pump.

Body panels may suffer
discolouration as a result of
windshield washer fluid spillage.

Take care to avoid spillage, particularly if
an undiluted or high concentration is
being used. If spillage occurs, wash the
affected area immediately with water.

E91676

214

Maintenance

L

TECHNICAL SPECIFICATIONS

Lubricants and fluids

Capacities

Note: The quoted capacities are approximate and provided as a guide only. All oil levels
must be checked using the dipstick or level plugs as applicable.

Note: Avoid the risk of running out of fuel and never intentionally drive the vehicle when
the fuel gauge indicates that the tank is empty. When refuelling after the fuel gauge
reads empty, you may not be able to add the fuel quantity shown above as there will be
a small reserve remaining in the tank.

Part

Variant

Specification

Engine oil

All vehicles

SAE 5W-30 meeting Jaguar specification WSS
M2C913-B.

Power steering fluid All vehicles

DEXRON III

Brake fluid

All vehicles

Shell DOT4 ESL. If Shell DOT4 ESL is not available
seek advice from your Jaguar Dealer.

Windshield washer

All vehicles

Windshield wash with frost protection

Coolant

All vehicles

50% mixture antifreeze to specification WSS
M97B44 (coloured orange Extended Life Coolant)
and water.

Item

Variant

Capacity

Fuel tank

All vehicles

71.1 litres (18.8 gallons)

Fill capacity (when the fuel
guage indicates empty)

All vehicles

65.1 litres (17.2 gallons)

Reserve capacity (when the
fuel guage indicates empty)

All vehicles

6.0 litres (1.6 gallons)

Engine oil refill and filter
change

All vehicles

7.0 litres (14.8 pints)

Windshield and headlight
washer reservoir

4.2 normally aspirated engine 6.3 litres (13.3 pints)

4.2 litre supercharged engine 6.6 litres (14.0 pints)

Cooling system, including
reservoir and climate control

4.2 litre normally aspirated
engine

10.4 litres (22.0 pints)

V8 4.2 litre supercharged
engine

10.0 litres (21.1pints)
