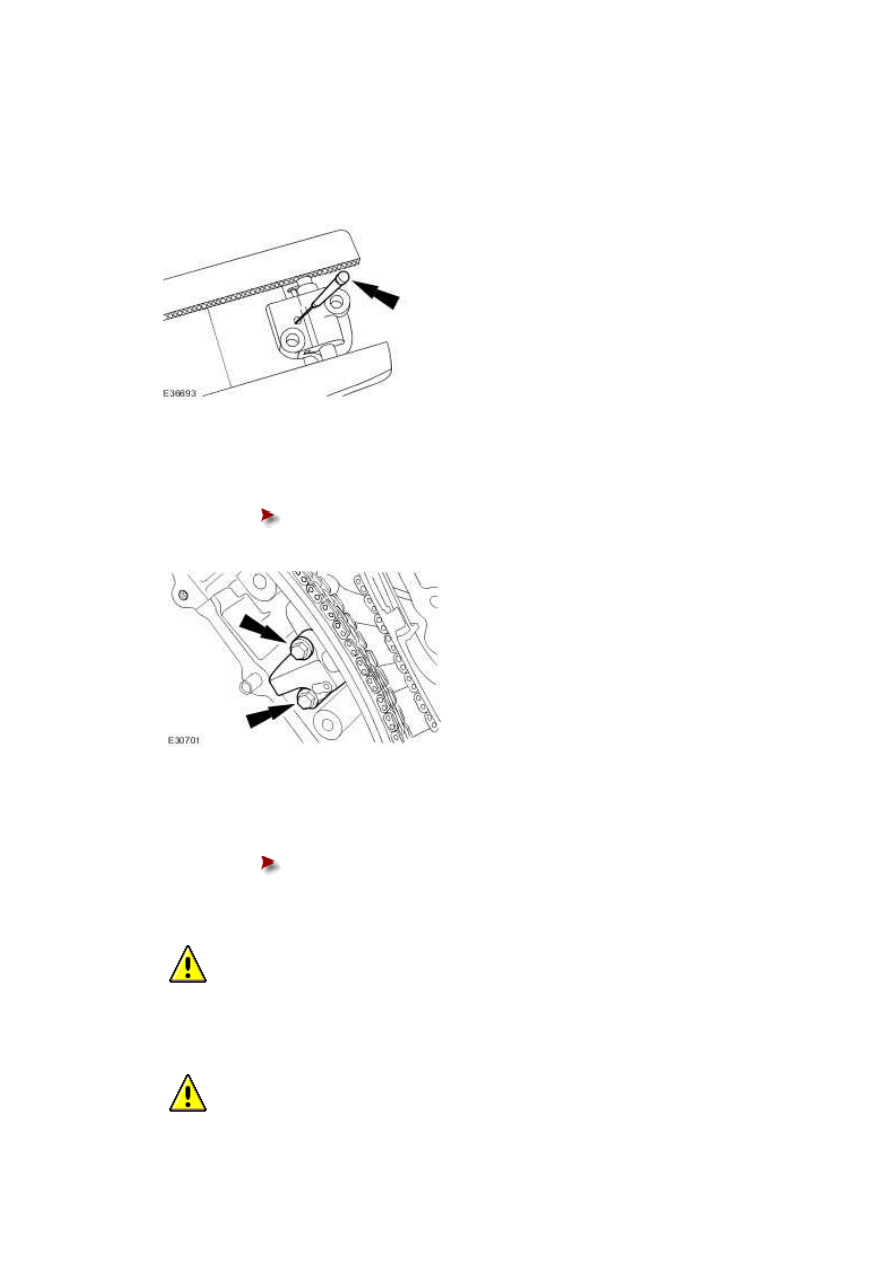

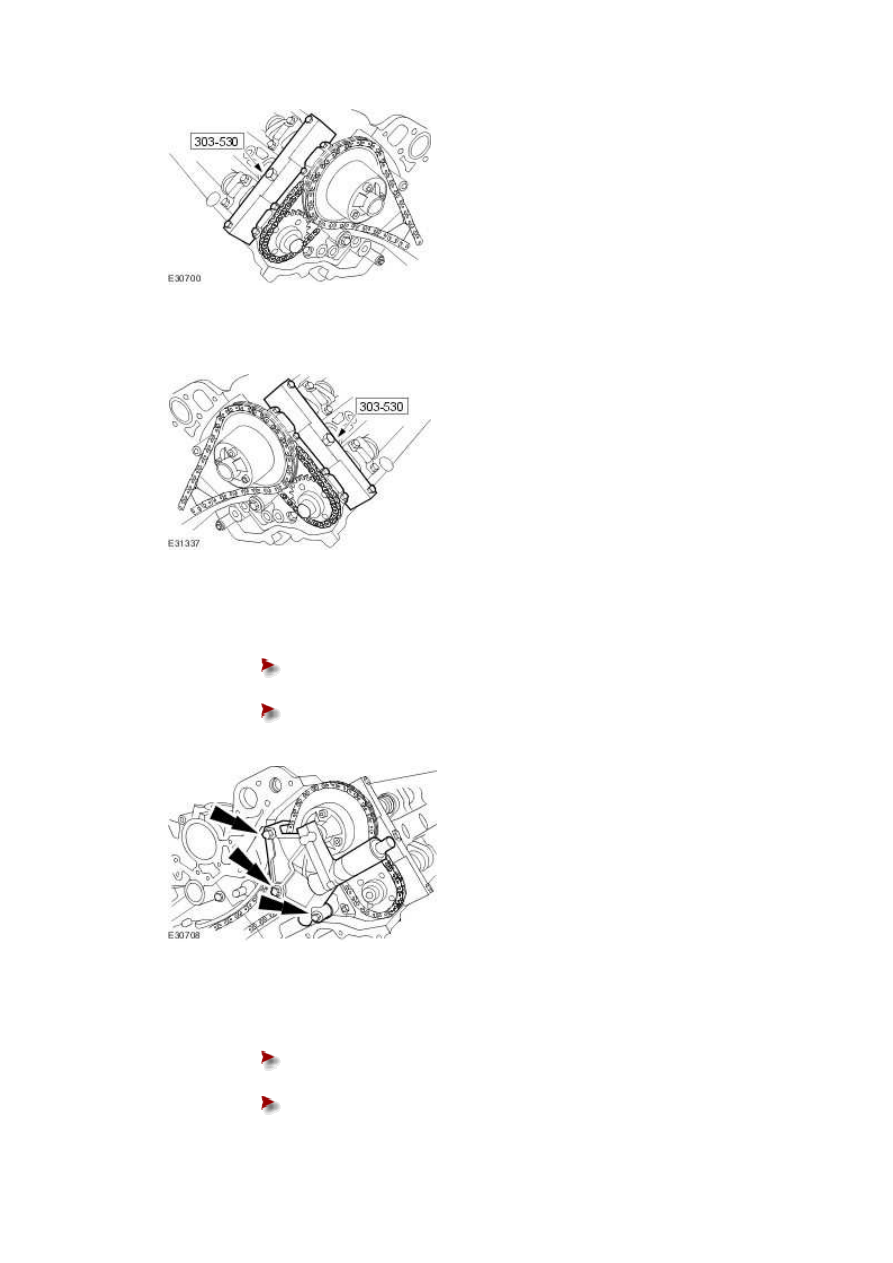

30 . Install the primary timing chain tensioner guide.
Tighten to 12 Nm.
31 .

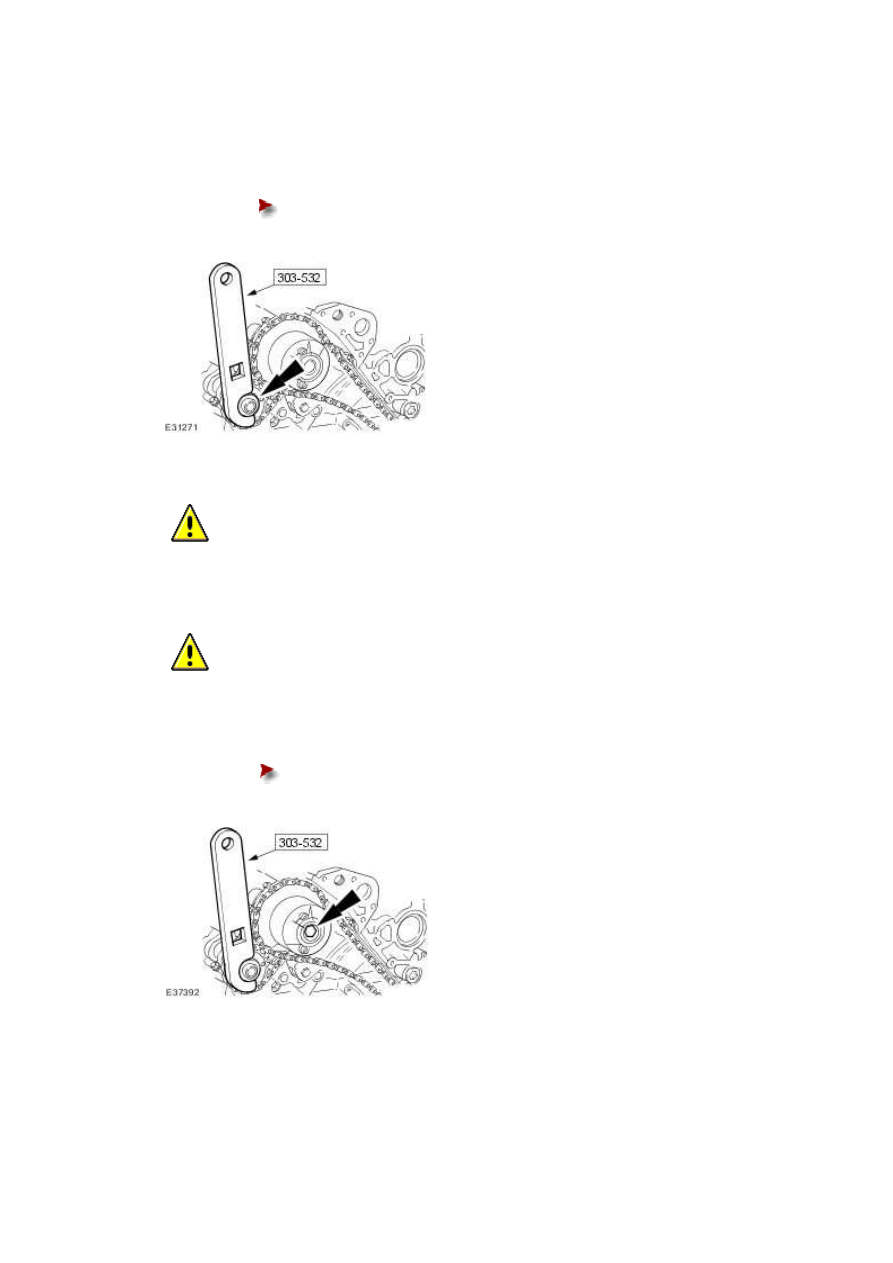

CAUTION: During timing chain tensioner compression, do not release the ratchet stem until the timing chain tensioner piston is fully bottomed in its bore or damage to the ratchet stem will result.

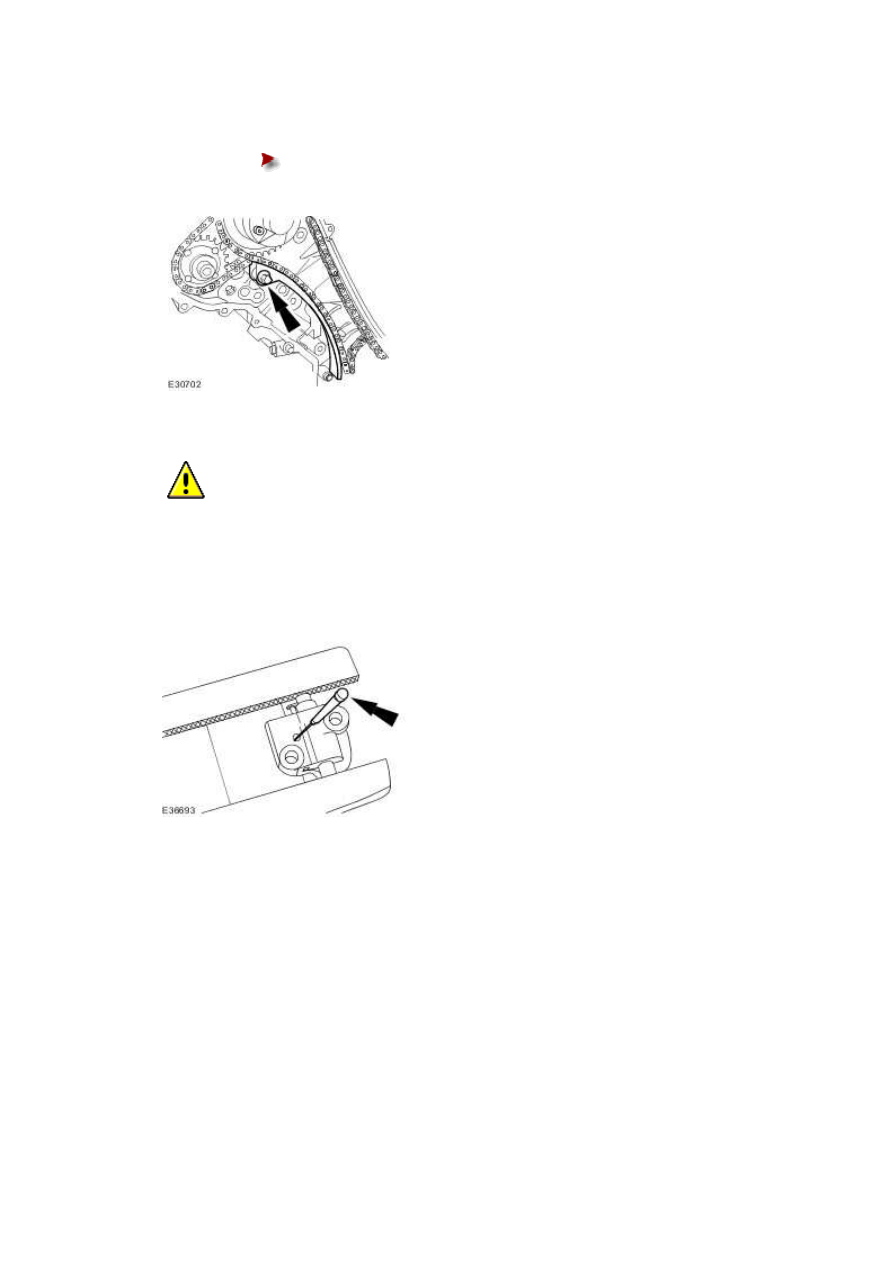

Using a suitable tool, hold the right-hand timing chain tensioner ratchet lock mechanism away from the ratchet stem.
32 .
NOTE:
The timing chain tensioner piston should retract with minimal force. If binding occurs, reposition the timing chain tensioner to eliminate side loading.
Slowly compress the right-hand timing chain tensioner.
|
