10 . Bleed the brake system.

For additional information, refer to





11 . Install both rear wheels and tires.

For additional information, refer to











Brake Caliper (70.55.03) – Armoured

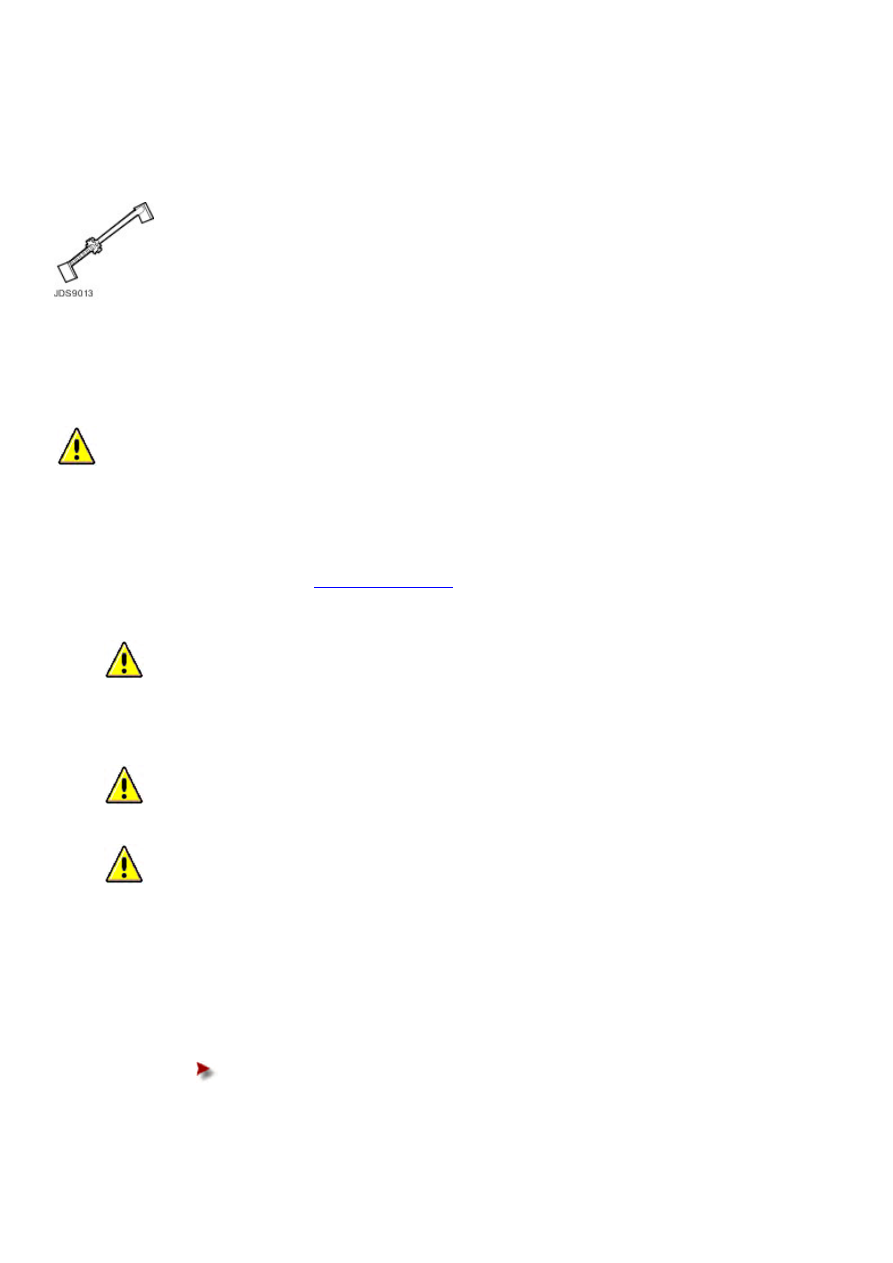

Special Service Tools




Brake pedal hold-down tool
JDS 9013

Removal

 CAUTION: The brake caliper is aligned / centralized to the brake disc when the vehicle is built. The vehicle may

have shims fitted between the brake caliper anchor plate and the wheel knuckle. Care must be taken not to disturb this
alignment. When removing caliper; remove only the bolts that secure the brake caliper to the brake caliper anchor plate.
DO NOT loosen any other caliper bolts. This alignment / centralization MUST be checked / set when the wheel knuckle is
replaced. Failure to follow this instruction may result in damage to the vehicle.





1 . Remove the brake pads.

For additional information, refer to

Brake Pads (70.40.02)






2
.

 CAUTION: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with the eyes. Wash

hands thoroughly after handling, as prolonged contact may cause irritation and dermatitis. If brake fluid contacts
the eyes, flush the eyes with cold water or eyewash solution and seek medical attention. If taken internally do not
induce vomiting, seek immediate medical attention. Failure to follow these instructions may result in personal
injury.



 CAUTION: If brake fluid comes into contact with the paintwork, the affected area must be immediately

washed down with cold water.



 CAUTION: Do not allow the brake caliper to hang on the hydraulic hose, as this will damage the hose.

Failure to follow this instruction will result in damage to the hose.


NOTE:



To prevent the loss of brake fluid, apply the brake pedal hold-down tool and adjust to hold the brake pedal down 40
mm (1.6 in).


NOTE:



Cap the brake hose to prevent loss of fluid and prevent dirt ingress.


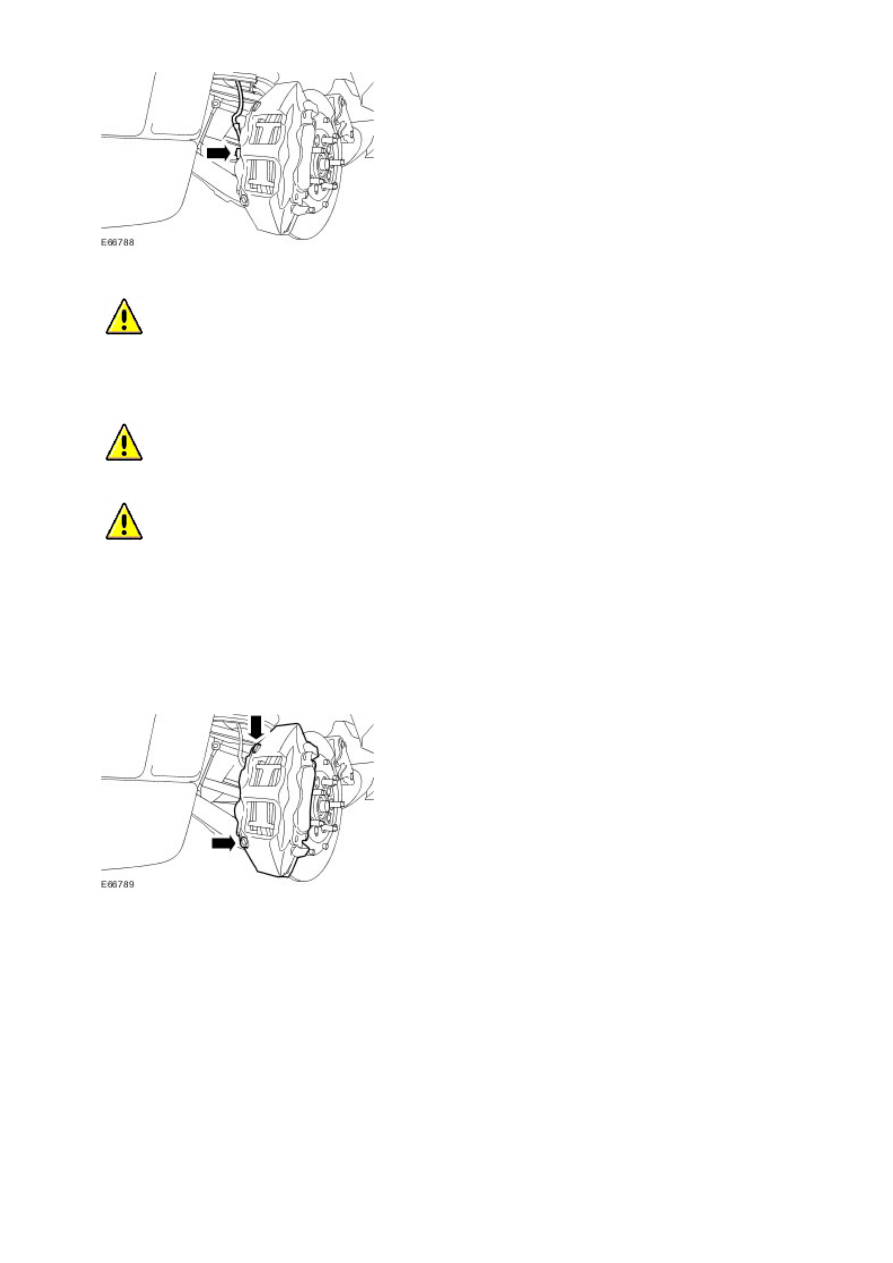

Detach the brake hose.





Remove and discard the sealing washers.

Published: Mar 12, 2014

Vehicles

www.









3
.

 CAUTION: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with the eyes. Wash

hands thoroughly after handling, as prolonged contact may cause irritation and dermatitis. If brake fluid contacts
the eyes, flush the eyes with cold water or eyewash solution and seek medical attention. If taken internally do not
induce vomiting, seek immediate medical attention. Failure to follow these instructions may result in personal
injury.



 CAUTION: If brake fluid comes into contact with the paintwork, the affected area must be immediately

washed down with cold water.



 CAUTION: Do not allow the brake caliper to hang on the hydraulic hose, as this will damage the hose.

Failure to follow this instruction will result in damage to the hose.


NOTE:



To prevent the loss of brake fluid, apply the brake pedal hold-down tool and adjust to hold the brake pedal down 40
mm (1.6 in).


NOTE:



Cap the brake hose to prevent loss of fluid and prevent dirt ingress.


Remove the brake caliper.









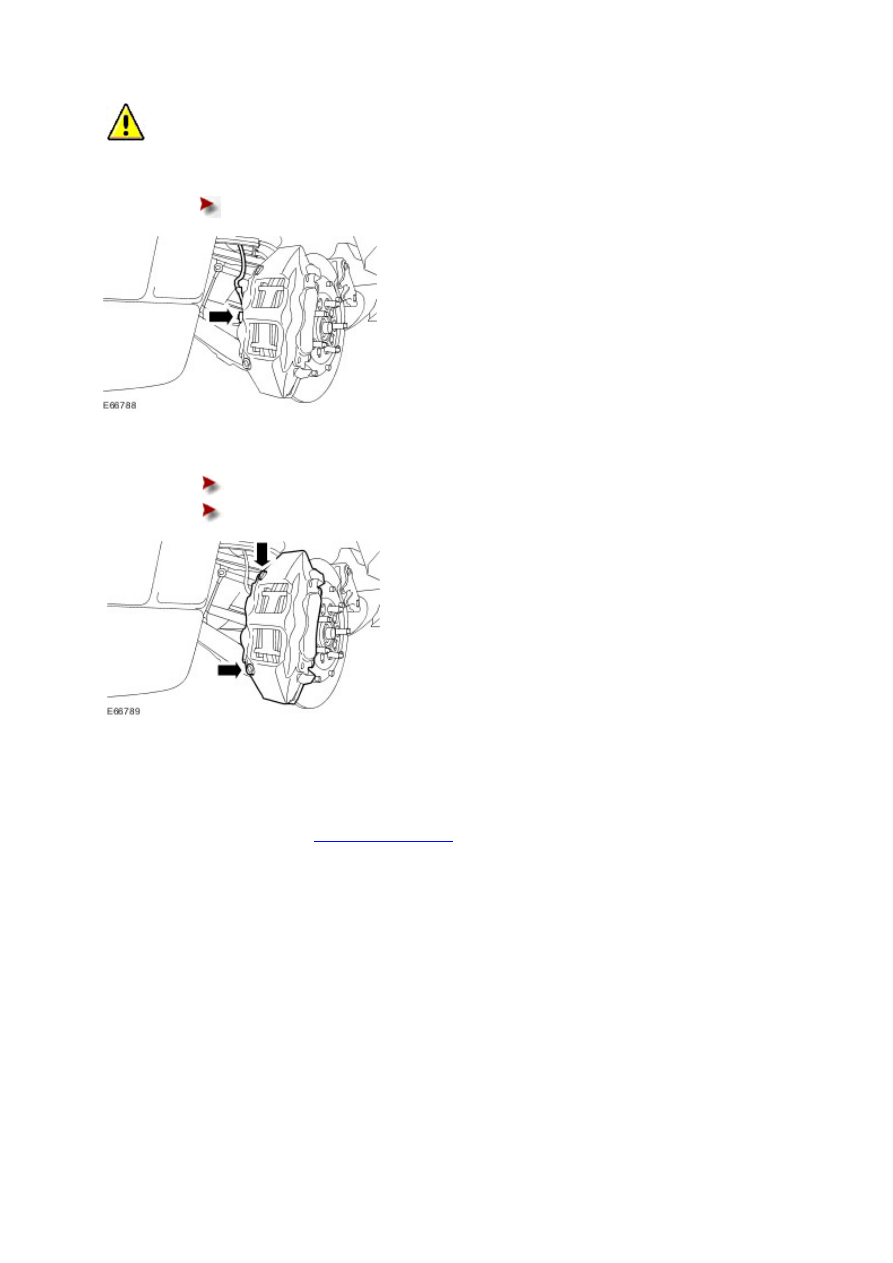

Installation



1
.

 CAUTION: Do not allow the brake caliper to hang on the hydraulic hose, as this will damage the hose.

Failure to follow this instruction will result in damage to the hose.


Install the brake caliper.





Tighten to 101 Nm.









2 . Attach the brake hose.





Install new sealing washers.





Tighten to 35 Nm.









3 . Remove the brake pedal hold-down tool.





4 . Install the brake pads.

For additional information, refer to

Brake Pads (70.40.02)





5 . Bleed the brake system.
