Jaguar XJ (X350). Manual - part 1492



11 . Remove the rear door armour panel.

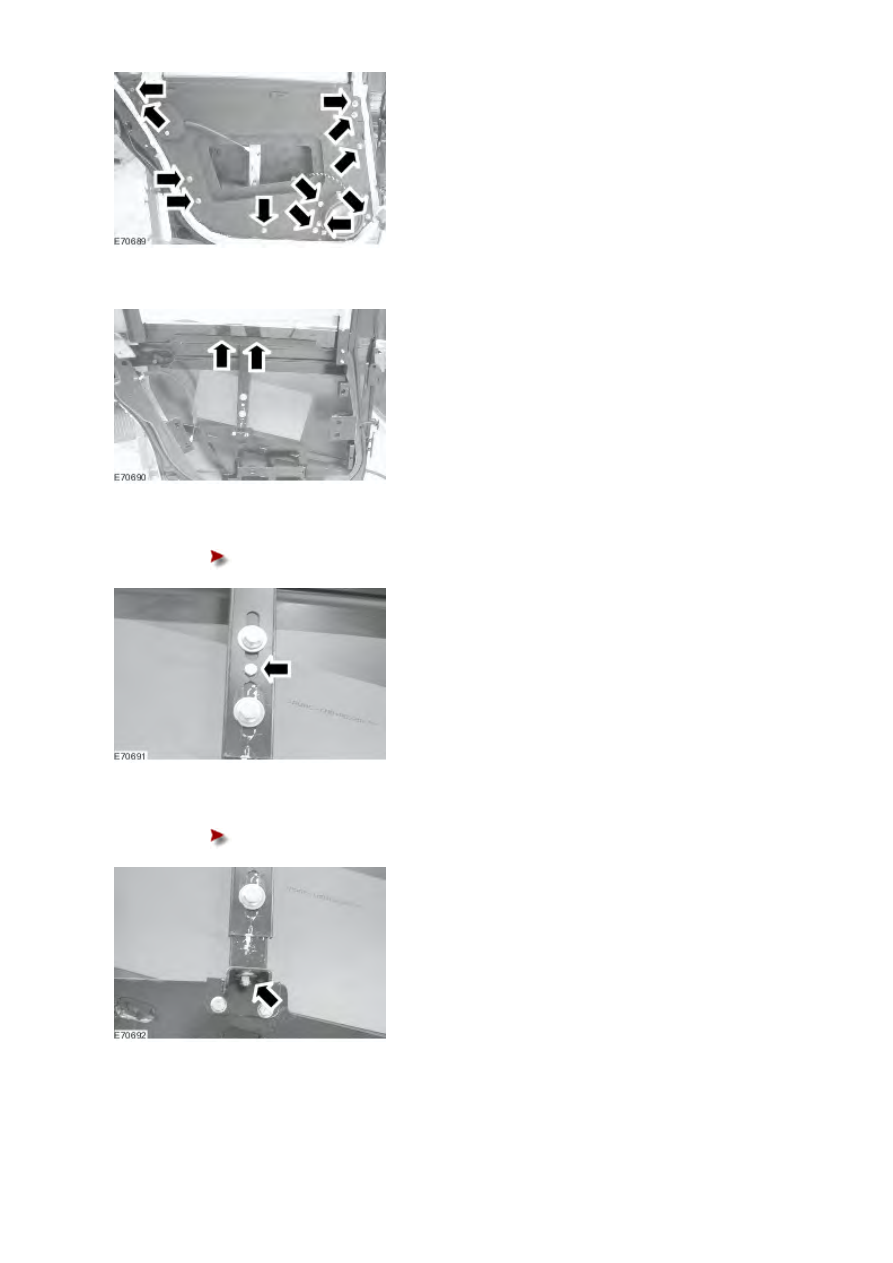

12 . Using suitable tie straps support the rear door window glass.







13 . Release the rear door glass support.





Remove the retaining bolt.









14 . Remove the rear door glass support.





Remove the retaining nut.










15 . NOTE:



Remove the rear door window glass tie straps.


NOTE:



Remove the rear door window glass from the outside of the rear door window glass frame.


Remove the rear door window glass.



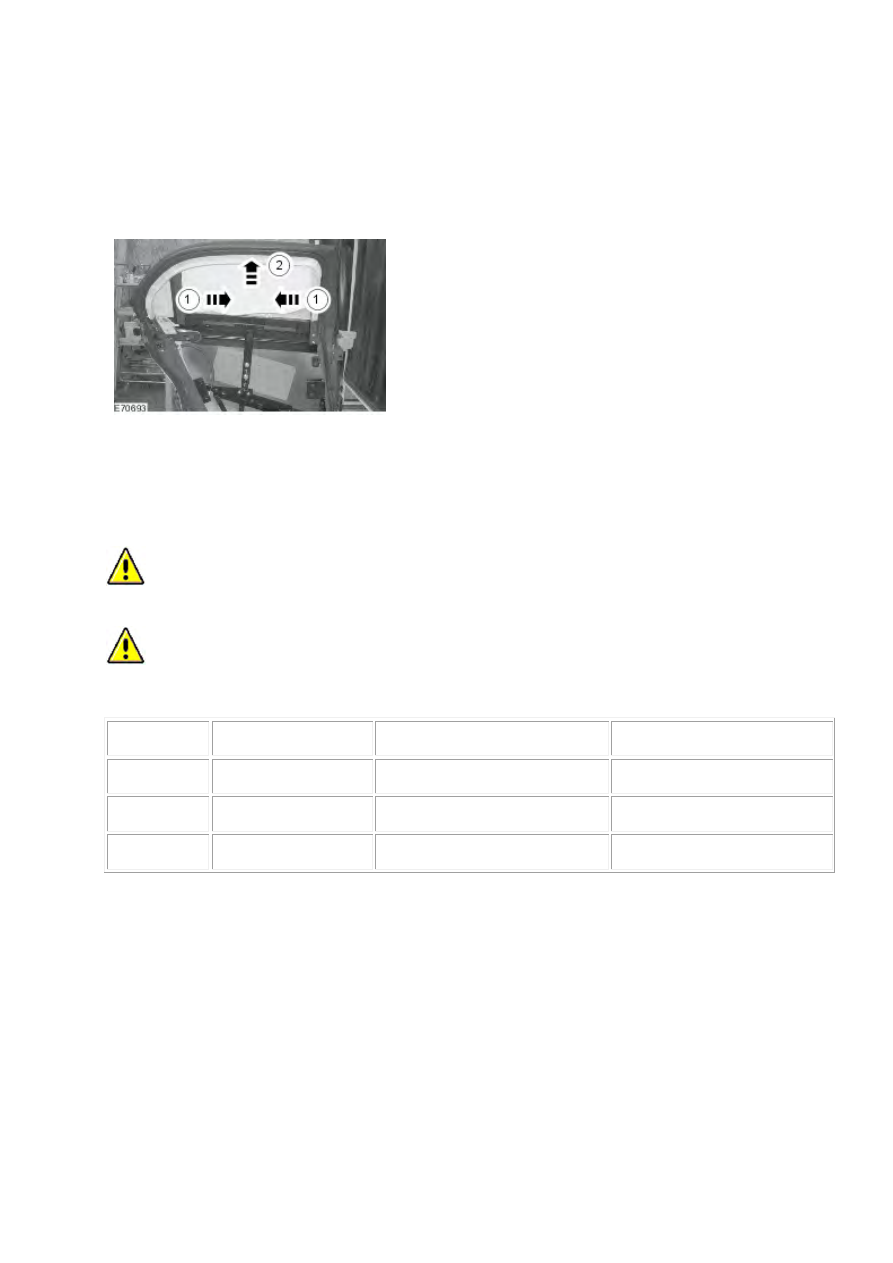

1) Reposition the rear door window glass.



2) Remove the rear door window glass.








Installation



1
.

 CAUTION: Make sure that only the recommended degreasing and cleaning fluids are used. Failure to

follow this instruction may result in damage to the vehicle.



 CAUTION: Make sure that only the recommended adhesive, sealant and primers are used. Failure to follow

this instruction may result in damage to the vehicle.


When installing a rear door window glass make sure the products used are of the same specification as listed below.

PREPARATION

RUBBER AND PLASTIC

GLUING

METAL GLUING

GLAZING GLUING

Degreasing

BETAWIPE Type Ref :
18022

STANDOX Type SILICON
ENTFERNER Ref : 66012

BETAWIPE Type Ref : 18022

Primer

BETAWIPE Type Ref:
18031

-

BETAPRIME Type GURIT-ESSEX
AG Ref: 18026

Adhesive

BETASEAL Type
Ref:18016

SIKA 221 Type Ref:18040

BETASEAL Type Ref:18016








www.



2 . NOTE:

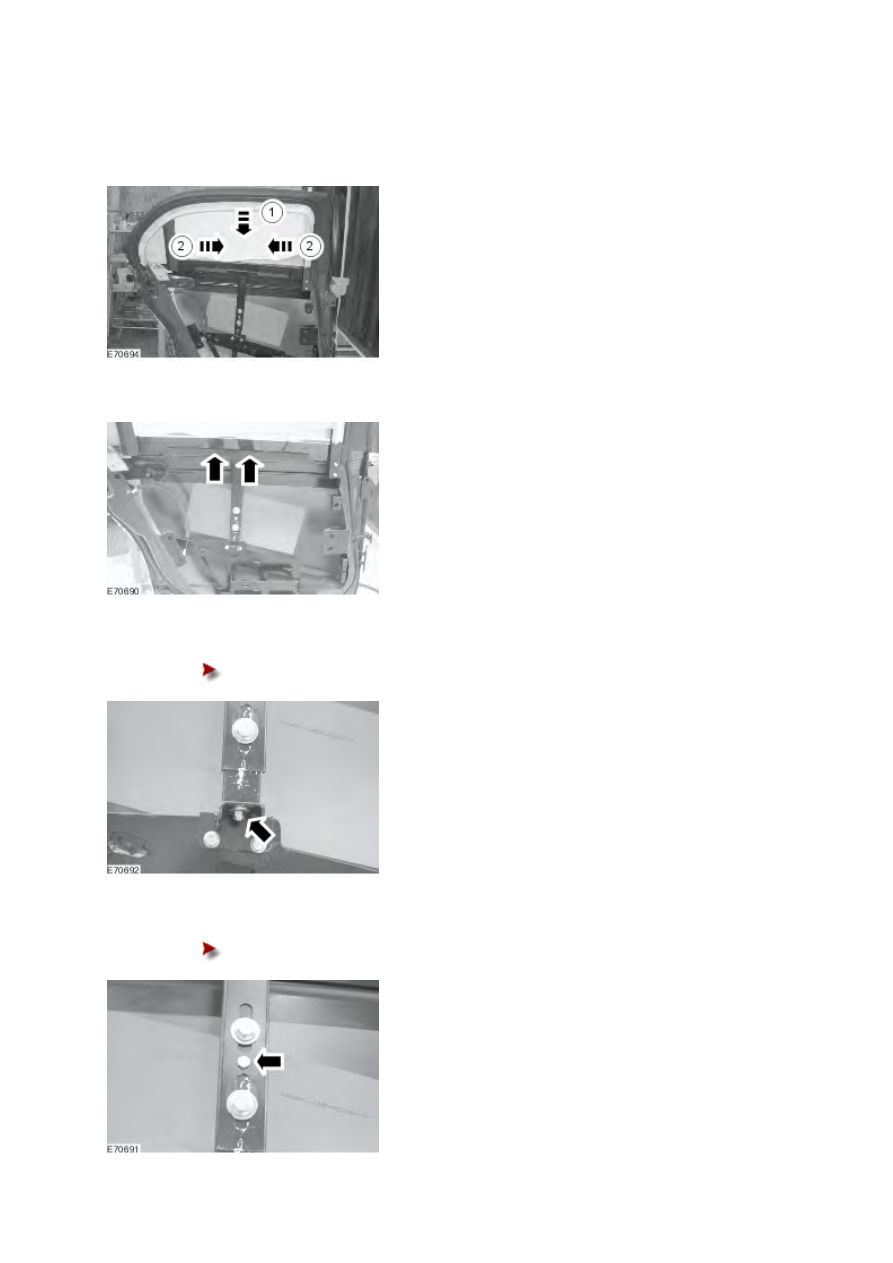

Install the rear door window glass from the outside of the rear door window glass frame.


Install the rear door window glass.



1) Install the rear door window glass.



2) Reposition the rear door window glass.

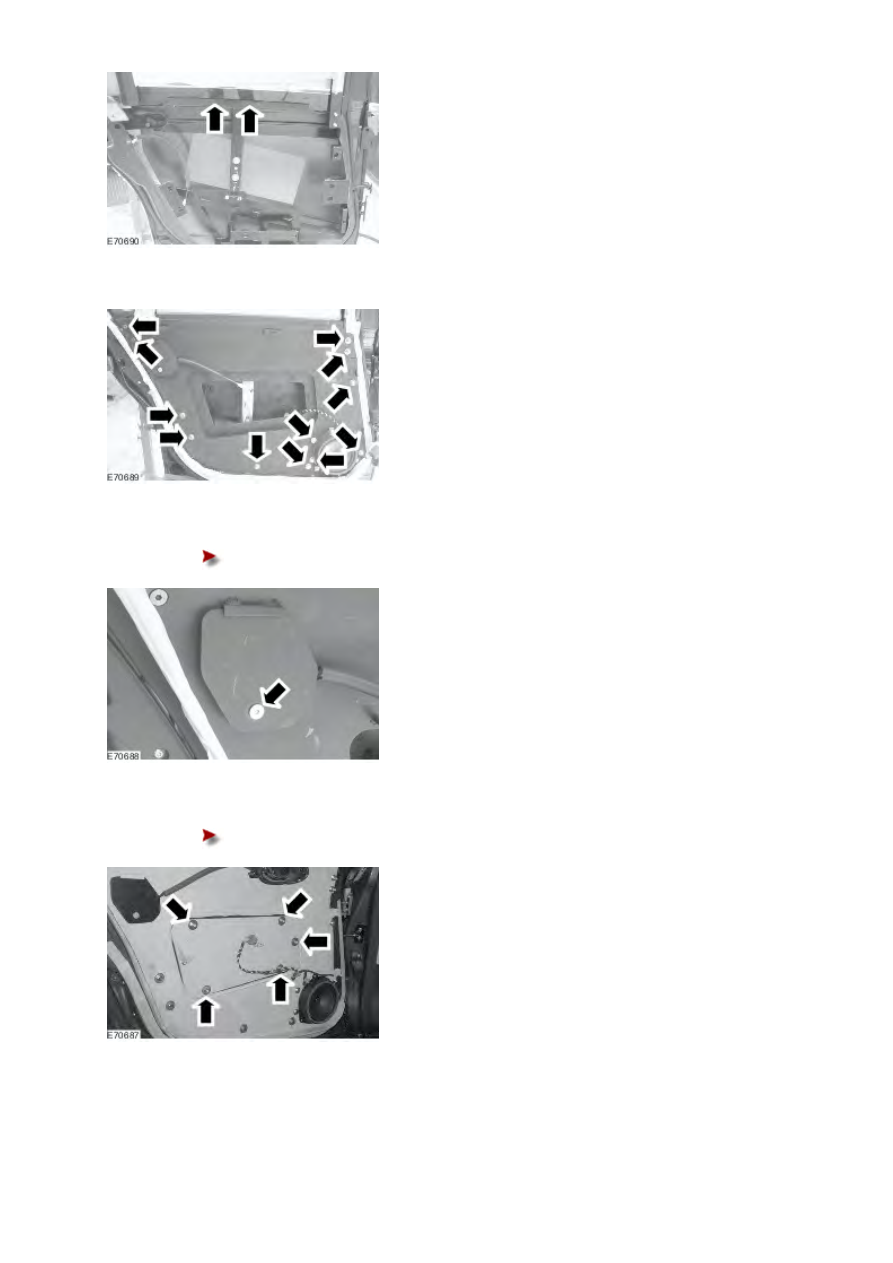

3 . Using suitable tie straps support the rear door window glass.







4 . Install the rear door fixed glass support.





Tighten the retaining nut.







5 . Attach the rear door fixed glass support.





Tighten the retaining bolt.







6 . Remove the suitable tie straps from the rear door window glass.







7 . Install the rear door armour panel.





8 . Install the rear door handle release cable access panel.





Tighten the retaining bolt.









9 . Install the rear door access panel.





Tighten the retaining bolts.










www.
