SE Seats

Seats

- 117 -

Removal/Installation

Sliding

Sliding rail

rail

rail and

and

and seat

seat

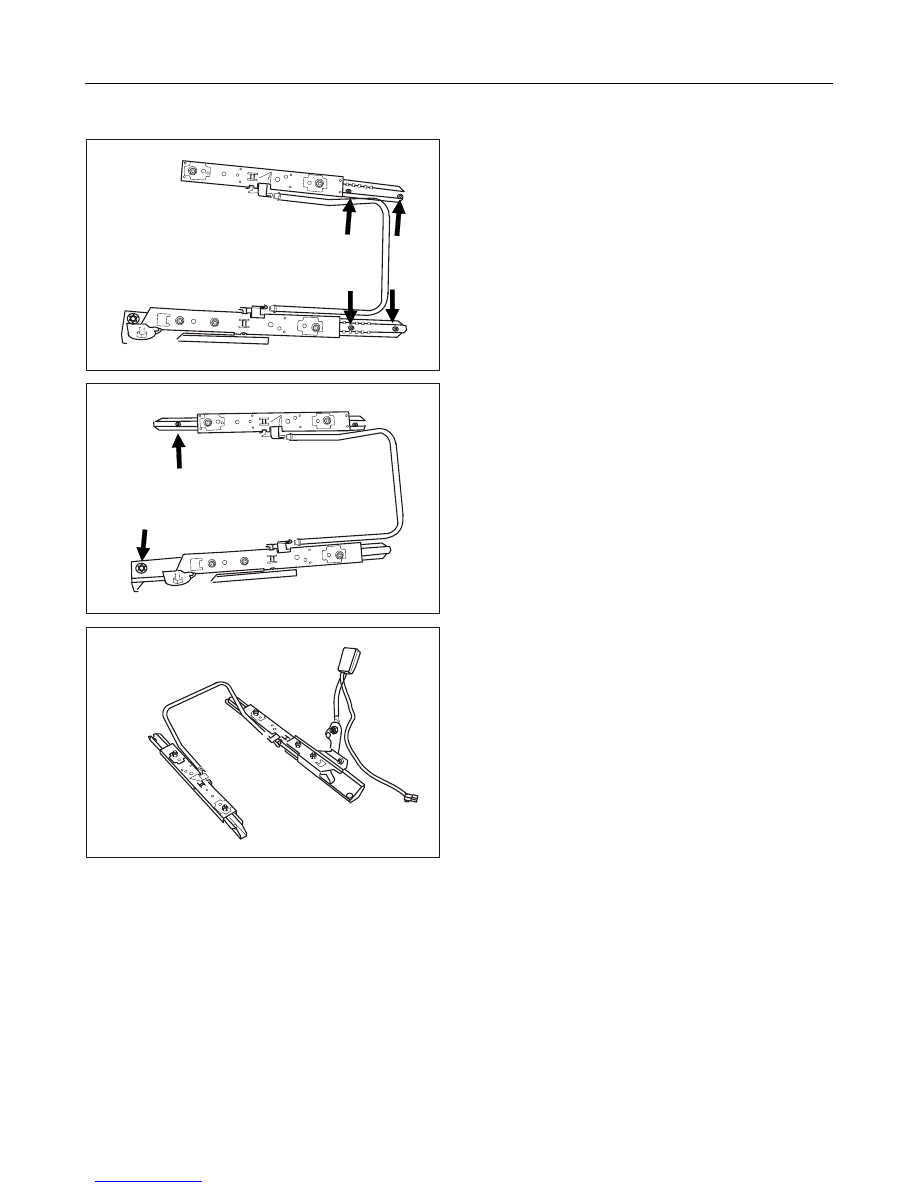

Push the sliding rail rearwards and remove four
mounting bolts.

Pull the sliding rail forwards and remove three
mounting bolts on the rear part.

Take down the sliding rail assembly.

SE Seats

Seats

- 118 -

Removal/Installation

Removal/Installation (continued)

(continued)

Sliding

Sliding rail

rail

rail and

and

and seat

seat

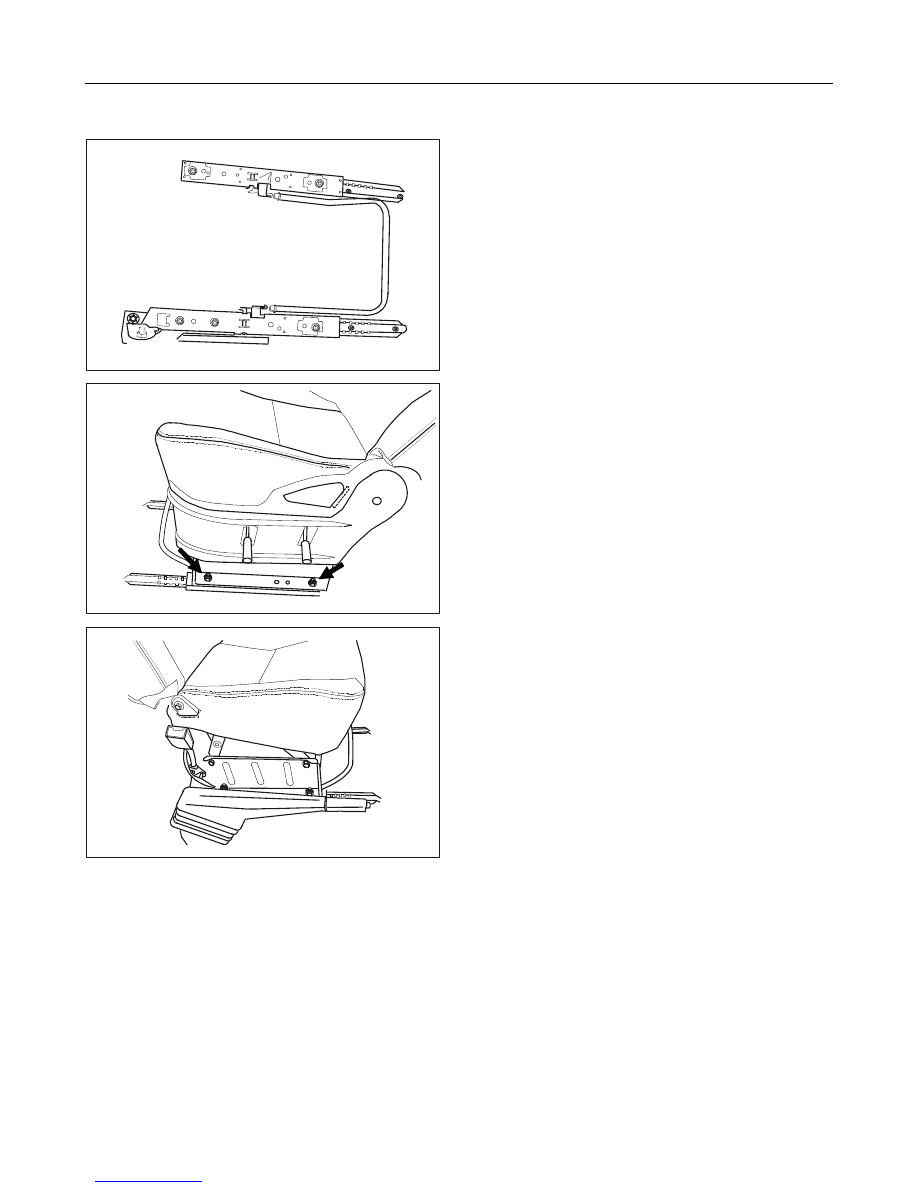

Install the sliding rail onto the vehicle and install
seven mounting bolts in reverse order of removal.

Install the seat onto sliding rail and tighten two
mounting nuts on the left side.

Tighten two mounting nuts on the right side in the
same way and tighten nuts on both sides to the
specified torque.

Tightening torque: 45～55N.m

SE Seats

Seats

- 119 -

Removal/Installation

Front

Front row

row

row twin

twin

twin bench-type

bench-type

bench-type seat

seat

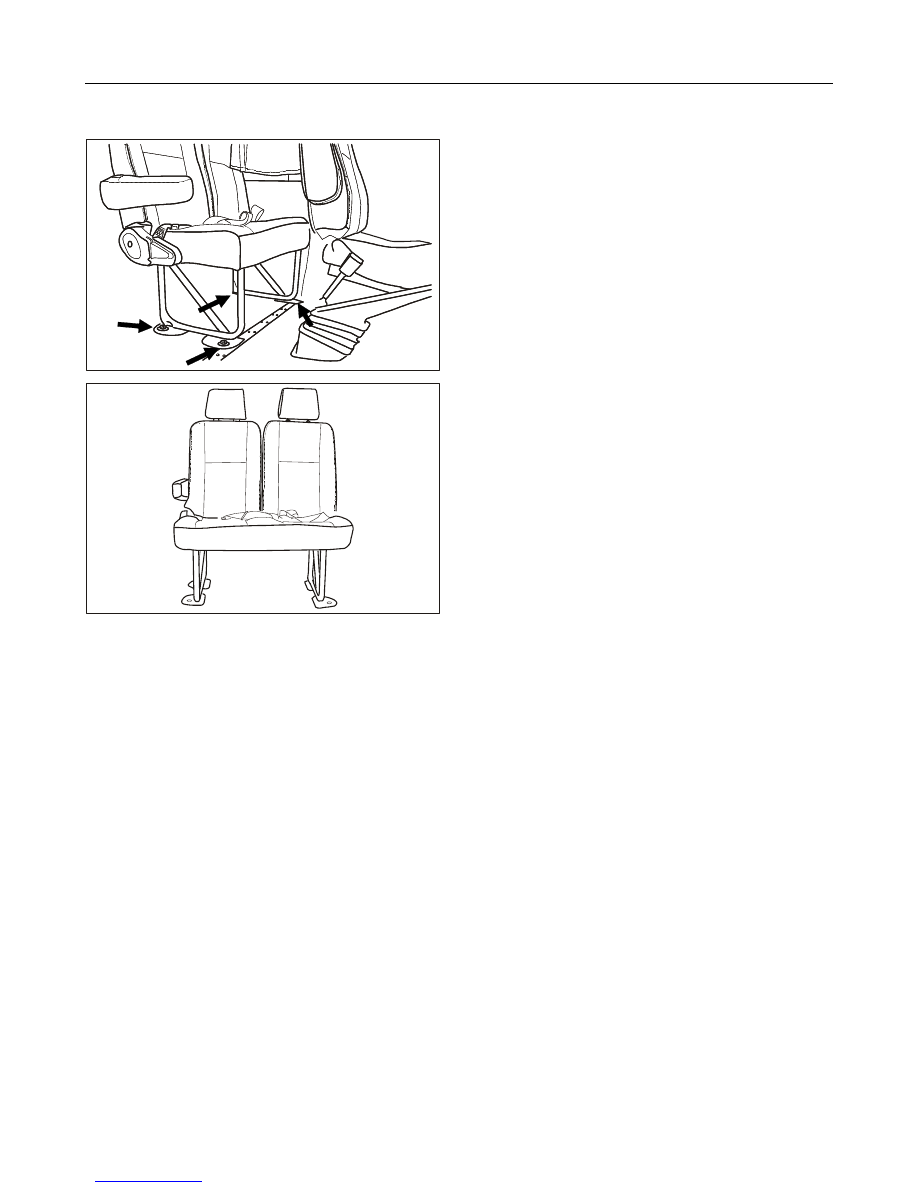

Removal
1.

Remove four mounting bolts below front row seat.

Remove the front row twin bench-type seat from
vehicle.

Installation
1.

Install the front row seat in reverse order of
removal.

Note:

Bolts should be tightened to the specified torque.
Tightening torque: 45～55N.m

SE Seats

Seats

- 120 -

Removal/Installation

Front

Front row

row

row individual

individual

individual seat

seat

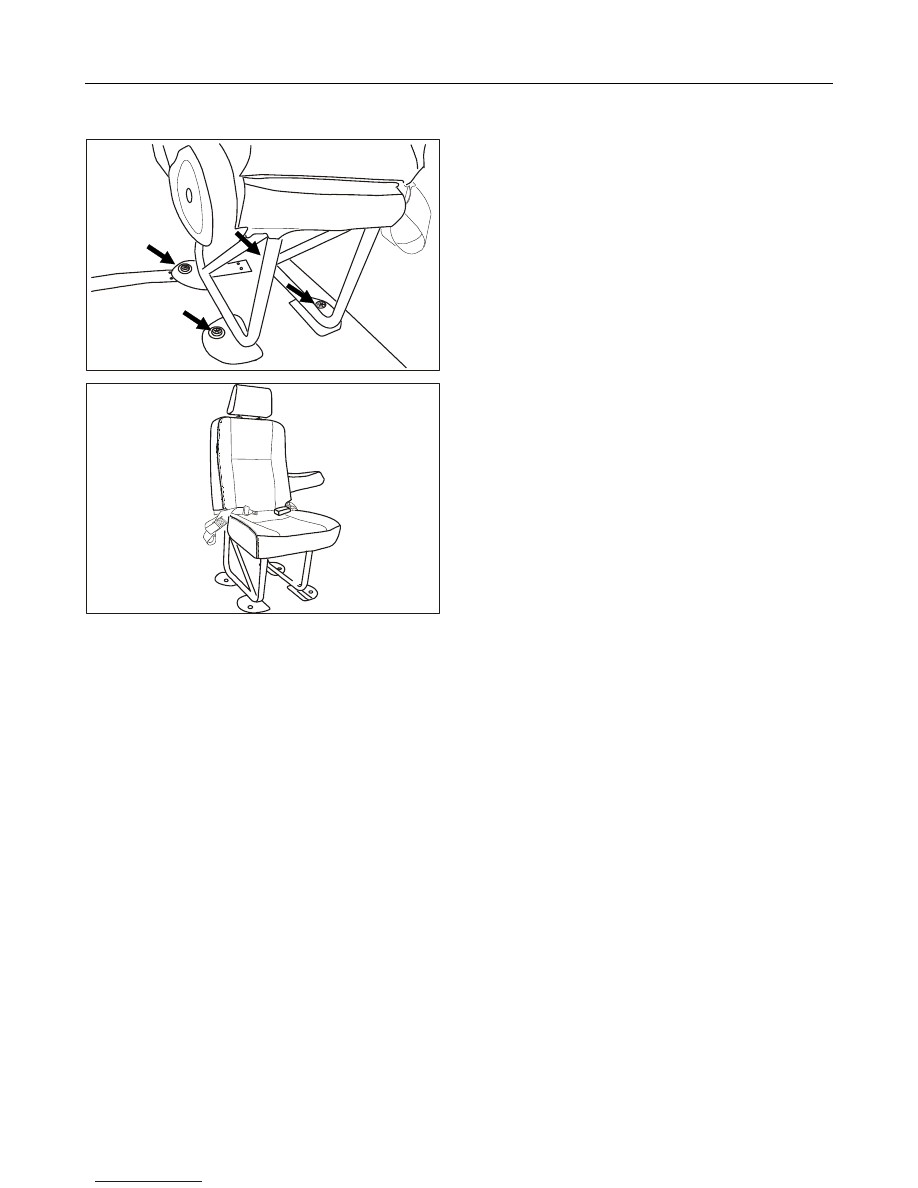

Removal
1.

Remove four mounting bolts below front row seat.

Remove the front row individual seat from vehicle.

Installation
1.

Install the front row individual seat in reverse order
of removal.

Note:

Bolts should be tightened to the specified torque.
Tightening torque: 45～55N.m
