Engine JAC HFC4DA1-2C. Manual - part 190

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 93 -

Removal/Installation

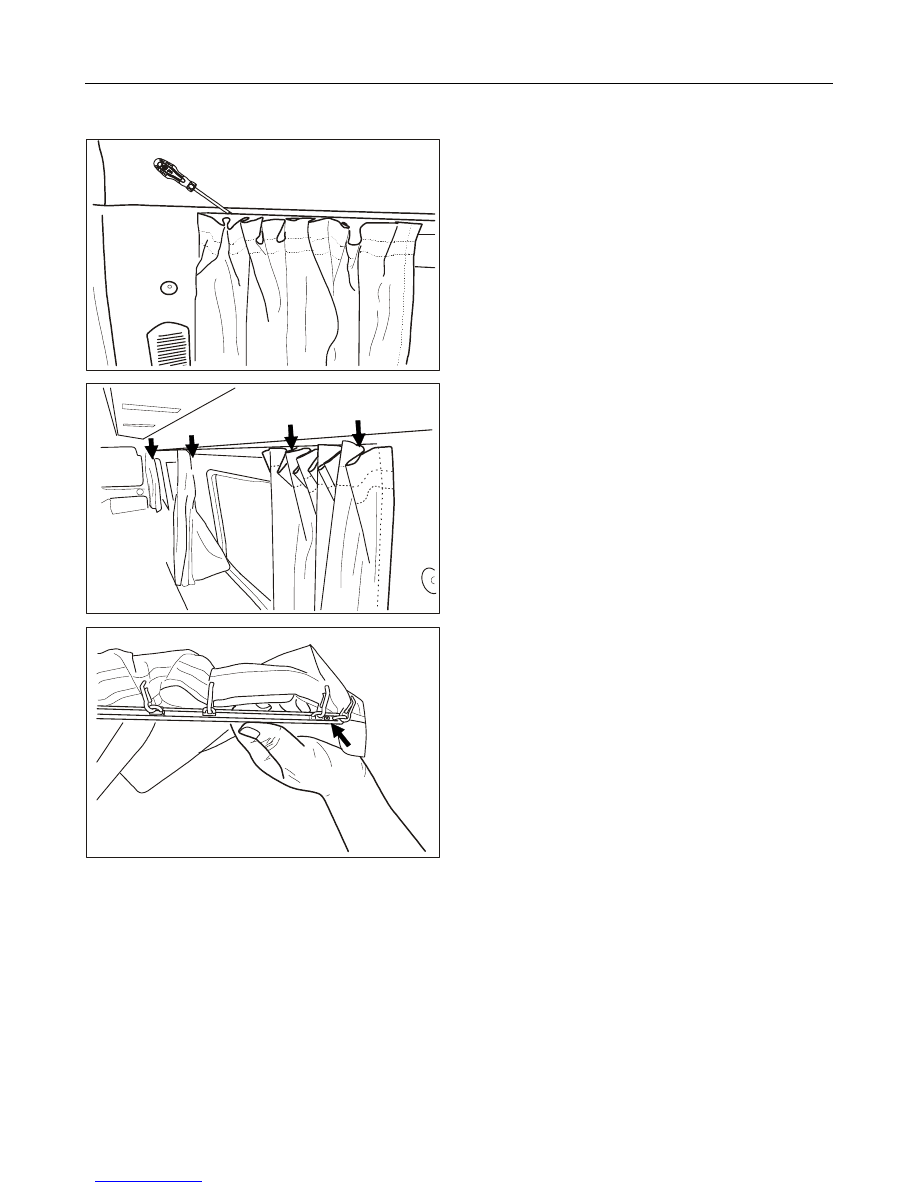

Curtains

Removal
1.

Pry out the curtain slide rail with screwdriver and
make it separated from the clips mounted on the
trim panel.

Clips are positioned at the middle of each pillar and
at the middle of each side window glass.

Remove the mounting screws of curtain plug and
take down the curtain.

Installation
Install it in reverse order of removal. Install the slide rail
in order from front to back.

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 94 -

Removal/Installation

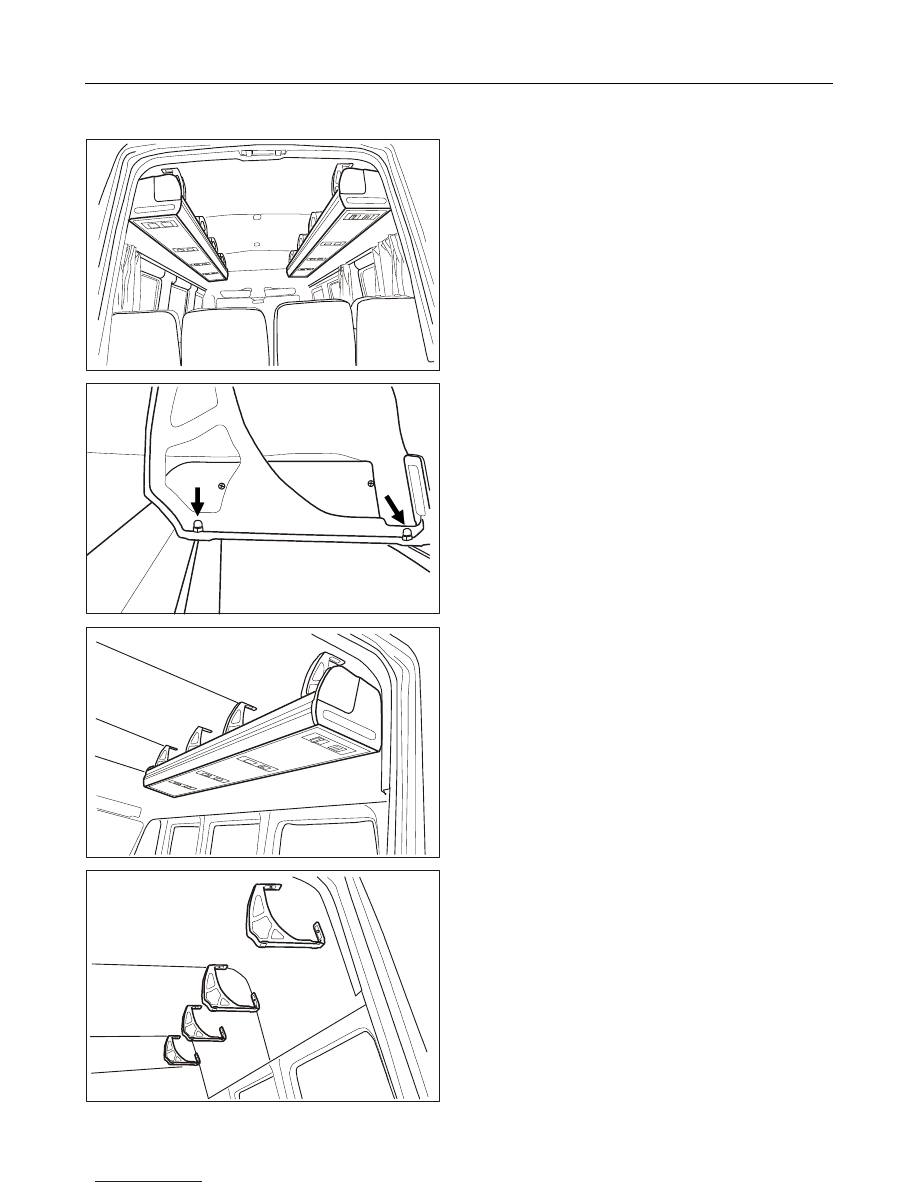

Luggage

Luggage rack

rack

Removal
1.

Two service persons are necessary for removal of
luggage rack, in order to avoid personal injury and
damage to luggage rack.

Remove mounting nuts for luggage rack.

Hold the luggage rack during the removal.

Remove brackets of luggage rack.

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 95 -

Removal/Installation

Removal/Installation (Continued)

(Continued)

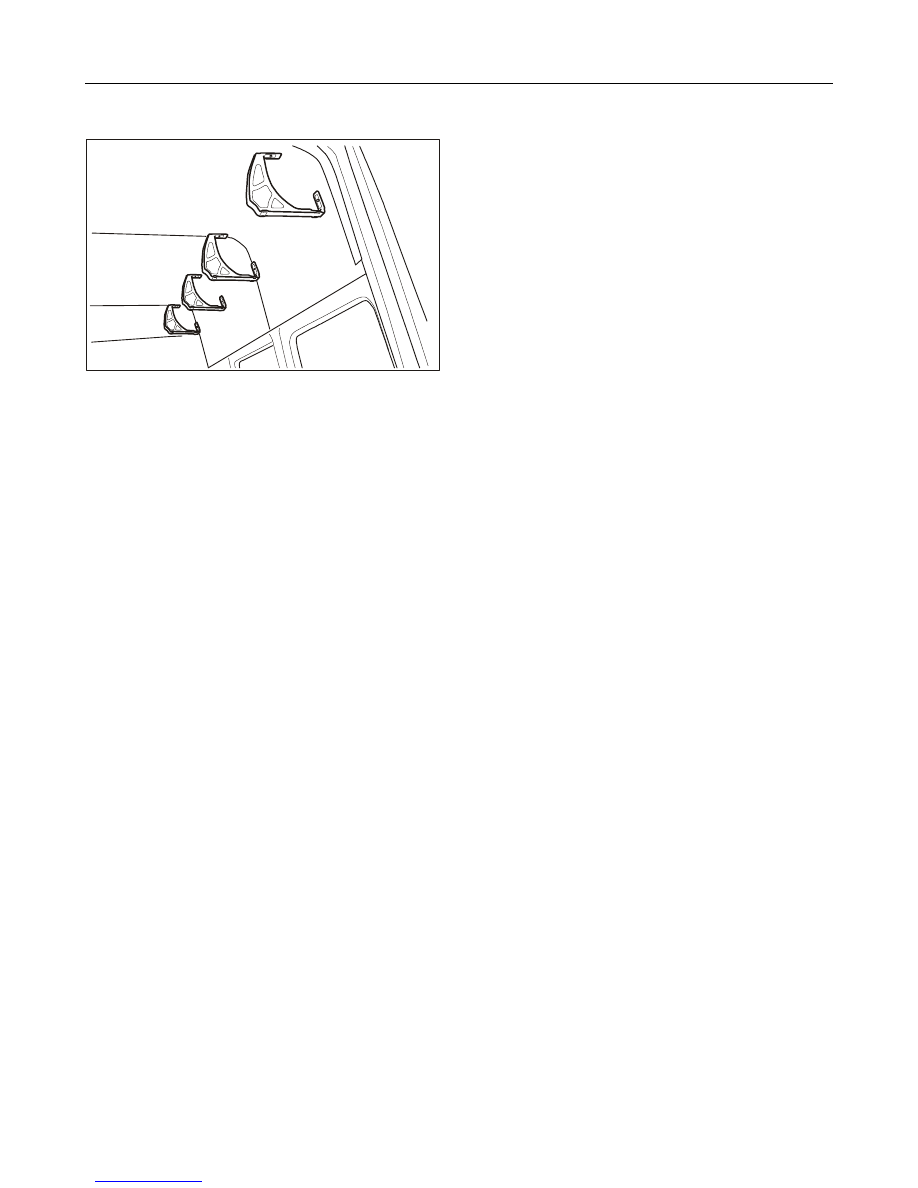

Luggage

Luggage rack

rack

Installation

Install it in reverse order of removal.

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 96 -

Removal/Installation

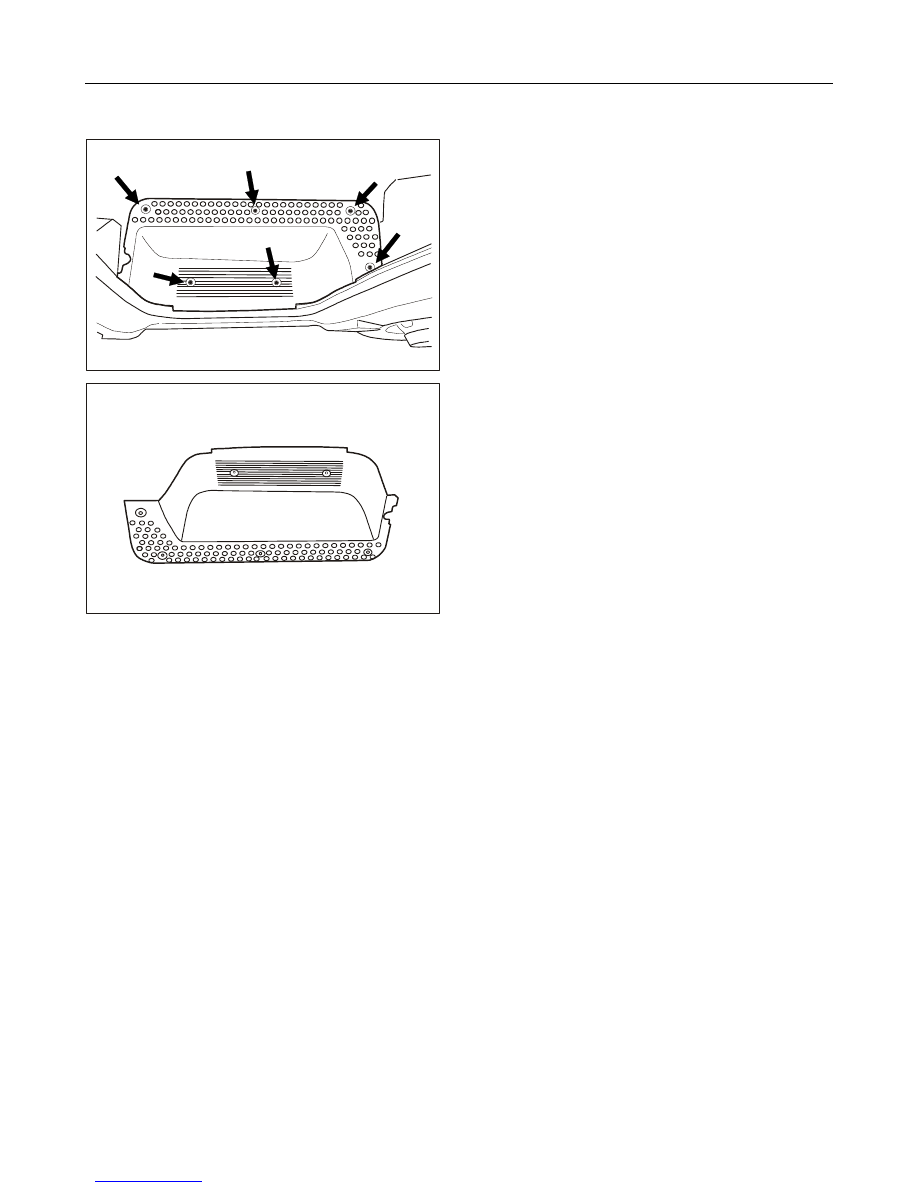

Step

Step plate

plate

plate assembly

assembly

Removal
1.

Remove mounting screws of step plate.

Take down the step plate assembly.

Installation
Install it in reverse order of removal.
