Removal/Installation

Instrument

Instrument panel

panel

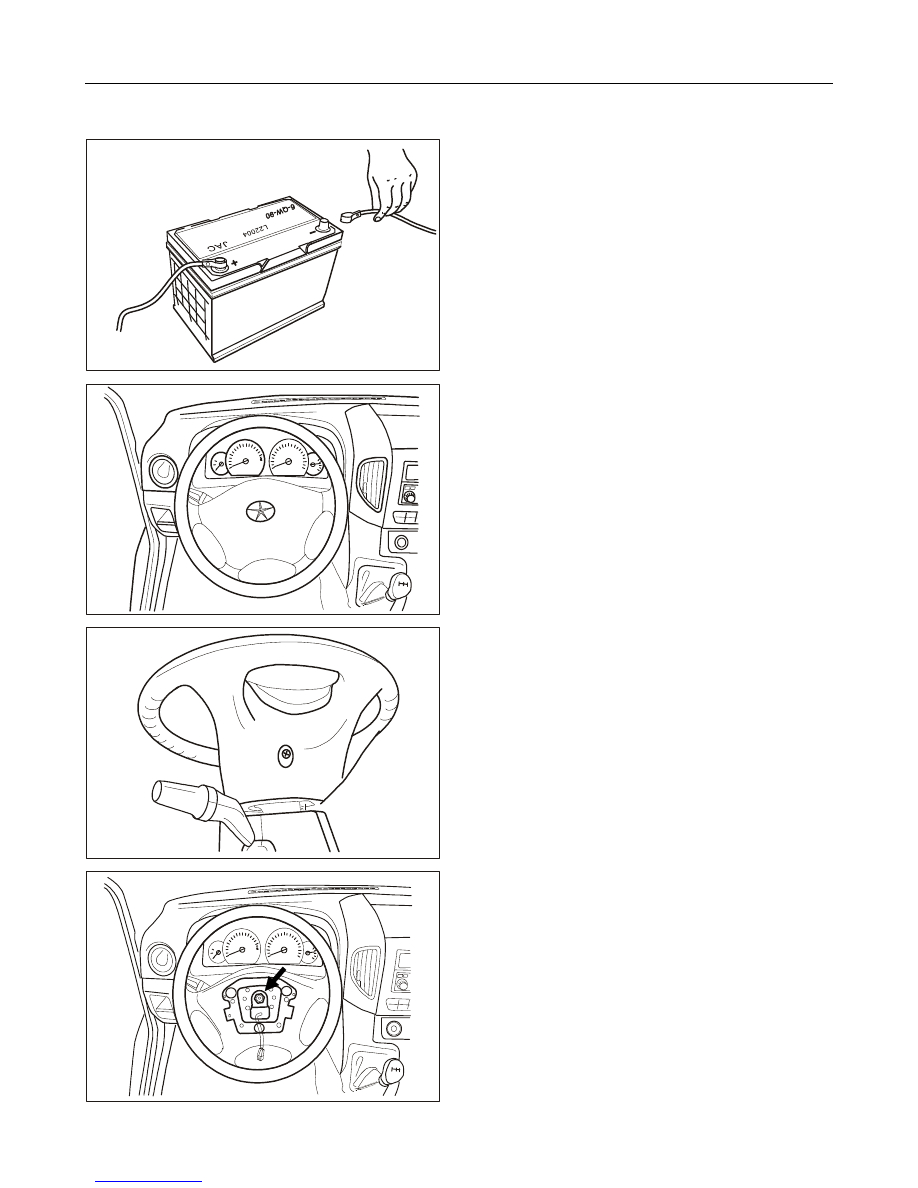

Remove the negative cable of battery.

Remove the upper cover of steering wheel.

There are two mounting screws on the left and
right sides of upper cover of steering wheel.

Unscrew the mounting nuts of steering wheel and
take down the steering wheel.

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 62 -

Removal/Installation

Removal/Installation (Continued)

(Continued)

Instrument

Instrument panel

panel

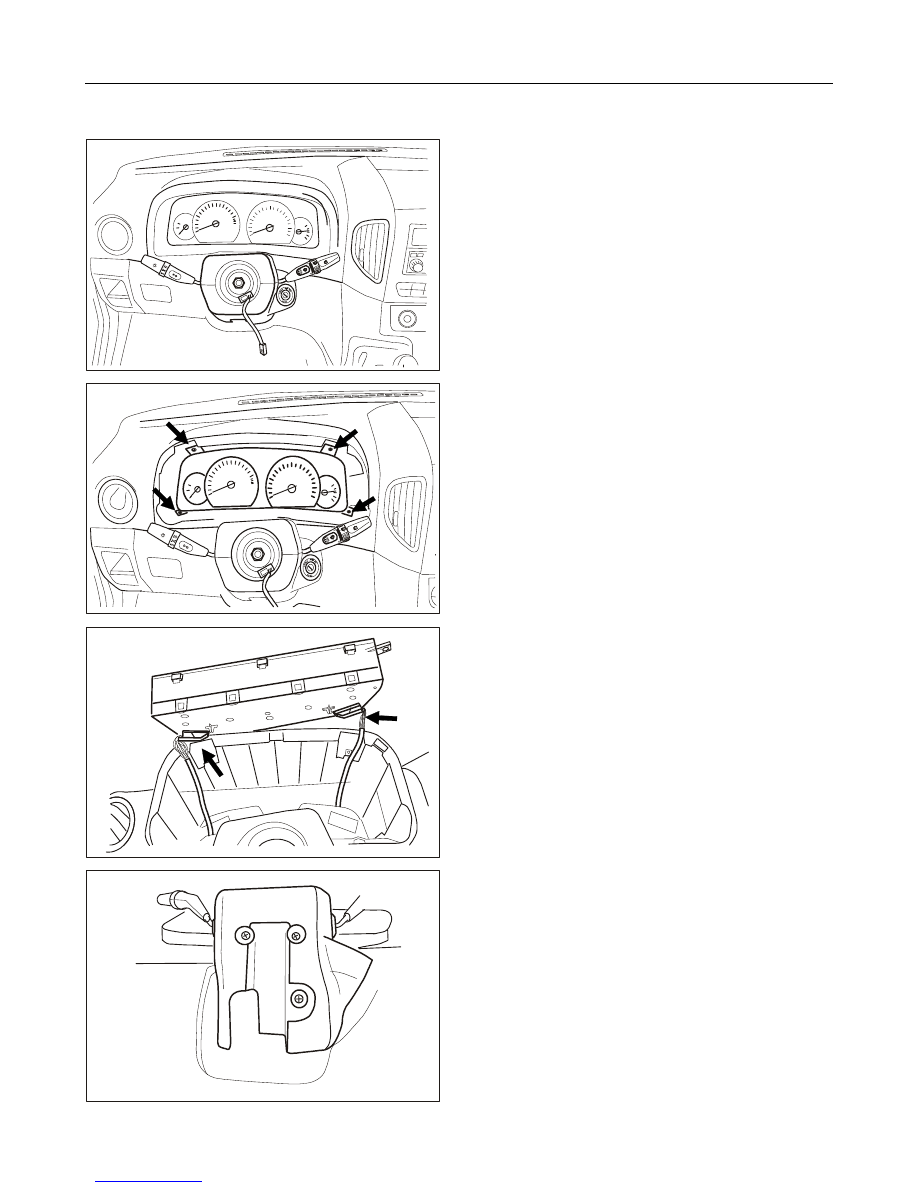

Remove the instrument cover.

Remove four mounting screws of instrument.

Remove the harness connectors of instruments.

Remove three mounting screws on the lower cover
of steering wheel and take down the lower cover.

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 63 -

Removal/Installation

Removal/Installation (Continued)

(Continued)

Instrument

Instrument panel

panel

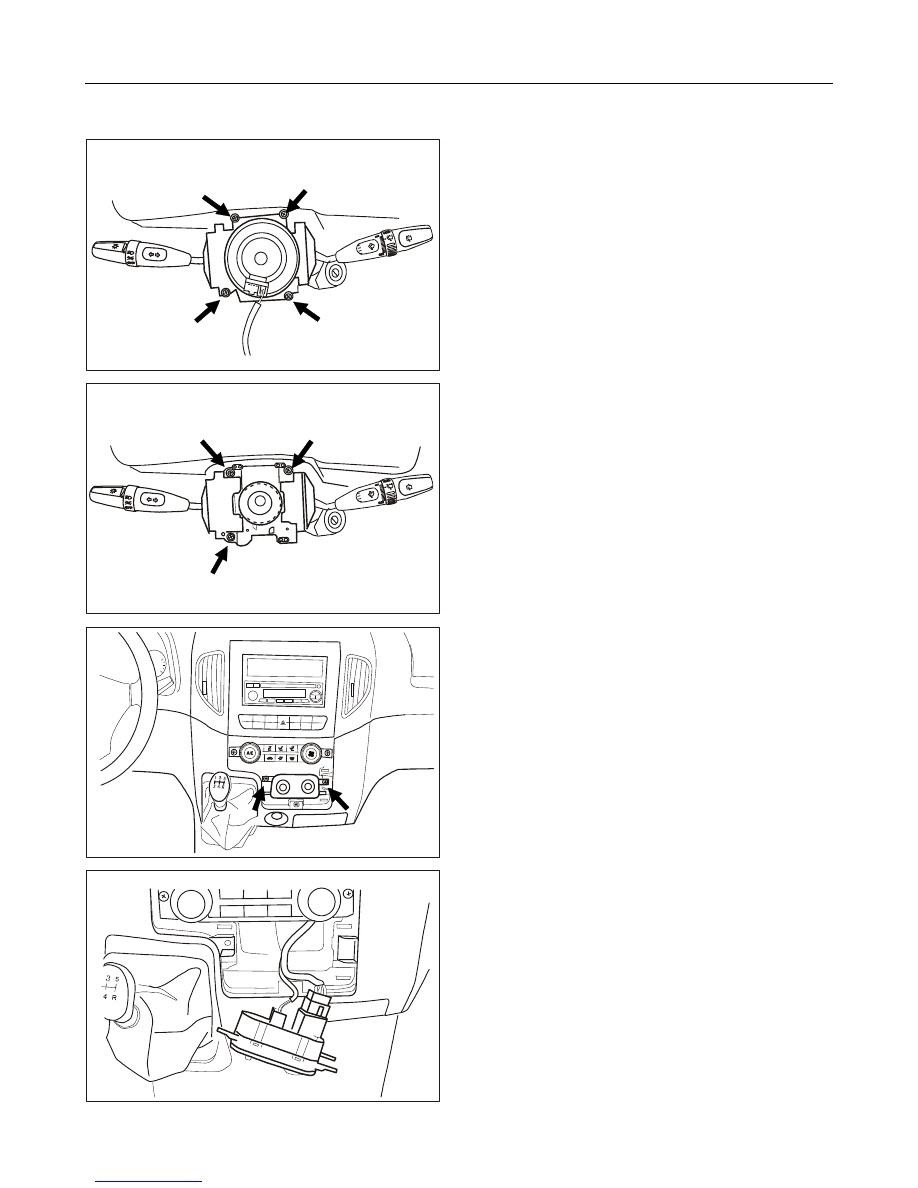

Remove four mounting screws of the clock spring
and take down the clock spring.

10. Remove three mounting screws of combined

switch and take down the switch.

11. Remove two mounting screws of rear A/C control

panel.

12. Disconnect the harness of rear A/C control panel.

BP Interior/Exterior

Interior/Exterior

Interior/Exterior Trims

Trims

- 64 -

Removal/Installation

Removal/Installation (Continued)

(Continued)

Instrument

Instrument panel

panel

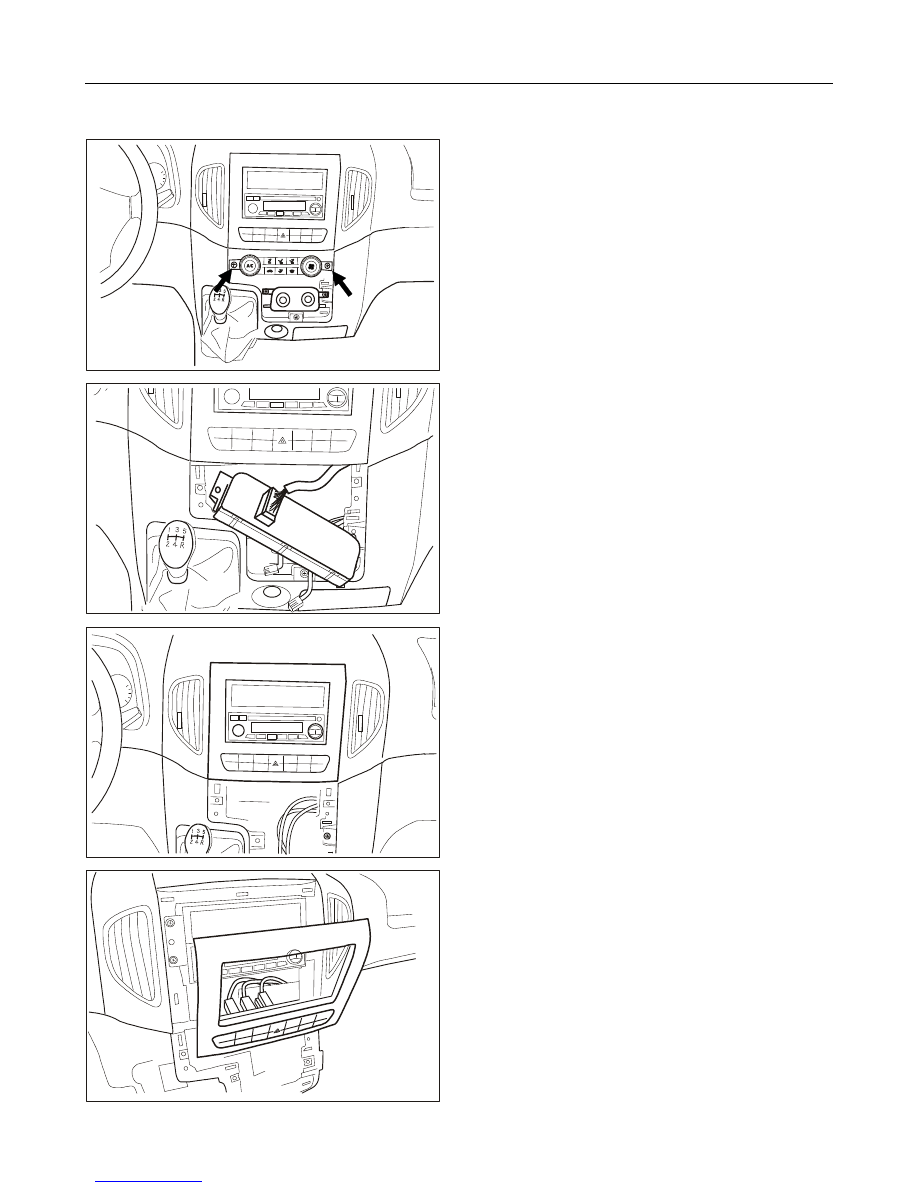

13. Remove two mounting screws of A/C control

panel.

14. Disconnect the harness of A/C control panel.

15. Remove audio cover with tool.

16. Disconnect the harness connector of audio cover.
