The Body Computer is the central unit of the electrical system of vehicle under examination. Its task is to manage main functions
present.
Inside, it integrates “immobilizer” function; therefore, an external central unit is not present any more for this function.
Further, it manages:

- External and internal illumination

- Central door locking actuator controls, windscreen washers and wipers, front electric window winders, etc.

- Acquisition of switches and controls from steering column switch unit, pushbuttons, etc.

Inside, it integrates diagnosis connector EOBD (16 pins) for board diagnostics (previous diagnosis connector is not present any
more), it communicates with the two CAN lines present (Bcan, Ccan) and instrument cluster. It is mounted in the cab behind
interconnection central unit “CPL” and interfaces with it through a 20 pin lamellar connector located inside the component.

It interfaces with vehicle system through three connectors: two connectors are located in front side and one connector is located
in rear side accessed by tilting the whole assembly through unscrewing special securing screws.

Front connectors:

- cab wiring harness (black) connector “LN”

- bonnet wiring harness (blue) connector “AV”

- diagnosis connector EOBD

Rear connector:

- instrument panel wiring harness (blue) connector “PF”

A closing resistance is present on “C” CAN line positioned in the vicinity of steering column switch unit inside instrument panel.

Figure 49

107668

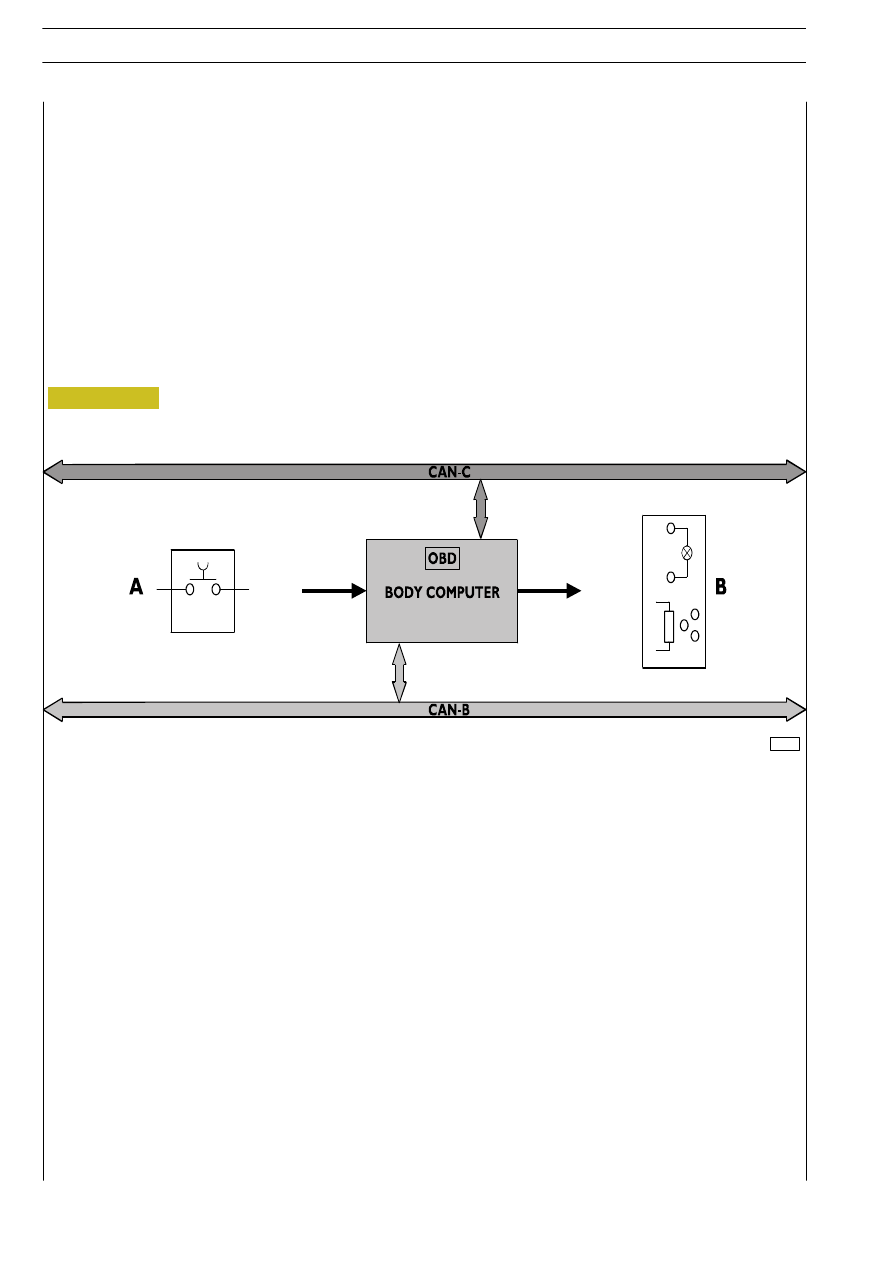

A. Input signals - B. Output signals

ELECTRIC/ELECTRONIC SYSTEM

65

D

AILY

E

URO

4

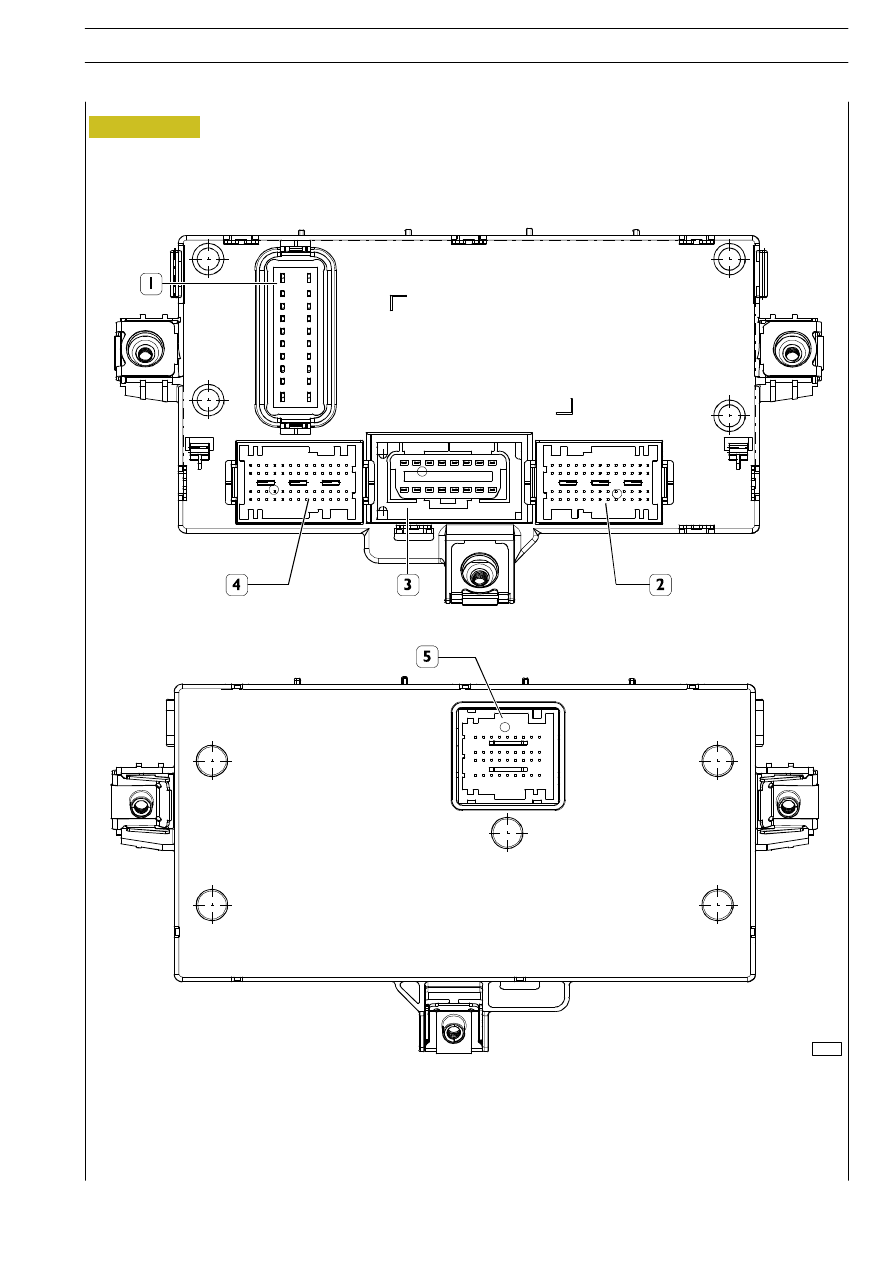

1. Connector “CY” for junction with “CPL” (interior) - 2. Junction connector “AV” (bonnet) - 3. Diagnosis connector

“EOBD” - 4. Junction connector “LN” (cab) - 5. Junction connector “PF” (instrument panel)

107664

66

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

E

URO

4

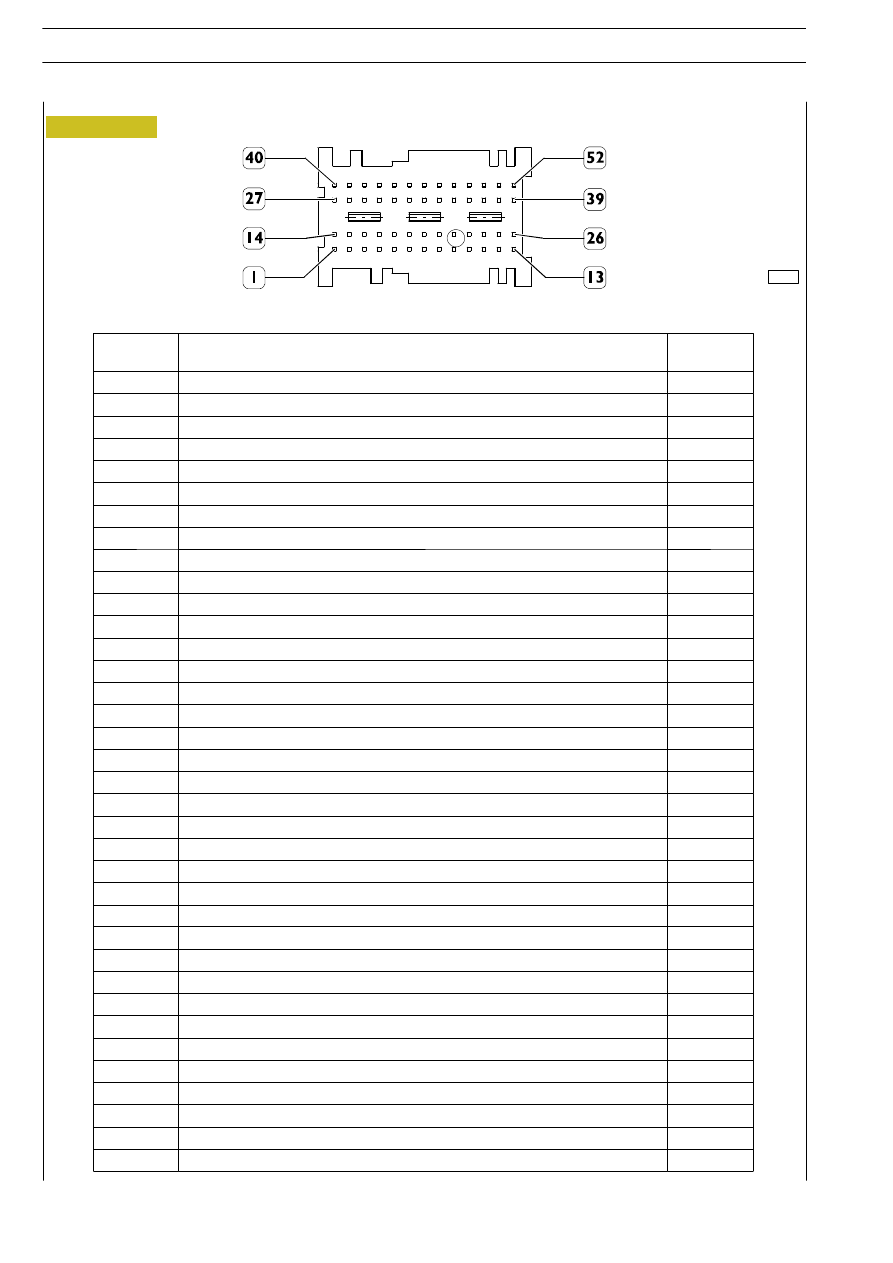

Ref.

Function

Cable

Code

1

-

-

2

-

-

3

-

-

4

Central locking “H6”

0000

5

Positive for lh lateral blinker

1126

6

Positive for rh rear blinker

1125

7

Fuel level gauge “PIN 4”

5557

8

Positive for lh rear parking light

3323

9

Positive for rh rear parking light

3322

10

-

-

11

Earth for roof lamp switching on

0003

12

Positive for plate light

3337

13

(Driver - passenger) central locking “PIN 1”

8180

14

-

-

15

-

-

16

-

8879

17

-

5164

18

Positive for lh rear blinker

1120

19

Positive for rh blinker

1124

20

Signal for hand brake optical indicator

6662

21

Fuel level gauge “PIN 3”

0000

22

Earth for roof lamp switching on

0003

23

-

-

24

Line “K” for air spring suspension central unit

2294

25

Air spring suspension failure warning lamp

6008

26

Positive for rh rear fog light

2283

27

13-pole socket PIN 9

6120

28

Negative for illumination pushbutton with tools

0000

29

Side hatch roof lamp

4110

30

Cab interior roof lamp

4111

31

Positive for rh stop rear light

1172

32

Positive for rear roof lamp

7772

33

Earth for roof lamp switching on

0003

34

Earth for roof lamp switching on

0003

35

Earth for roof lamp switching on

0003

36

Central locking “C7”

0000

Figure 51

107661

ELECTRIC/ELECTRONIC SYSTEM

67

D

AILY

E

URO

4

Function

Cable

Code

37

-

-

38

-

-

39

-

4112

40

Decelerator “TELMA” optical indicator

6604

41

Central locking “C2”

0000

42

Central locking “A2”

0000

43

Positive for lh rear fog light

2283

44

Positive for lh stop rear light

1177

45

-

-

46

-

6606

47

-

-

48

_

6630

49

Roof lamp for side hatch illumination

4113

50

-

-

51

-

-

52

-

-
