BRAKE CONTROL SYSTEM

5A–21

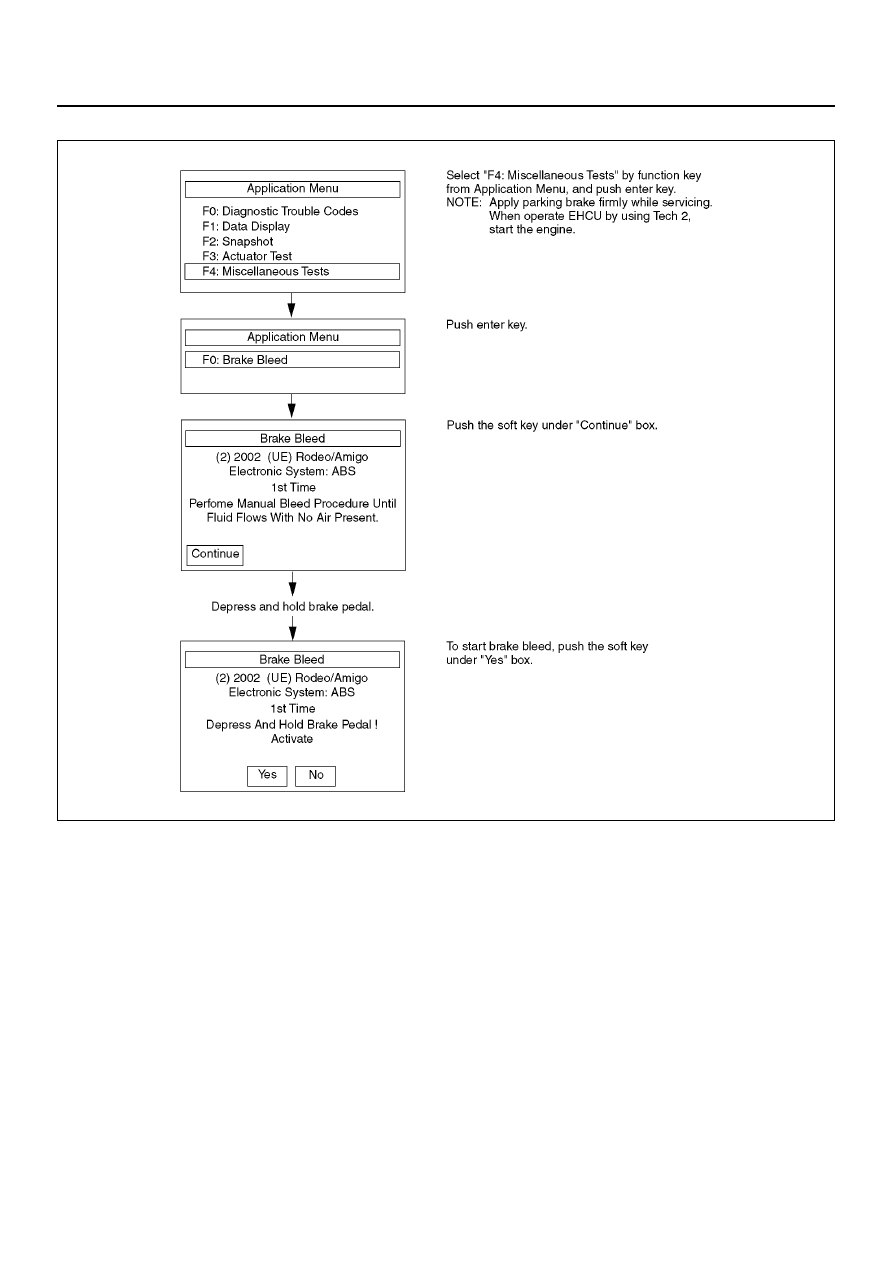

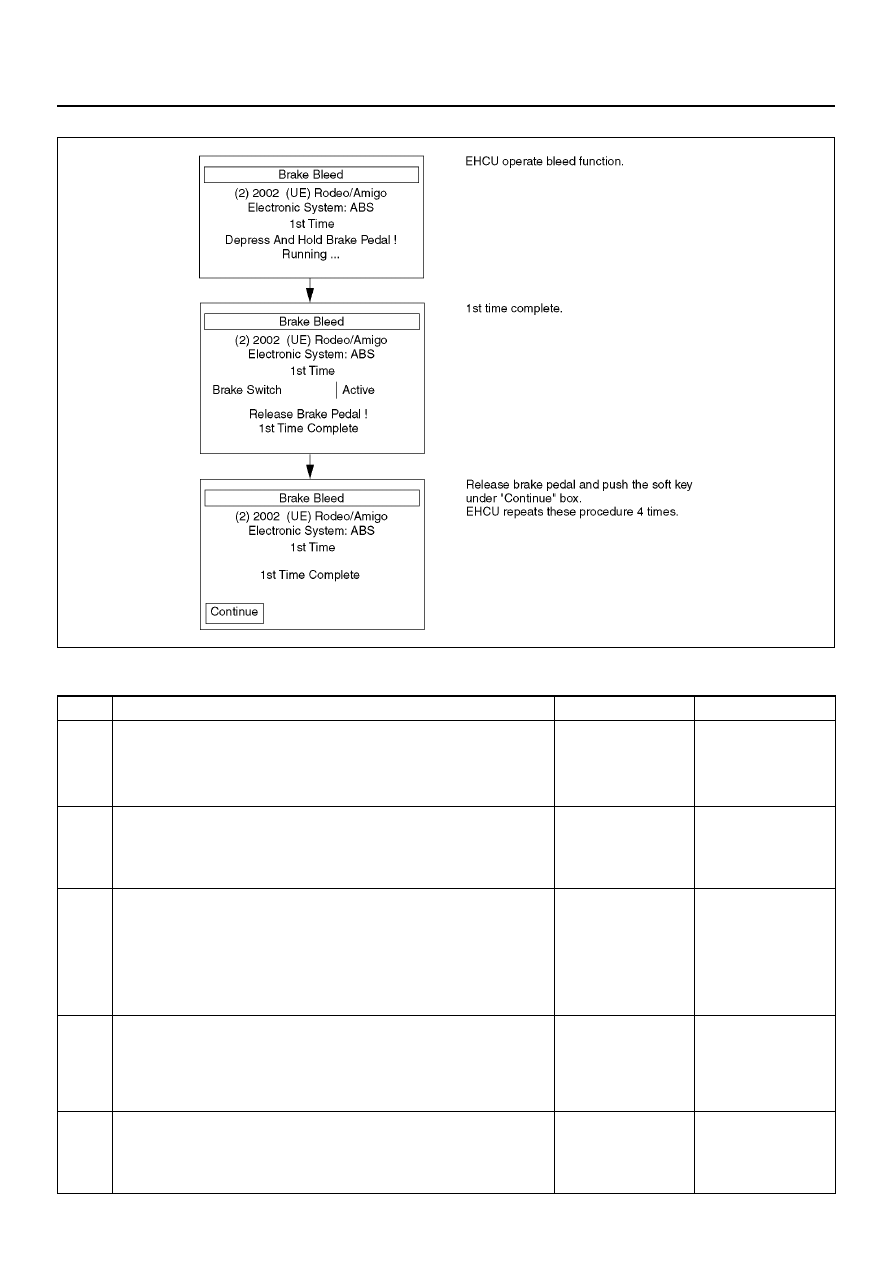

Tech 2 Service Bleed

F05R200011

5A–22

BRAKE CONTROL SYSTEM

F05R200012

Basic Diagnostic Flow Chart

Step

Action

Yes

No

1

1. Verify complaint with the customer.

2. Questioning to customer.

3. Basic inspection (Refer to Basic inspection procedure)

Using TECH 2?

Go to Step 2

Go to Step 4

2

Verify DTC through: “F0: Diagnostic Trouble Codes.”
Is the DTC stored in the EHCU?

Clear code and

check for

repeatability.

Go to Step 3

Go to Step 5

3

1. Repair of faulty part.

2. Clear DTC.

3. Inspection of “ABS” W/L Illumination pattern with ignition SW

“ON”.

4. Test drive.

Does trouble repeat?

Repeat the

diagnosis it the

symptom or DTC

appears again

Go to Step 1

Go to Step 5

4

Verify DTC through: “F0: Diagnostic Trouble Codes.”
Is the DTC stored in the EHCU?

Clear code and

check for

repeatability

Go to Step 3

Trouble diagnosis

based on symptom

(Refer to Symptom

Diagnosis)

Go to Step 3

5

1. Reconnect all components. Ensure that all component are

properly mounted.

2. Clear diagnostic trouble code.

Was this step finished?

Finished

Go to Step 5

BRAKE CONTROL SYSTEM

5A–23

Basic Inspection Procedure

1. Basic Inspection of Service Brake

2. Ground Inspection

Step

Action

Yes

No

1

Is the fluid level normal?

Go to Step 2

Replenish with

fluid

Go to Step 2

2

Does fluid leak?

Repair

Go to Step 3

Go to Step 3

3

Is the booster functioning properly?

Go to Step 4

Repair

Go to Step 4

4

Is the pad and rotor within specs?

Go to Step 5

Repair

Go to Step 5

5

Reconnect all components. Ensure all component are properly
mounted.
Was this step finished?

Finished

Go to Step 5

Step

Action

Yes

No

1

Is there good contact with the ABS ground points?

Go to Step 2

Repair

Go to Step 2

2

Reconnect all components. Ensure that all component are
properly mounted.

Finished

Go to Step 2

5A–24

BRAKE CONTROL SYSTEM

EHCU Connector Pin-out Checks

• Disconnect Electronic Hydraulic Control Module.

• Perform checks with high impedance digital

multimeter J-39200 or equivalent.

No.

Circuit to be Tested

Ignition

Switch

Position

Multimeter

Scale/Range

Measure

between Pin

Number

Nominal Value

Note

1

Power supply

OFF

20DCV

1 (C–5)
2 (C–5)

11.5V to 14.5V

2

Ignition enable

OFF

20DCV

1 (C–4)
7 (C–4)

0V to 0.1V

ON

20DCV

1 (C–4)
7 (C–4)

11.5V to 14.5V

3

Stoplight switch

OFF

20DCV

13 (C–4)

 7 (C–4)

10.5V to 14.5V

Press brake pedal

4

Ground connection

OFF

200

W

7 (C–4)
Ground

Less than 2

W

OFF

1

W

2 (C–5)
Ground

Less than 0.2

W

5

FL speed sensor

OFF

2k

W

 2 (C–4)

10 (C–4)

2.0k

W to 2.8kW

(2WD model)

0.7k

W to 1.5kW

(4WD model)

Internal Resistance

OFF

200k

W

2 (C–4)
7 (C–4)

more than

100k

W

Insulation Resistance

OFF

200mACV

 2 (C–4)

10 (C–4)

more than

200mV

Turn wheel at 1RPS

6

FR speed sensor

OFF

2k

W

 3 (C–4)

11 (C–4)

2.0k

W to 2.8kW

(2WD model)

0.7k

W to 1.5kW

(4WD model)

Internal Resistance

OFF

200k

W

3 (C–4)
7 (C–4)

more than

100k

W

Insulation Resistance

OFF

200mACV

 3 (C–4)

11 (C–4)

more than

200mV

Turn wheel at 1RPS

7

RR speed sensor

OFF

2k

W

 4 (C–4)

12 (C–4)

1.0k

W to 1.7kW Internal Resistance

OFF

200k

W

4 (C–4)
7 (C–4)

more than

100k

W

Insulation Resistance

OFF

200mACV

 4 (C–4)

12 (C–4)

more than

200mV

Turn wheel at 1RPS
