AUTOMATIC TRANSMISSION (AW30-40LE)

7A–161

246RY00009

246RY00010

247RY00001

246RY00011

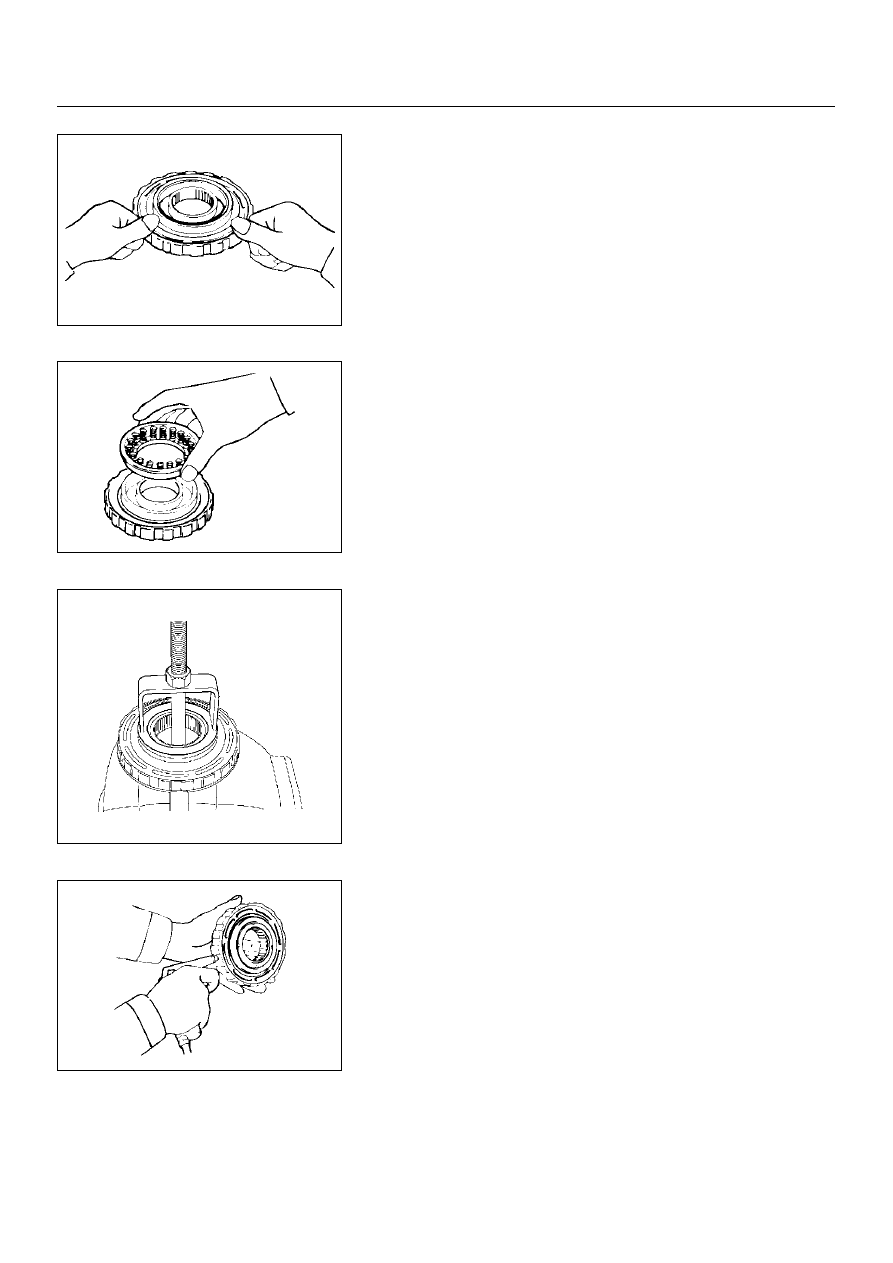

Important operations

1. O–ring

Coat new O–ring with ATF and install them on the second
brake piston.

2. Second brake piston

Being careful not to damage the O–rings, press in the
second brake piston into the second brake drum.

3. Piston sleeve

Install piston sleeve.

4. Piston return spring

Install piston return spring.

5. Spring retainer

Install spring retainer.

6. Snap ring

Place special tool on the spring retainer, and compress the
return spring.
Spring compressor : 5–8840–0254–0(J–25048)
Install the snap ring with snap ring pliers. Be sure the end
gap of the snap ring is not aligned with the spring retainer
claw.

Check second brake piston movement

Make sure the second brake piston moves smoothly when
applying and releasing the low compressed air to the
second brake drum.

7A–162

AUTOMATIC TRANSMISSION (AW30-40LE)

246RY00012

246RY00014

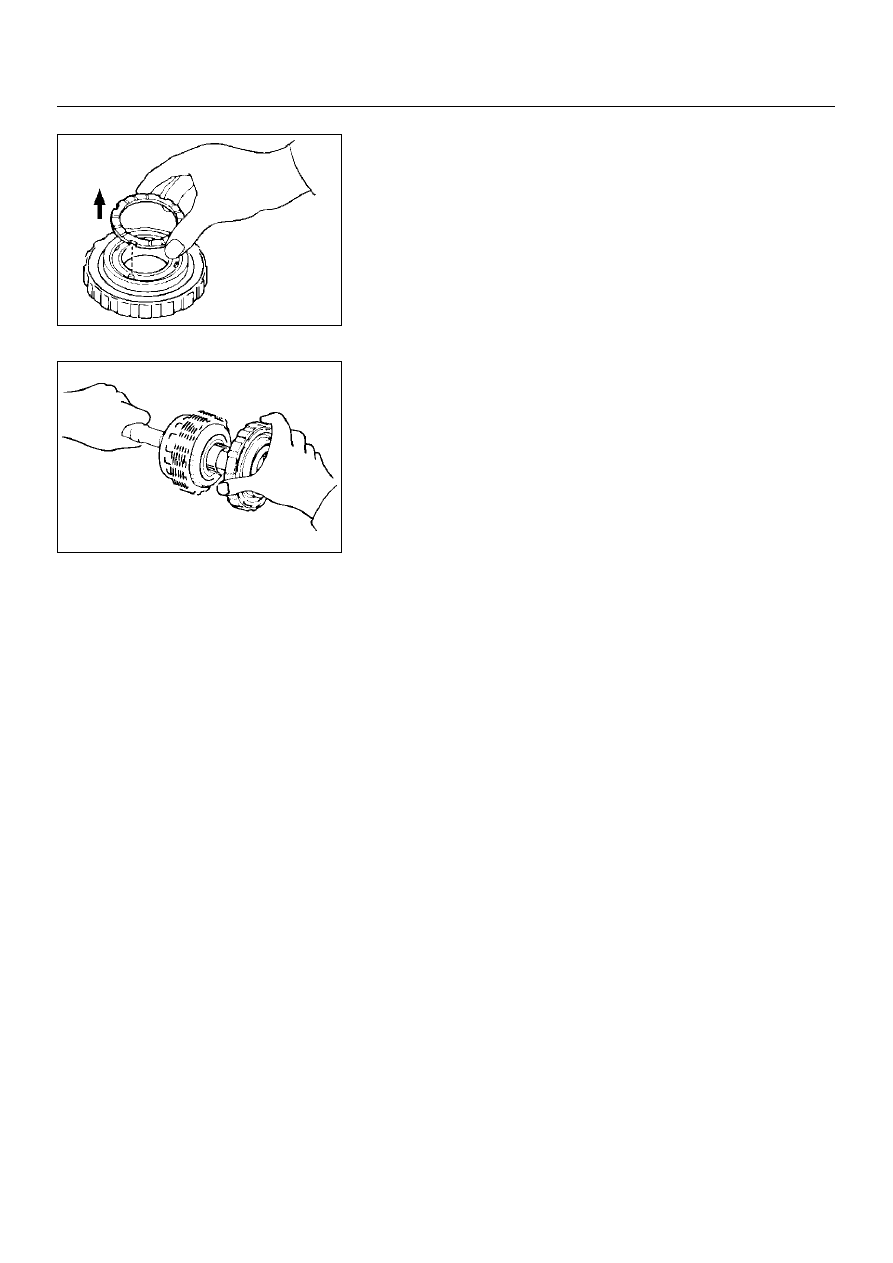

7. Thrust washer (Plastic)

Coat the thrust washer with petroleum jelly and install it to
the second brake piston, with the grooved side facing
upward.

NOTE:
Make sure that the cutout portions of the thrust washer
match the teeth of the spring retainer.

8. Second brake assembly

Install second brake assembly to output shaft.

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–163

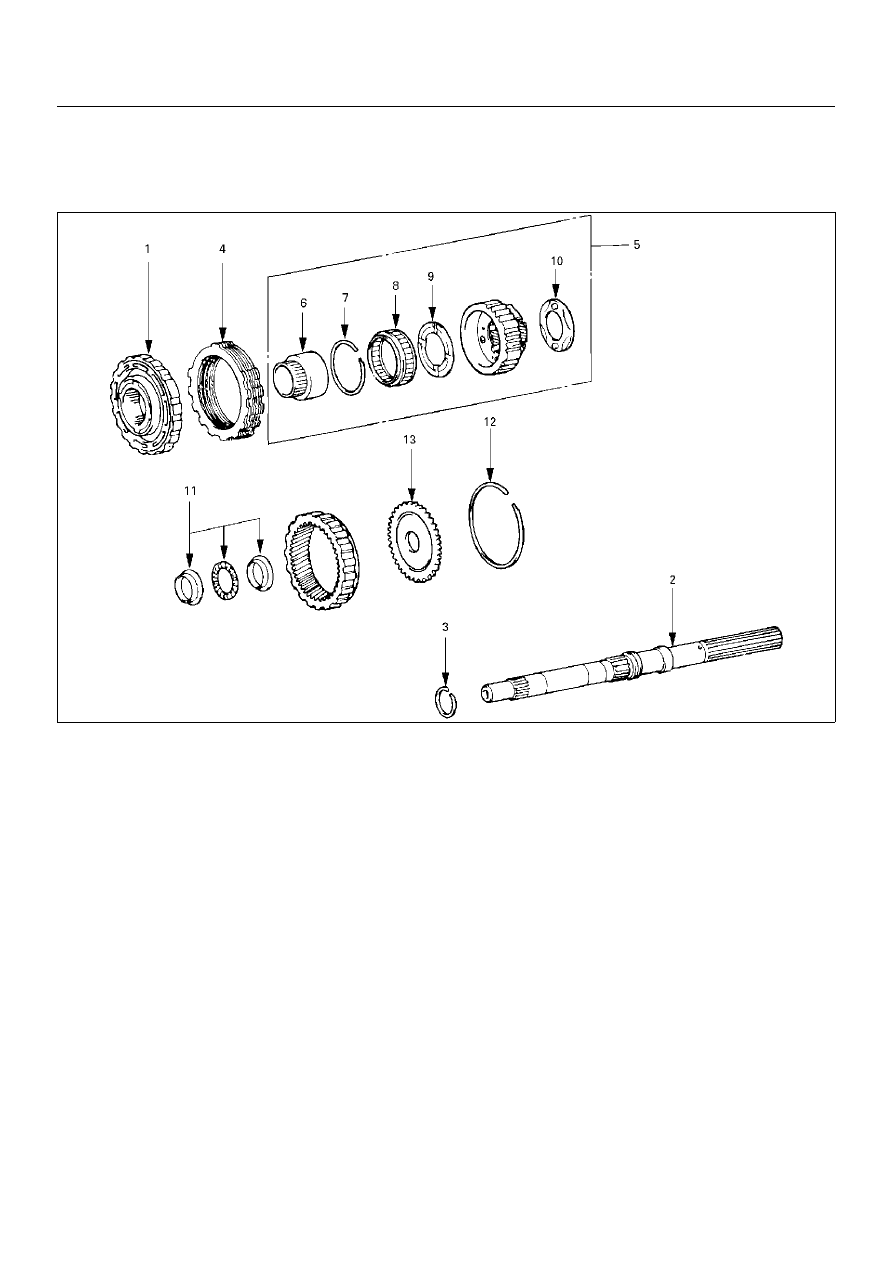

REAR PLANETARY GEAR ASSEMBLY AND OUTPUT SHAFT

DISASSEMBLY

247RY00027

Disassembly steps

1. Second brake assembly

2. Output shaft

▲

 3. Oil seal ring

 4. Disc, plate and flange

▲

 5. Rear planetary gear assembly

▲

 6. One–way clutch inner race

▲

 7. Snap ring



▲

 8. One–way clutch

9. Thrust washer (Plastic)

10. Thrust washer (Plastic)

11. Thrust bearing and race

12. Snap ring

13. Ring gear flange

7A–164

AUTOMATIC TRANSMISSION (AW30-40LE)

247RY00028

247RY00029

247RY00030

247RY00031

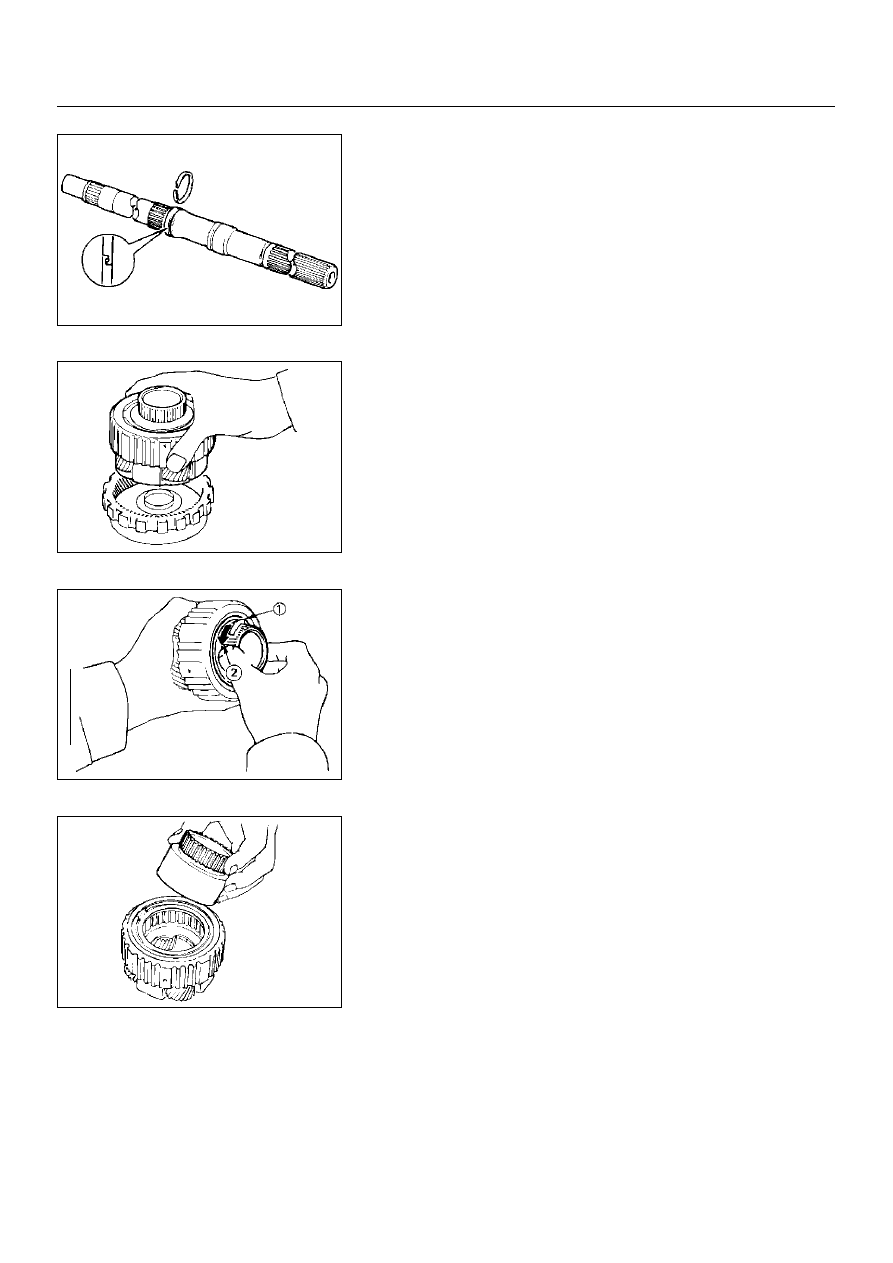

Important operations

3. Oil seal ring

Remove oil seal ring from output shaft.

5. Rear planetary gear assembly

Remove rear planetary gear from rear planetary ring gear.

Check operation of No.2 one–way clutch

Hold the planetary gear and turn the one–way clutch inner
race. The one–way clutch inner race should turn freely
counterclockwise and should lock clockwise.
(1) : Lock
(2) : Free

6. One–way clutch inner race

Remove the one–way clutch inner race from the rear
planetary gear.
