AUTOMATIC TRANSMISSION (AW30-40LE)

7A–117

252RY00022

252RY00023

252RY00024

252RY00025

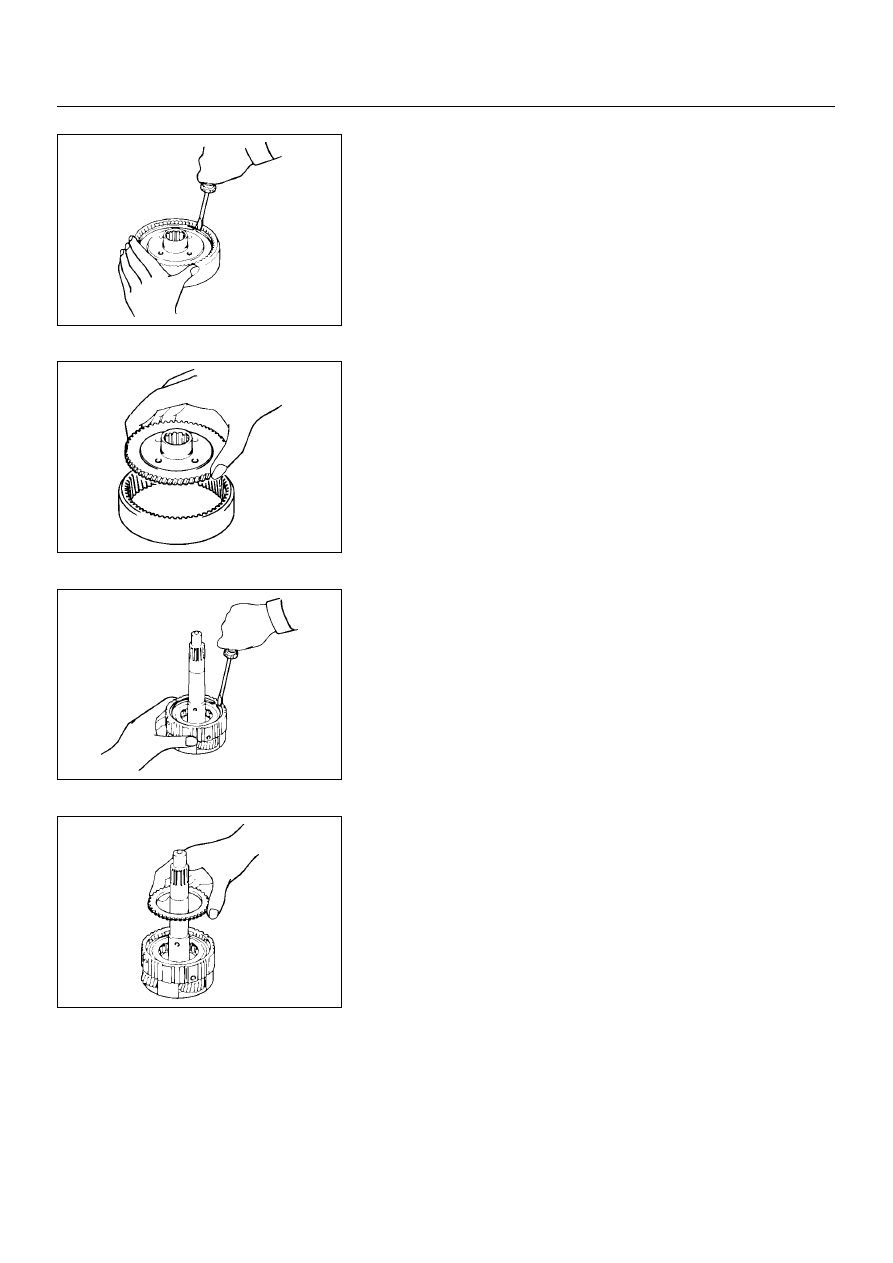

10. Snap ring

Remove snap ring.

11. Ring gear flange

Remove ring flange from OD planetary ring gear.

13. Snap ring

Remove snap ring, using screwdriver.

14. Retaining plate

Remove retaining plate from OD planetary gear.

7A–118

AUTOMATIC TRANSMISSION (AW30-40LE)

252RY00026

252RY00027

252RY00028

252RY00029

15. OD one-way clutch

Remove OD one-way clutch with outer race.

INSPECTION AND REPAIR

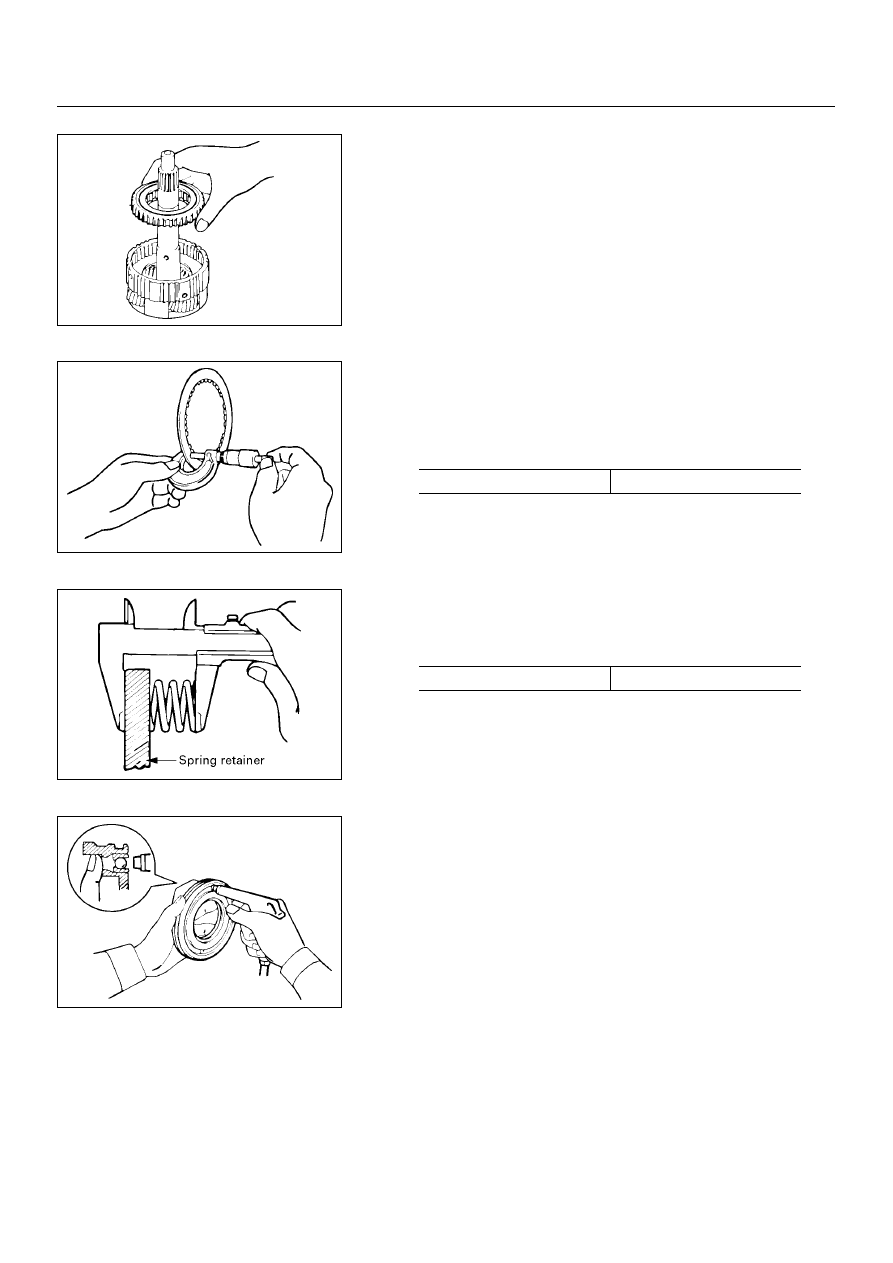

Check discs

Using a micrometer, measure the thickness of the discs.

If the thickness is less than the minimum, replace the disc.

Check piston return spring

Using calipers, measure the free length of the return spring.

Check OD direct clutch piston

Check that check ball is free by shaking the piston.
Check that the valve does not leak by applying low-pressure
compressed air.

mm (in.)

Minimum thickness

1.84 (0.0724)

mm (in.)

Standard length

15.8 (0.622)

AUTOMATIC TRANSMISSION (AW30-40LE)

7A–119

252L100009

252RY00031

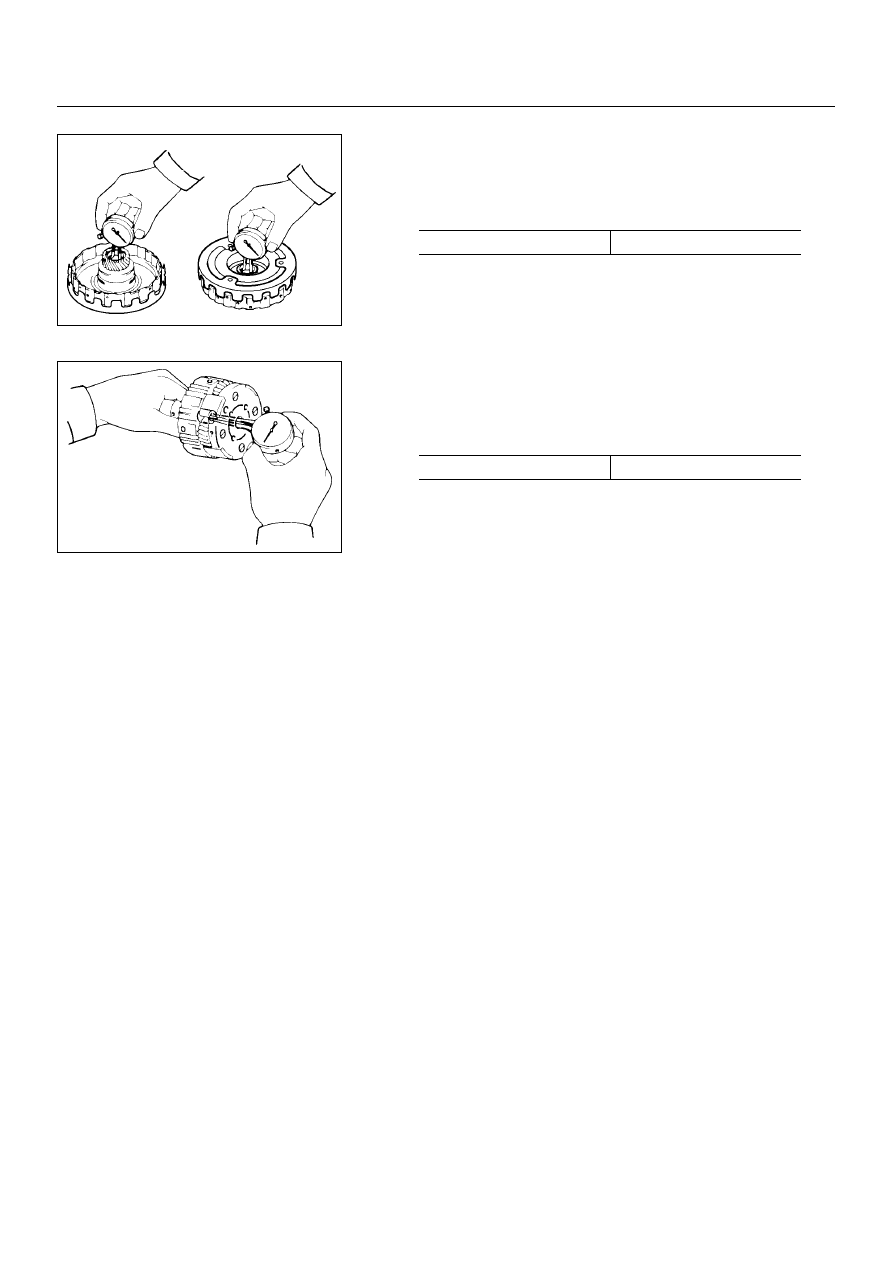

Check OD direct clutch drum bushings

Using a dial indicator, measure the inside diameter of the
clutch drum bushings.

If the inside diameter is greater than the maximum, replace
the clutch drum.

Check OD planetary gear bushing

Using a dial indicator, measure the inside diameter of the
planetary gear bushing.

If the inside diameter is greater than the maximum, replace
the planetary gear.

mm (in.)

Maximum inside diameter

27.11 (1.0673)

mm (in.)

Maximum inside diameter

11.27 (0.4437)

7A–120

AUTOMATIC TRANSMISSION (AW30-40LE)

REASSEMBLY

252L100010

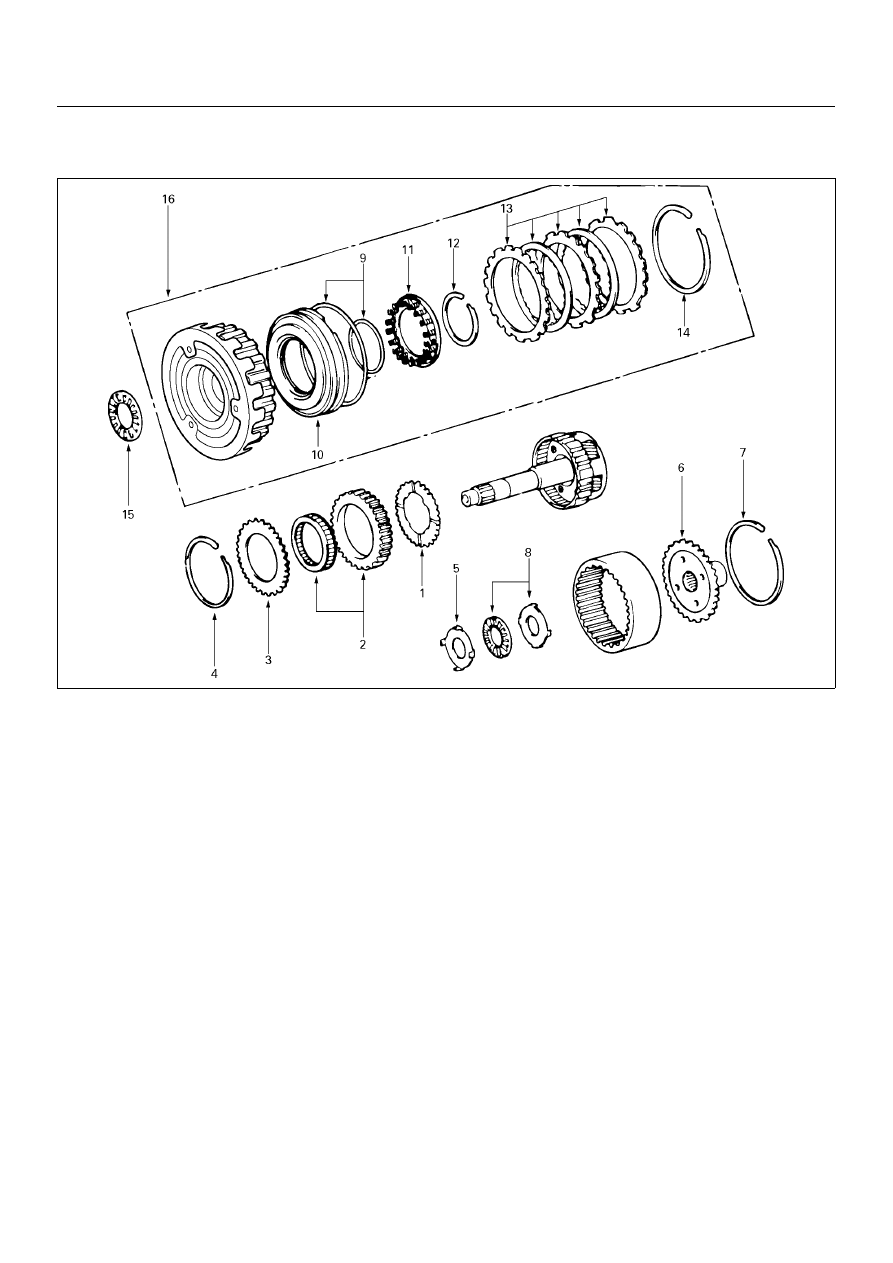

Reassembly steps

▲

 1. Thrust washer

▲

 2. OD one-way clutch

▲

 3. Retaining plate

▲

 4. Snap ring

▲

 5. Race

▲

 6. Ring gear flange

▲

 7. Snap ring

▲

 8. Thrust bearing

▲

 9. O-ring

▲

 10. OD direct clutch piston with O-ring

▲

 11. Piston return spring

▲

 12. Snap ring

▲

 13. Flange, disc and plate

▲

 14. Snap ring

▲

 15. Thrust bearing

▲

 16. OD direct clutch assembly
