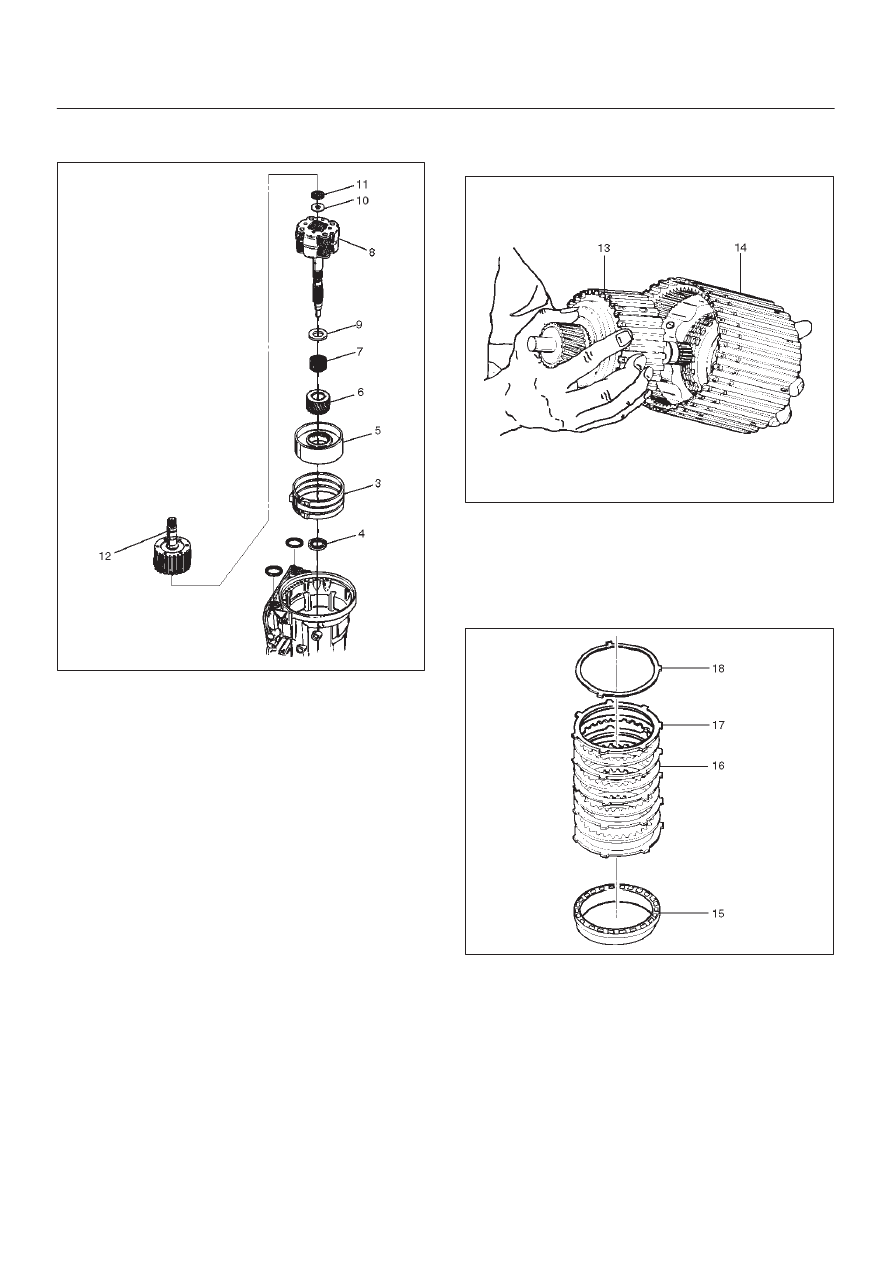

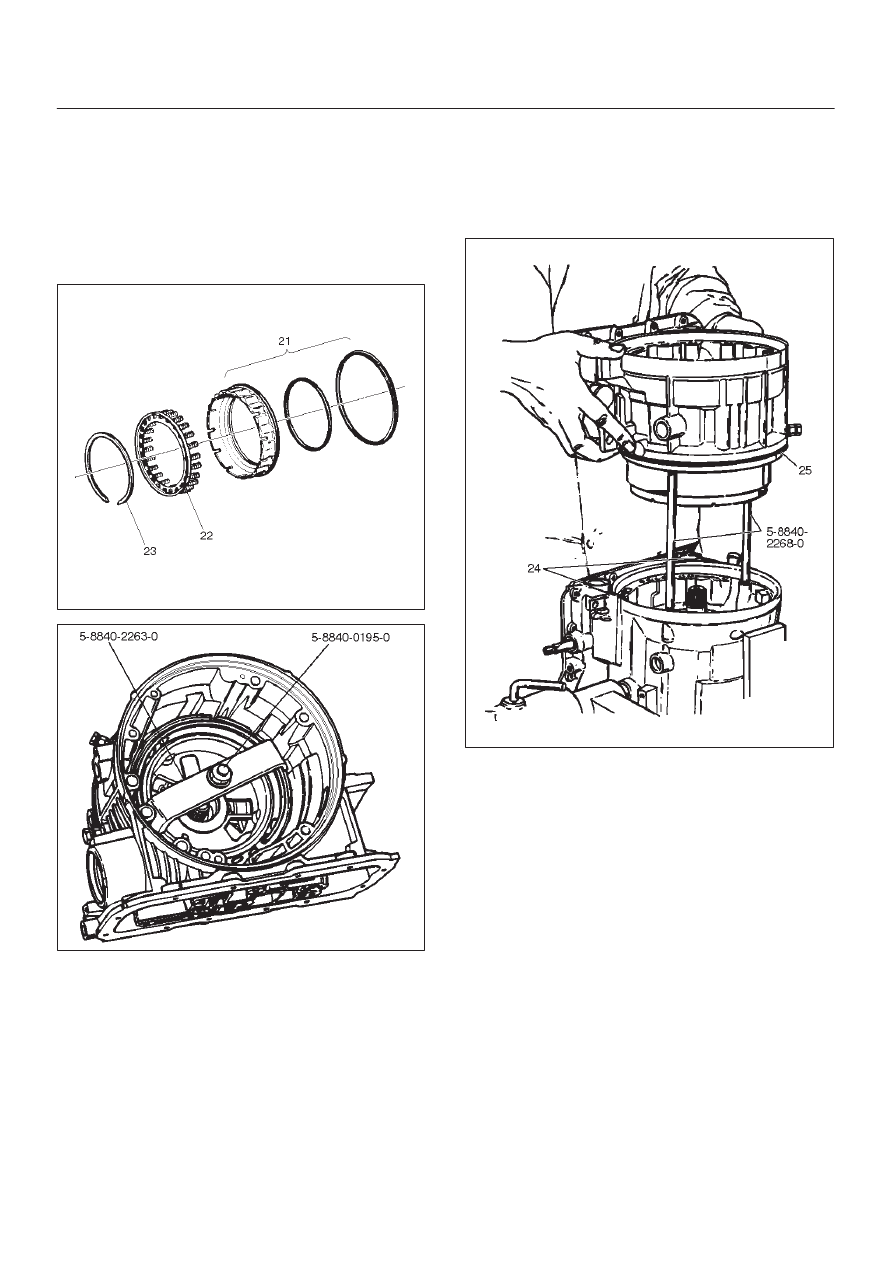

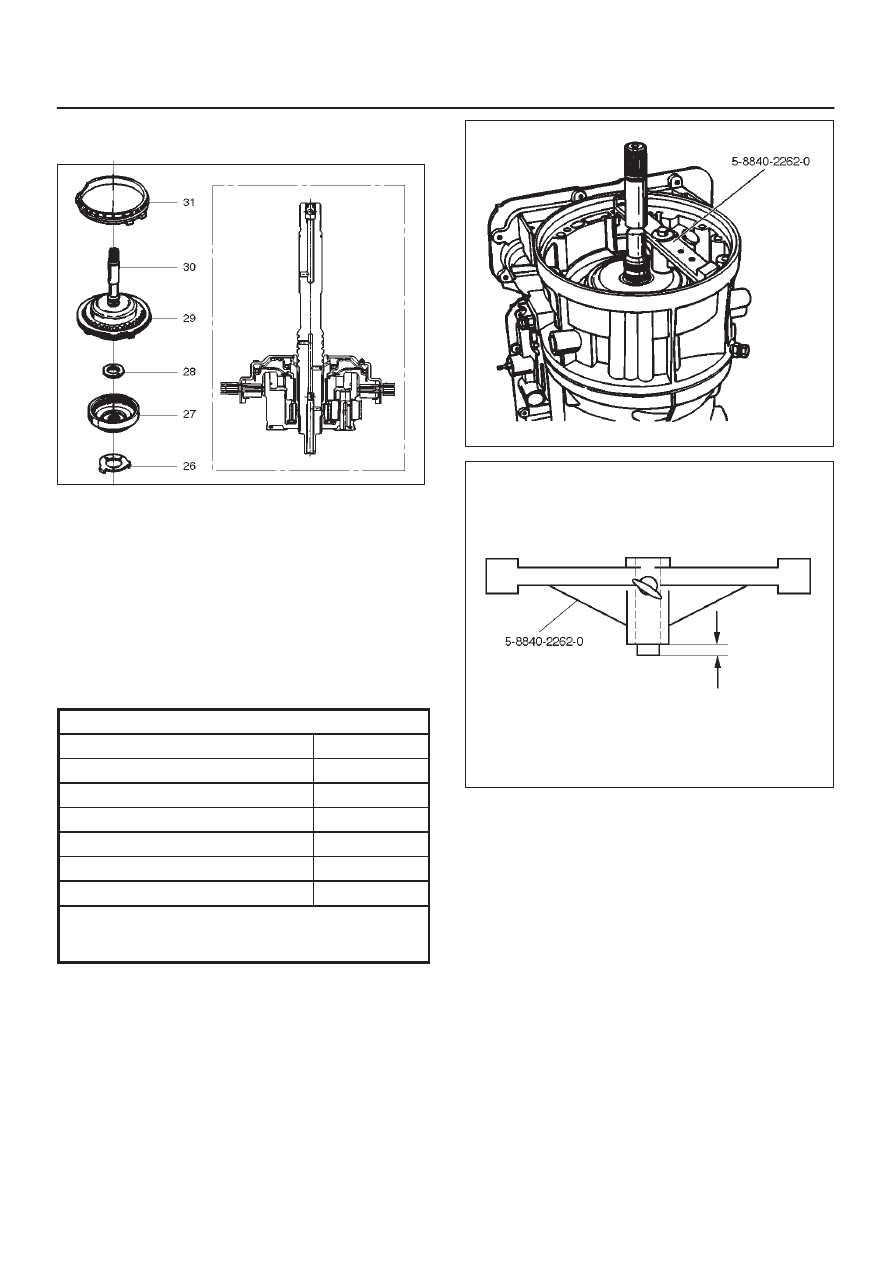

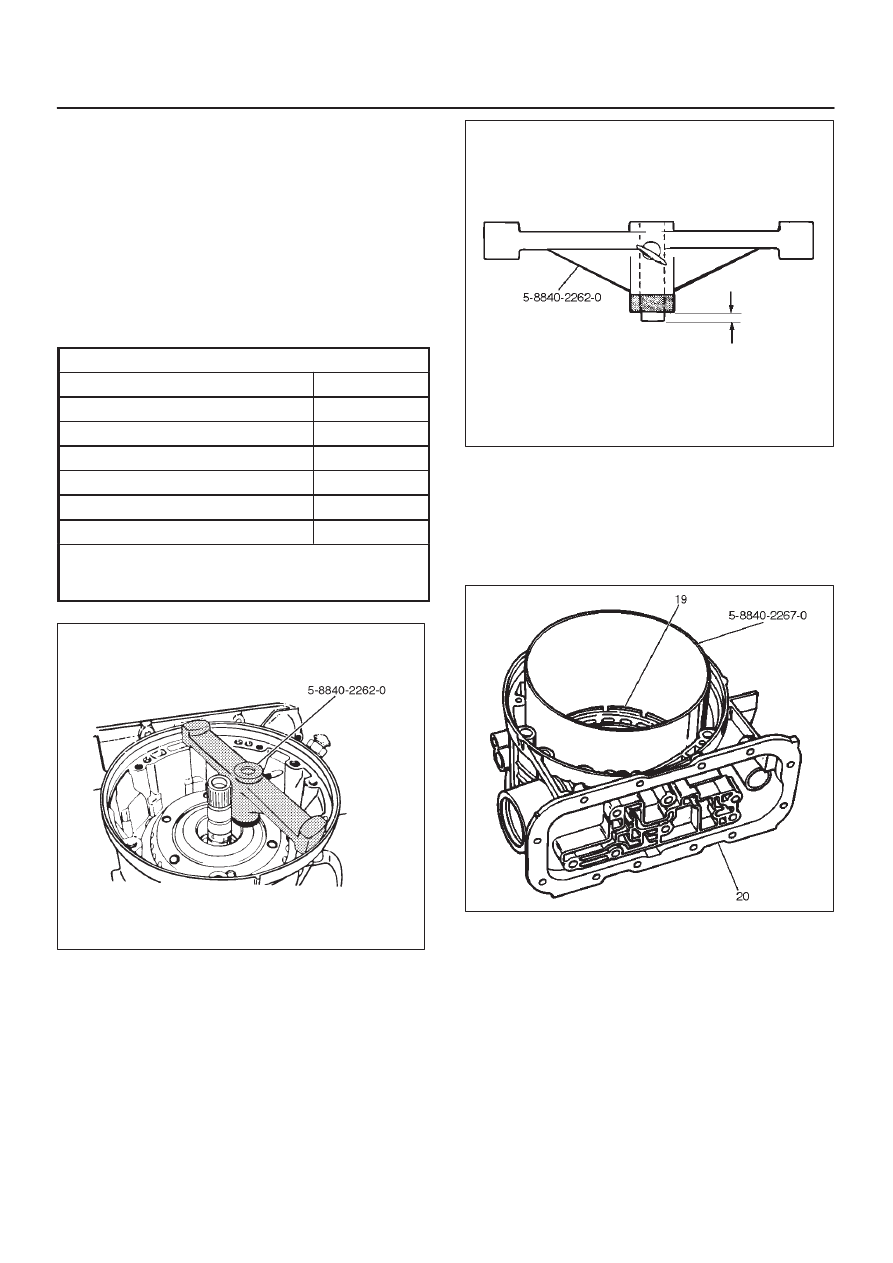

7A–52 AUTOMATIC TRANSMISSION (4L30–E) NOTE: Use petroleum jelly to hold the washer and 242RW002 16. Carefully align the second clutch plate inner tangs. D Install thrust washer, tangs pointing downward, and NOTE: Use petroleum jelly to hold thrust washer in place. 17. Install third clutch and intermediate shaft assembly (13) into the second clutch drum (14). 18. Install second and third clutch assemblies into the main case. Twist output shaft and clutch assemblies 247RS001 19. Install pressure plate (15) with lip side up, tang facing valve body face. 20. Install reverse clutch plates. Start with a steel plate (17) and alternate with a lined plate (16). 21. Install waved clutch plate (18) with center tang facing valve body side. 247RS002 |
