Diagrams and Schematics

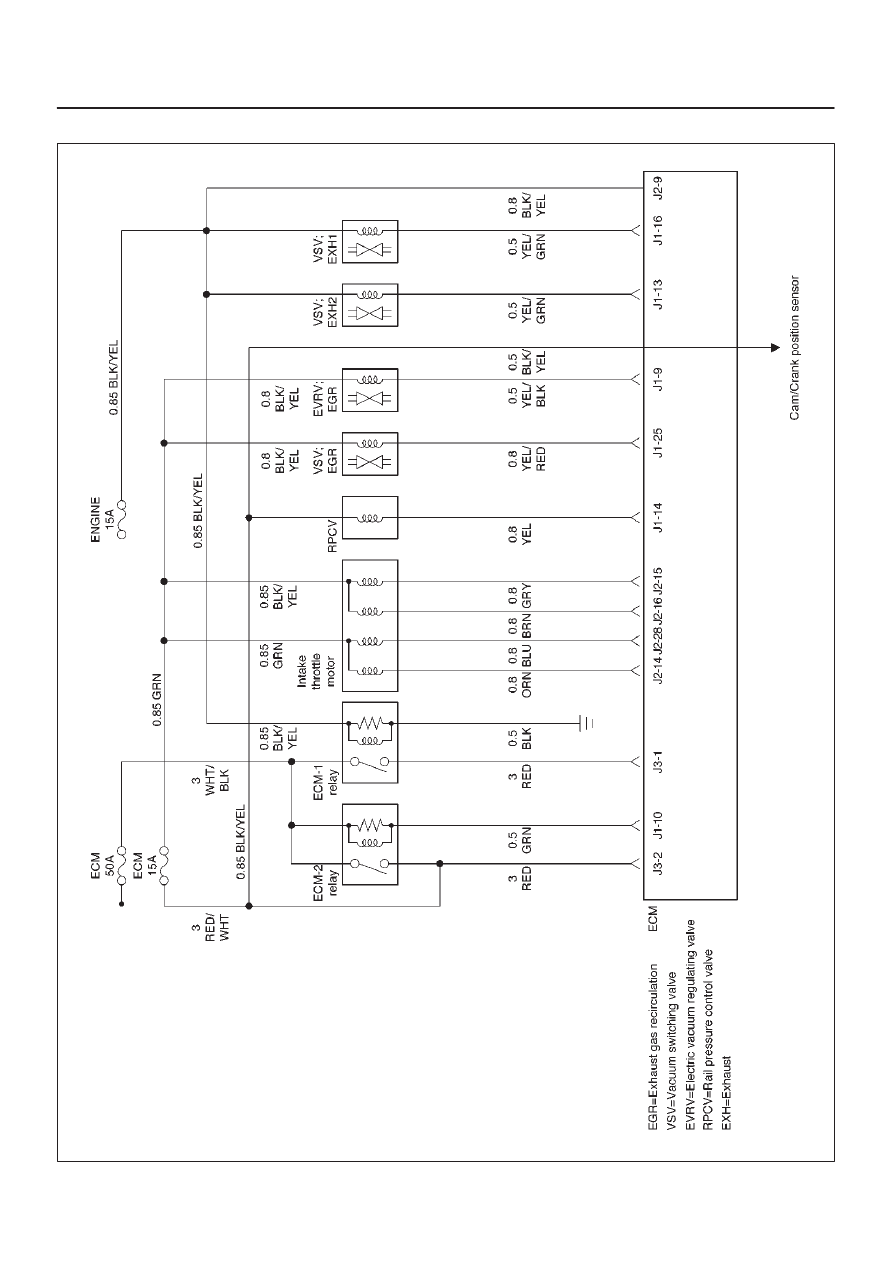

ECM Wiring Diagram (1 of 6)

060RW127

6E–9

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

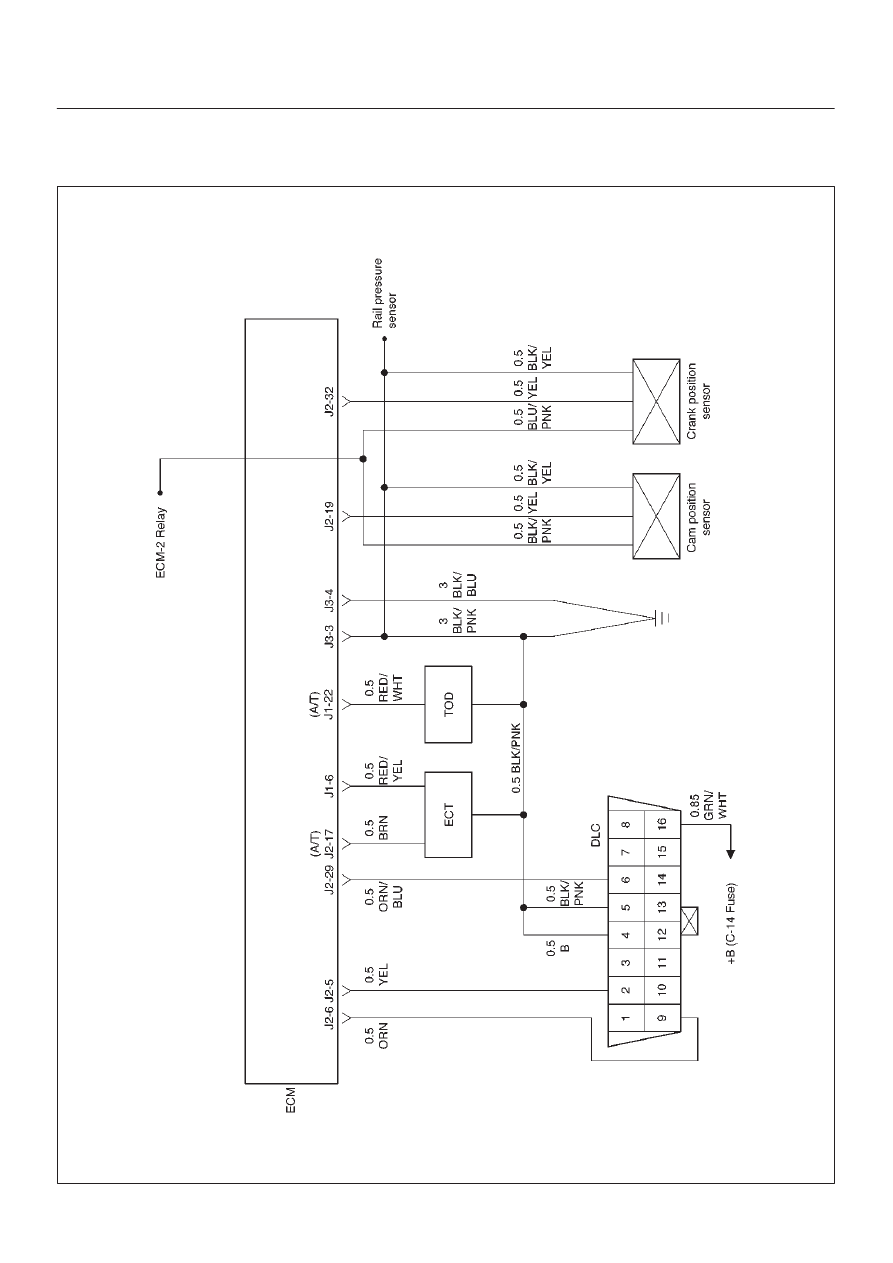

ECM Wiring Diagram (2 of 6)

060RW125

6E–10

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

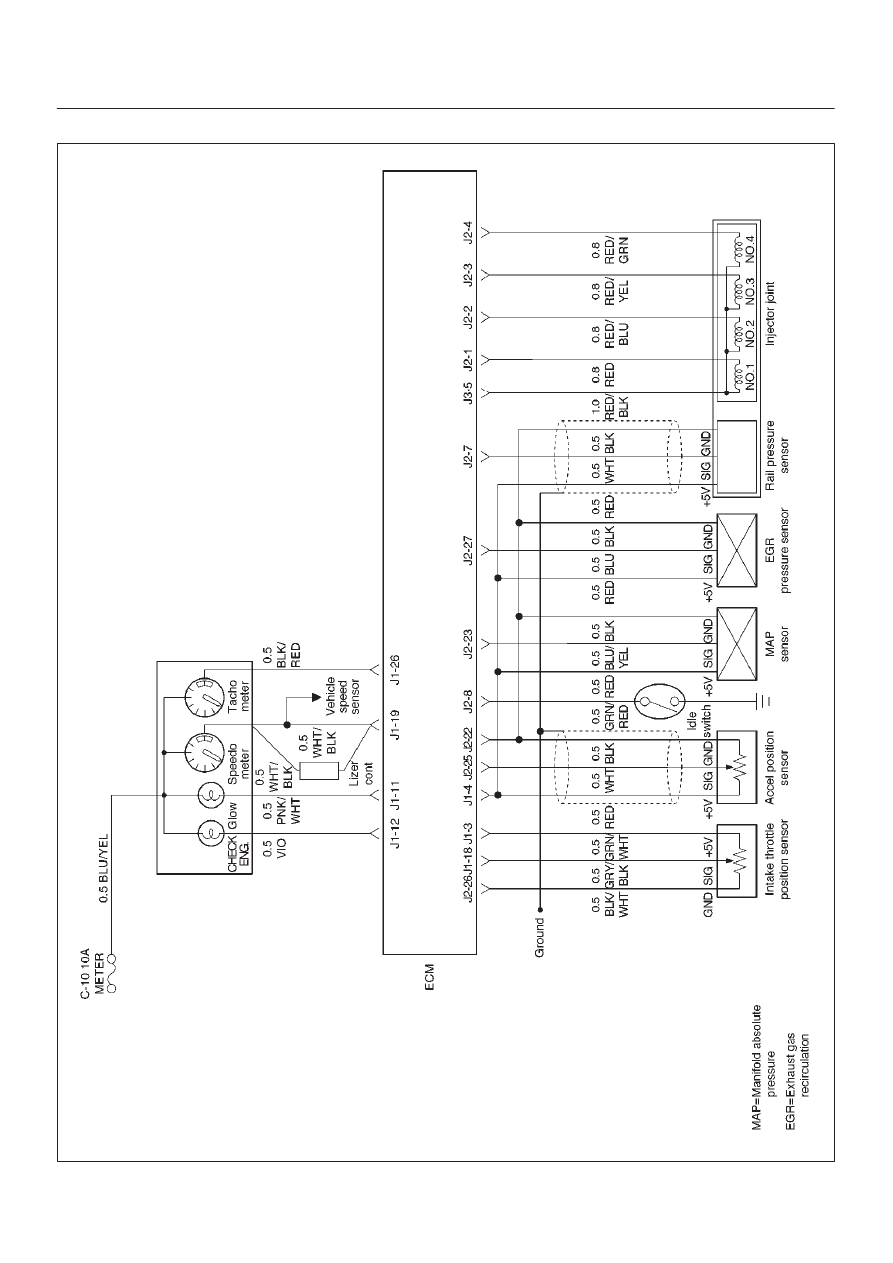

ECM Wiring Diagram (3 of 6)

060RW126

6E–11

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

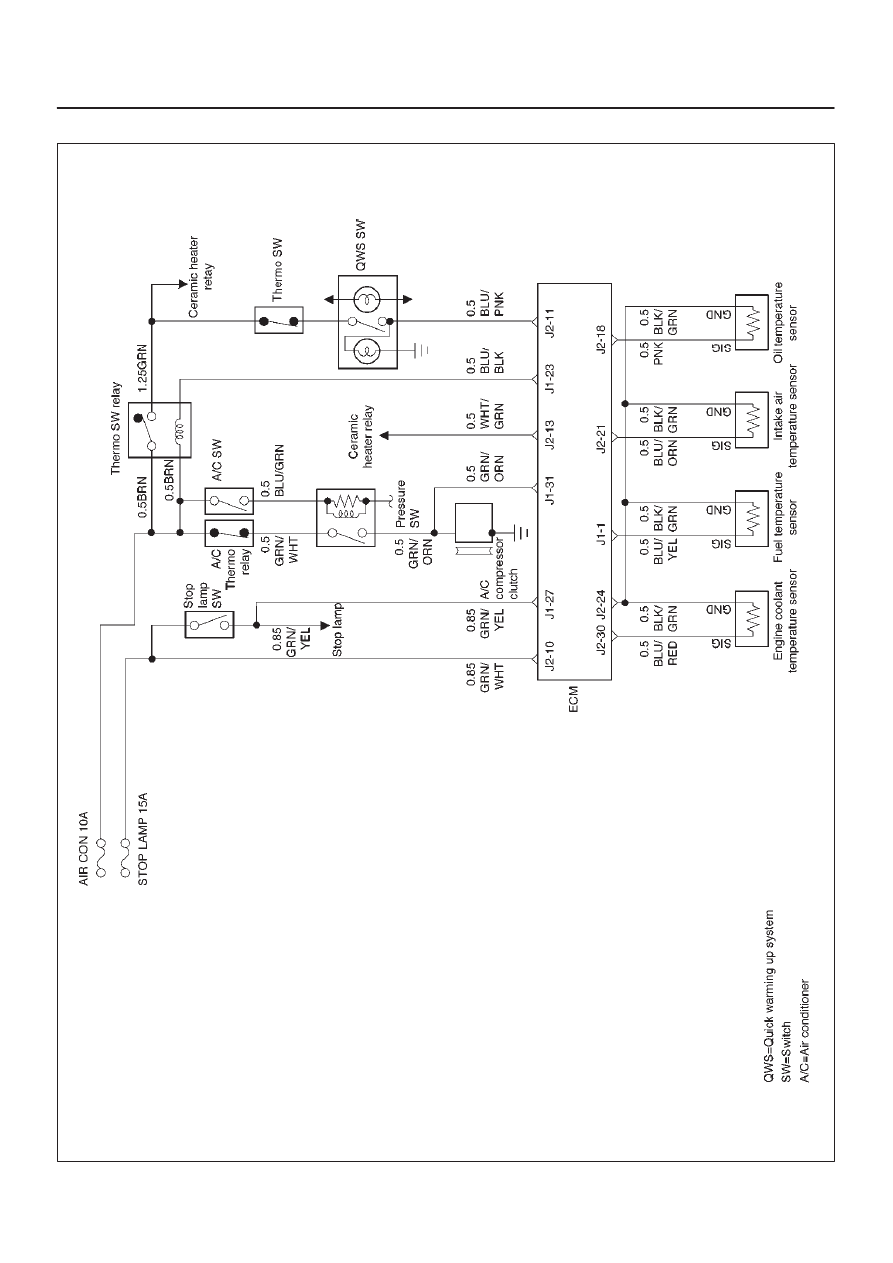

ECM Wiring Diagram (4 of 6)

060RW128
