Isuzu Trooper (1998-2002 year). Manual - part 372





6A–18

ENGINE MECHANICAL (6VE1 3.5L)

Malfunction Indicator Lamp

The instrument panel “CHECK ENGINE” Malfunction
Indicator Lamp (MIL) illuminates by self diagnostic
system when the system checks the starting of engine, or
senses malfunctions.

Condition

Possible cause

Correction

“CHECK ENGINE” MIL does not
illuminate at the starting of engine

Bulb defective

Replace

illuminate at the starting of engine

MIL circuit open

Correct or replace

Command signal circuit to operate
self diagnostic system shorted

Correct or replace

Powertrain Control Module (PCM)
cable loosely connected,
disconnected or defective

Correct or replace

PCM defective

Replace

“CHECK ENGINE” MIL illuminates,
and stays on

Deterioration of heated oxygen
sensor internal element

Replace

Heated oxygen sensor connector
terminal improper contact

Reconnect properly

Heated oxygen sensor lead wire
shorted

Correct

Heated oxygen sensor circuit open

Correct or replace

Deterioration of engine coolant
temperature sensor internal element

Replace

Engine coolant temperature sensor
connector terminal improper contact

Reconnect properly

Engine coolant temperature sensor
lead wire shorted

Correct

Engine coolant temperature sensor
circuit open

Correct or replace

Throttle position sensor open or
shorted circuits

Correct or replace

Deterioration of crankshaft position
sensor

Replace

Crankshaft position sensor circuit
open or shorted

Correct or replace

Vehicle speed sensor circuit open

Correct or replace

Manifold absolute pressure sensor
circuit open or shorted

Correct or replace

Intake air temperature sensor circuit
open or shorted

Correct or replace

Fuel injector circuit open or shorted

Correct or replace

PCM driver transistor defective

Replace PCM

Malfunctioning of PCM RAM
(Random Access Memory) or ROM
(Read Only Memory)

Replace PCM

6A–19

ENGINE MECHANICAL (6VE1 3.5L)

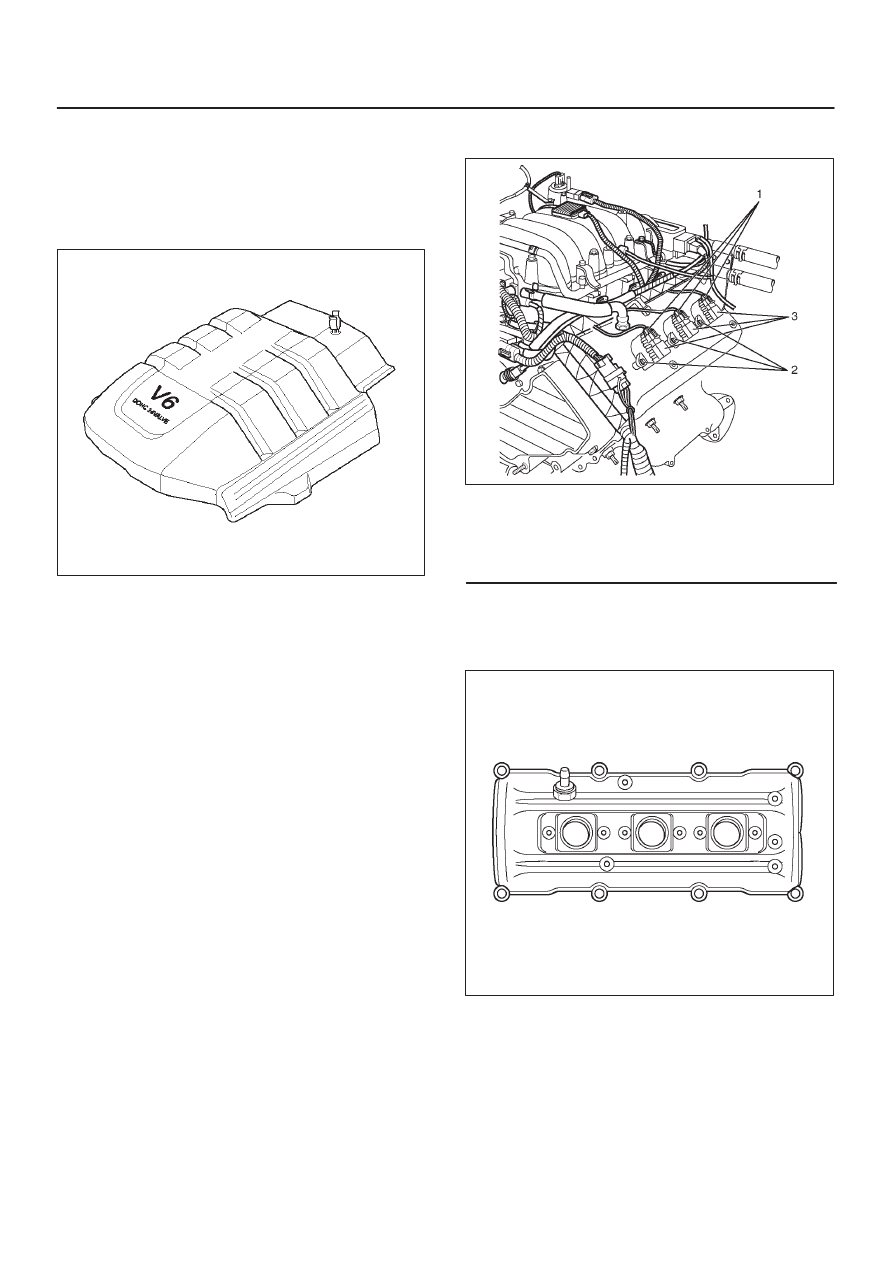

Cylinder Head Cover LH

Removal

1. Disconnect battery ground cable.
2. Remove engine cover from the dowels on the

common chamber.

F06RY001

3. Disconnect positive crankcase ventilation hose.
4. Remove ground cable fixing bolt on cylinder head

cover.

5. Ignition coil connector and ignition coil.

D

Disconnect the three connectors from the ignition
coils.

D

Remove harness bracket bolt on cylinder head
cover.

D

Remove fixing bolts on ignition coils.

060R200199

Legend

(1) Ignition Coil Connector
(2) Bolt
(3) Ignition Coil Assemblies

6. Disconnect fuel injector harness connector then

remove fuel injector harness bracket bolt.

7. Remove eight fixing bolts, then the cylinder head

cover.

010R200001

NOTE: Where do you refer the tech in case of bolt
removal difficulties.

6A–20

ENGINE MECHANICAL (6VE1 3.5L)

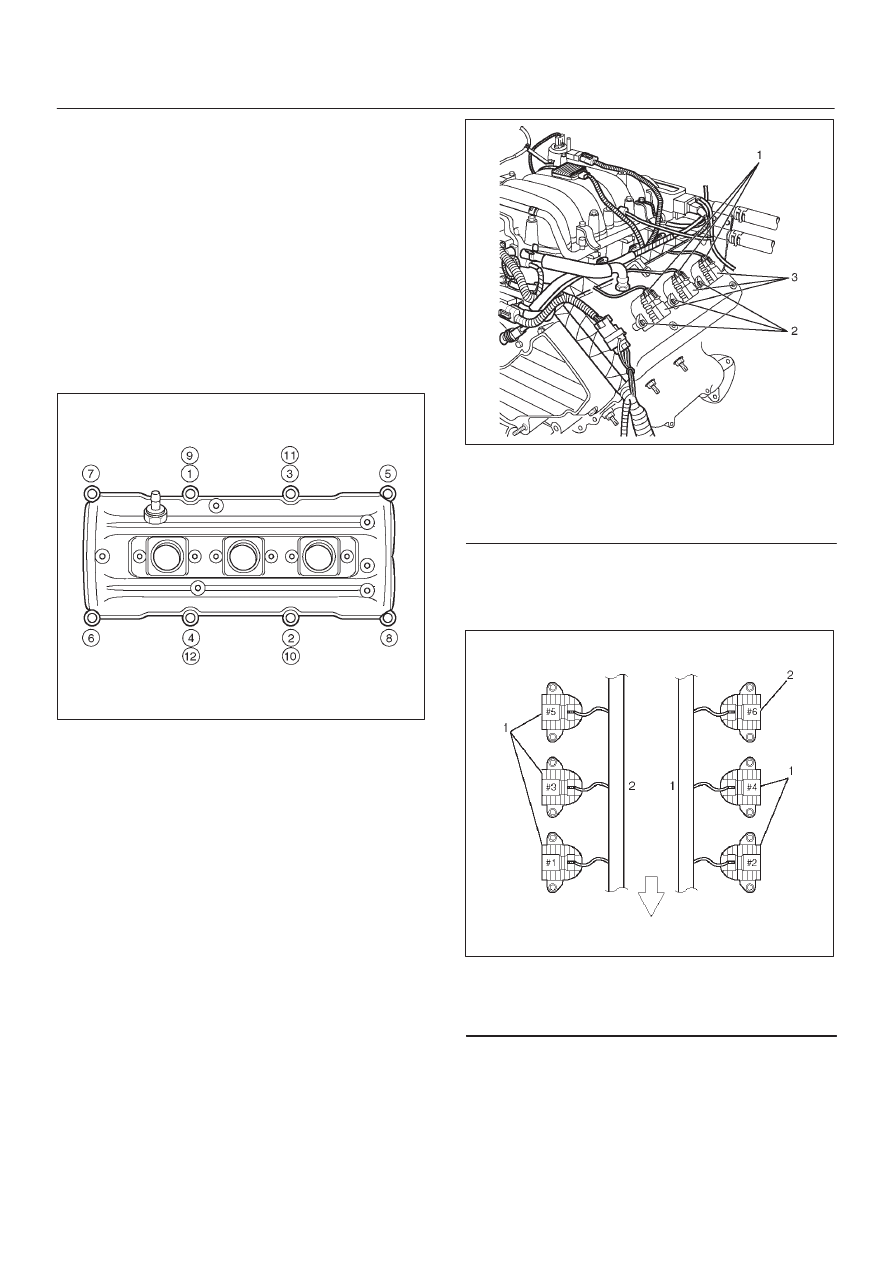

Installation

1. Install cylinder head cover.

D

Clean the sealing surface of cylinder head and
cylinder head cover to remove oil and sealing
materials completely.

D

Apply sealant (TB-1207B or equivalent) of bead
diameter 2-3 mm at eight place of arched area of
camshaft bearing cap on front and rear sides.

D

The cylinder head cover must be installed with in 5
minutes after sealant application to prevent
hardening of sealant.

D

Tighten bolts to the specified torque.

Torque : 9 N·m (0.9 kg·m/78 lb in)

010R200002

2. Install fuel injection harness bracket and tighten bolt

to the specified torque.

Torque : 9 N·m (0.9 kg·m/78 lb in)

3. Connect ignition coil connector and ignition coil, then

tighten bolt to the specified torque.

Torque : 4 N·m (0.4kg·m/35 lb in)

060R200199

Legend

(1) Ignition Coil Connector
(2) Bolt
(3) Ignition Coil Assembly

CAUTION: Ignition coil assembly #6 is different
from ignition coil assembly from #1 to #5. Ignition
coil assembly #6 is short type. So, note it when
installing ignition coil assembly of #6.

060RY00002

Legend

(1) Long Type Ignition Coil Assemblies (# 1

 # 5)

(2) Short Type Ignition Coil Assembly (# 6)

4. Connect ground cable and tighten bolts to the

specified torque.

Torque : 9 N·m (0.9 kg·m/78 lb in)

5. Install positive crankcase ventilation hose.
6. Install engine cover mating with the dowels.

6A–21

ENGINE MECHANICAL (6VE1 3.5L)

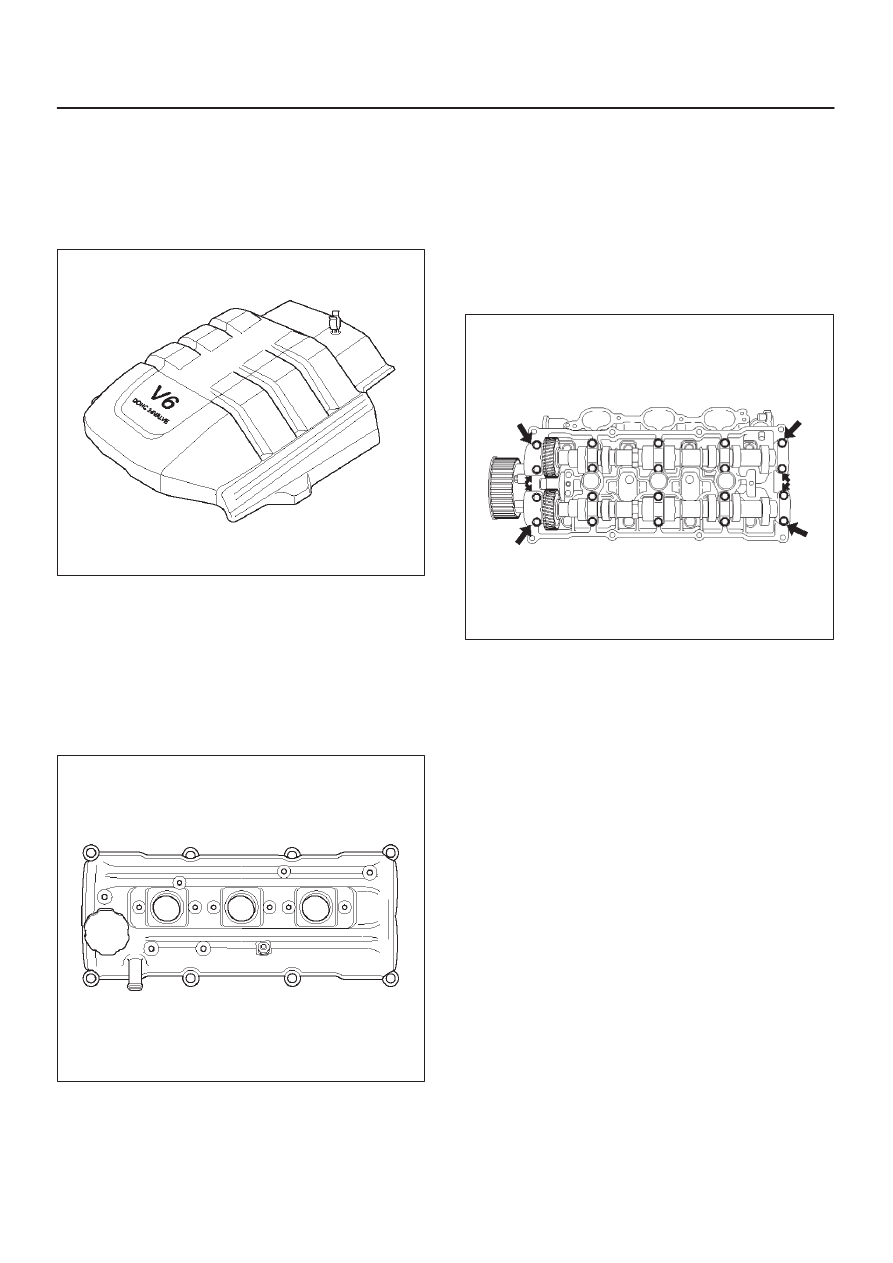

Cylinder Head Cover RH

Removal

1. Disconnect battery ground cable.
2. Remove engine cover from the dowels on the

common chamber.

F06RY001

3. Disconnect ventilation hose from cylinder head cover.
4. Disconnect three ignition coil connectors from ignition

coils and remove harness bracket bolts on cylinder
head cover then remove ignition coil fixing bolts on
ignition coils and remove ignition coils.

5. Disconnect fuel injector harness connector then

remove fuel injector harness bracket bolt.

6. Remove eight fixing bolts then the cylinder head

cover.

010RW002

Installation

1. Install cylinder head cover.

D

Clean the sealing surface of cylinder head and
cylinder head cover to remove oil and sealing
materials completely.
Apply sealant (TB-1207B or equivalent) bead
(diameter 2-3 mm) at eight places of arched areas
of camshaft bracket on front and rear sides.

014RW019

D

The cylinder head cover must be installed within 5
minutes after sealant application to prevent
premature hardening of sealant.

D

Tighten bolts to the specified torque.

Torque : 9 N·m (0.9 kg·m/78 lb in)

2. Tighten fuel injector harness bracket bolts to

specified torque then reconnect fuel injector harness
connector.

Torque : 9 N·m (0.9 kg·m/78 lb in)

3. Connect ignition coil connector and tighten ignition

coil fixing bolts to specified torque.

Torque : 4 N·m (0.4 kg·m/35 lb in)

4. Connect ventilation hose to cylinder head.
5. Install engine cover mating with the dowels.
