Isuzu Trooper (1998-2002 year). Manual - part 367





6H–4

ENGINE SPEED CONTROL SYSTEM

MEMO

INDUCTION

6J–1

ENGINE

INDUCTION

CONTENTS

Service Precaution

6J–1

. . . . . . . . . . . . . . . . . . . . . .

Air Cleaner Element

6J–2

. . . . . . . . . . . . . . . . . . . . .

Removal

6J–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6J–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6J–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: IF SO EQUIPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS),REFER TO THE SRS COMPONENT AND
WIRING LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

6J–2

INDUCTION

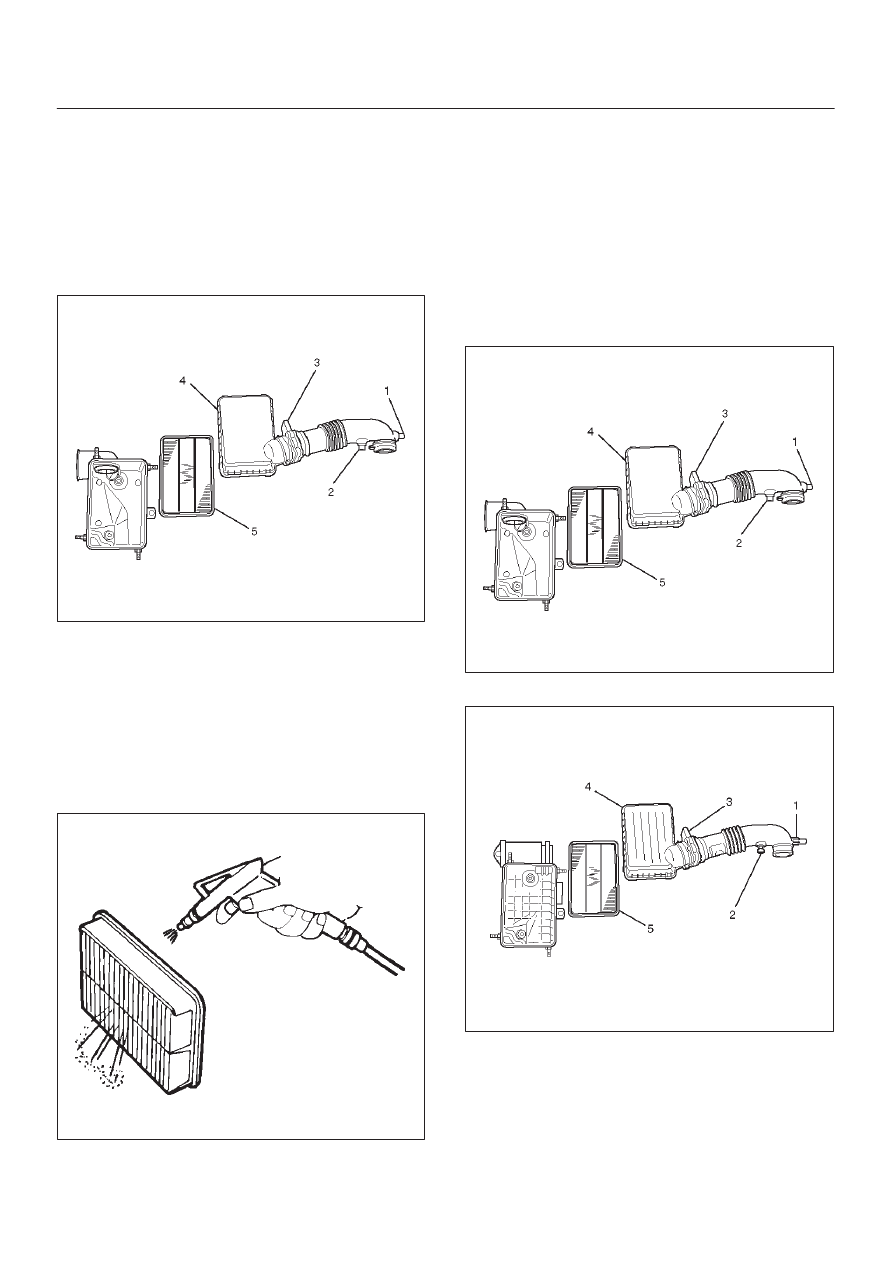

Air Cleaner Element

Removal

1. Remove positive ventilation hose from connector(1).
2. Remove intake air temperature sensor(2).
3. Remove air flow sensor(3).
4. Remove air cleaner duct cover(4).
5. Remove air cleaner element(5).

130RW003

Inspection

Check the air cleaner element for damage or dust
clogging. Replace if it is damaged, or clean if it is clogged.

Cleaning Method

Tap the air cleaner element gently so as not to damage
the paper element, or clean the element by blowing with
compressed air of about 490 kPa (71 psi) from the clean
side if it is extremely dirty.

130RW002

Installation

1. Install air cleaner element(5).
2. Attach the air cleaner duct cover (4) to the body

completely, then clamp it with the clip.

3. Install mass air flow sensor(3).
4. Install air temperature sensor(2).
5. Connect positive crankcase ventilation hose to

connector(1).

For General Export Model

130RW003

For Isuzu General Motors (IGM) Model

130RW006

6A–1

ENGINE MECHANICAL (6VE1 3.5L)

ENGINE

CONTENTS

Engine Mechanical

6A

. . . . . . . . . . . . . . . . . . . . . .

Engine Cooling

6B

. . . . . . . . . . . . . . . . . . . . . . . . .

Engine Fuel

6C

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Electrical

6D1

. . . . . . . . . . . . . . . . . . . . . . . .

Ignition System

6D2

. . . . . . . . . . . . . . . . . . . . . . . . .

Starting and Charging System

6D3

. . . . . . . . . . . .

Driveability and Emissions

6E

. . . . . . . . . . . . . . . .

Engine Exhaust

6F

. . . . . . . . . . . . . . . . . . . . . . . . .

Engine Lubrication

6G

. . . . . . . . . . . . . . . . . . . . . .

Engine Speed Control System

6H

. . . . . . . . . . . .

Induction

6J

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ENGINE MECHANICAL (6VE1 3.5L)

CONTENTS

Service Precaution

6A–2

. . . . . . . . . . . . . . . . . . . . . .

General Description

6A–3

. . . . . . . . . . . . . . . . . . . . .

Engine Diagnosis

6A–4

. . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head Cover LH

6A–19

. . . . . . . . . . . . . . . . .

Removal

6A–19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–20

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head Cover RH

6A–21

. . . . . . . . . . . . . . . . .

Removal

6A–21

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–21

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Common Chamber

6A–22

. . . . . . . . . . . . . . . . . . . . . .

Removal

6A–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Exhaust Manifold LH

6A–24

. . . . . . . . . . . . . . . . . . . . .

Removal

6A–24

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–24

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Exhaust Manifold RH

6A–25

. . . . . . . . . . . . . . . . . . . .

Removal

6A–25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–25

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft Pulley

6A–26

. . . . . . . . . . . . . . . . . . . . . . .

Removal

6A–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Timing Belt

6A–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

6A–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–28

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Camshaft

6A–32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

6A–32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–33

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head

6A–35

. . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

6A–35

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–35

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Valve Stem Oil Controller , Valve Spring and
 Valve Guide

6A–37

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

6A–37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–37

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Piston, Piston Ring and Connecting Rod

6A–38

. . .

Removal

6A–38

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–39

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft and Main Bearings

6A–40

. . . . . . . . . . . .

Removal

6A–40

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–41

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Oil Seal

6A–45

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

6A–45

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–45

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Assembly

6A–46

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

6A–46

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6A–47

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head

6A–49

. . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head and Associated Parts

6A–49

. . . . .

Disassembly

6A–50

. . . . . . . . . . . . . . . . . . . . . . . . . .

Clean

6A–50

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

6A–50

. . . . . . . . . . . . . . . . . .

Reassembly

6A–51

. . . . . . . . . . . . . . . . . . . . . . . . . .

Valve Spring, Oil Controller, Valve, Valve
 Guide

6A–53

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Valve Spring, Oil Controller, Valve, Valve
 Guide and Associated Parts

6A–53

. . . . . . . . . . . .

Disassembly

6A–53

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

6A–54

. . . . . . . . . . . . . . . . . .

Reassembly

6A–57

. . . . . . . . . . . . . . . . . . . . . . . . . .

Camshaft

6A–60

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Camshaft and Associated Parts

6A–60

. . . . . . . . .

Disassembly

6A–60

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

6A–61

. . . . . . . . . . . . . . . . . .

Reassembly

6A–63

. . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft

6A–67

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft and Associated Parts

6A–67

. . . . . . . .

Disassembly

6A–67

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair for Bearings

6A–68

. . . . . .

Inspection and Repair for Crankshaft

6A–70

. . . . .

Reassembly

6A–71

. . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION
