Isuzu Trooper (1998-2002 year). Manual - part 180
TRANSFER CASE (STANDARD TYPE)
4D1–29

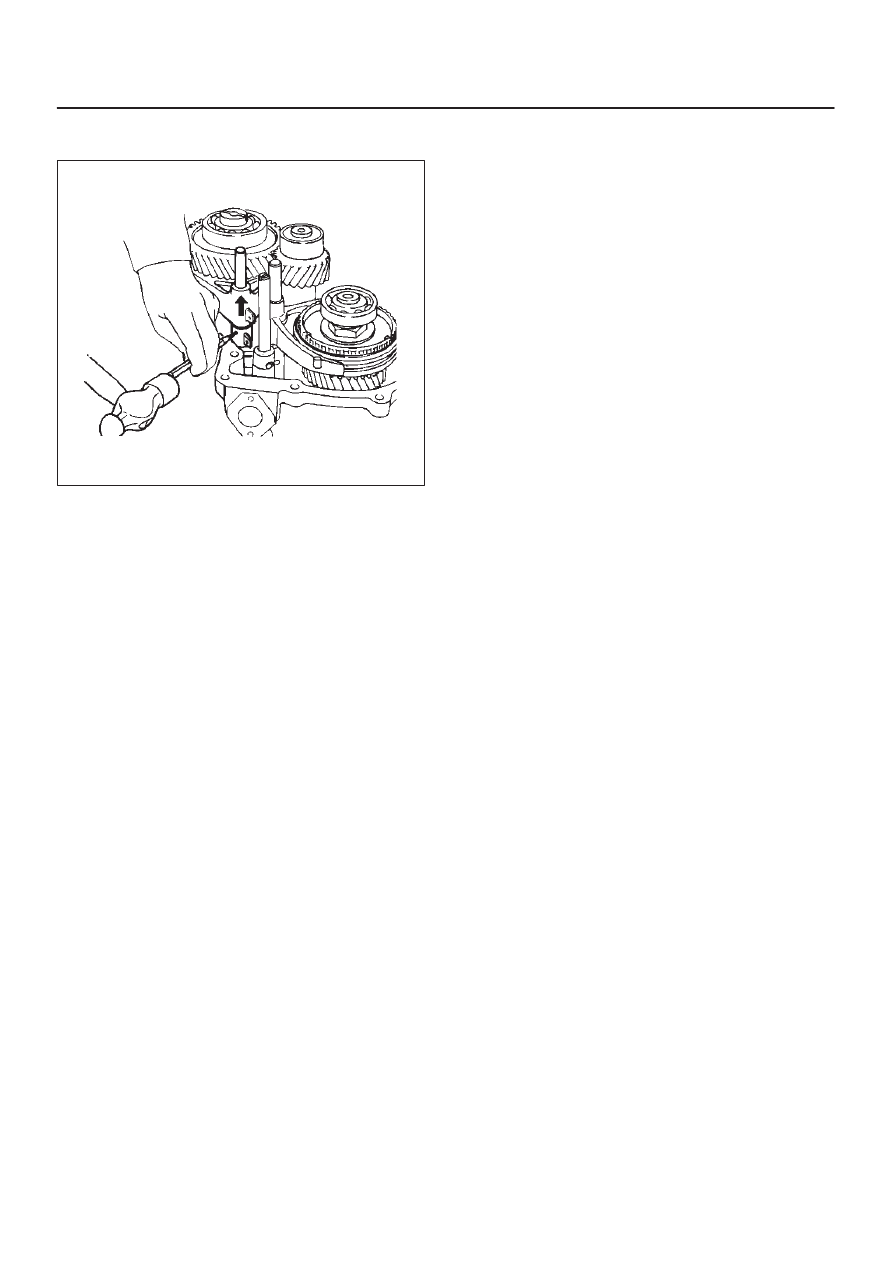

14. Engage the 2WD–4WD sleeve with the 4WD side and
install the spring pin (3).
262RW022
15. Install the spring pin and bridge (2).16. Install the detent ball, spring and plug and tighten the
plug (1) to the specified torque.
Torque: 25 N·m (2.5kg·m/18 lb ft)
