Isuzu Trooper (1998-2002 year). Manual - part 169
4C–40
DRIVE SHAFT SYSTEM
Disassembly (Except TOD 4
×
4)

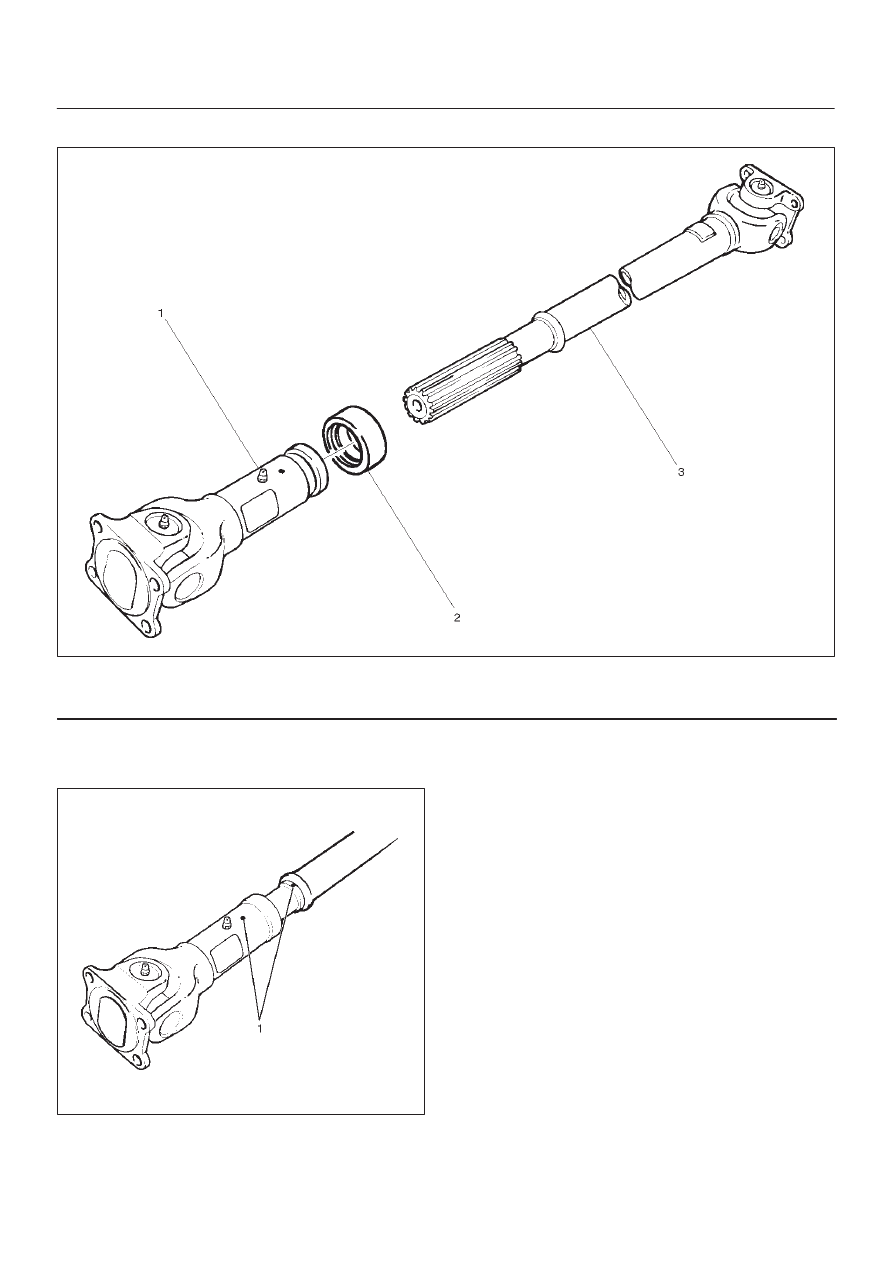

401RW057
Legend
(1) Sleeve Yoke
(2) Seal(3) Tube Assembly
1. Apply alignment marks (1) on the sleeve yoke and
tube assembly then remove sleeve yoke.
401RW056
2. Remove seal.3. Remove tube assembly.
