4C–20

DRIVE SHAFT SYSTEM

Main Data and Specifications

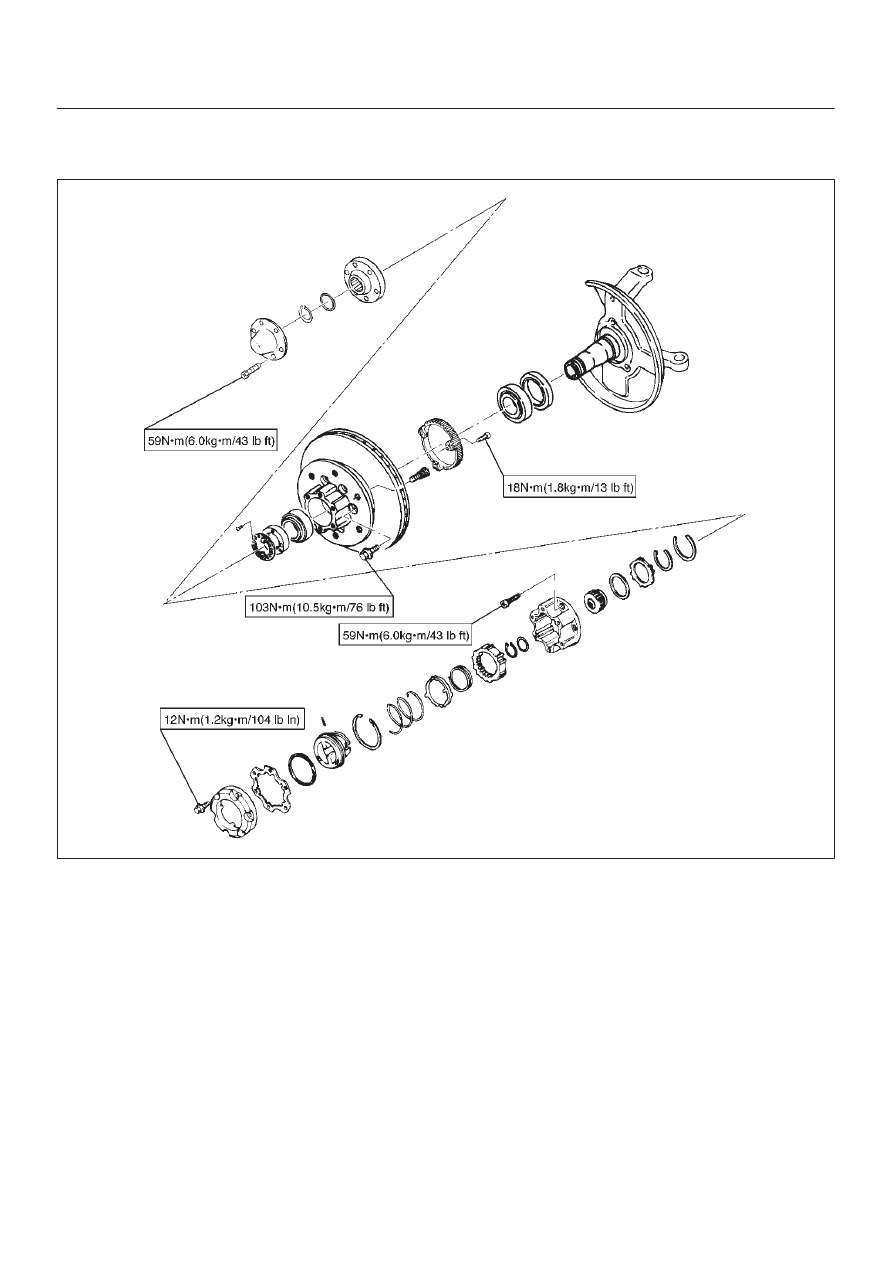

Torque Specifications

E04RW022

4C–21

DRIVE SHAFT SYSTEM

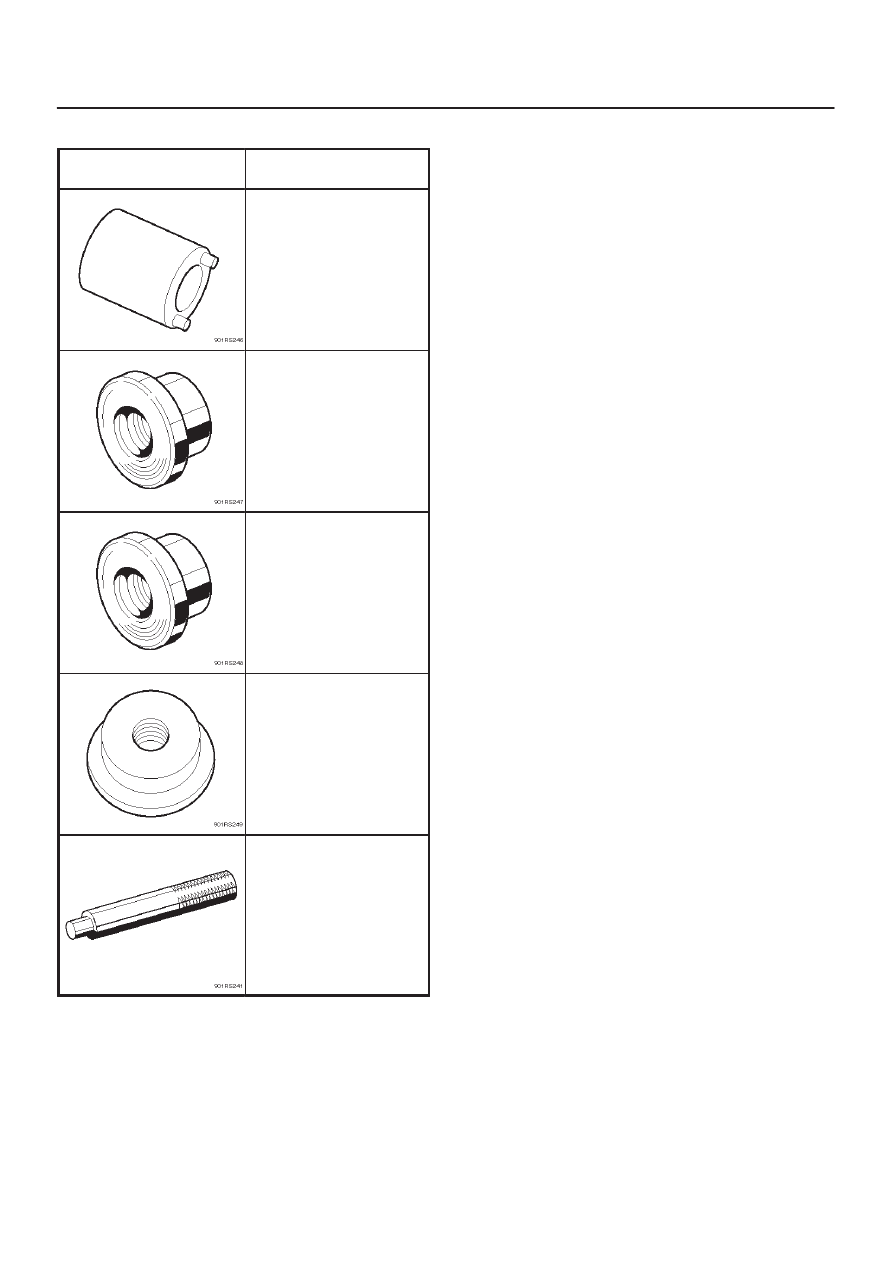

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2117–0

(J–36827)

Wrench; Hub nut

5–8840–2119–0

(J–36829)

Installer; Inner bearing

5–8840–2118–0

(J–36828)

Installer; Outer bearing

5–8840–2120–0

(J–36830)

Installer; Oil seal

5–8840–0007–0

(J–8092)

Grip

4C–22

DRIVE SHAFT SYSTEM

Front Drive Shaft Joint

Front Drive Shaft Joints Replace-
ment

D

Refer to Front Drive Axle Assembly Replacement in
this section, and refer to Front Hub and Disc in
Suspension section.

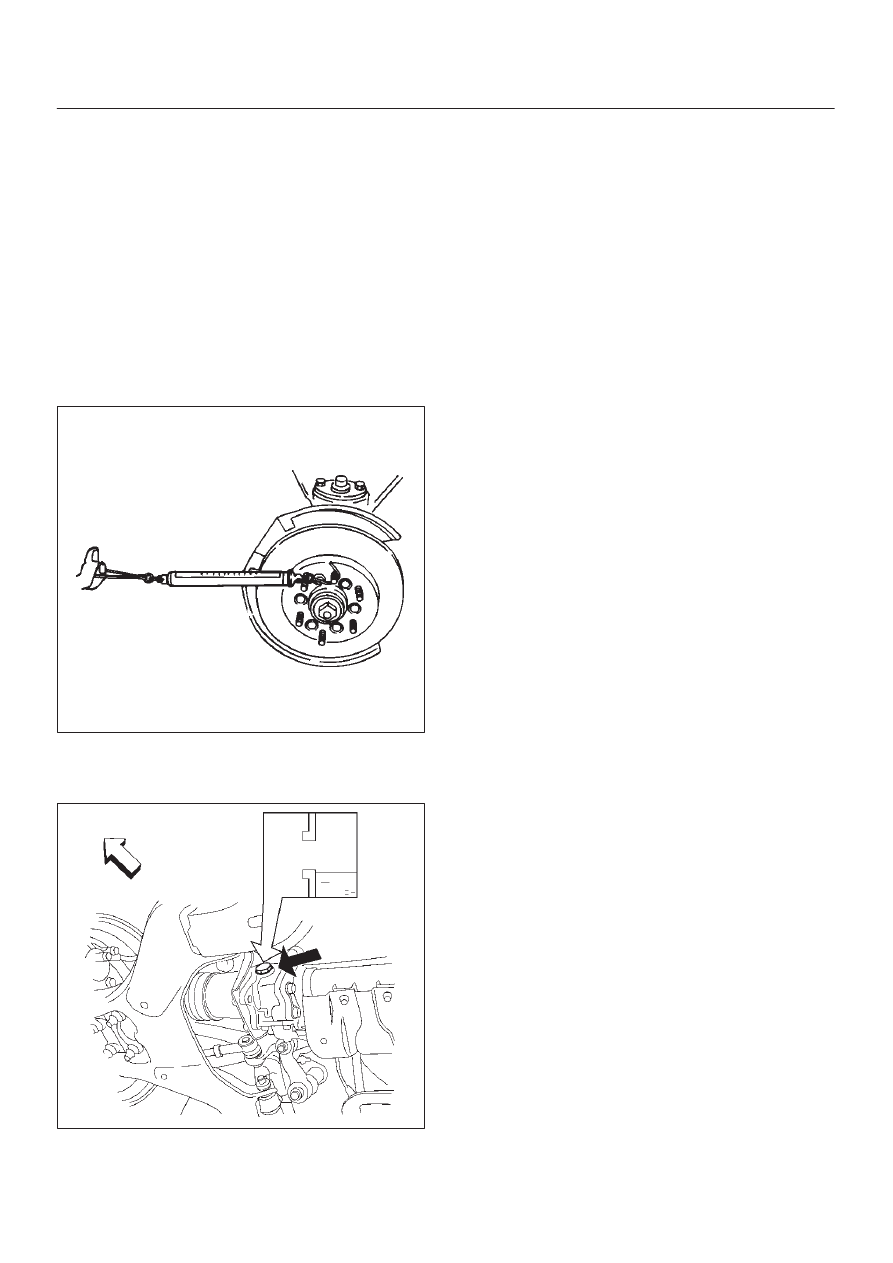

Front Hub Bearing Preload Check

Check the hub bearing preload at the wheel pin.

New bearing and New oil seal

Preload: 20 – 25 N (2.0 – 2.5 kg/4.4–5.5 lb)

New bearing and New oil seal

Preload: 12 –18 N (1.2 – 1.8 kg/2.6–4.0 lb)

411RS001

Inspection Of Shift On The Fly System
Gear Oil

412RT002

1. Open filler plug and make sure that the oil is up to the

plug port.
If the level oil is low, replenish with gear oil GL–5
grade.

2. Tighten the filler plug to specified torque.

Torque: 7.8 N·m (7.9 kg·cm/58 lb in)

4C–23

DRIVE SHAFT SYSTEM

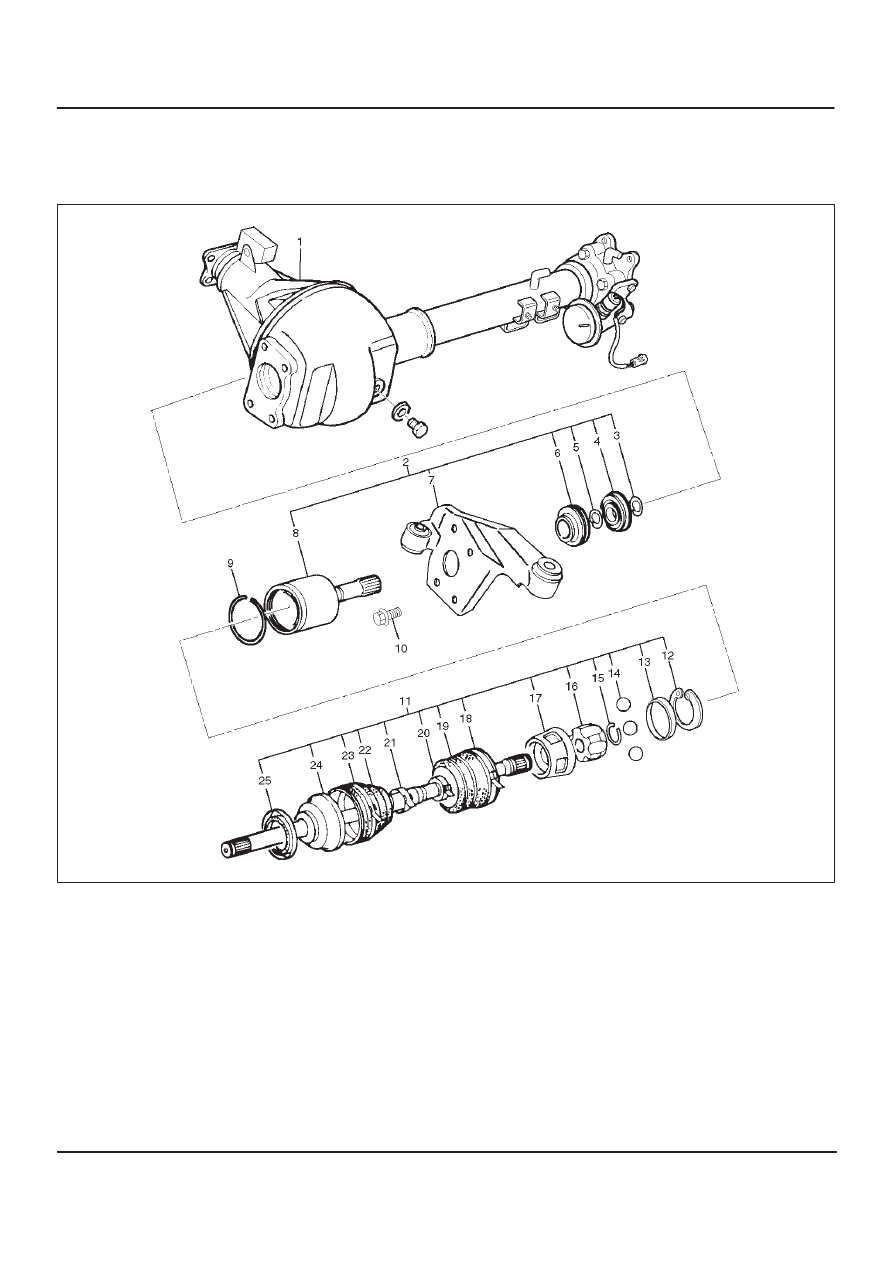

Front Axle Drive Shaft

Front Axle Drive Shaft and Associated Parts

This illustration is based on the model equipped with shift on the fly system.

412RW003

Legend

(1) Axle Case and  Differential
(2) DOJ Case Assembly
(3) Snap Ring
(4) Bearing
(5) Snap Ring
(6) Oil Seal
(7) Bracket
(8) DOJ Case
(9) Circlip

(10) Bolt

(11) Drive Shaft Joint Assembly

(12) Snap Ring

(13) Spacer
(14) Ball
(15) Snap Ring
(16) Ball Retainer
(17) Ball Guide
(18) Band
(19) Bellows
(20) Band
(21) Band
(22) Bellows
(23) Band
(24) BJ Shaft
(25) Dust Seal
