DRIVE LINE CONTROL SYSTEM (TOD)

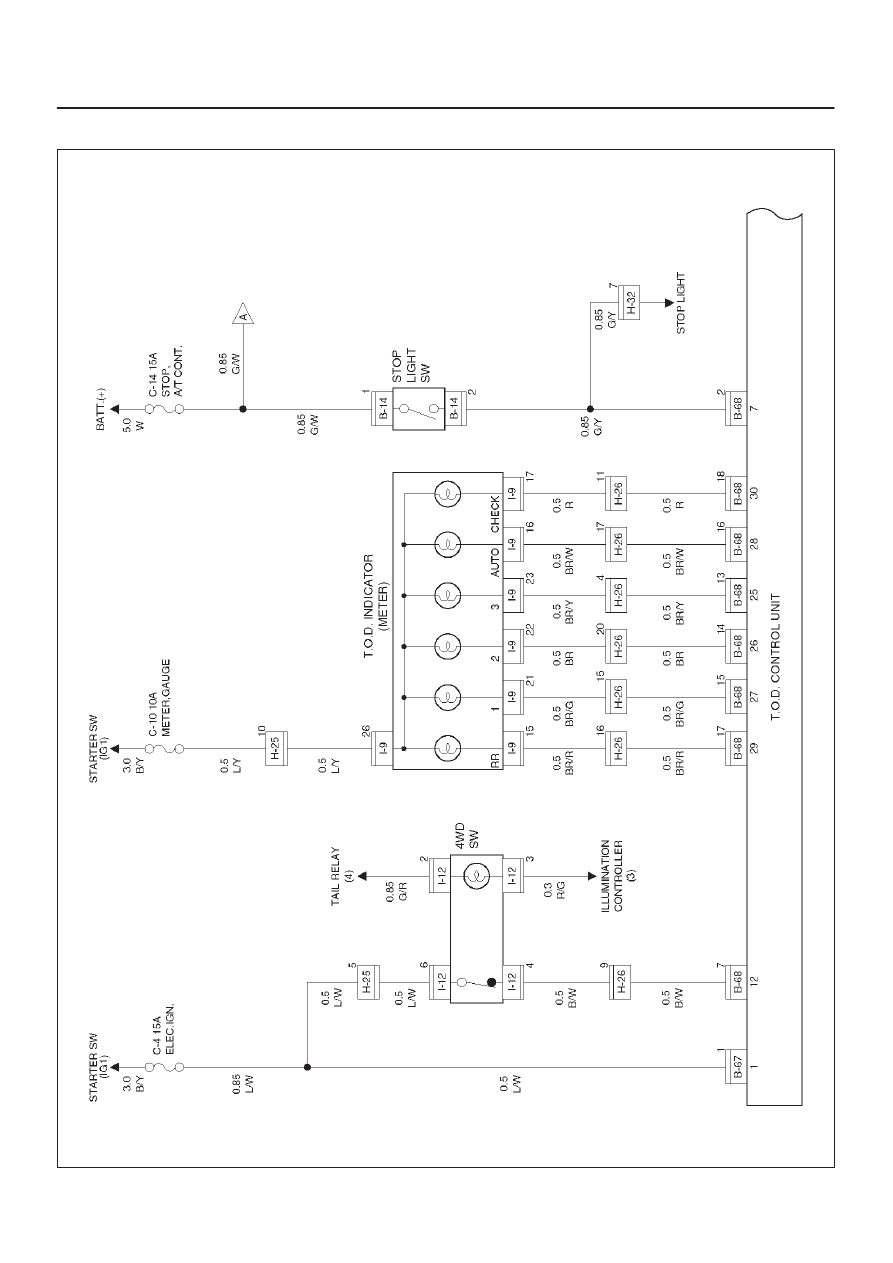

Circuit Diagram–1 (LHD 4JX1)

D04RY00050

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–32

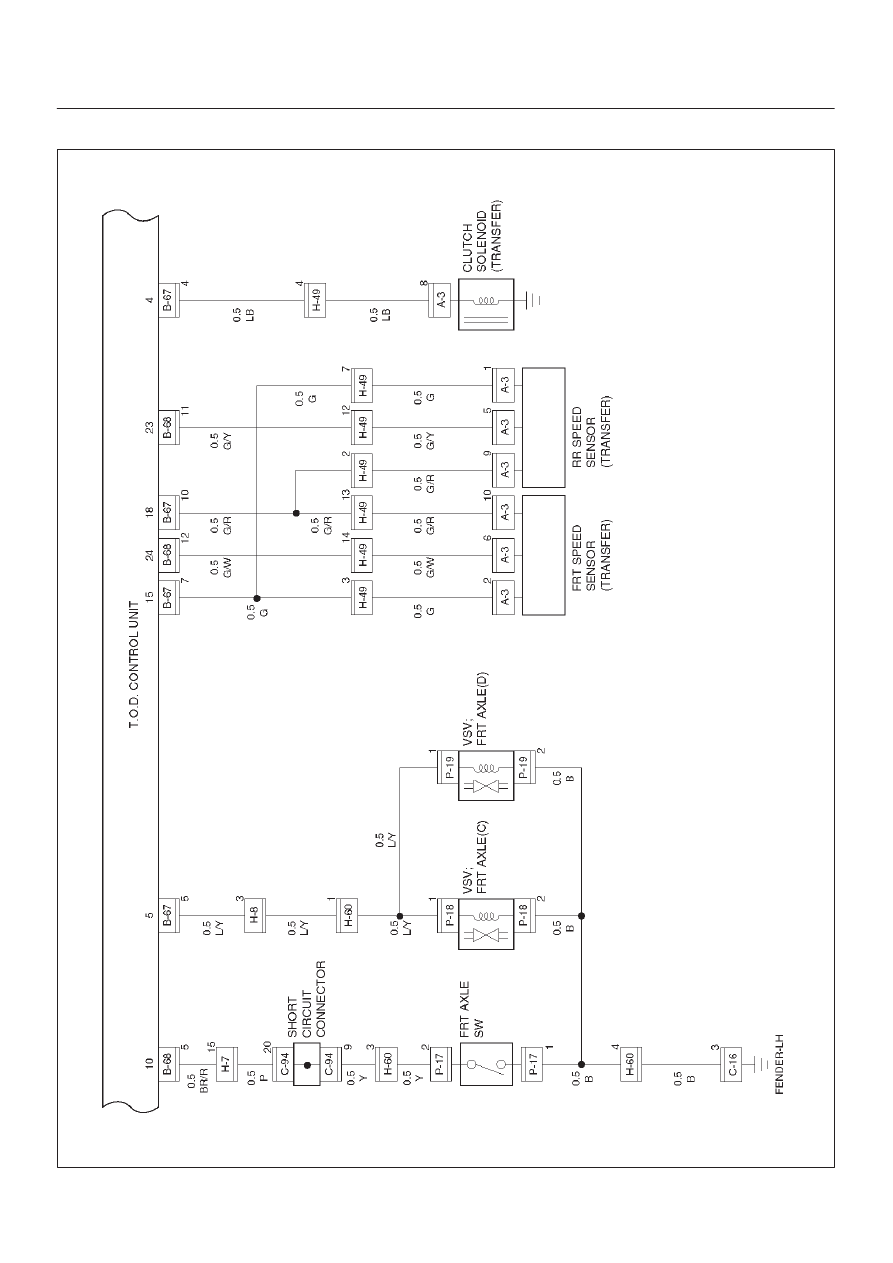

Circuit Diagram–2 (LHD 4JX1)

D04RY00074

4B2–33

DRIVE LINE CONTROL SYSTEM (TOD)

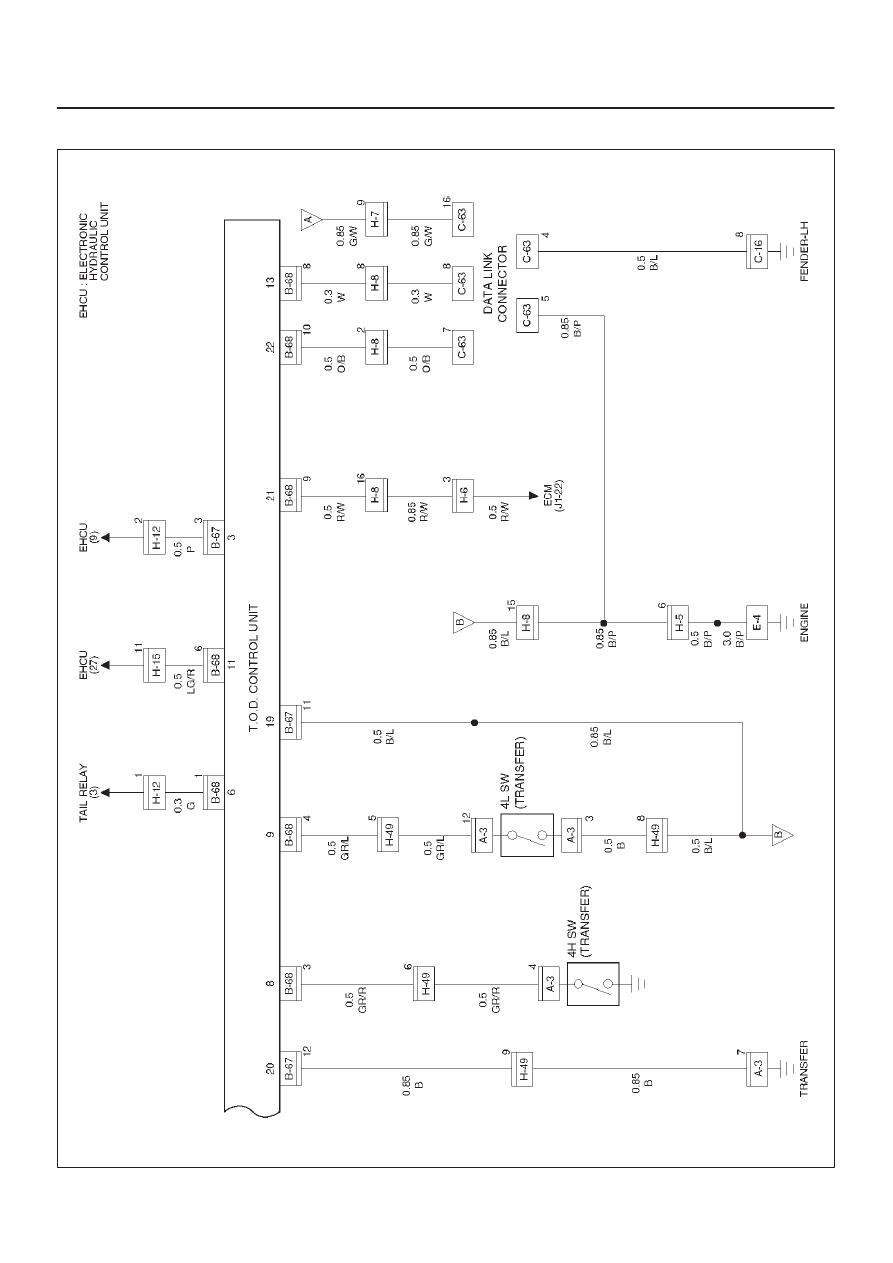

Circuit Diagram–3 (LHD 4JX1)

D04RY00052

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–34

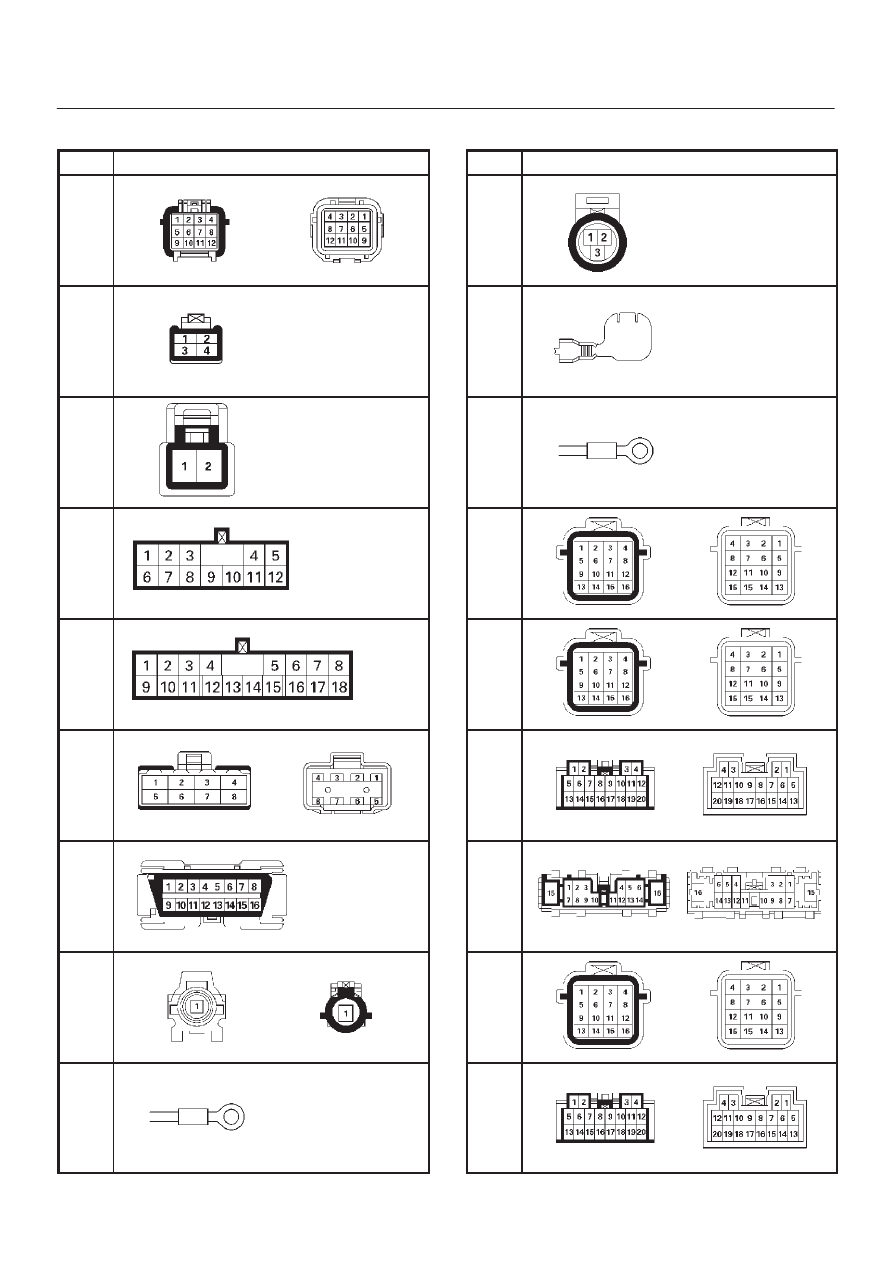

Connector List

No.

Connector face

A-3

B-13

B-14

B-67

B-68

C-16

C-63

E-4

(6VE1)

E-4

(4JX1)

No.

Connector face

E-5

(6VE1)

E-29

(6VE1)

E-30

(6VE1)

H-5

(6VE1)

(4JX1

–A/T)

H-6

H-7

H-8

H-10

H-12
