4B1–17

DRIVE LINE CONTROL SYSTEM (SHIFT ON THE FLY)

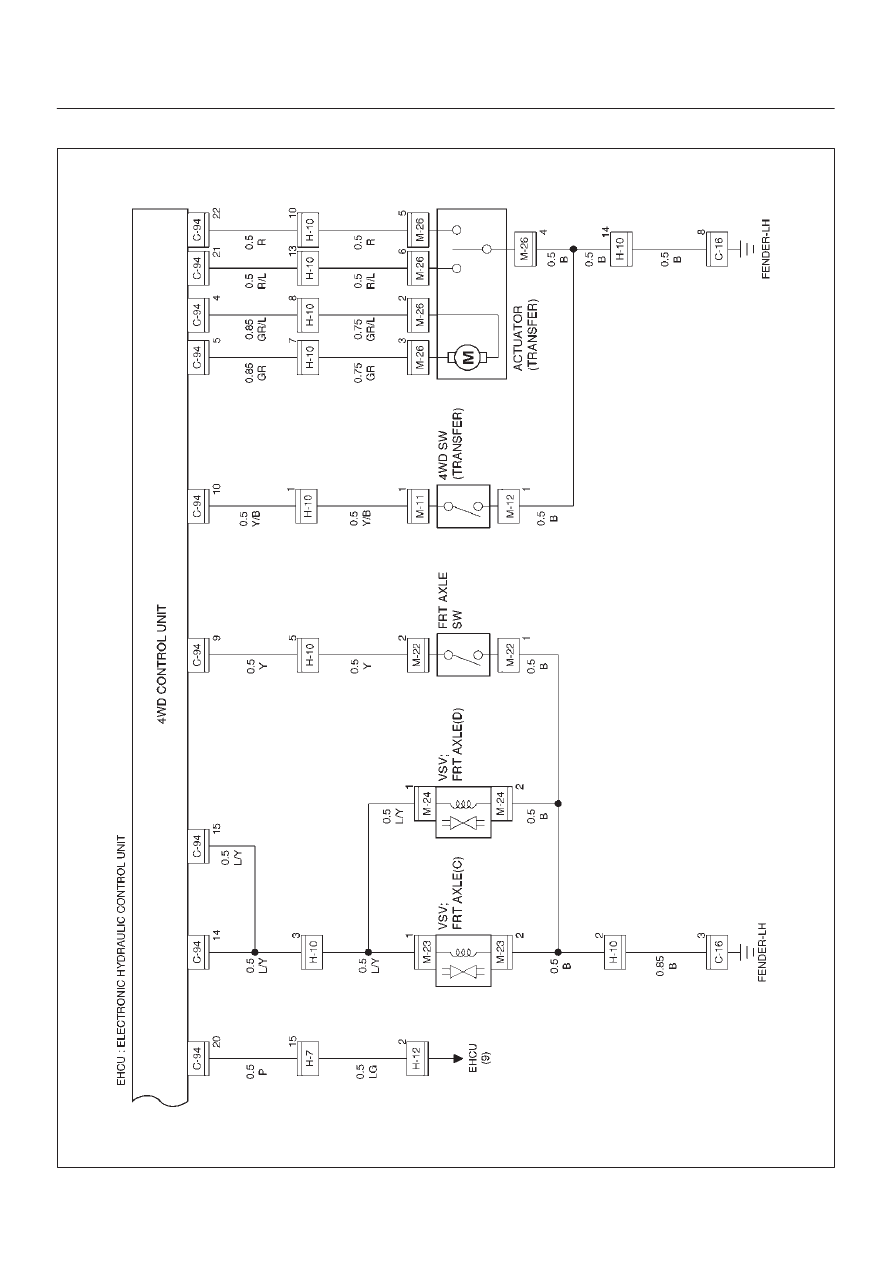

Wiring Diagram (LHD / Diesel Engine Model)

D08RW841

4B1–18DRIVE LINE CONTROL SYSTEM (SHIFT ON THE FLY)

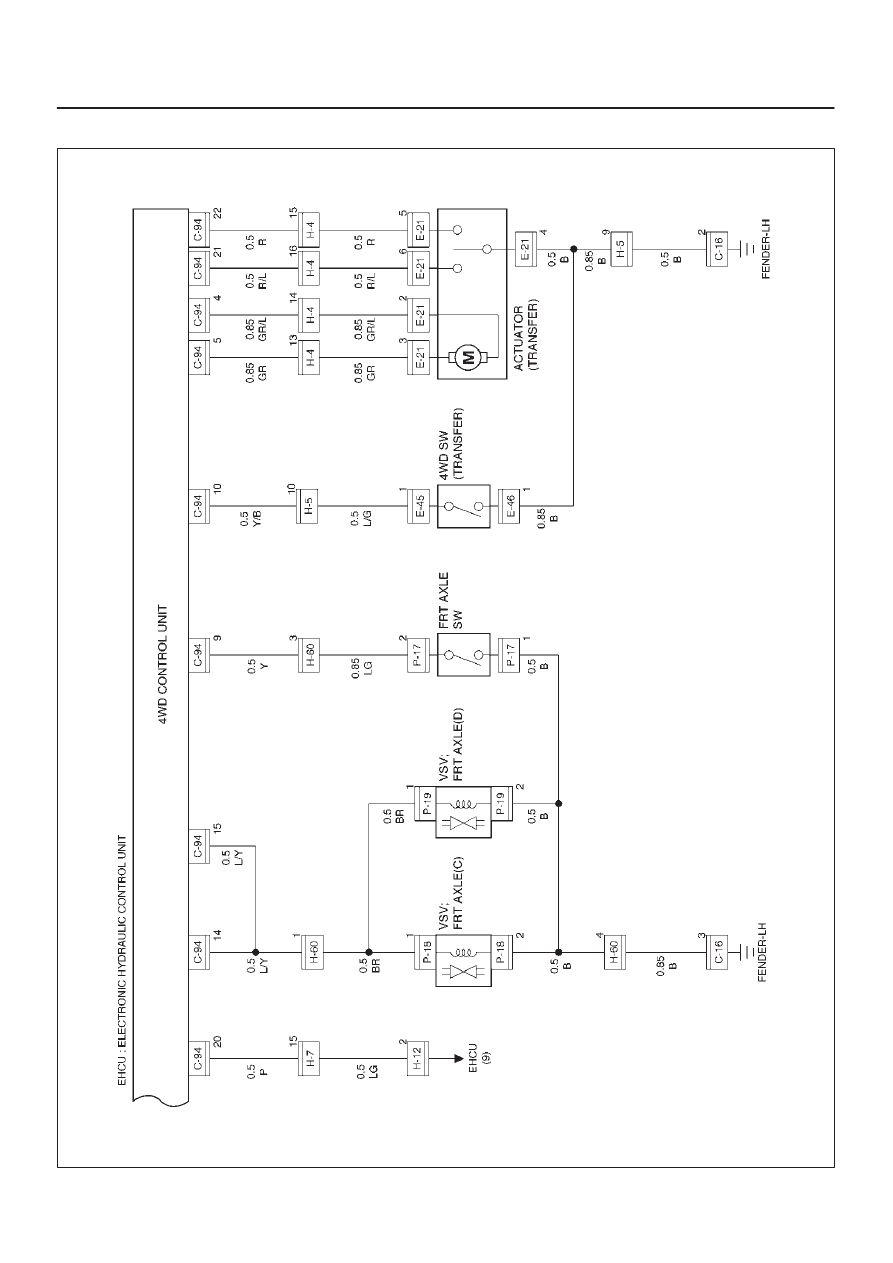

Wiring Diagram (LHD / Gasoline Engine Model)

D08RW843

4B1–19

DRIVE LINE CONTROL SYSTEM (SHIFT ON THE FLY)

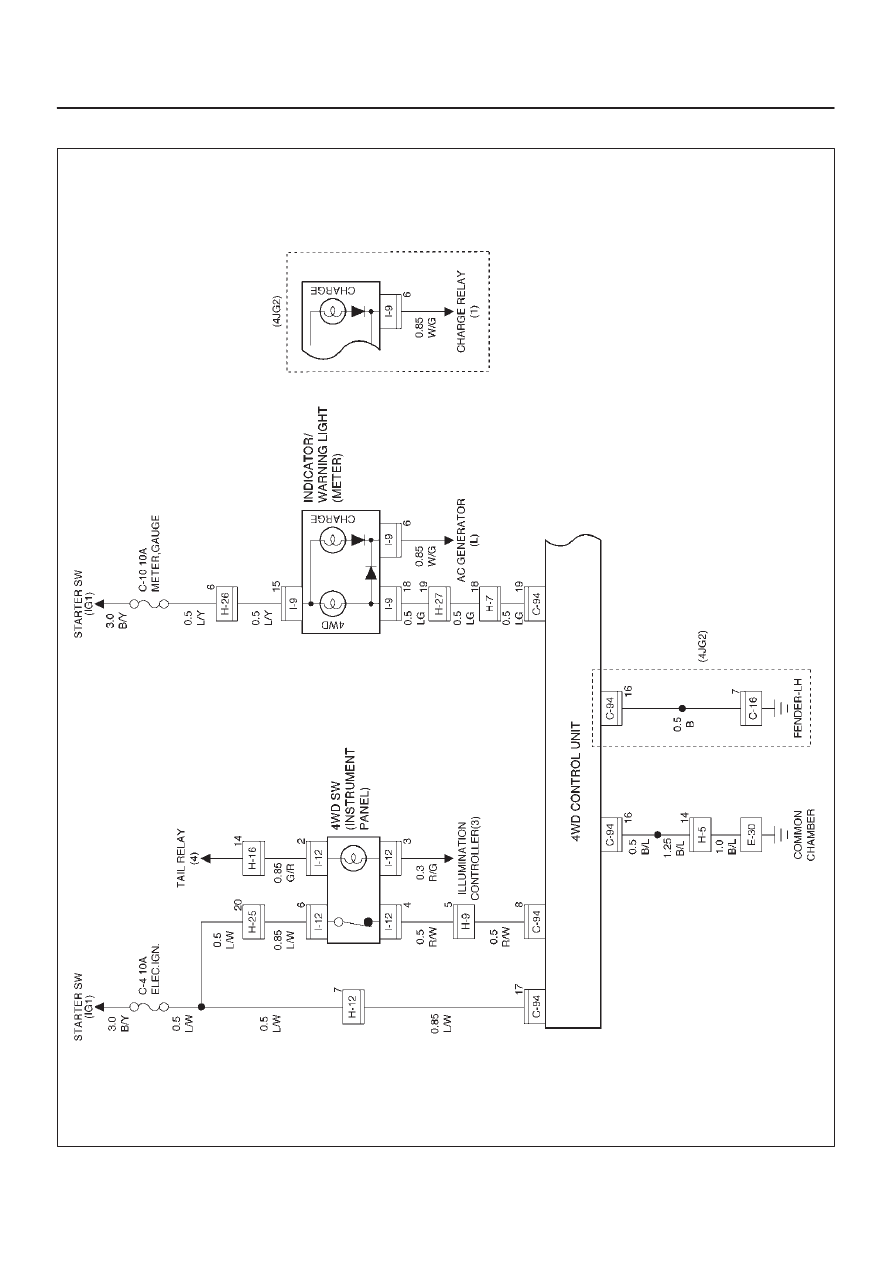

Wiring Diagram (RHD Model)

D08RW844

4B1–20DRIVE LINE CONTROL SYSTEM (SHIFT ON THE FLY)

Wiring Diagram (RHD / Diesel Engine Model)

D08RW842
